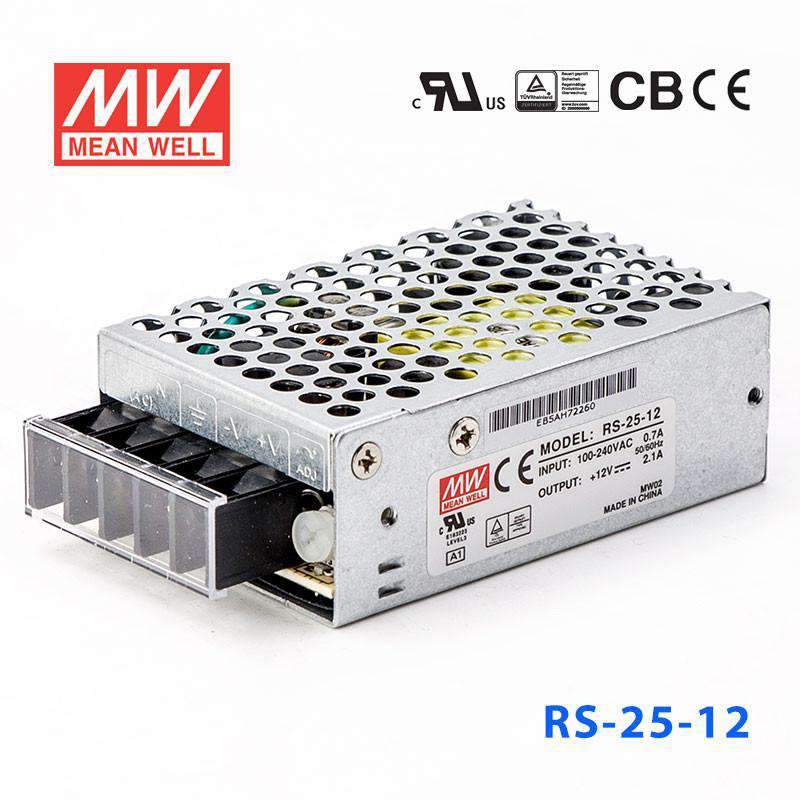

Mean Well RS-25-12 Power Supply 25W 12V 2.1A
Overview
RS-25-12 is the 12V output model of this series: rated current 2.1A, rated power 25.2W, typical efficiency 81.5%.
Features
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105℃ long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70℃
- Withstand 5G vibration test
- No load power consumption<0.5W
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 12V
- RATED CURRENT
- 2.1A
- CURRENT RANGE
- 0 ~ 2.1A
- RATED POWER
- 25.2W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 10.8 ~ 13.2V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATIONNote.4
- ±0.5%
- LOAD REGULATIONNote.5
- ±0.5%
- SETUP, RISE TIME
- 1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 80ms/230VAC 14ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 81.5%
- AC CURRENT (Typ.)
- 0.7A/115VAC 0.4A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 45A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOAD
- 110 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 13.8 ~ 16.2V Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT
- WORKING TEMP.
- -20 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 6)
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1:2005 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
OTHERS
- MTBF
- 3992.0K hrs min. Telcordia SR-332 (Bellcore) ; 663.3K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 78*51*28mm (L*W*H)
- PACKING
- 0.2Kg; 60pcs/13Kg/0.46CUFT
Test conditions and notes7
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 0% to 100% rated load.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RS-25-12 for a small 12V control or automation device?
Yes, if the load requires constant-voltage 12V and draws no more than 2.1A. With 25.2W available, it is aimed at smaller 12V control and automation loads rather than higher-power equipment.
Is the RS-25-12 suitable for compact embedded systems that run on 12V DC?
It is a constant-voltage 12V supply with up to 2.1A output current. That makes it a practical fit for compact embedded systems whose total demand stays within 25.2W.
Can this model power a low-power 12V industrial sensor or interface module?
It can power 12V industrial electronics as long as the total load is at or below 2.1A and 25.2W. The compact 78.0 × 51.0 × 28.0 mm size also supports space-constrained equipment layouts.
How do I know whether the RS-25-12 is too small for my 12V load?
Use it only with constant-voltage 12V equipment that stays within 2.1A and 25.2W. If your load needs more than either of those values, you need a higher-capacity 12V model.
Is the RS-25-12 for indoor use only, or can it handle wider environmental conditions?
Its operating temperature range is -20°C to +70°C, which supports a broad indoor industrial temperature span. The provided specs do not include an IP rating, so outdoor exposure is not established by this data.
How does the RS-25-12 compare with other 12V RS series options?
The RS-25 series includes 12V models such as RS-15-12 (15.6W, 1.3A), RS-25-12 (25.2W, 2.1A), RS-35-12 (35W, 3A), RS-50-12 (50.4W, 4.2A), RS-75-12 (72W, 6A), RS-100-12 (102W, 8.5A), and RS-150-12 (150W, 12.5A). RS-25-12 sits near the low-power end of that 12V range.
