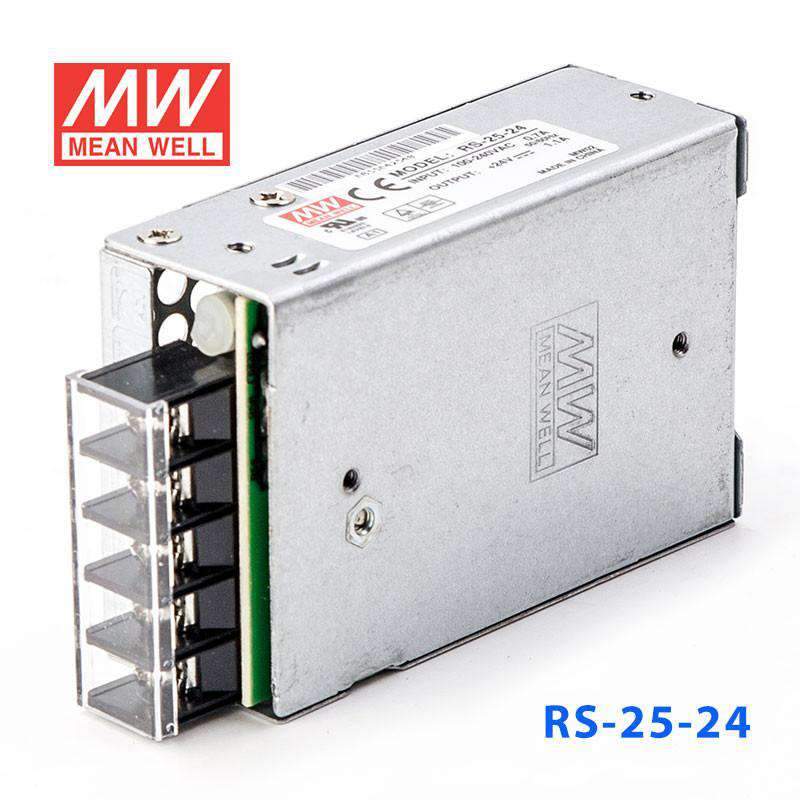

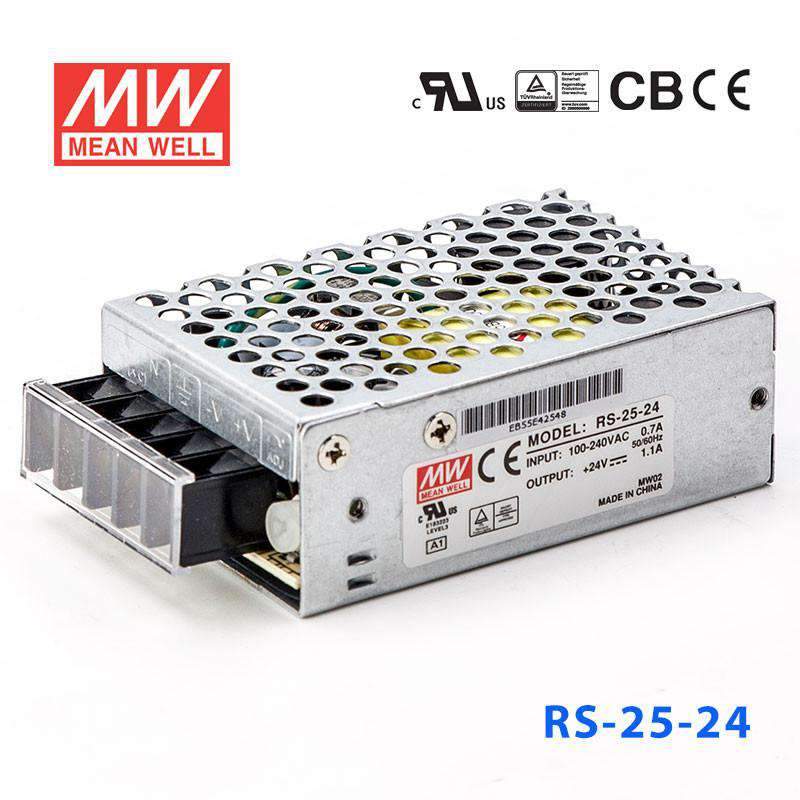

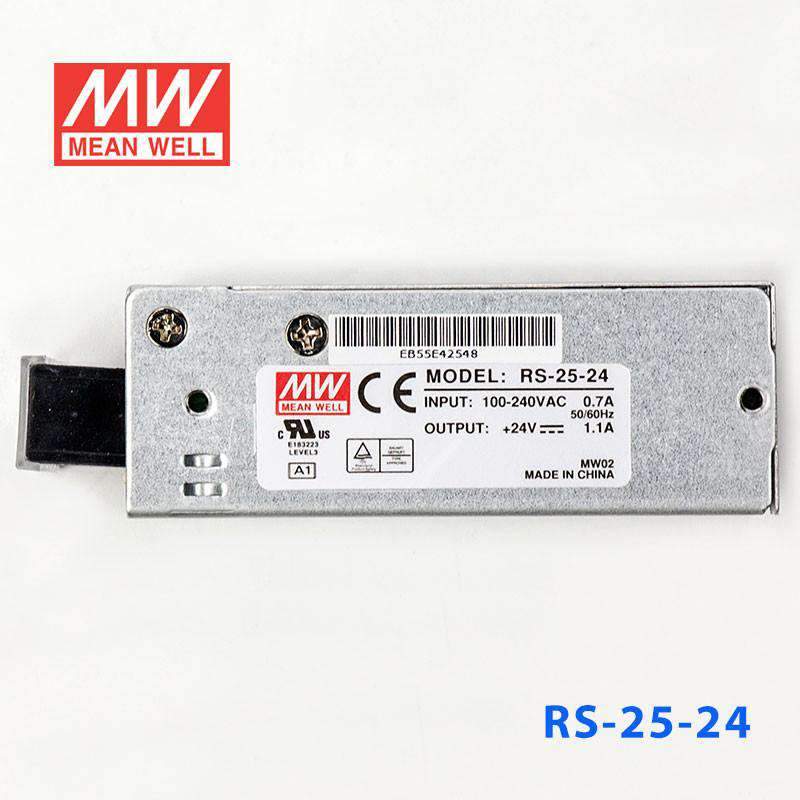

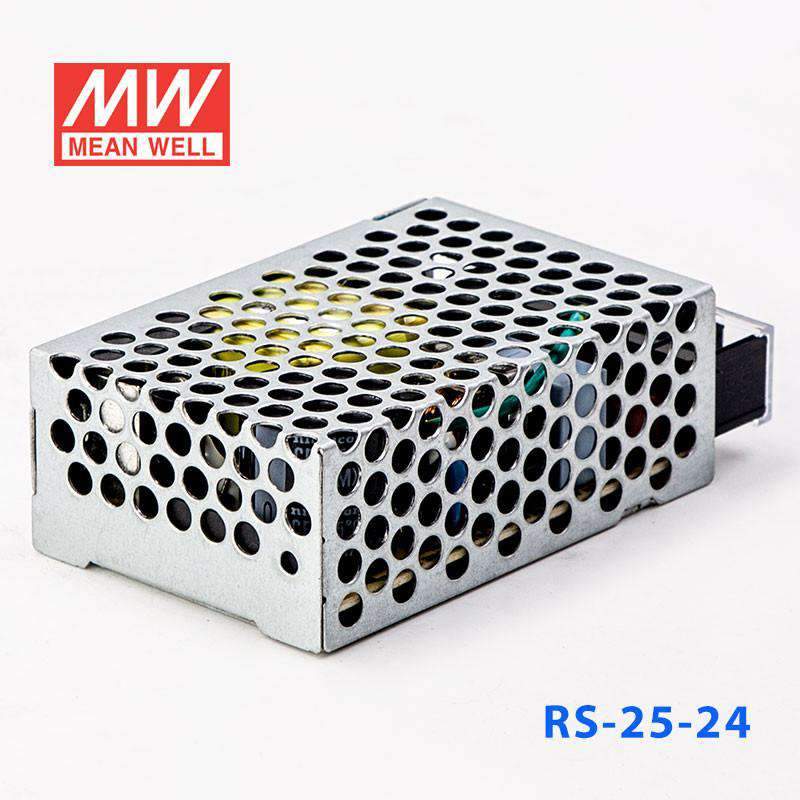

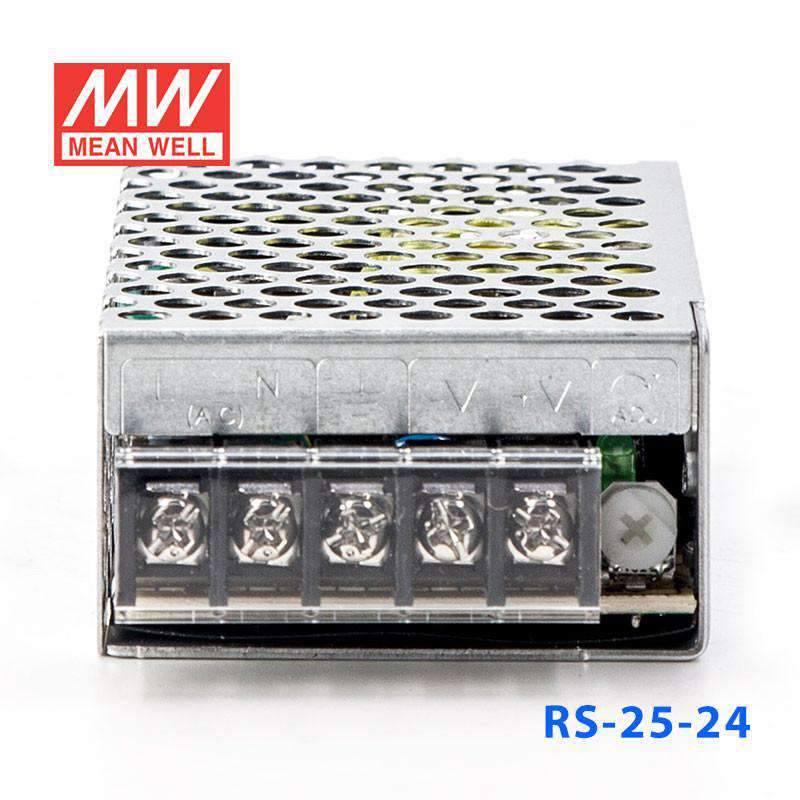

Mean Well RS-25-24 Power Supply 25W 24V

Name: Mean Well RS-25-24 Power Supply 25W 24V
Brand: Mean Well
SKU: RS-25-24
Price: 12.61 USD
Availability: InStock

4282 units in stock

$12.61 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	88~264VAC, 125~373VDC
AC inrush current (max.)	30A at 230VAC
DC adjustment range	±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	110%~180%
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-20~+70°C
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)
Connection	Terminal block for input and output
Dimension (LxWxH)	78x 51x 28
Case No.	931A
Packing	60pcs /13.0kg
