Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

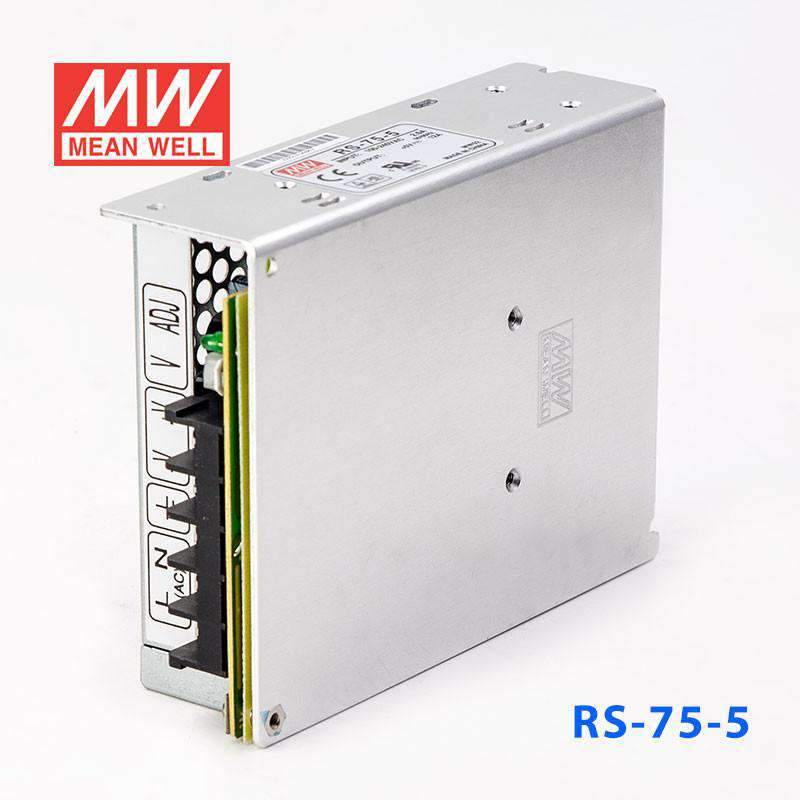

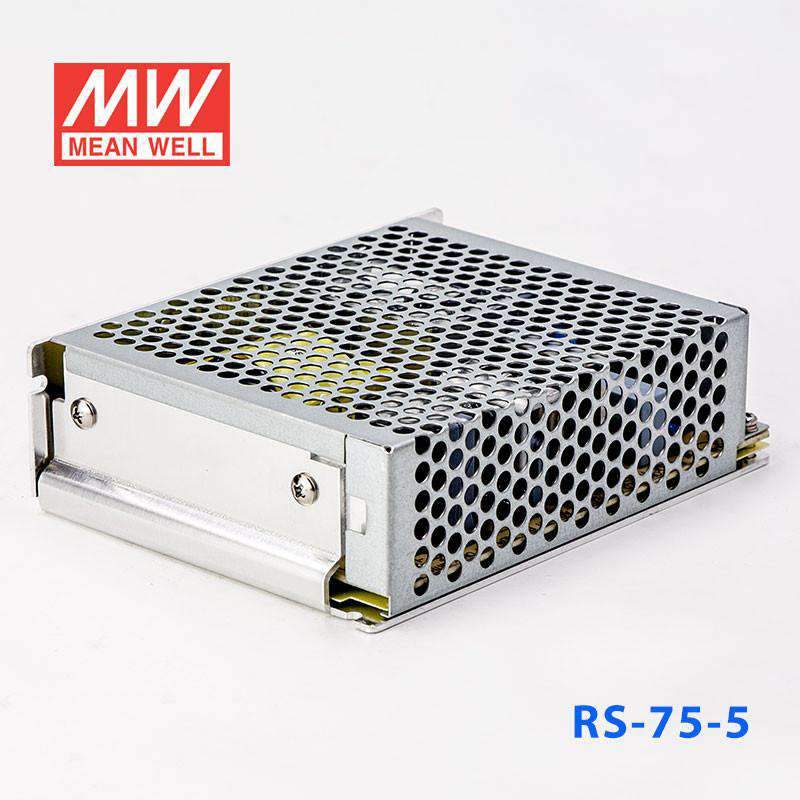

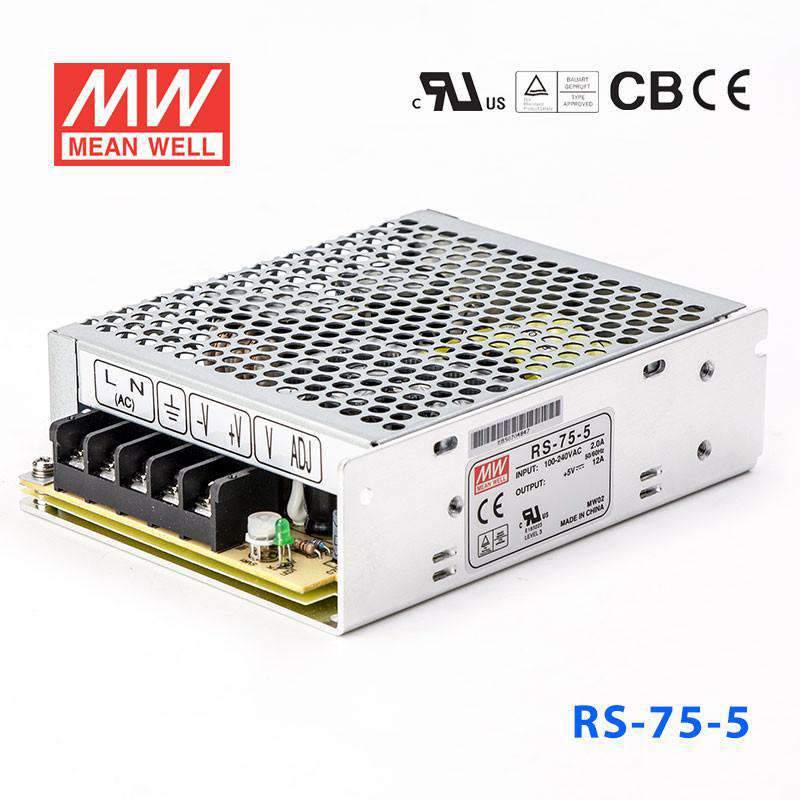

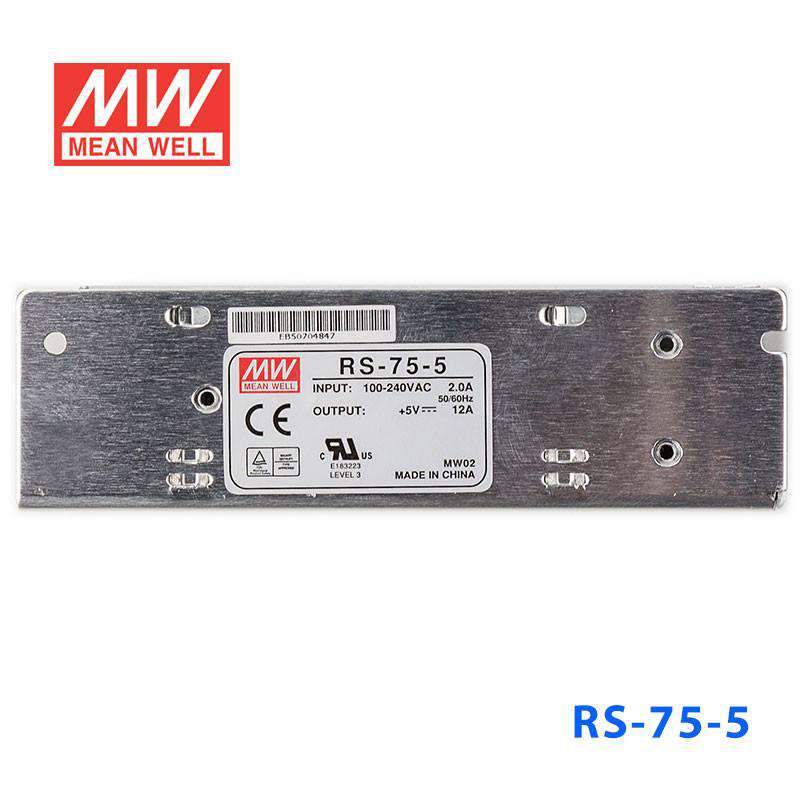

Mean Well RS-75-5 Power Supply 75W 5V

Name: Mean Well RS-75-5 Power Supply 75W 5V
Brand: Mean Well
SKU: RS-75-5
Price: 22.7 USD
Availability: InStock

$22.70 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

All using 105°C long life electrolytic capacitors

Protections: Short circuit / Overload / Over voltage

Meet EMS EN50082-2/EN61000-6-2

Heavy industry level (35~150W)

Withstand 300VAC surge input for 5 sec.

High operating temperature up to 70¬∞C

Withstand 5G vibration test

Miniature size, high power density

High efficiency, long life and high reliability

LED indicator for power on

100% full load burn-in test

Suitable for critical applications

3 years warranty

General Specification

AC input voltage range	88~264VAC, 125~373VDC
AC inrush current (max.)	40A at 230VAC
DC adjustment range	±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output
Overload protection	110%~150% hiccup mode, auto-recovery
Over voltage protection	115%~135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage	I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature	-25~+70°C (refer to the derating curve for different models)
Vibration	10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

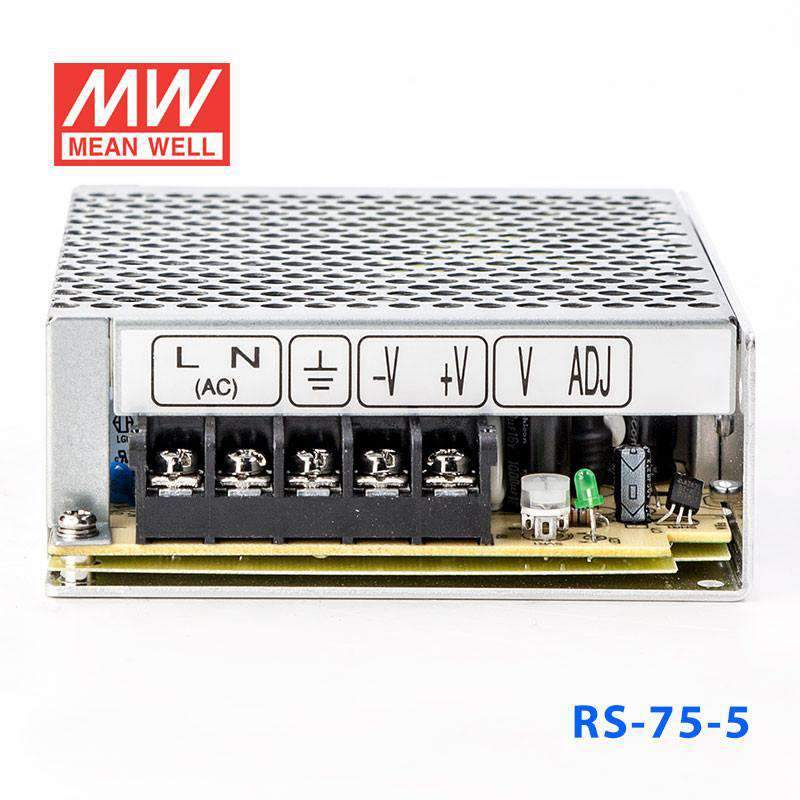

Connection	Terminal block for input and output
Dimension (LxWxH)	199x 98x 38
Case No.	902A
Packing	20pcs /15kg

Specifications

Brand

Mean Well
Series

RS Series
Power Rating

60 Watt
Output Voltage

5 Volt
Rated Current

12 Ampere
Input Voltage

88V~264V
No of Output

1
Standards Met

BSMI,CB,CCC,CE,EAC,RCM,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

5.08 in
Width

3.86 in
Height

1.5 in
Weight

0.9 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

All using 105°C long life electrolytic capacitors

Protections: Short circuit / Overload / Over voltage

Meet EMS EN50082-2/EN61000-6-2

Heavy industry level (35~150W)

Withstand 300VAC surge input for 5 sec.

High operating temperature up to 70¬∞C

Withstand 5G vibration test

Miniature size, high power density

High efficiency, long life and high reliability

LED indicator for power on

100% full load burn-in test

Suitable for critical applications

3 years warranty

General Specification

AC input voltage range

88~264VAC, 125~373VDC

AC inrush current (max.)

40A at 230VAC

DC adjustment range

±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output

Overload protection

110%~150% hiccup mode, auto-recovery

Over voltage protection

115%~135% rated output voltage, hiccup mode, auto-recovery

Withstand voltage

I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute

Working temperature

-25~+70°C (refer to the derating curve for different models)

Vibration

10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes

Safety standards

UL60950-1, TUV EN60950-1 approved

EMC standards

EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W)

Connection

Terminal block for input and output

Dimension (LxWxH)

199x 98x 38

Case No.

902A

Packing

20pcs /15kg
