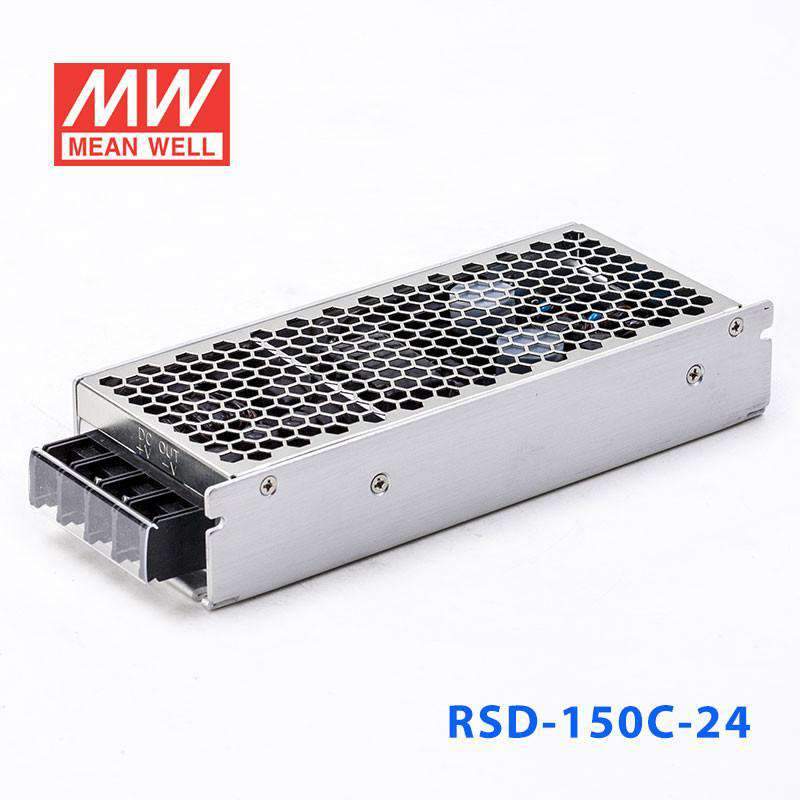

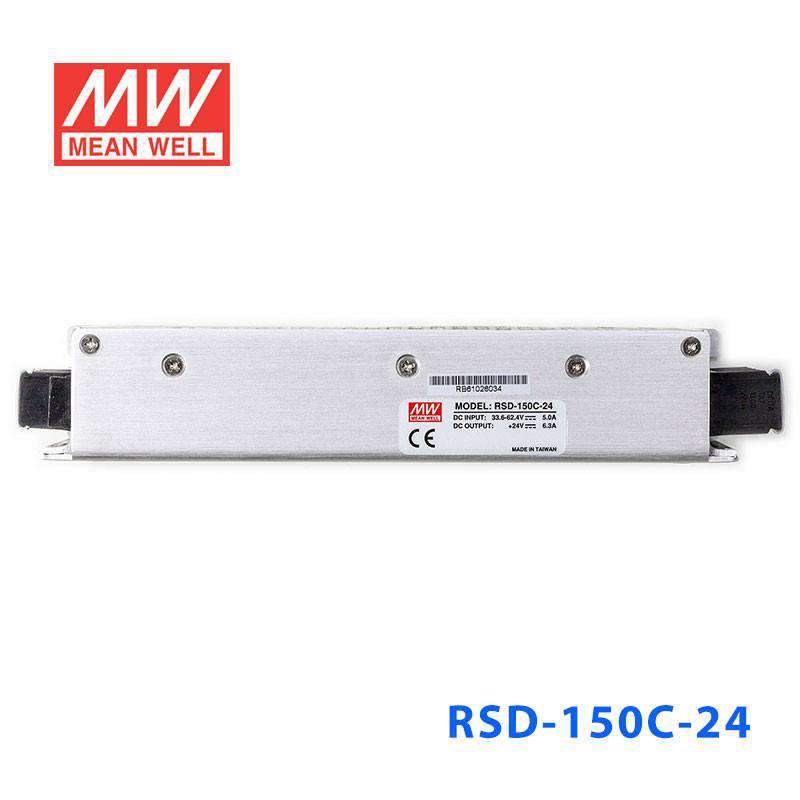

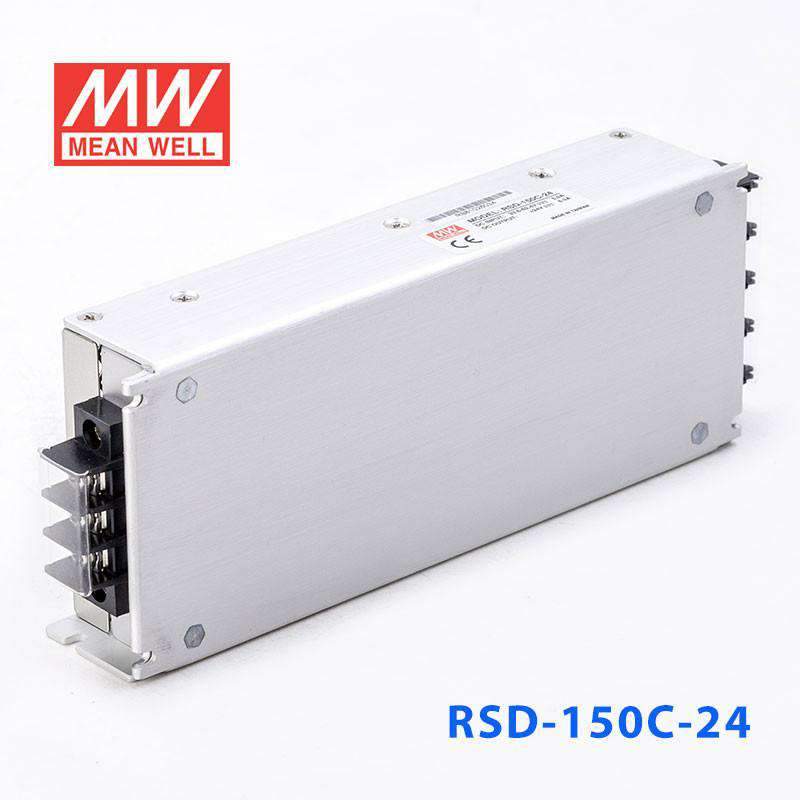

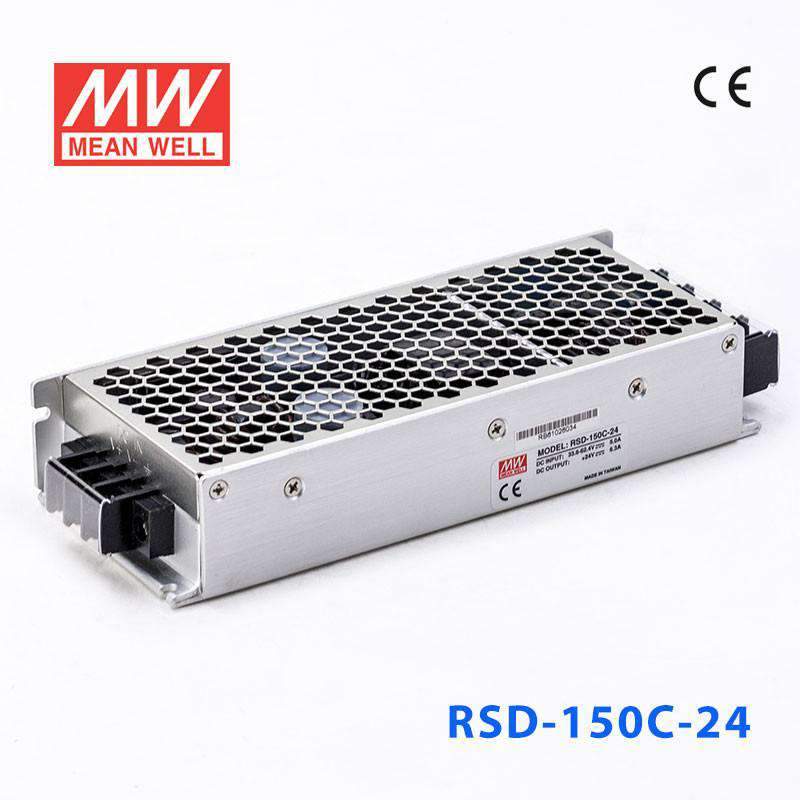

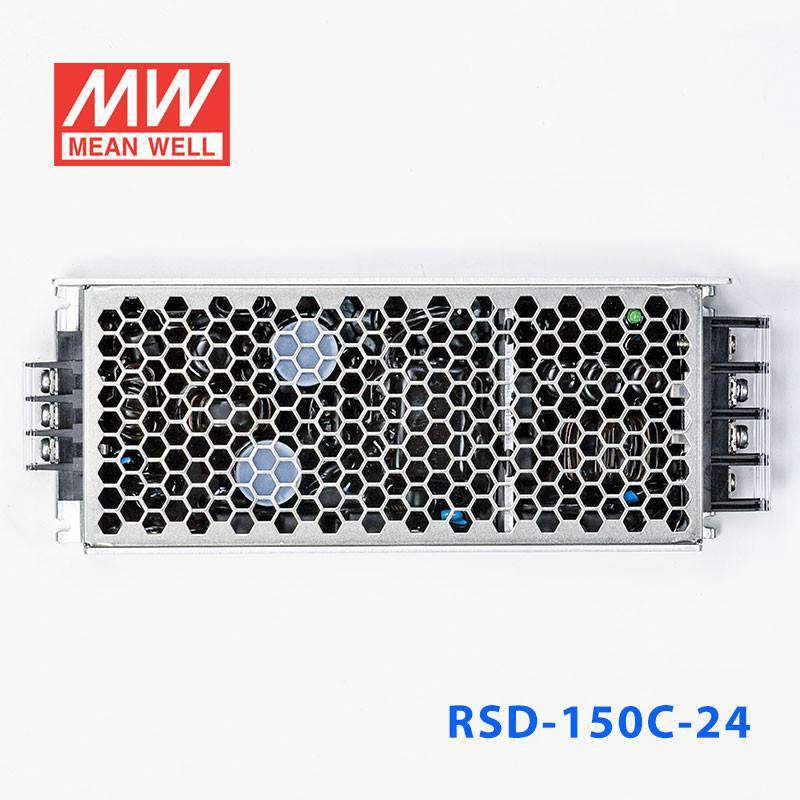

Mean Well RSD-150C-24 DC-DC Converter - 151.2W - 33.6~62.4V in 24V out

miniature size, economical, withstand 5G vibration and 70°C operation
SKU:
RSD-150C-24

$88.31 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

Compliance to EN50155 railway standard
2: 1 wide input range
4000VDC I / O isolation
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Over temp.
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile
All using 105 ° C long life electrolytic
Half encapsulated
100% full load burn-in test
3 years warranty

General Specification

Line regulation (max.) ± 0.5%
ALoad regulation (max.) ± 1%
Overload protection Range 105% ~ 135%
Overload protection Type Constant current limiting, recovers automatically after fault condition is removed
Over voltage protection 115% to 135% Shutdown O / P voltage, re-power on to recover
Withstand voltage I / PO / P: 4kVDC, I / P-FG: 2.5kVDC, O / P-FG: 2.5kVDC, 1 minute
Isolation resistance 100MQ(min.)@500VDC
Working temperature -40 ~ + 70°C (refer to output derating curve)
Safety standards Meet IEC60950-1 (LVD)
EMC standards EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,5,6,8
Railway standard EN50155 / IEC60571
Dimension (LxWxH) (mm) 189x77x36
Packing 15pcs / 13kg

Specifications

  • Brand
    Mean Well
  • Series
    RSD Series
  • Power Rating
    151.2 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    6.3 Ampere
  • Input Voltage
    33.6V~62.4V
  • No of Output
    2
  • Dimming Control
    None
  • Standards Met
    CB,CE,EAC,EMC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    3 Year
  • Length
    7.44 in
  • Width
    3.03 in
  • Height
    1.42 in
  • Weight
    1.76 lb

File Downloads

::specification::
