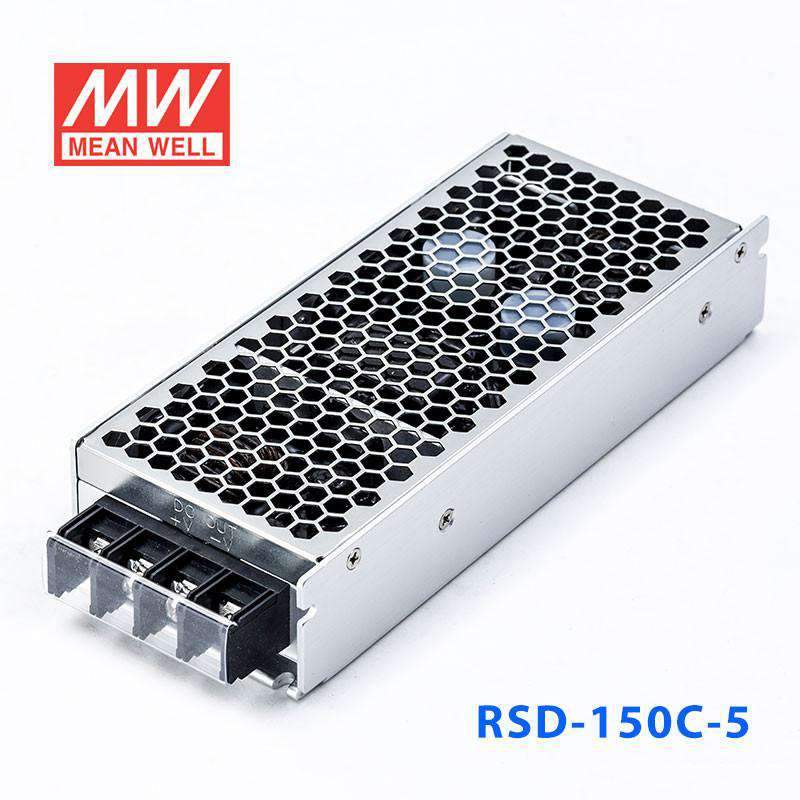

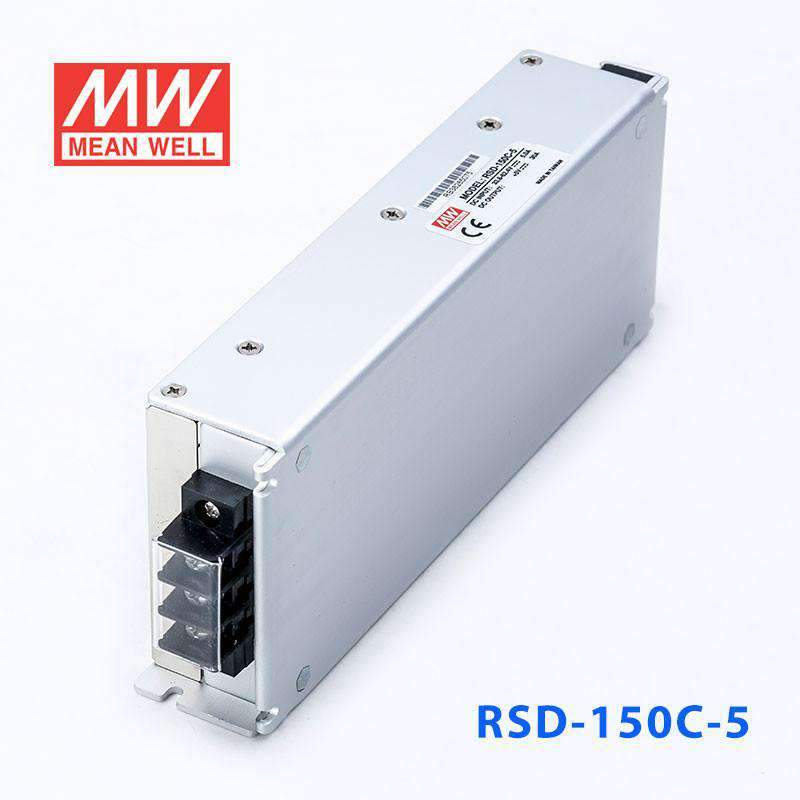

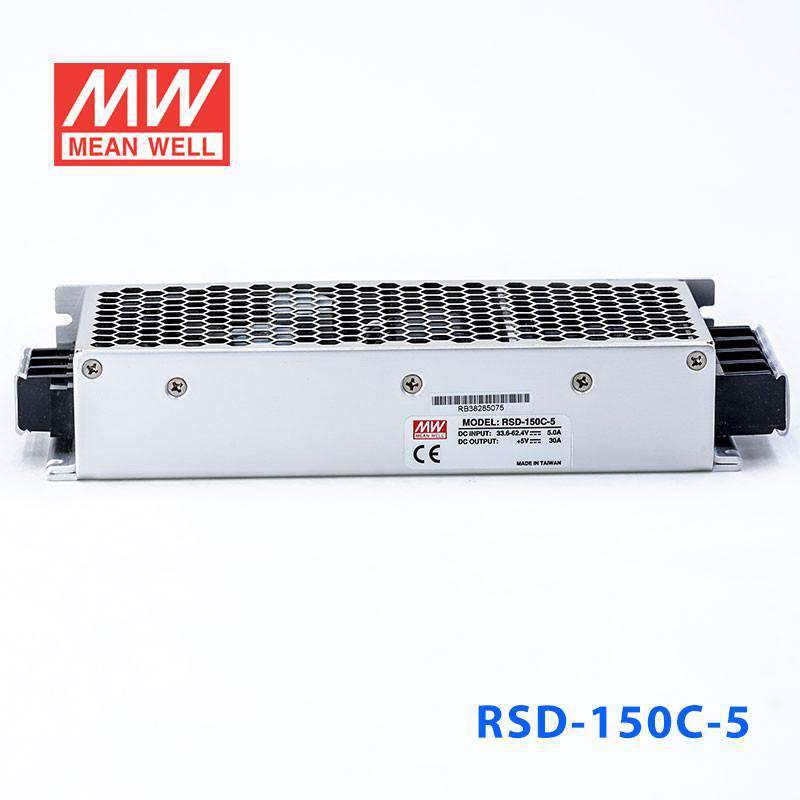

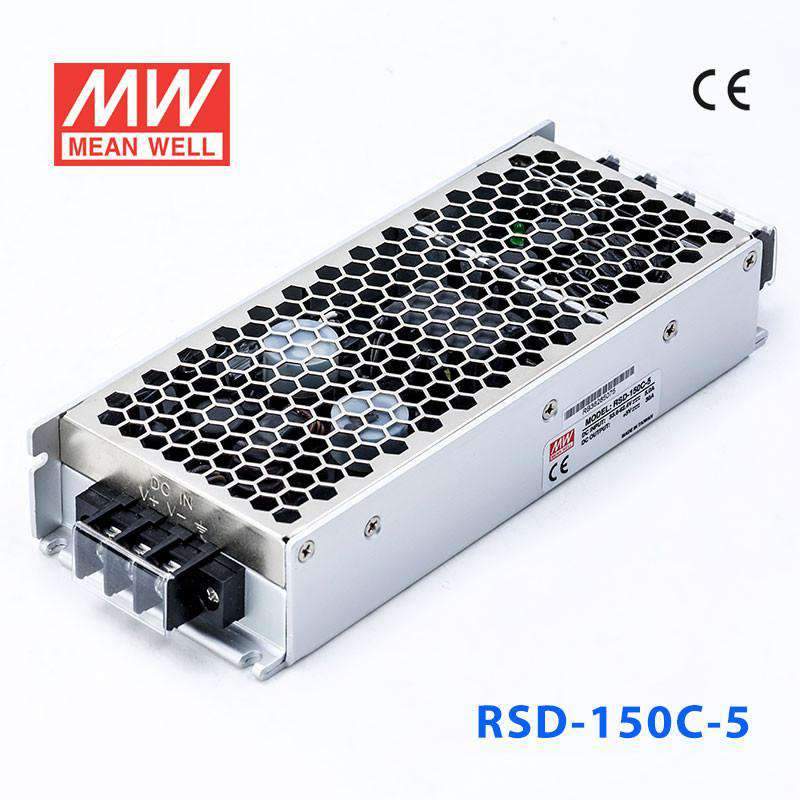

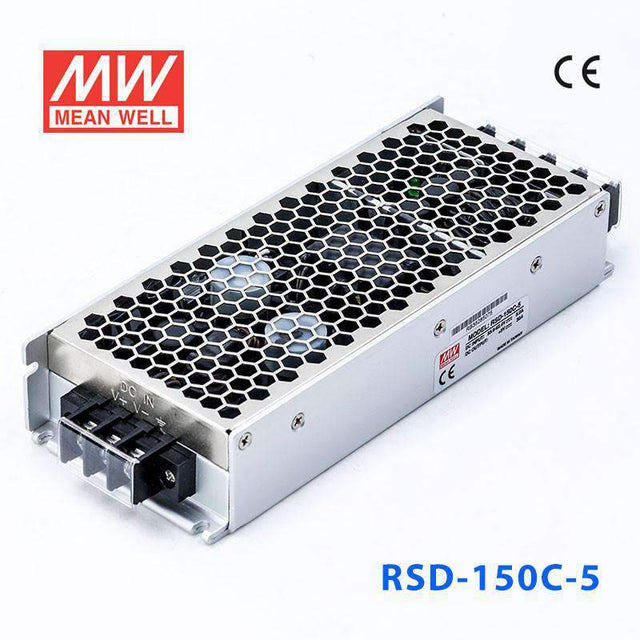

Mean Well RSD-150C-5 DC-DC Converter - 150W - 33.6~62.4V in 5V out
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-150C-5 DC-DC Converter - 150W - 33.6~62.4V in 5V out
The RSD-150C is a 150W Mean Well power converter (input range: 16.8~31.2VDC).
Key Features
- ✓ Input voltage range: 16.8~31.2VDC
- ✓ 4KVDC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration) — S1 level
- ✓ Safety approvals: AS/NZS 62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating150 Watt
-
Output Voltage5 Volt
-
Rated Current30 Ampere
-
Input Voltage33.6V~62.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty3 Year
-
Length7.44 in
-
Width3.03 in
-
Height1.42 in
-
Weight1.76 lb
::specification::
Frequently Asked Questions
Can I use the RSD-150C-5 to power 5V embedded controllers or industrial computing hardware from a 33.6 to 62.4V source?
Yes, it provides a constant 5V output from a 33.6 to 62.4V input range. With up to 30A output current and a 150W rating, it fits higher-current 5V embedded and logic-side loads that need regulated 5V power.
Is the RSD-150C-5 suitable for 5V automation electronics that need more current than smaller converters provide?
This model delivers 5V at up to 30A, which is substantially higher current than low-power 5V converters in the same family. It is appropriate where multiple 5V control or processing loads are powered from one regulated 5V rail within the 150W limit.
Can this converter support 5V industrial communication or edge-processing devices in mobile equipment?
It can be used where the source voltage is within 33.6 to 62.4V and the equipment requires a constant 5V output. The 5G vibration specification, 0.8 kg weight, and miniature 189.0 x 77.0 x 36.0 mm size are useful in compact mobile or embedded assemblies.
Is the RSD-150C-5 okay for harsh temperatures or outdoor exposure?
Its operating temperature range is -40°C to +85°C, and the features list includes 70°C operation and 5G vibration resistance. No IP rating is listed, so it should be used in a protected enclosure rather than in direct weather exposure.
How does the RSD-150C-5 compare with the 12V and 24V versions in the same series?
The RSD-150C-5 is rated at 150W with a 5V output and 30A output current. In the same RSD-150C range, the RSD-150C-12 is listed at 1500W, 12V, and 12.5A, while the RSD-150C-24 is 151.2W, 24V, and 6.3A.
