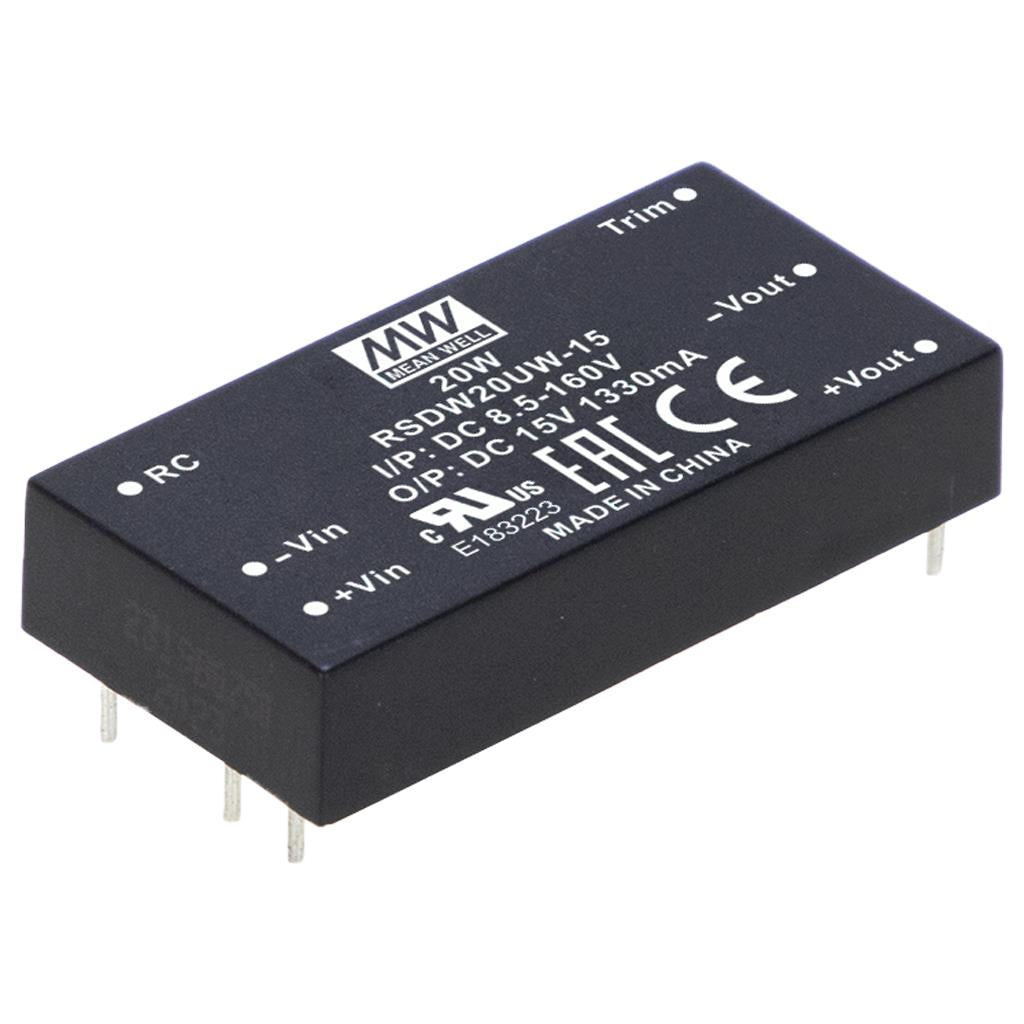

Mean Well RSDW20UW-15 Ultra-wide input DC/DC LED Driver 20W 15V - Heavy Duty
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSDW20UW-15 Ultra-wide input DC/DC LED Driver 20W 15V - H...
The RSDW20UW is a 20W Mean Well power converter (input range: 8.5~160Vdc).
Key Features
- ✓ Input voltage range: 8.5~160Vdc
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Railway standards: EN45545-2 (fire), EN50155 / IEC60571, IEC61373 (shock & vibration)
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSDW20UW Series
-
Power Rating20 Watt
-
Output Voltage15 Volt
-
Rated Current1.33 Ampere
-
Input Voltage8.5V~160V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~95°C
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.4 in
-
Weight0.06 lb
::specification::
Frequently Asked Questions
Can I use the RSDW20UW-15 for 15V LED modules in rail or transit equipment?
Yes, this model is a 15V constant-voltage DC/DC LED driver rated for 20W and 1.33A. Its features list compliance with EN50155 and EN45545 railway standards, along with 4000VDC isolation and an 8-160VAC ultra-wide input range, which makes it suitable for rail-related 15V lighting applications that fit within those electrical limits.
Is this a good fit for compact embedded or industrial control assemblies that need 15V power?
It can fit compact 15V embedded or industrial assemblies when the load stays within 20W and 1.33A. The 1U low-profile, half-encapsulated construction and 50.8 x 25.4 x 10.2 mm size support use where board space and height are limited.
Can the RSDW20UW-15 power 15V inspection or machine-status lighting in automation equipment?
It is suitable for 15V constant-voltage lighting loads up to 20W total. The wide operating temperature range of -40C to +95C also supports use in industrial equipment that sees large ambient temperature swings.
Is the RSDW20UW-15 suitable for outdoor or washdown environments?
The provided specifications list an operating temperature range of -40C to +95C, but they do not include an IP rating. Because the construction is described as half encapsulated, it is better suited to protected equipment spaces unless the overall system enclosure provides the needed environmental protection.
How does the RSDW20UW-15 compare with the other RSDW20UW models?
Within the listed siblings, the RSDW20UW-05 is 20W at 5V and 4A, the RSDW20UW-12 is 20W at 12V and 1.67A, and the RSDW20UW-15 is 20W at 15V and 1.33A. The main difference is the output voltage and corresponding output current, while all three are in the same 20W family.
