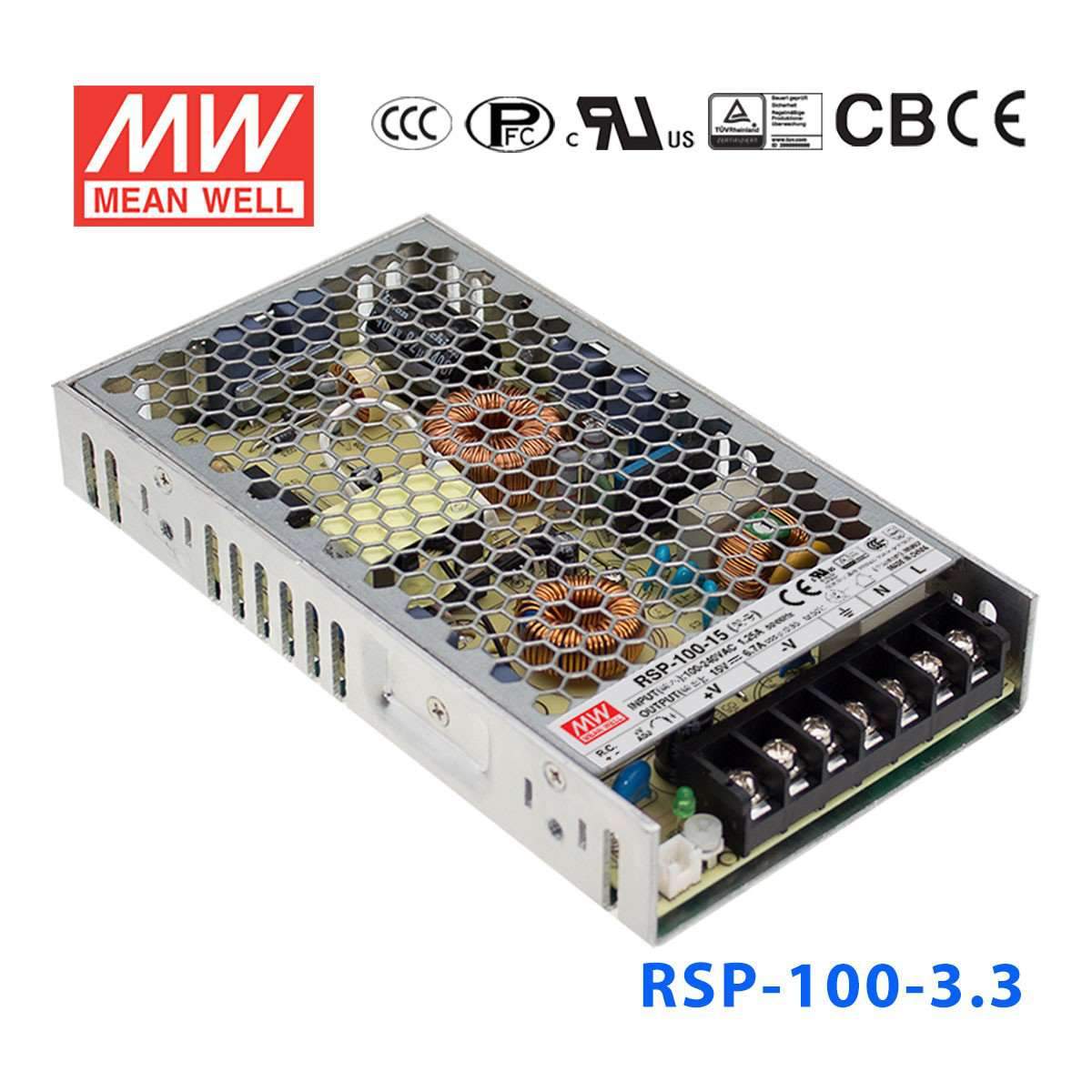

Mean Well RSP-100-3.3 Power Supply 66W 3.3V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating66 Watt
-
Output Voltage3.3 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.05 in
-
Width3.9 in
-
Height1.18 in
-
Weight1.15 lb
::specification::
Frequently Asked Questions
What industrial or embedded applications can the RSP-100-3.3 serve?
The RSP-100-3.3 provides 3.3V at 20A (66W) which is typical for FPGA boards, microcontroller development platforms, and embedded logic circuitry that operates on a 3.3V rail. The 85–264VAC input allows operation on any standard AC supply without modification.
Why is the RSP-100-3.3 rated at 66W rather than ~100W like other RSP-100 variants?
The RSP-100-3.3 is constrained by the maximum output current (20A) the platform can deliver at 3.3V, which results in 66W (3.3V × 20A). This is a design characteristic of the 3.3V variant within the RSP-100 platform; the 12V, 24V, and 48V variants achieve closer to 100W because their higher voltages allow less current at equivalent power.
How does the RSP-100-3.3 compare to the RSP-150-3.3?
The RSP-100-3.3 delivers 3.3V at 20A (66W) in a 179.0 × 99.0 × 30.0 mm chassis. The RSP-150-3.3 delivers 3.3V at 30A (99W) in a slightly larger 199.0 × 99.0 × 30.0 mm chassis. If the load requires more than 20A at 3.3V, the RSP-150-3.3 is the next step up within this product line.
Does the RSP-100-3.3 support operation in environments down to -30°C?
Yes. The RSP-100-3.3 is rated for -30°C to +70°C ambient, allowing reliable cold-start and sustained operation in low-temperature environments. It should be enclosed to prevent moisture and dust exposure as the unit has no IP rating.
What certifications does the RSP-100-3.3 hold?
The RSP-100-3.3 is certified under BSMI, CB, CCC, CE, EAC, TÜV, and UL, covering Taiwan, China, Europe, North America, and the Eurasian Economic Union.
