Mean Well RSP-3000-48 Power Supply 3000W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours

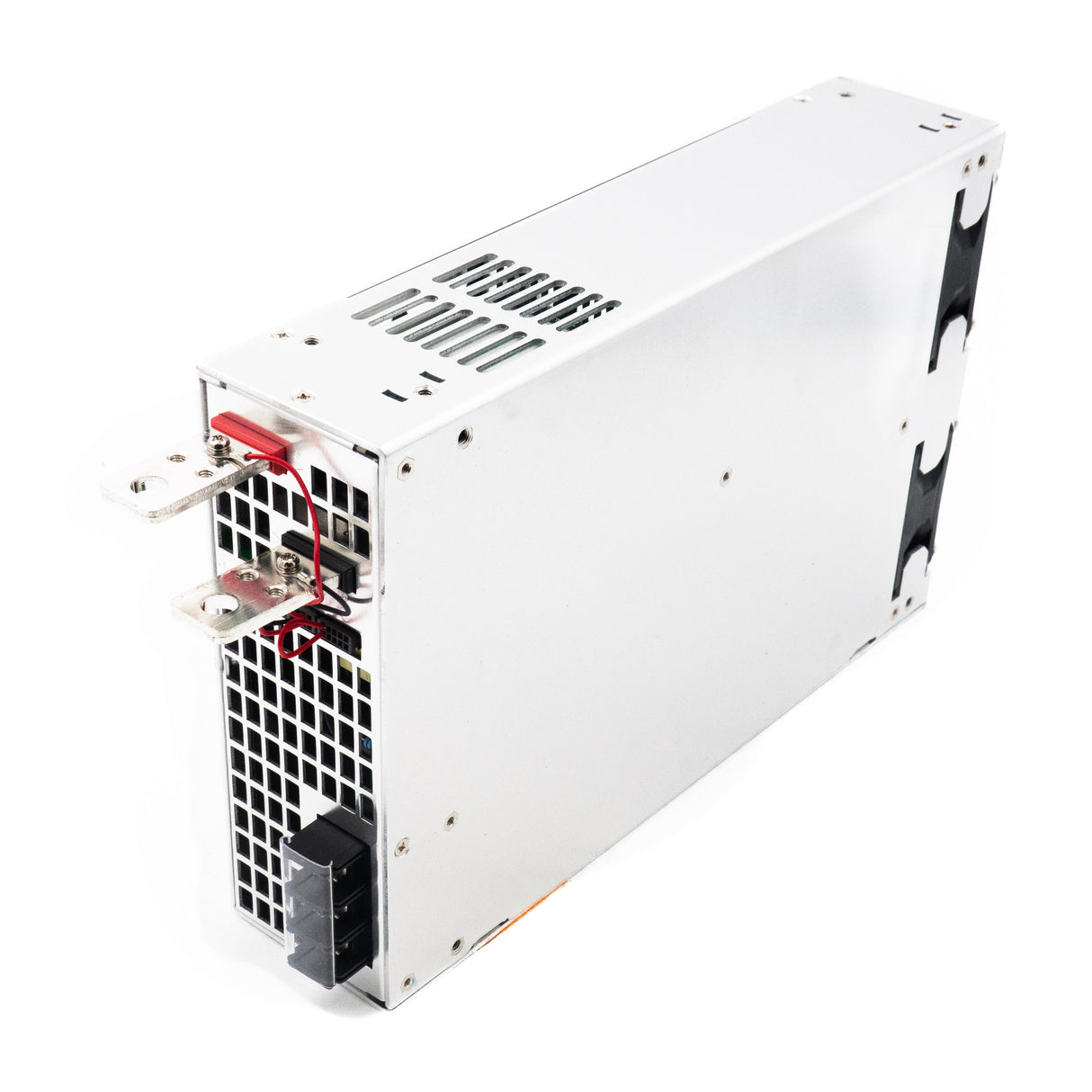

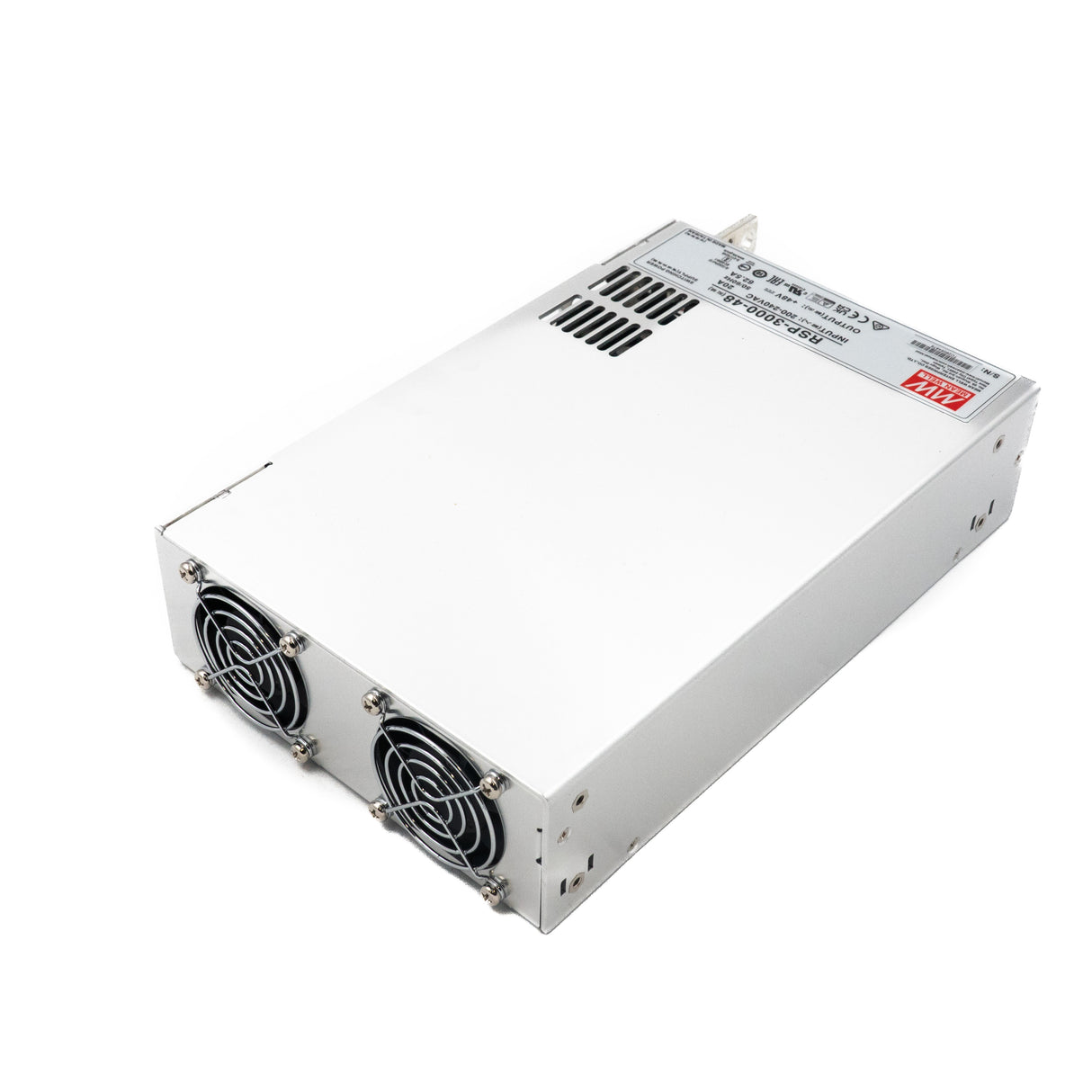

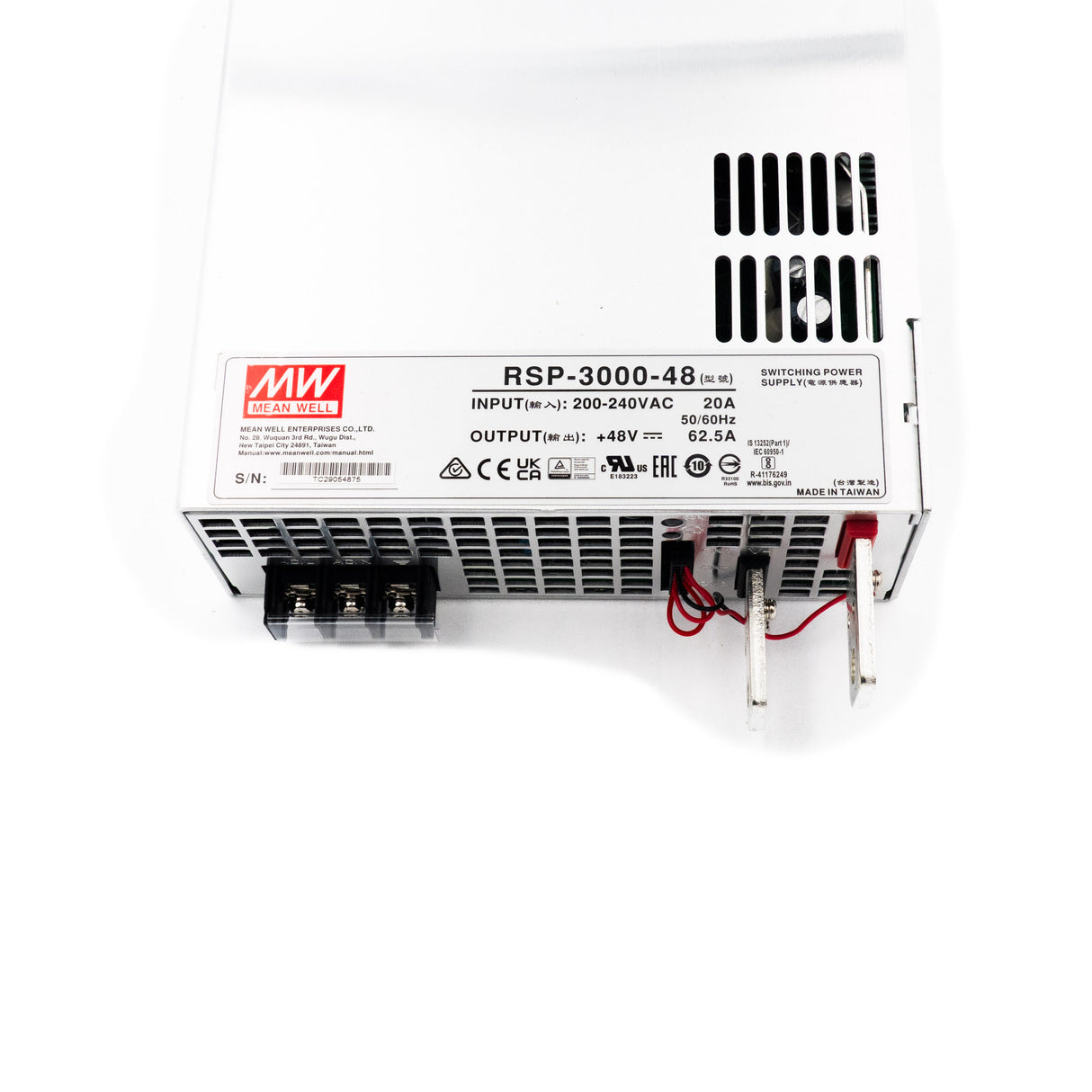

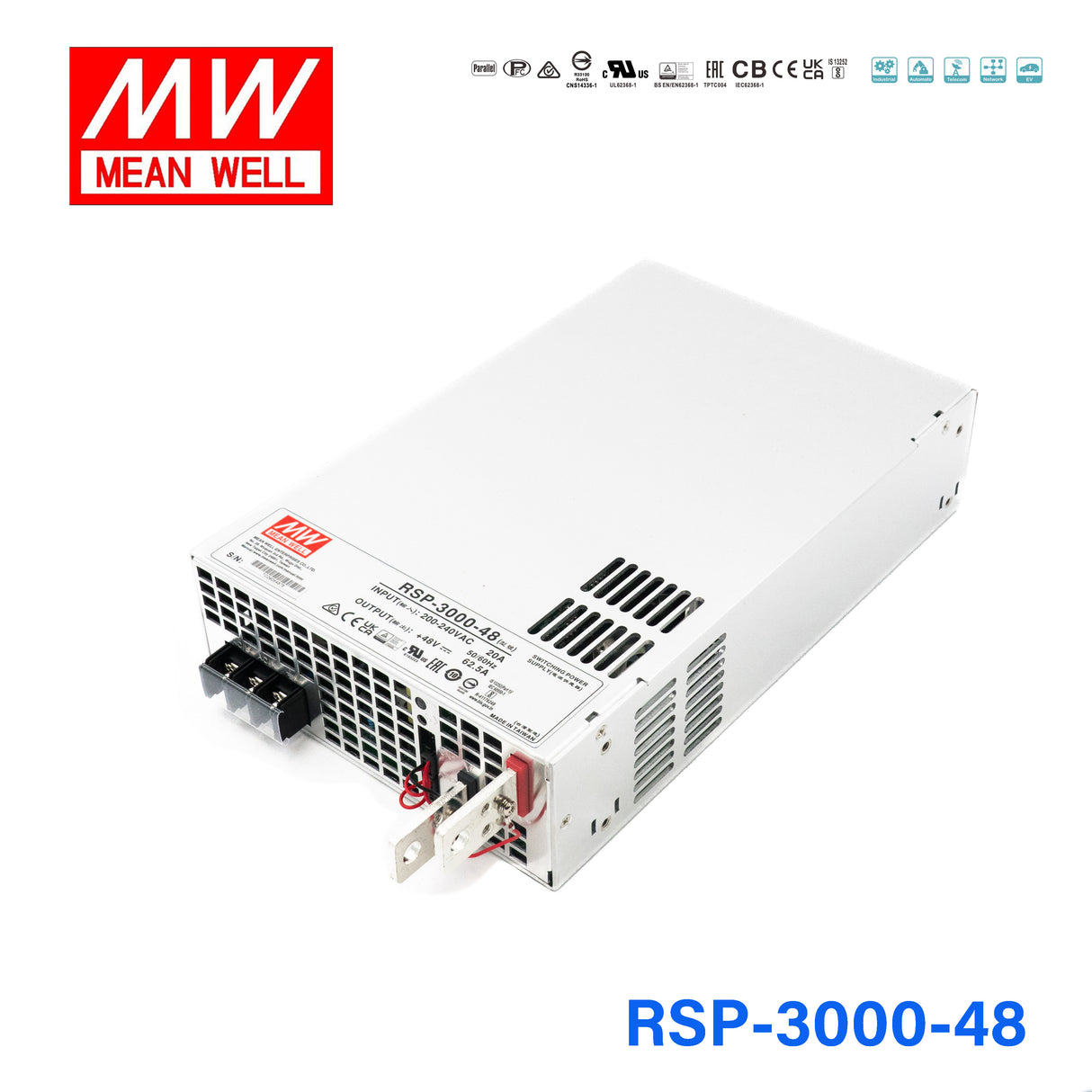

Mean Well RSP-3000-48 Power Supply 3000W 48V
The RSP-3000 is a 3000W Mean Well power converter (input range: 180~264VAC).
Key Features
- ✓ Input voltage range: 180~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating3000 Watt
-
Output Voltage48 Volt
-
Rated Current62.5 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty5 Year
-
Length10.94 in
-
Width7 in
-
Height2.5 in
-
Weight8.82 lb
::specification::
Frequently Asked Questions
What is the RSP-3000-48 used for in data center or telecom environments?
The RSP-3000-48 supplies 3000W at 48V with 62.5A output, matching the 48V DC bus standard used in telecom central offices, data center power shelves, and large UPS systems. Its 5-year warranty and broad certification set (UL, CE, TÜV, CB, BSMI, EAC) support mission-critical deployments.
What temperature range does the RSP-3000-48 support?
The RSP-3000-48 is rated for -20°C to +70°C ambient operation. It is intended for indoor enclosed use only and does not carry an IP rating for outdoor environments.
How does the RSP-3000-48 compare to the RSP-2400-48 and RSP-2000-48?
At 48V, the RSP-2000-48 provides 2016W and 42A with a wide 90-264VAC input. The RSP-2400-48 increases to 2400W and 50A, and the RSP-3000-48 is the highest at 3000W and 62.5A — both the RSP-2400-48 and RSP-3000-48 require a 180-264VAC input. The RSP-3000-48 also weighs 4.0 kg, more than the RSP-2400-48 at 3.3 kg.
What paralleling configuration does the RSP-3000-48 support?
The RSP-3000-48 supports 2+1 active current sharing. Two units in parallel deliver up to 125A at 48V with a third unit providing N+1 redundancy. Efficiency reaches up to 91.5%.
