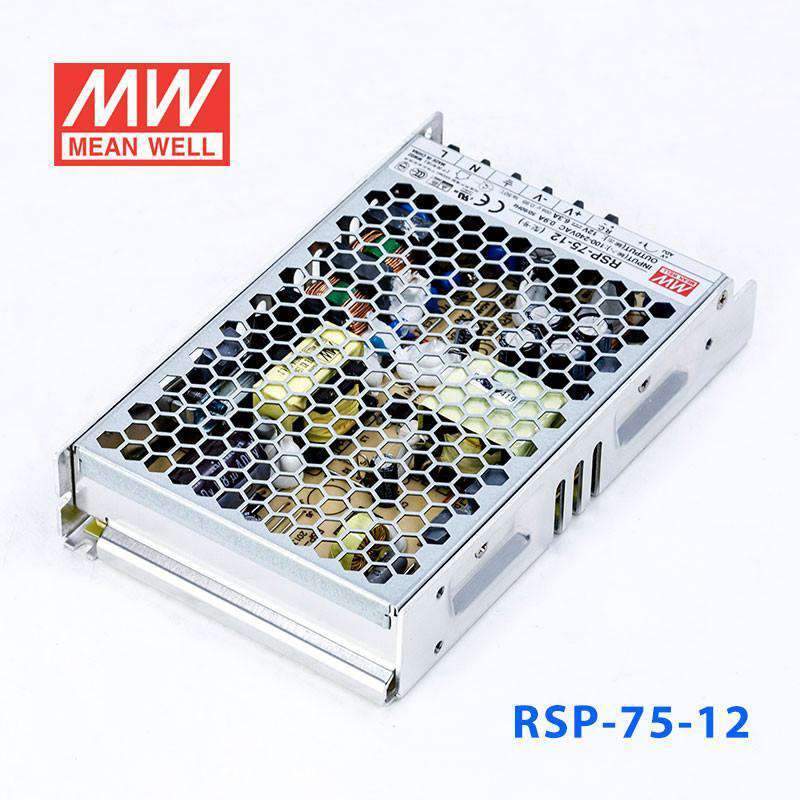

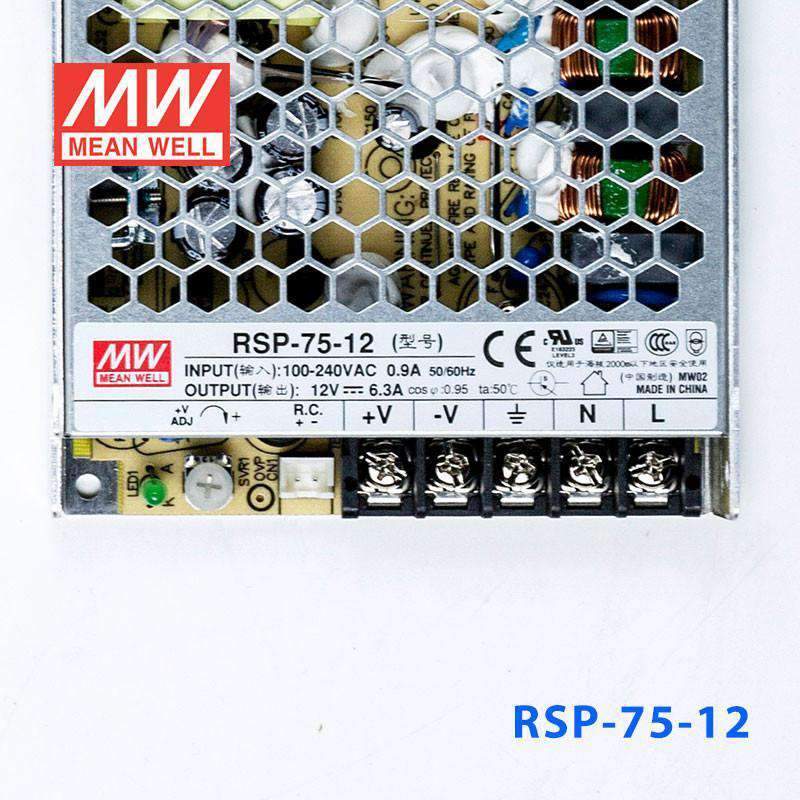

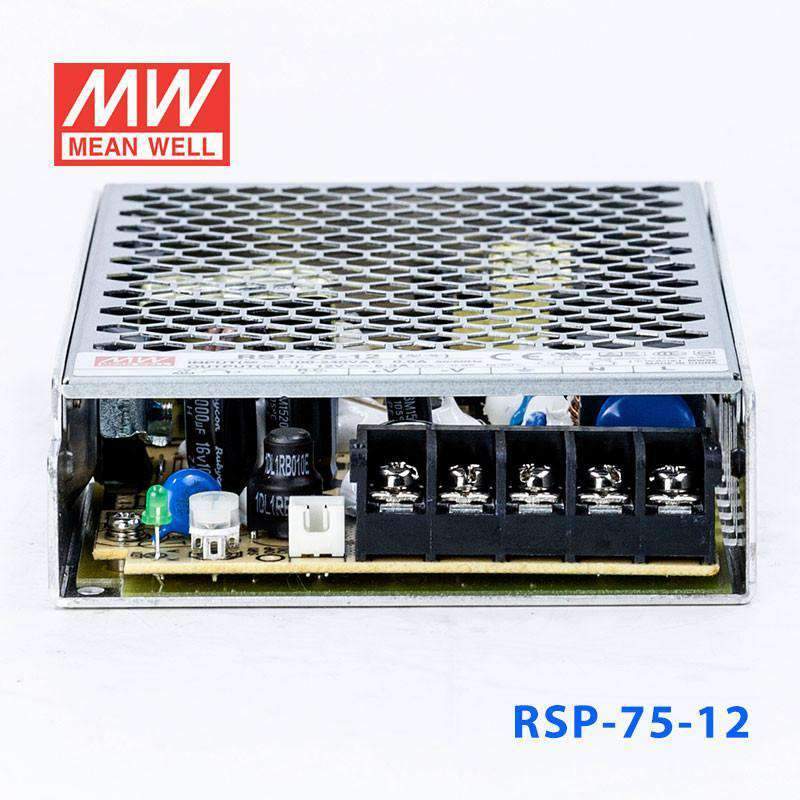

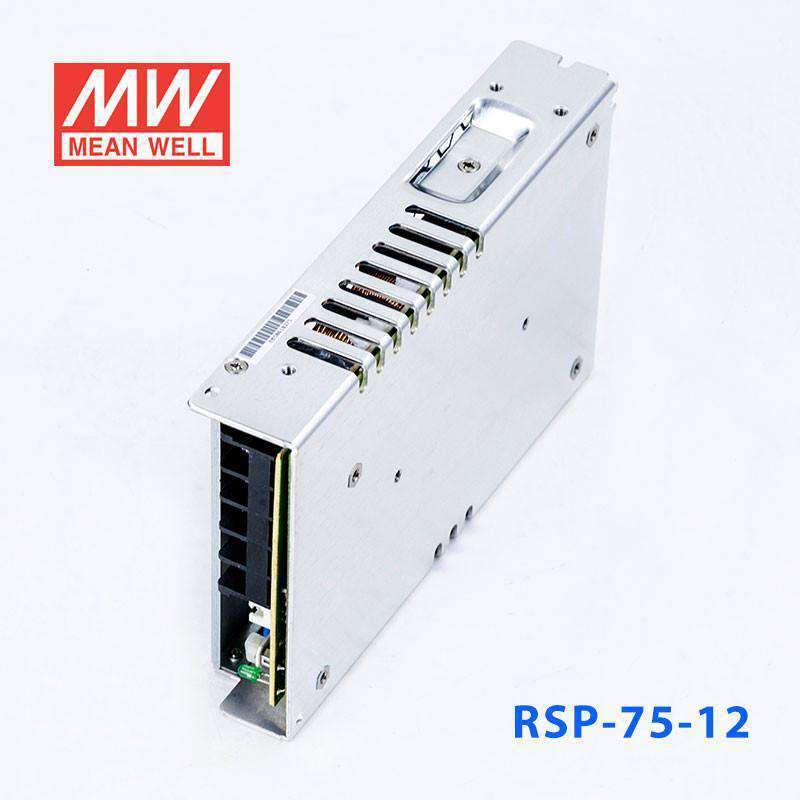

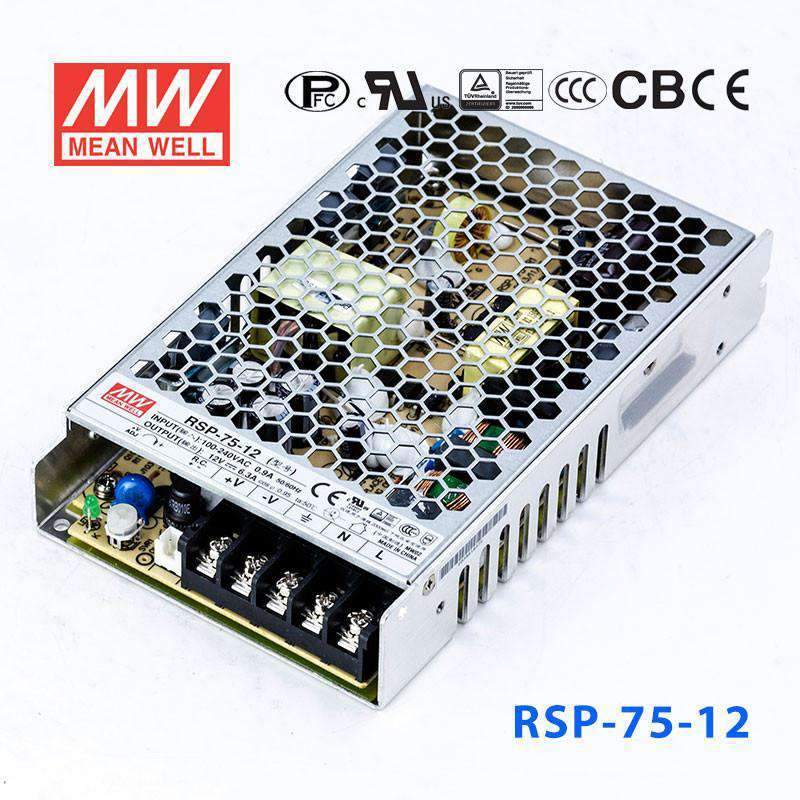

Mean Well RSP-75-12 Power Supply 75W 12V
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓Built-in constant current limiting circuit
- ✓Protections:Short circuit/ Overload / Over voltage
- ✓Cooling by free air convection
- ✓1U low profile 30mm
- ✓Remote ON-OFF control
- ✓LED indicator for power on
- ✓100% full load burn-in test
- ✓3 years warranty
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
::specification::
Frequently Asked Questions
What small-scale industrial or embedded applications can the RSP-75-12 power?
The RSP-75-12 delivers 75.6W at 12V and 6.3A, appropriate for powering single-board computers, small industrial controllers, and monitoring modules in space-constrained enclosures. Its 159.0 × 97.0 × 30.0 mm form factor and 0.44 kg weight make it one of the most compact options in the RSP series.
What is the operating temperature range of the RSP-75-12?
The RSP-75-12 operates from -25°C to +70°C. It carries BSMI, CB, CCC, CE, EAC, TÜV, and UL certifications and is rated for indoor enclosed use.
How does the RSP-75-12 compare to the RSP-75-13.5 and RSP-75-15?
All three are 159.0 × 97.0 × 30.0 mm units accepting 85-264VAC. The RSP-75-12 provides 75.6W at 6.3A, the RSP-75-13.5 provides 75.6W at 5.6A, and the RSP-75-15 provides 75W at 5A. Power output is similar across all three; current decreases as voltage increases.
Does the RSP-75-12 include power factor correction?
Yes. The RSP-75-12 includes built-in active PFC across its 85-264VAC input. It weighs 0.44 kg and carries a 3-year warranty.
