Description
Description
Features
Universal AC input / Full range |
Built-in active PFC function |
Built-in constant current limiting circuit |
Protections:Short circuit/ Overload / Over voltage |
Cooling by free air convection |
1U low profile 30mm |
Remote ON-OFF control |
LED indicator for power on |
100% full load burn-in test |
3 years warranty |
General Specification
AC input voltage range | 85~264VAC ; 120~370VDC |
AC inrush current (max.) | Cold start, 35A at 230VAC |
Overload protection | 105%~135% Constant current limiting, auto-recovery |
Over temperature protection | Shut down o/p voltage, re-power on to recover |
Setup, rise, hold up time | 600ms,30ms,16ms at full load |
Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
Working temperature | -25~+70ºC(refer to output derating curve) |
Safety standards | UL60950-1,TUV EN60950-1,EN61558-1,EN61558-2-16,CCC GB4943 approved |
EMC standards |
EN55022(CISPR22) Class B,EN61000-3-2,-3, GB9254 class B,EN61000-4-2,3,4,5,6,8,11,EN55024 |

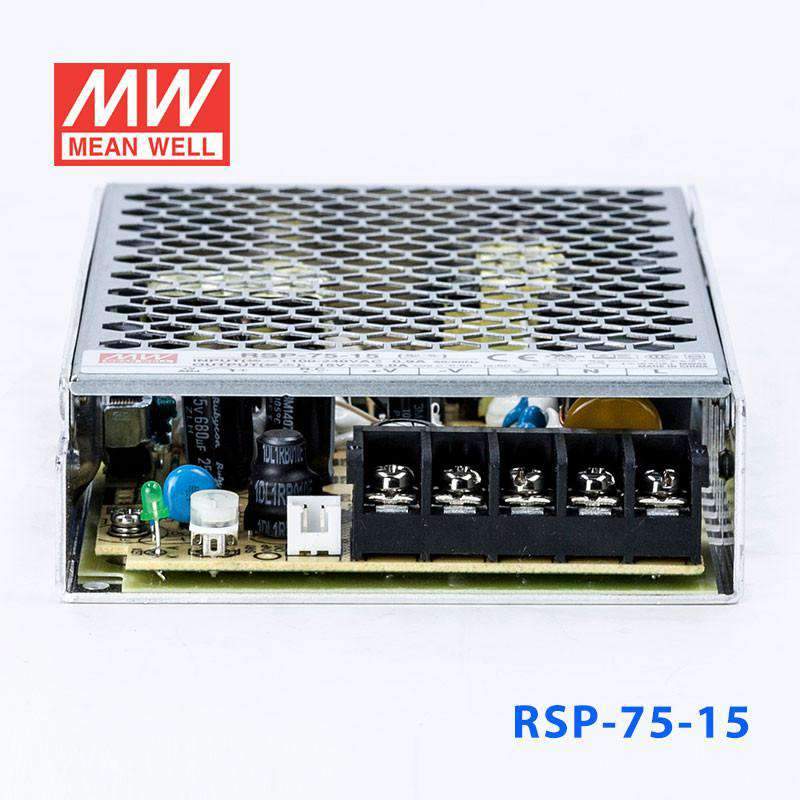

Connection | 5P/9.5mm pitch terminal block |
Dimension (LxWxH) (mm) | 159x97x 30mm |
Packing | 30pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesRSP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.97 lb
