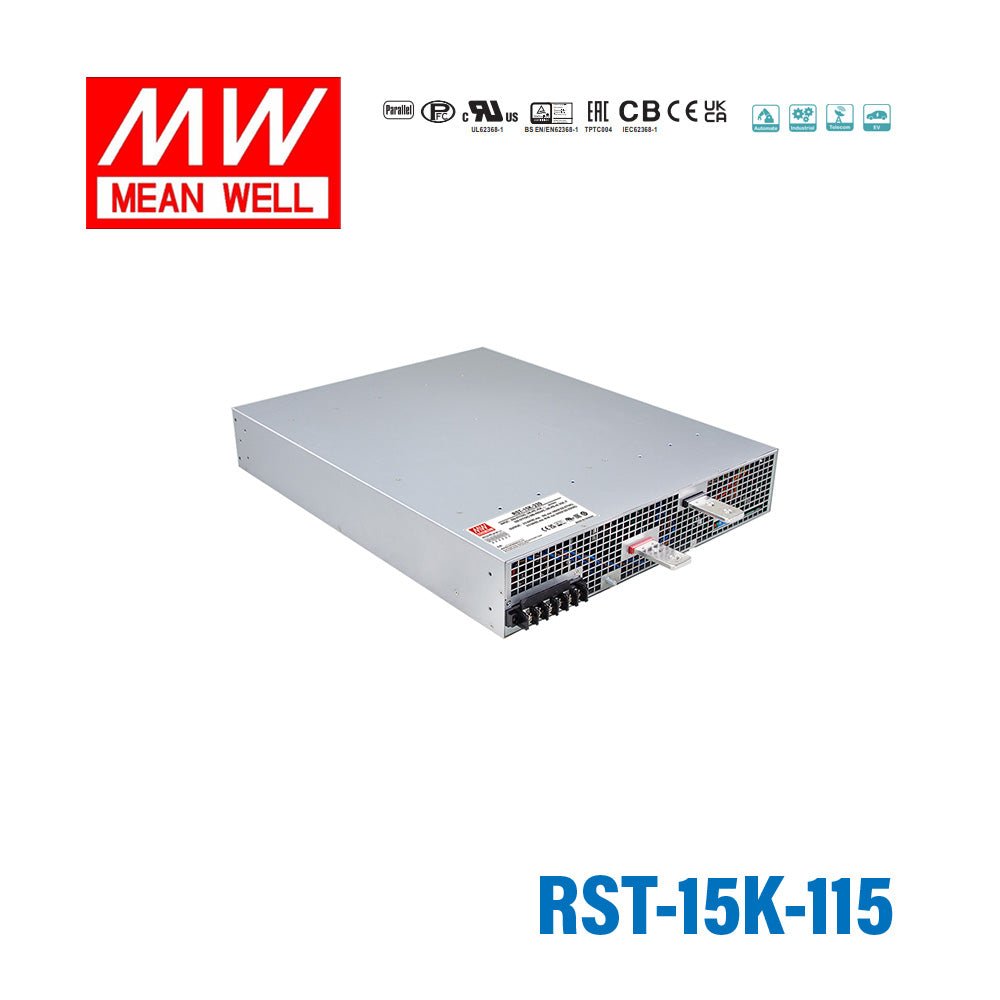

Mean Well RST-15K-115 High Power AC/DC Power Supply 14950W, 3 Phase Input, 115V Output

up to 94% efficiency, wide voltage adjustment range 1~120%, active current sharing up to 2 units(28.5KW)

SKU:

RST-15K-115

$6,106.96 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

3ψ 3-wire / △196~~305VAC or 3ψ 4-wire / Y 340~~530VAC
High efficiency up to 94%
Forced air cooling
Output voltage and constant current level programmable
Wide voltage adjustment range 1~120%
Active current sharing up to 2 units(28.5KW)
Built-in remote ON-OFF control / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

General Specification

AC input voltage range

3ψ 3W/ △196~~305VAC or 3ψ 4W/Y 340~~530VAC

AC inrush current (max.)

150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y)

Overload protection

100 ~ 107% of rated current

Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover

Over-voltage protection

| 145 ~ 166V | 273 ~ 312V | 420 ~ 480V |

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC

Working temperature

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

540x424x83.5mm

Specifications

Brand

Mean Well
Series

RST Series
Power Rating

14950 Watt
Output Voltage

115 Volt
Rated Current

130 Ampere
Input Voltage

196V~305V
No of Output

1
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

21.26 in
Width

16.69 in
Height

3.29 in
Weight

55.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Mean Well RST-15K-115 designed for?

The RST-15K-115 is a high power AC/DC enclosed power supply intended for demanding industrial and commercial systems that need a regulated 115V DC output. With a 14,950W power rating and 130A rated current, it fits applications where high output capacity and three-phase AC input are important selection criteria.

What are the key electrical ratings of the RST-15K-115?

This model is rated for 14,950W total output power with a nominal 115V output and 130A rated current. It accepts three-phase input, supporting 3-phase 3-wire 196 to 305VAC or 3-phase 4-wire 340 to 530VAC as listed in the product specification.

Does the RST-15K-115 support output adjustment or programmable control?

Yes. The product description states that the output voltage and constant current level are programmable, and it also notes a wide voltage adjustment range of 1 to 120%. That makes this model more flexible than fixed-output high power supplies when an application needs controlled adjustment within the unit's specified range.

Can this power supply be used in higher-capacity parallel power systems?

Yes. The RST-15K-115 supports active current sharing for up to 2 units, allowing a combined capacity of up to 28.5kW according to the listed features. Buyers evaluating scalability often use this as a key differentiator when comparing high power supply options.

What environmental operating range does the RST-15K-115 support?

This model is specified for operation from -30°C to 70°C. It also uses forced air cooling, which is relevant for higher power applications where thermal performance is an important consideration.

What protection features are included in the Mean Well RST-15K-115?

The RST-15K-115 includes protection for short circuit, overload, over voltage, over temperature, and fan fail conditions. These built-in protections are important for industrial buyers looking to reduce risk in high power DC systems.

How efficient is the RST-15K-115, and what warranty does it include?

The listed efficiency is up to 94%, which is notable for a 14.95kW AC/DC power supply in this class. Mean Well also specifies a 5-year warranty for this model.
