Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

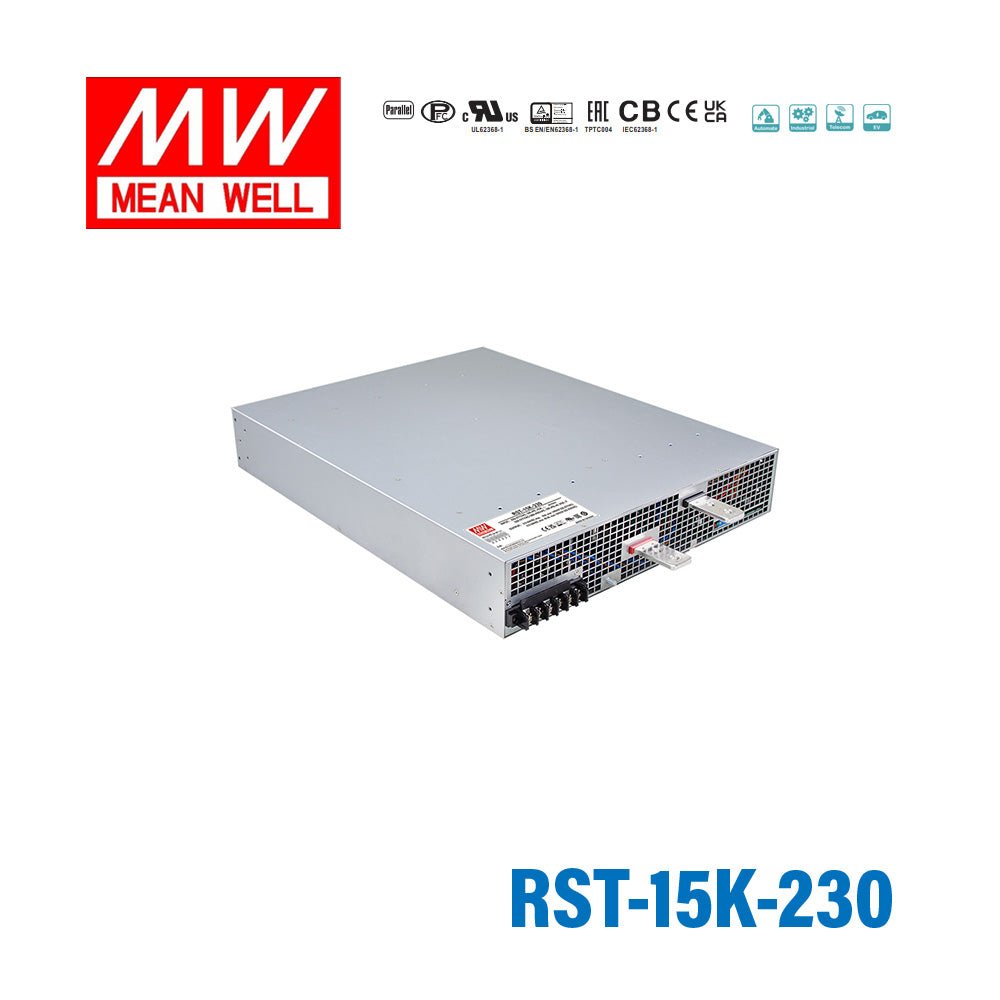

Mean Well RST-15K-230 High Power AC/DC Power Supply 14904W, 3 Phase Input, 230V Output

up to 94% efficiency, wide voltage adjustment range 1~120%, active current sharing up to 2 units(28.5KW)

SKU:

RST-15K-230

$6,106.96 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features:

3ψ 3-wire / △196~~305VAC or 3ψ 4-wire / Y 340~~530VAC
High efficiency up to 94%
Forced air cooling
Output voltage and constant current level programmable
Wide voltage adjustment range 1~120%
Active current sharing up to 2 units(28.5KW)
Built-in remote ON-OFF control / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
5 years warranty

General Specification

AC input voltage range

3ψ 3W/ △196~~305VAC or 3ψ 4W/Y 340~~530VAC

AC inrush current (max.)

150A/230VAC(3ψ 3-wire / △) 100A/400VAC(3ψ 4-wire / Y)

Overload protection

100 ~ 107% of rated current

Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover

Over-voltage protection

| 145 ~ 166V | 273 ~ 312V | 420 ~ 480V |

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.3KVDC I/P-FG:2.8KVDC O/P-FG:2.8KVDC

Working temperature

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

540x424x83.5mm

Specifications

Brand

Mean Well
Series

RST Series
Power Rating

14901 Watt
Output Voltage

230 Volt
Rated Current

64.8 Ampere
Input Voltage

196V~305V
No of Output

1
Standards Met

CB,CE,EAC,EN
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

5 Year
Length

21.26 in
Width

16.69 in
Height

3.29 in
Weight

55.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What kind of applications is the Mean Well RST-15K-230 designed for?

The RST-15K-230 is designed for high-power industrial and commercial equipment that needs a regulated 230V DC output. With roughly 14.9 kW of output capacity and 3-phase AC input support, it fits demanding B2B environments where lower-power enclosed supplies would not be sufficient.

What are the key electrical specifications of the RST-15K-230?

This model provides a 230V output with a rated current of 64.8A. Its power rating is approximately 14.9 kW, and it accepts 3-phase AC input across 196-305VAC in 3-wire delta systems or 340-530VAC in 4-wire wye systems.

How efficient is the Mean Well RST-15K-230?

The RST-15K-230 is rated for efficiency up to 94%. That level of efficiency is important in high-wattage systems because it helps reduce wasted energy and supports more manageable thermal performance in continuous-duty applications.

Can the output of the RST-15K-230 be adjusted?

Yes. Mean Well specifies that this model has programmable output voltage and constant current level control, along with a wide voltage adjustment range of 1% to 120%. That makes it better suited to applications that need some flexibility around the nominal 230V output.

Is the RST-15K-230 suitable for demanding temperature environments?

This power supply is rated for operation from -30°C to 70°C. That wide temperature range makes it suitable for harsher industrial environments, provided the overall system design stays within the product's operating limits.

What protections and reliability features does the RST-15K-230 include?

The RST-15K-230 includes protection for short circuit, overload, over voltage, over temperature, and fan fail conditions. It also carries a 5-year warranty, which is a strong indicator that this model is intended for long-service industrial use.
