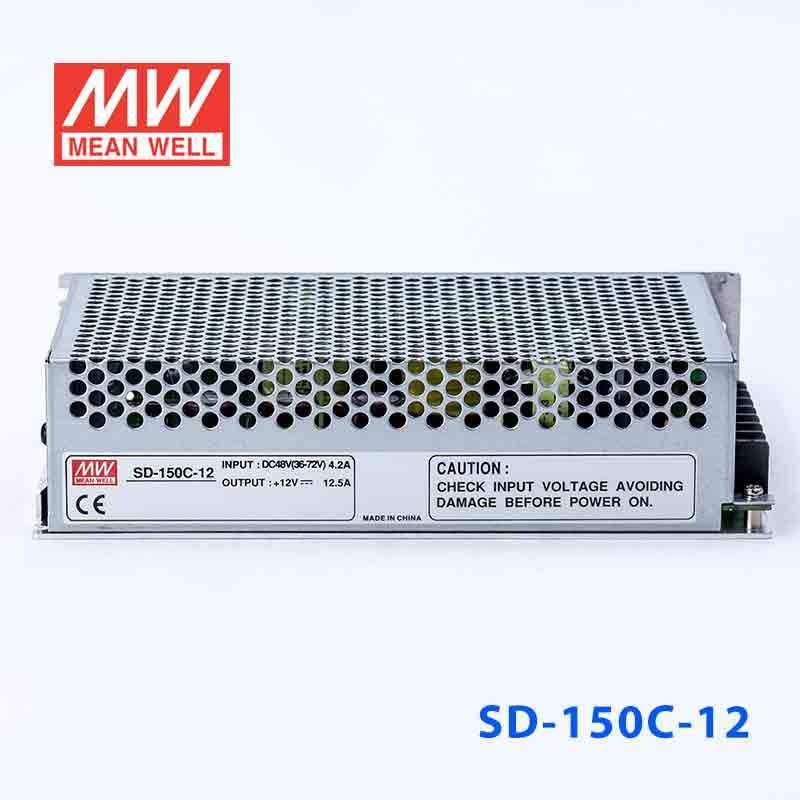

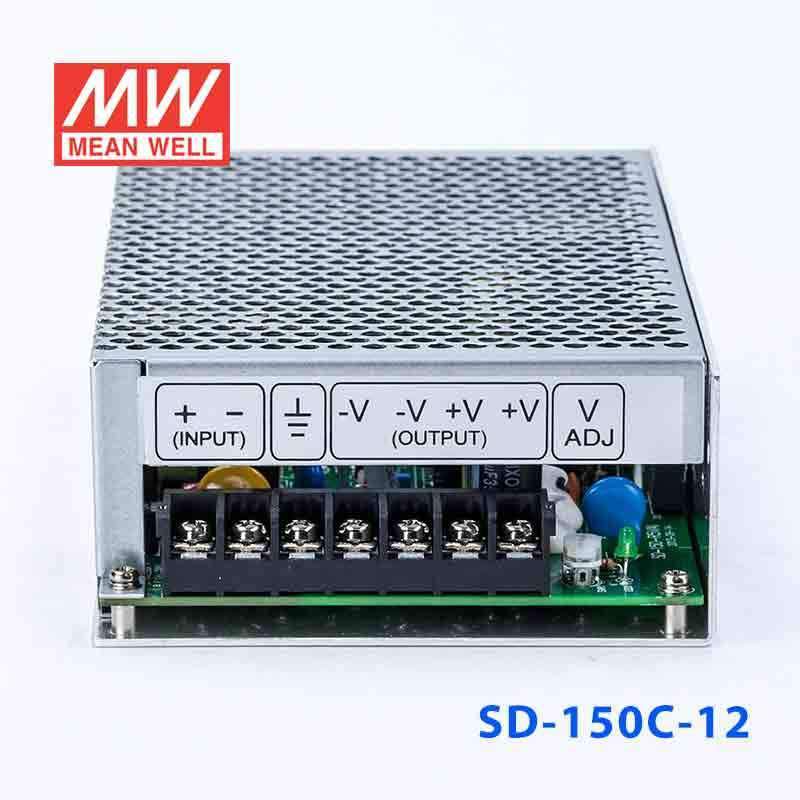

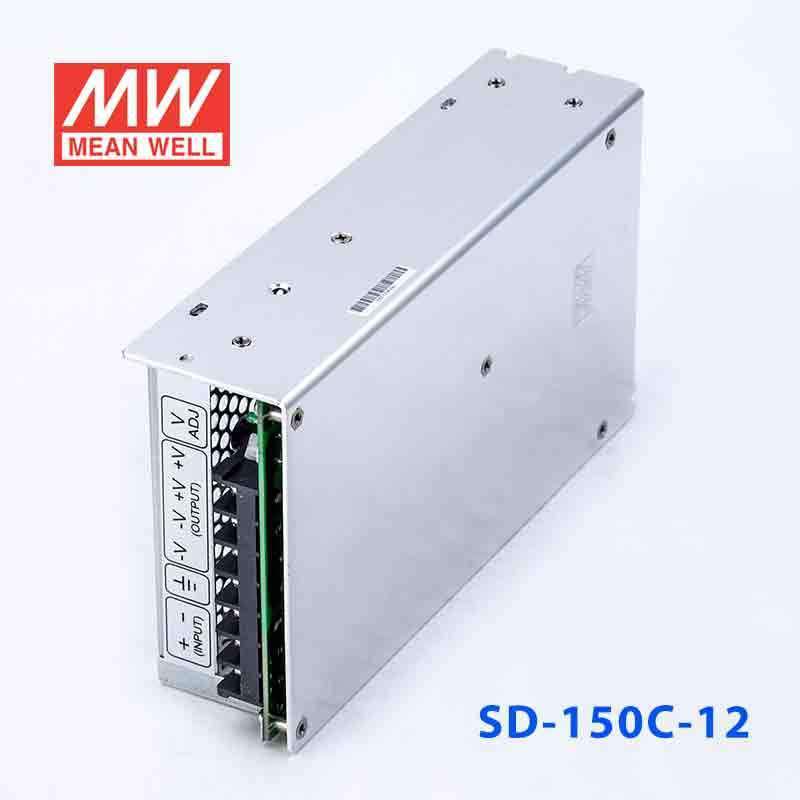

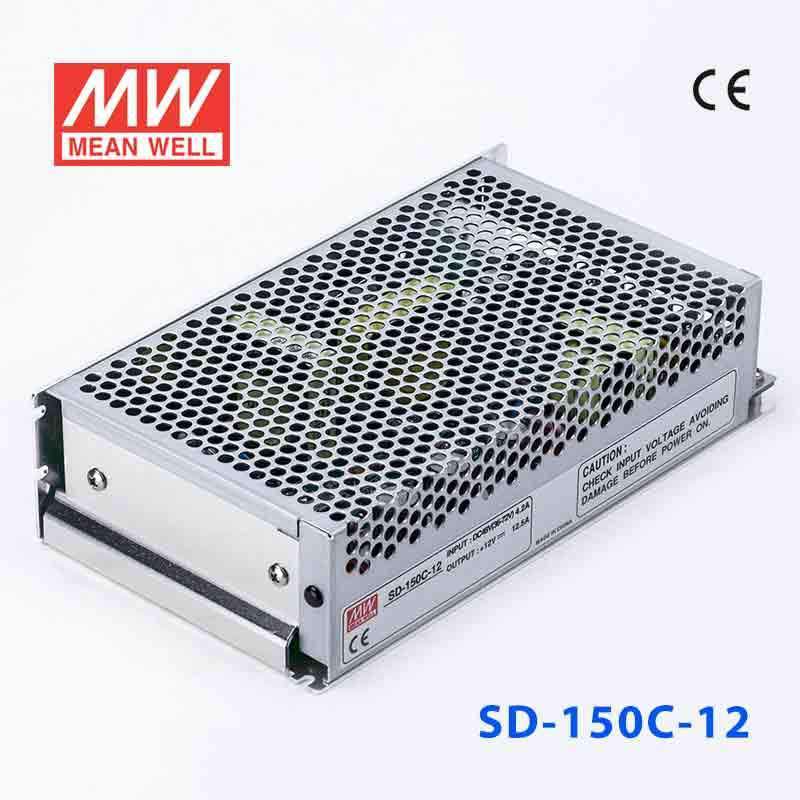

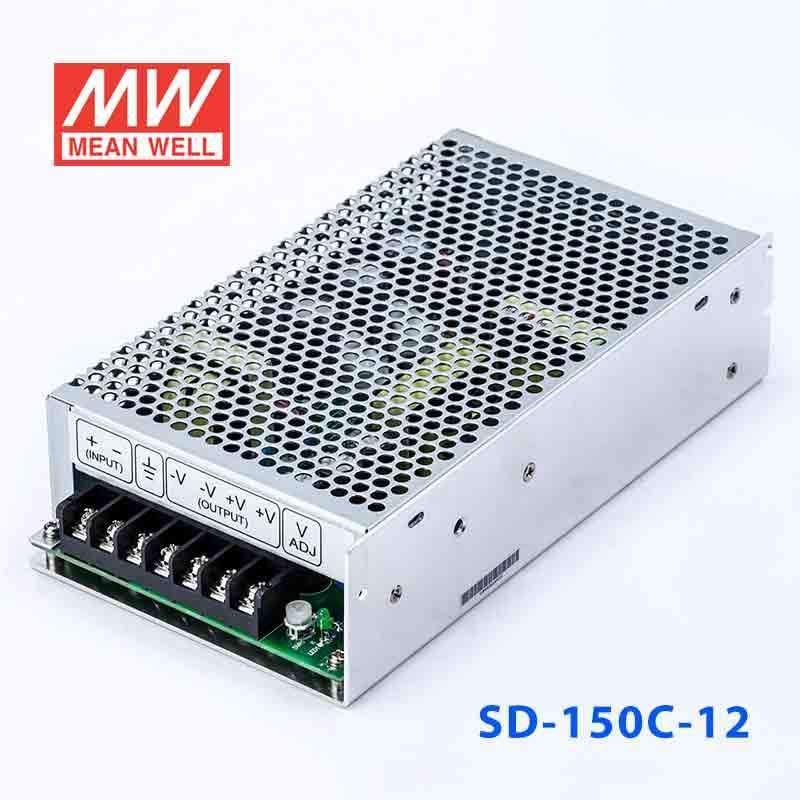

Mean Well SD-150C-12 DC-DC Converter - 150W - 36~72V in 12V out
Description
Description
· 2:1 wide input range
· Protections: Short circuit / Overload
/ Over voltage
· 1500VAC I/O isolation
· Built-in EMI filter, low ripple noise
· 100% full load burn-in test
· 24V and 48V input voltage design refer to LVD
· Low cost
· High reliability
· 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSD Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.9 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SD-150C-12 to step down a 36-72V DC source for a 12V industrial controller?
Yes, this converter is intended for 36-72V input and provides a constant 12V output. It is rated for up to 12.5A and 150W, so it fits 12V control equipment that remains inside those limits.
Is the SD-150C-12 appropriate for 12V embedded or telecom equipment on a 48V-class DC bus?
It is a practical match when the source falls within the 36-72V input range and the load needs regulated 12V DC. The unit can supply up to 12.5A, with a total output rating of 150W.
Can this model power 12V monitoring, signaling, or automation accessories from a higher-voltage DC supply?
Yes, it converts 36-72V input to a constant 12V output for loads that need stable low-voltage DC. Its 150W and 12.5A ratings make it suitable for 12V monitoring and accessory loads within that envelope.
Will the SD-150C-12 work in hot or cold equipment cabinets?
The specified operating temperature range is -10°C to +60°C. No IP rating is listed, so it should be used in a protected indoor enclosure rather than an exposed outdoor location.
What are the key differences between the SD-150C-12 and the other SD-150 versions?
The SD-150C-12 is one of three 12V SD-150 models, alongside SD-150B-12 and SD-150D-12, and all three are rated at 150W and 12.5A. The 24V counterparts are SD-150B-24, SD-150C-24, and SD-150D-24, each rated at 151.2W and 6.5A. The B, C, and D versions differ by input range: 19-36V, 36-72V, and 72-144V respectively.
Other SD-150C Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-150C-24 DC-DC Converter - 150W - 36~72V in 24V out | 151.2W | 24V | 6.5A | Indoor | $50.36 | View |
