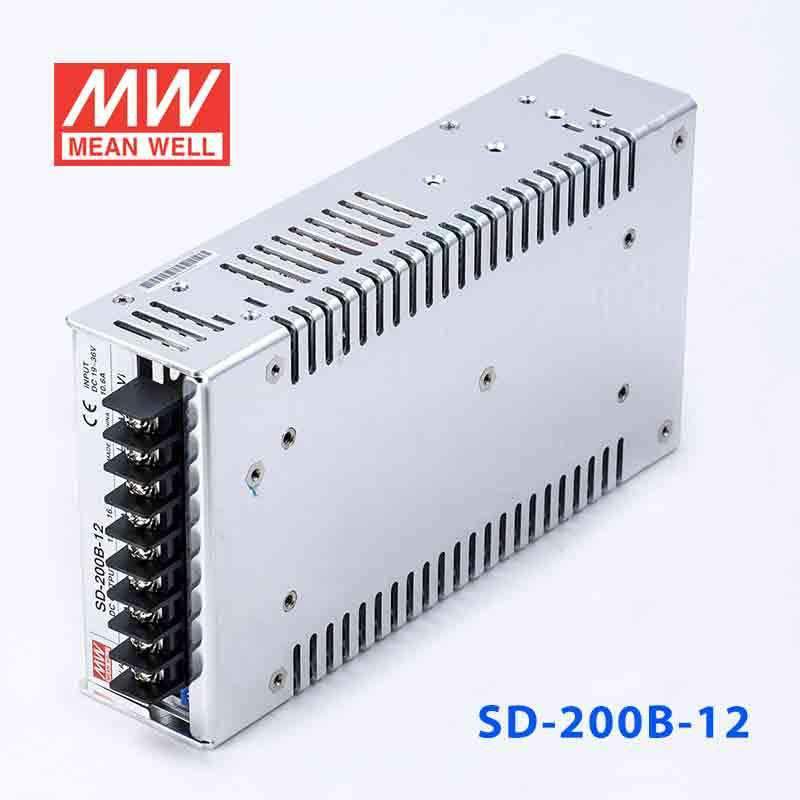

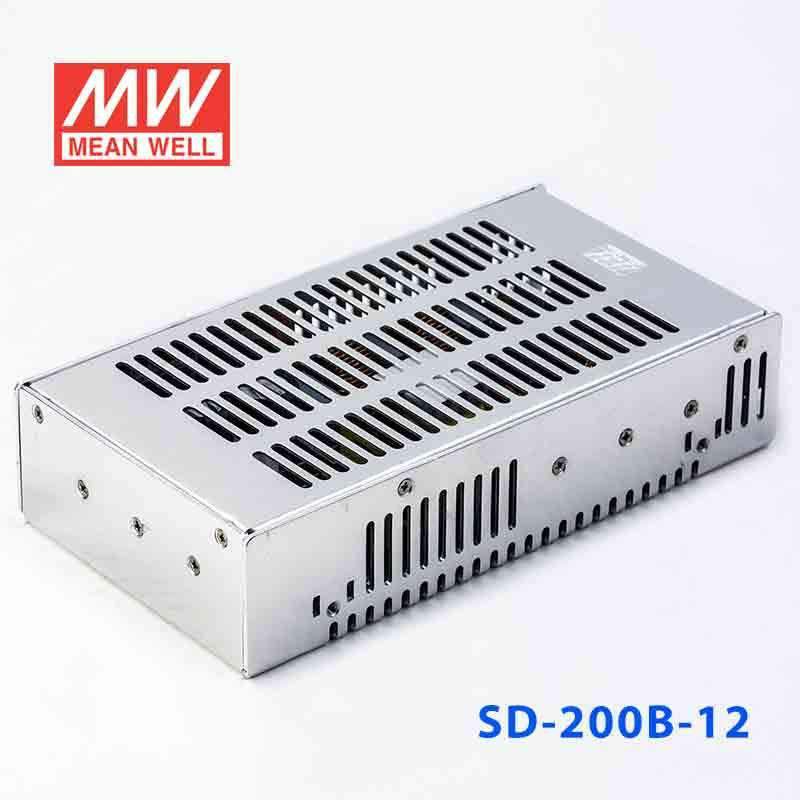

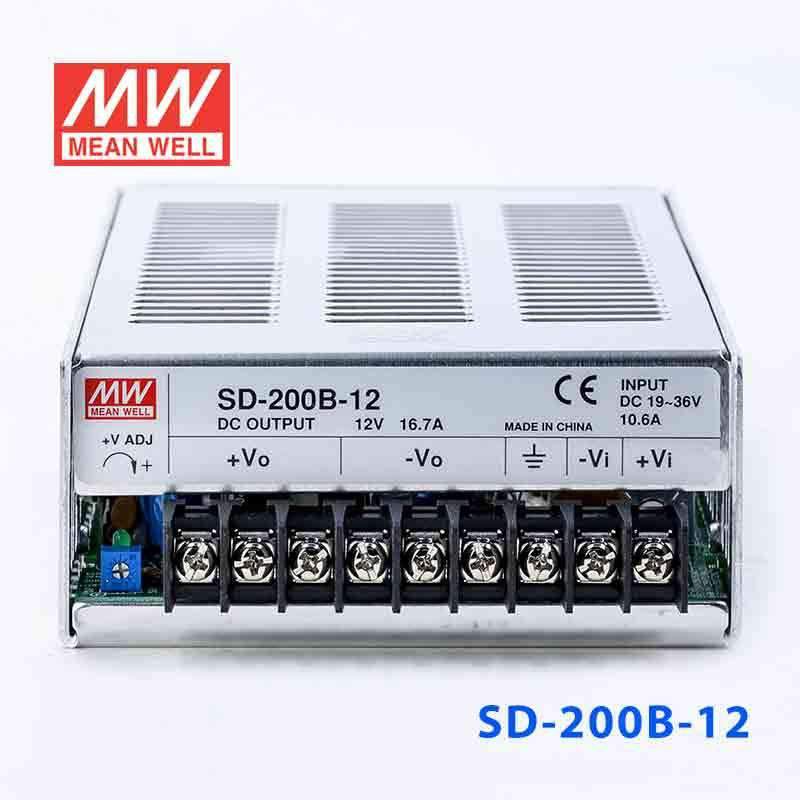

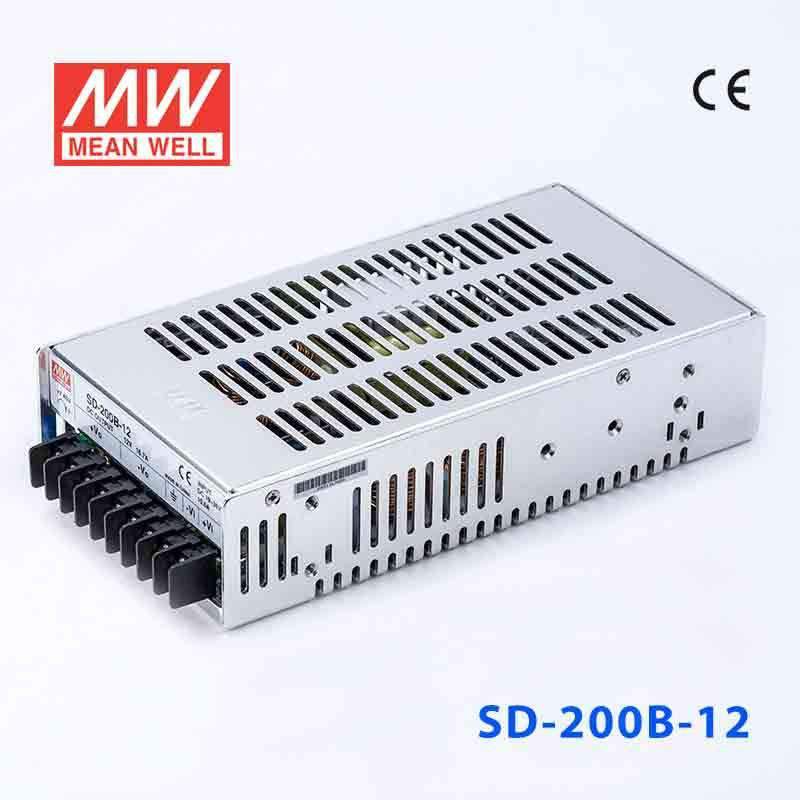

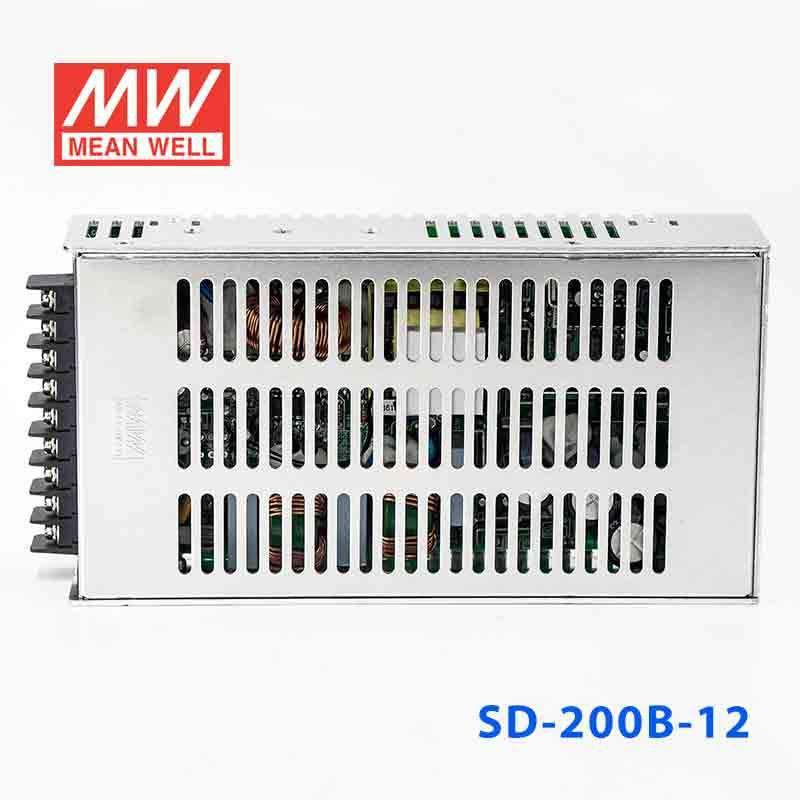

Mean Well SD-200B-12 DC-DC Converter - 200.4W - 19~36V in 12V out 16.7A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-200B-12 DC-DC Converter - 200.4W - 19~36V in 12V out 1...
The SD-200B is a 170W Mean Well DC-DC converter (input: 19~36VDC, operating temperature: -20~+60°C).
Key Features
- ✓ Input voltage: 19~36VDC
- ✓ Output voltage (max): 5V
- ✓ Rated output current: 34A
- ✓ I/O isolation: 1500V
- ✓ Operating temperature: -20~+60°C
- ✓ Safety certifications: UL
- ✓ 2 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating170 Watt
-
Output Voltage5 Volt
-
Rated Current34 Ampere
-
Input Voltage19V~36V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetUL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SD-200B-12 for high-current 5V logic or controller loads from a 24V source?
Based on the provided product specs, this unit delivers constant-voltage 5V output at up to 34A from a 19-36VAC input range. That makes it suitable for higher-current 5V industrial or embedded loads that need more capacity than a small 15W converter.
Is the SD-200B-12 appropriate for powering multiple 5V embedded devices on one rail?
It can be appropriate when the combined load remains within the listed 34A output current and 170W power rating. The 2:1 wide input range supports use on systems with 19-36VAC available upstream.
Would this model work for a 5V industrial computer or control backplane?
Yes, the provided specs point to higher-current 5V applications, with constant-voltage 5V output and up to 34A available. The listed 1.5~2KVAC isolation by models is also relevant for industrial equipment where isolation may be required.
How does SD-200B-12 compare with the other SD-200B models listed?
Based on the series list provided, SD-200B-12 is listed as 170W, 5V, 34A; SD-200B-24 is 200.4W, 12V, 16.7A; SD-200B-48 is 201.6W, 24V, 8.4A; and SD-200B-5 is 201.6W, 48V, 4.2A. The listed differences are output voltage, output current, and power across the SD-200B family entries.
Is the SD-200B-12 suitable for outdoor or temperature-variable enclosures?
The operating temperature range is specified as -20°C to +60°C, which supports use across a defined industrial temperature range. The provided specs do not include an IP rating, so ingress protection for outdoor exposure is not defined in the product data.
