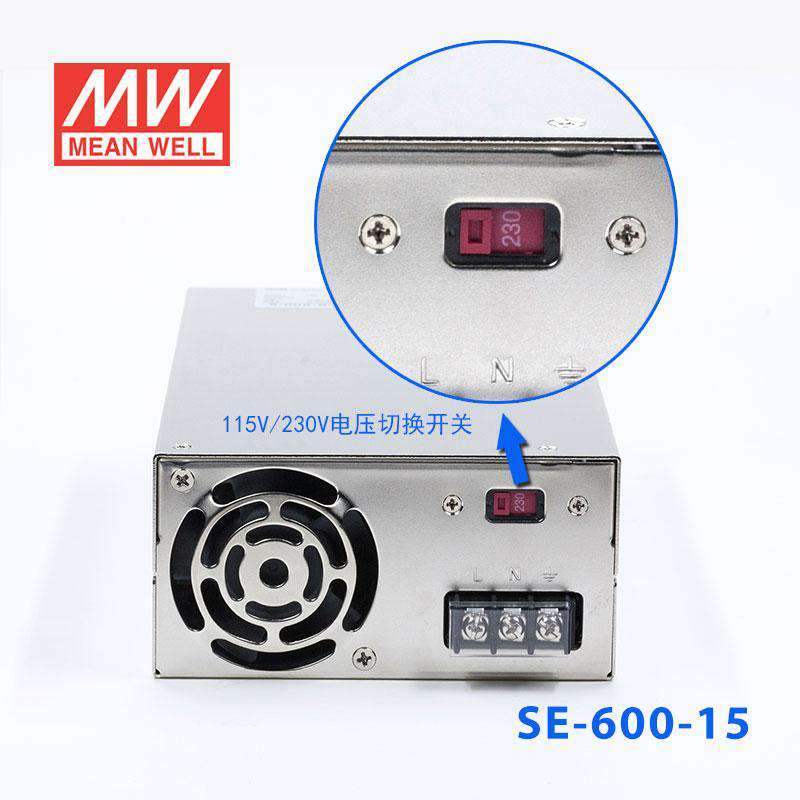

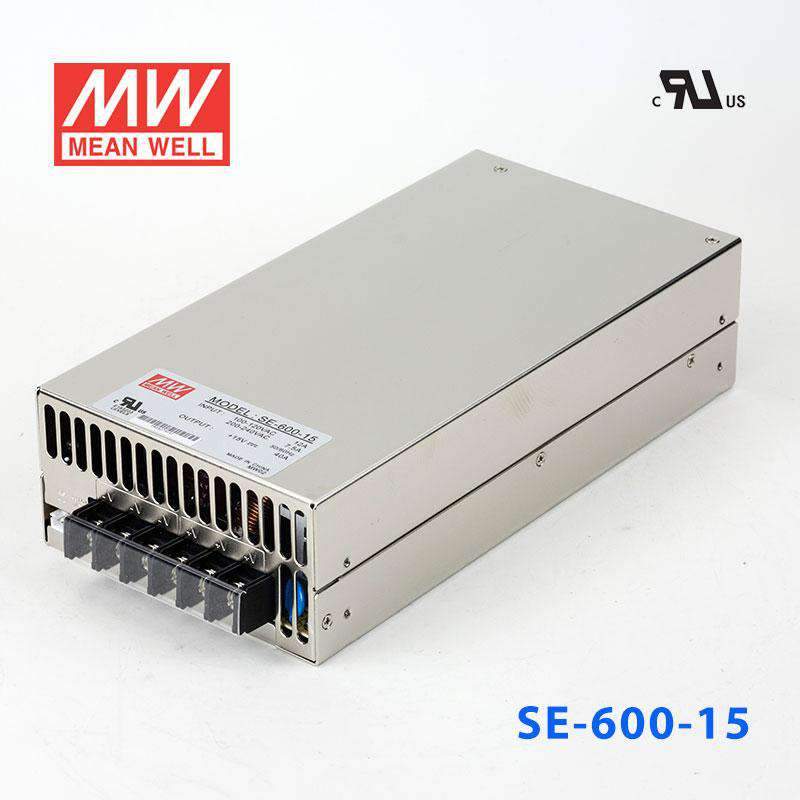

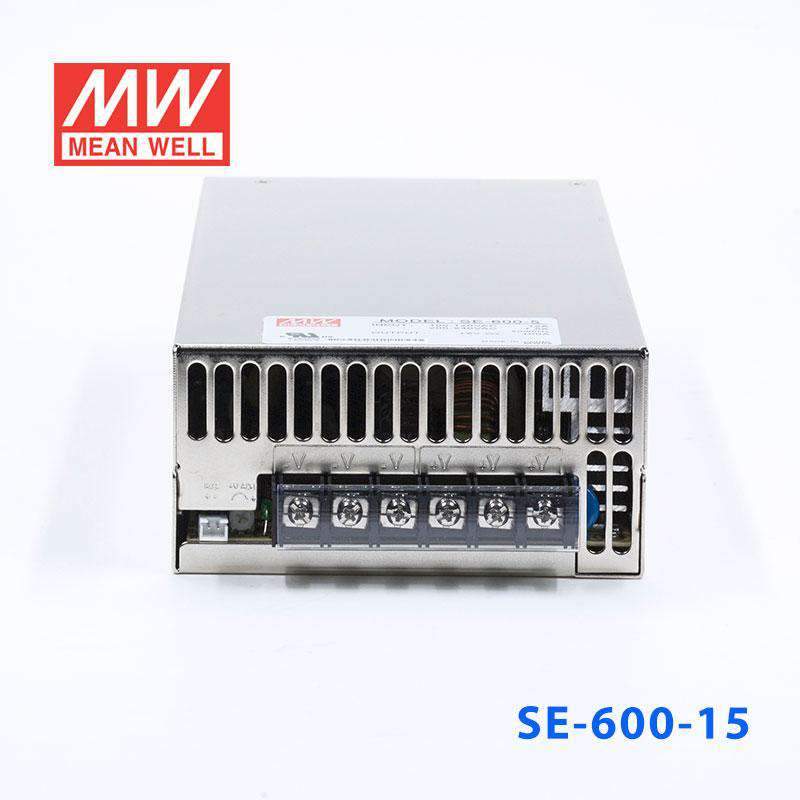

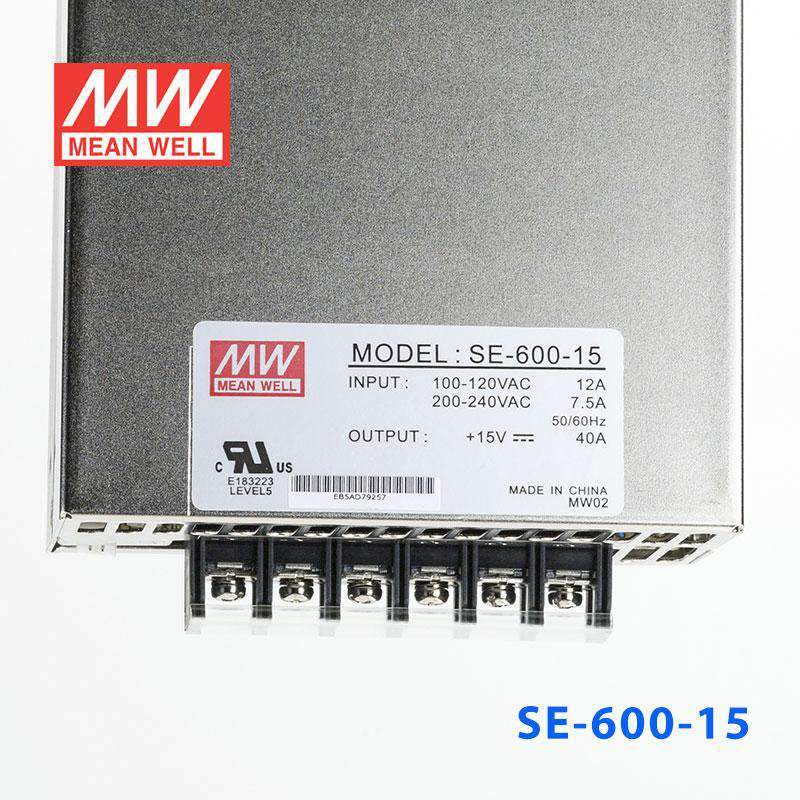

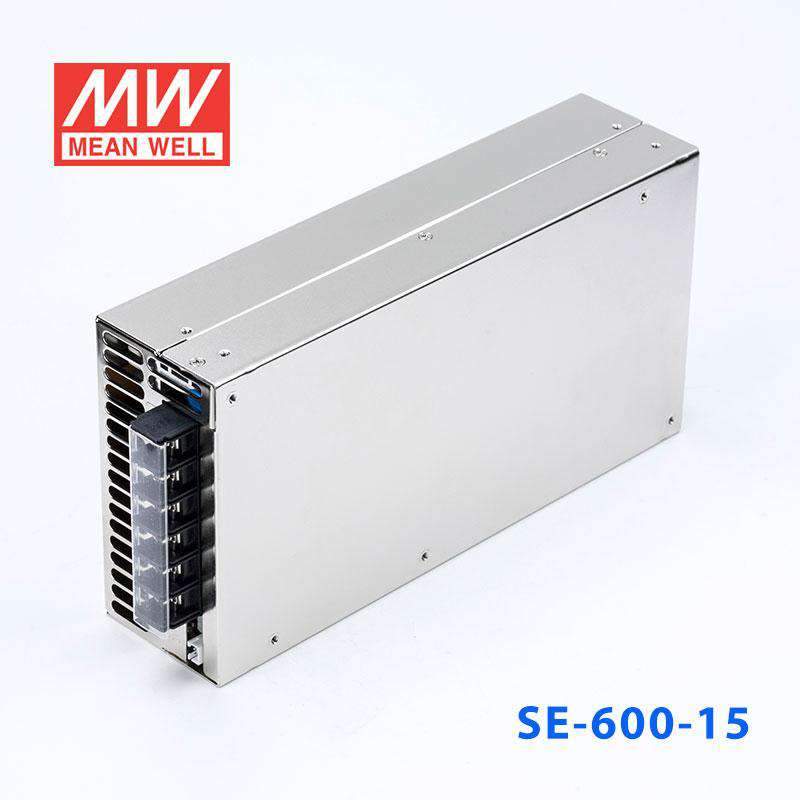

Mean Well SE-600-15 Power Supply 600W 15V
Description
Description
The SE-600 is a 600W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSE Series
-
Power Rating600 Watt
-
Output Voltage15 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length9.72 in
-
Width5 in
-
Height2.5 in
-
Weight4.63 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SE-600-15 for a 15V industrial control or automation system?
Yes, if the equipment is designed for a constant 15V DC input and the total draw does not exceed 40A and 600W. This model is the 15V constant-voltage version in the SE-600 family.
Is the SE-600-15 suitable for 15V embedded electronics or lab equipment?
It can be used with 15V embedded, instrumentation, or bench systems that need a fixed 15V DC supply. Its output rating is 15V at up to 40A, for a total of 600W.
Would the SE-600-15 work for 15V production fixtures or test stations?
Yes, for 15V fixtures or stations that need constant-voltage DC and fit within the 40A output limit. Buyers should select it when the load specifically calls for 15V rather than 12V, 24V, or 48V.
Can this unit power 15V DC components in an OEM machine build?
It is suitable for OEM equipment that uses a fixed 15V DC bus and requires up to 600W. The constant-voltage design is appropriate where the downstream components are specified for 15V operation.
What is the difference between the SE-600-15 and other SE-600 models?
The listed SE-600 outputs are 5V at 100A and 500W, 12V at 50A and 600W, 15V at 40A and 600W, 24V at 25A and 600W, 27V at 22.2A and 599.4W, 36V at 16.6A and 597.6W, and 48V at 12.5A and 600W. The SE-600-15 is the 15V option with 40A output.
Can the SE-600-15 operate in warmer industrial environments?
The stated operating temperature range is -20°C to +60°C. The provided specs do not list an IP rating, so the product data here does not define outdoor or moisture-protected use.
Other SE-600 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SE-600-24 Power Supply 600W 24V | 600W | 24V | 25A | Indoor | $86.86 | View |
| Mean Well SE-600-5 Power Supply 500W 5V | 500W | 5V | 100A | Indoor | $86.86 | View |
| Mean Well SE-600-12 Power Supply 600W 12V | 600W | 12V | 50A | Indoor | $73.47 | View |
| Mean Well SE-600-48 Power Supply 600W 48V | 600W | 48V | 12.5A | Indoor | $86.86 | View |
| Mean Well SE-600-36 Power Supply 600W 36V | 597.6W | 36V | 16.6A | Indoor | $86.78 | View |
| Mean Well SE-600-27 Power Supply 600W 27V | 599.4W | 27V | 22.2A | Indoor | $75.84 | View |
