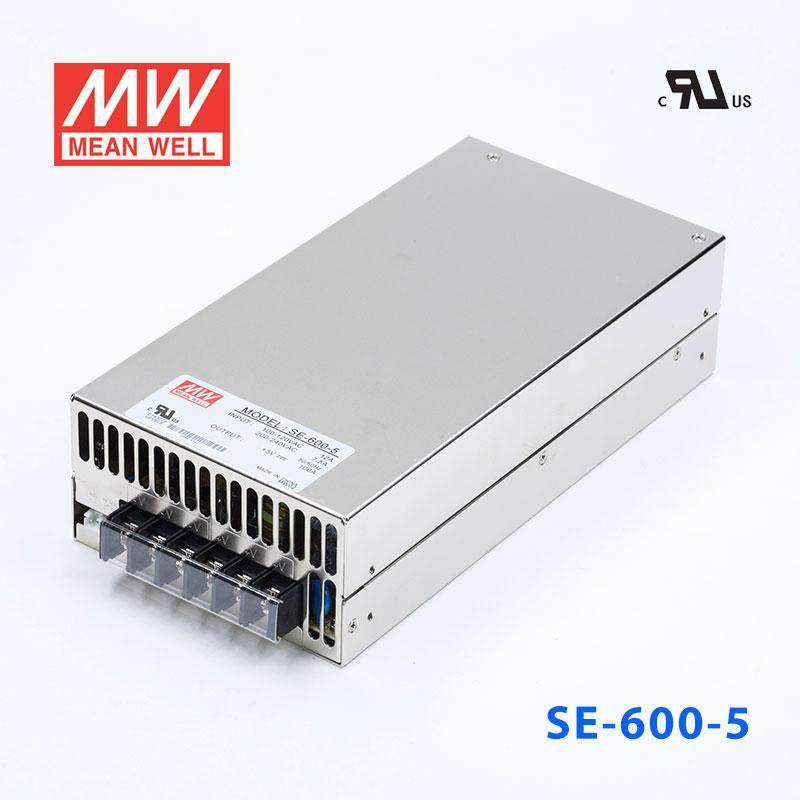

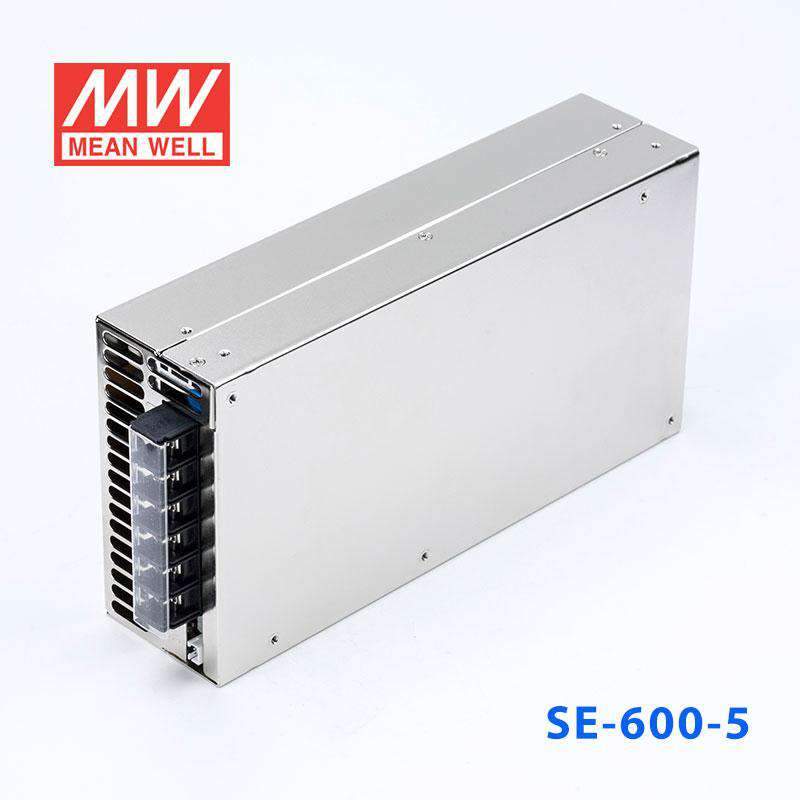

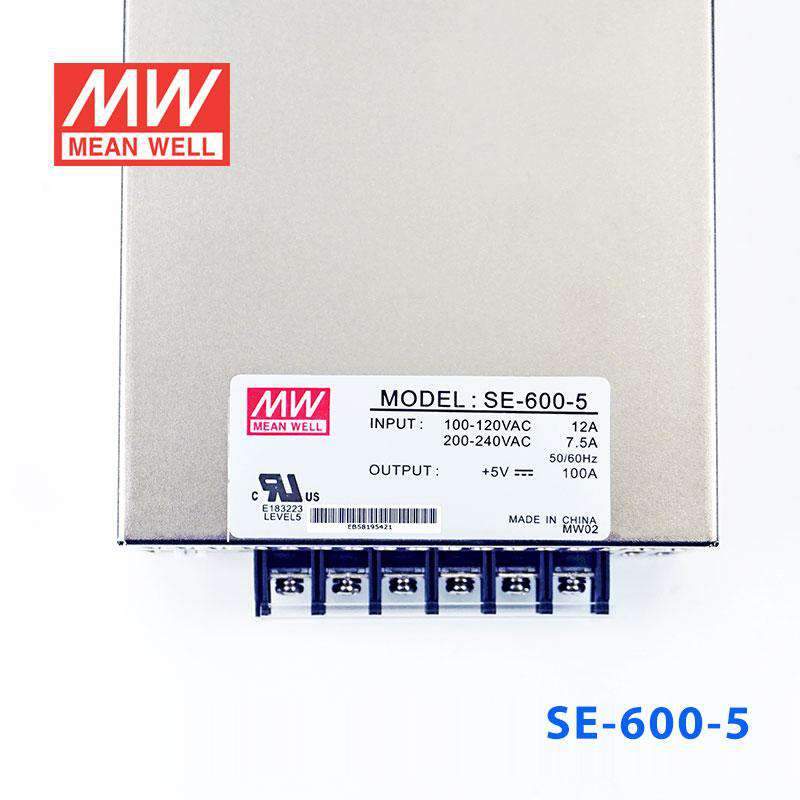

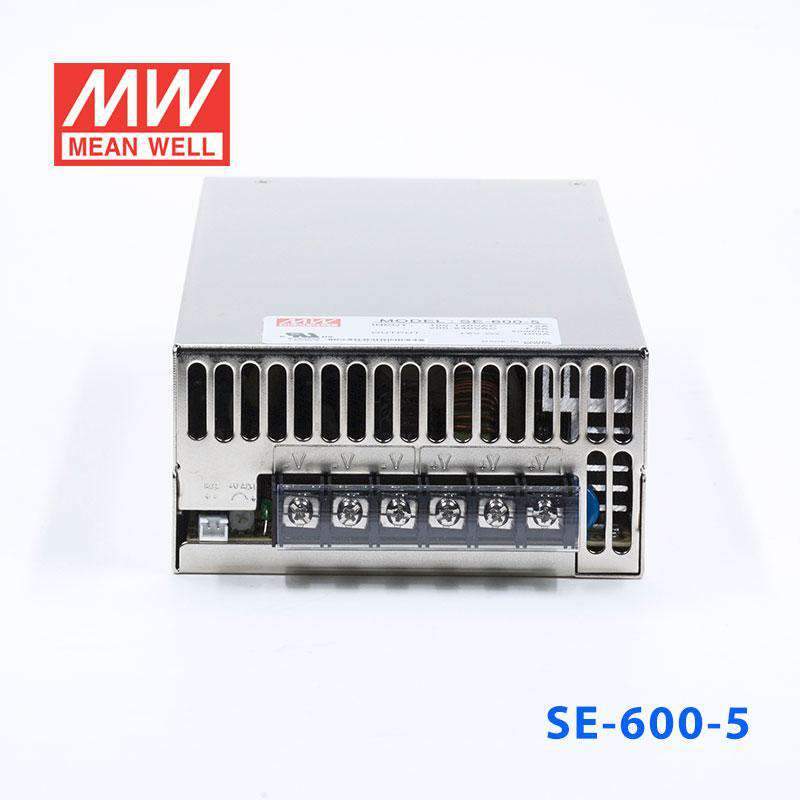

Mean Well SE-600-5 Power Supply 500W 5V

economical model medium to high power(450W~1500W)
$86.86 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

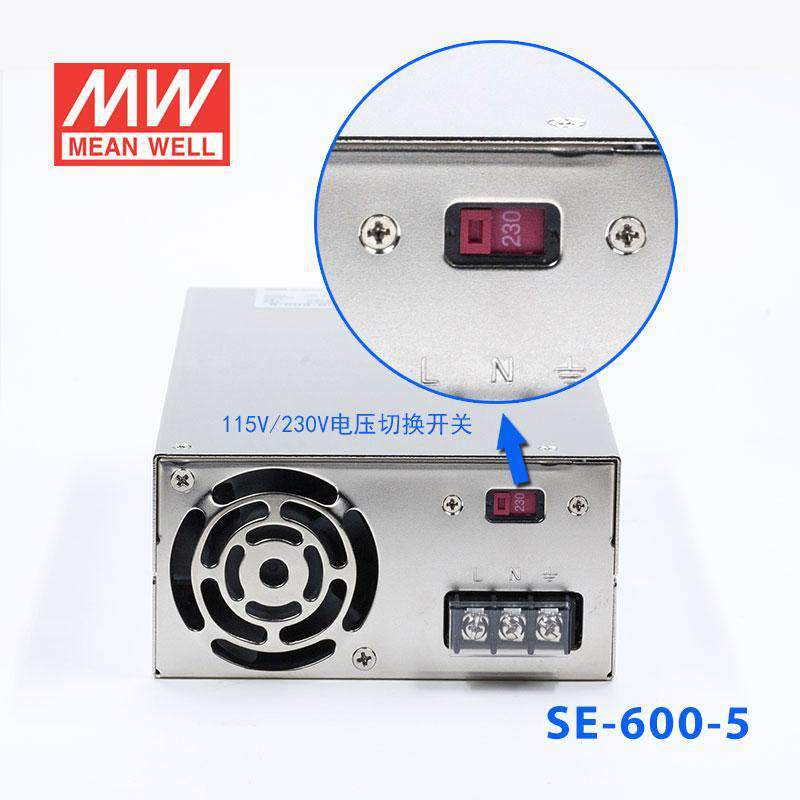

AC input selectable by switch
100% full load burn-in test
LED indicator for power on
Built-in remote sense function
Forced air cooling by built-in DC fan
Protections: Short circuit / Overload / Over voltage / Over temperature
2 years warranty

General Specification

AC input voltage range 90~132VAC / 180~264VAC selected by switch (600~1000W)
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range ±10% rated output voltage
Overload protection Range 105%~125%
Overload protection Type Shut down o/p voltage, re-power on to recover
Over voltage protection 115%~145%
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, 1 minute
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL60950-1 approved
EMC standards Design refer to EN55022 class B
Connection Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)
Dimension (LxWxH) 247x 127x 63.5
Case No. 926A
Packing 6pcs / 13.4kg

Specifications

  • Brand
    Mean Well
  • Series
    SE Series
  • Power Rating
    500 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    100 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Standards Met
    BSMI,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    2 Year
  • Length
    9.72 in
  • Width
    5 in
  • Height
    2.5 in
  • Weight
    4.63 lb

File Downloads
