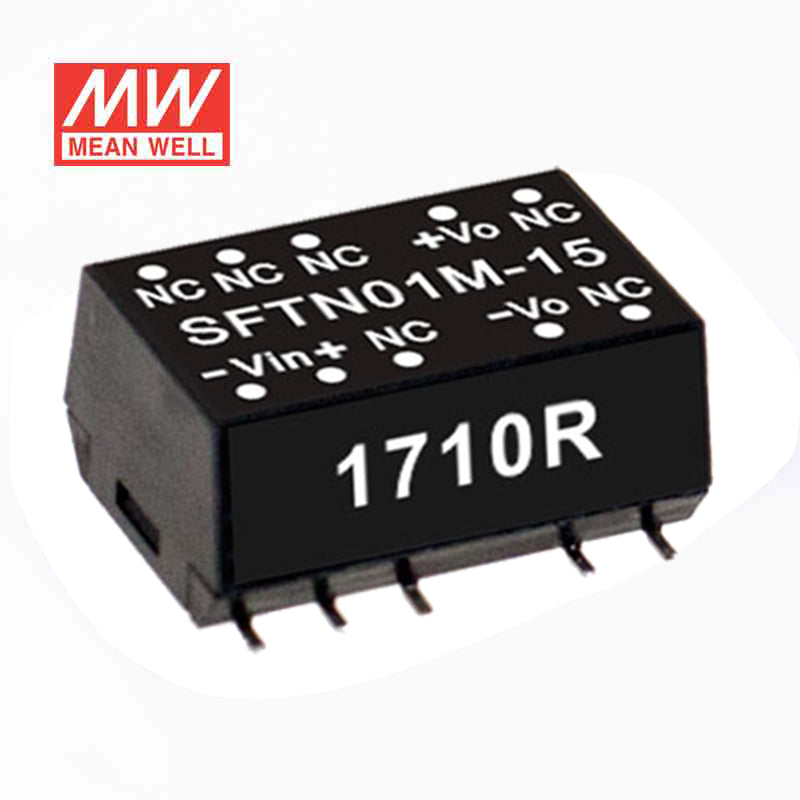

Mean Well SFTN01N-15 DC-DC Converter - 1W - 21.6~26.4V in 15V out

$5.57 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

SMD package with industry-standard pinout
Wide operating temperature range -40~+90°C
Comply to BS EN/EN55032 radiated Class B without additional components
High efficiency up to 84%
Protections: Short circuit
1.5KVDC I/O isolation
Low cost
Optional reel packing
3 years warranty

General Specification

Voltage accuracy ±2.0%
Vibration 10~500Hz, 2G 10min./1 cycle, a period of 60 min, each along the X, Y, Z axes
Cooling Free-air convection
Short circuit protection 0.5-second max. Optional models (SC-suffix): Continuous
Working temperature -40 ~ +90℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃
EMC Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8
Temp. Coefficient 0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm) 12.9*10.9*7.1mm (0.50*0.43*0.28 inch)
Potting material UL 94V-0 rated

Specifications

  • Brand
    Mean Well
  • Series
    SFTN Series
  • Power Rating
    1 Watt
  • Output Voltage
    15 Volt
  • Rated Current
    0.06 Ampere
  • Input Voltage
    21.6V~26.4V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CE,EMC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~90°C
  • Warranty
    3 Year
  • Length
    0.6 in
  • Width
    0.43 in
  • Height
    0.28 in
  • Weight
    0 lb

File Downloads

::specification::
