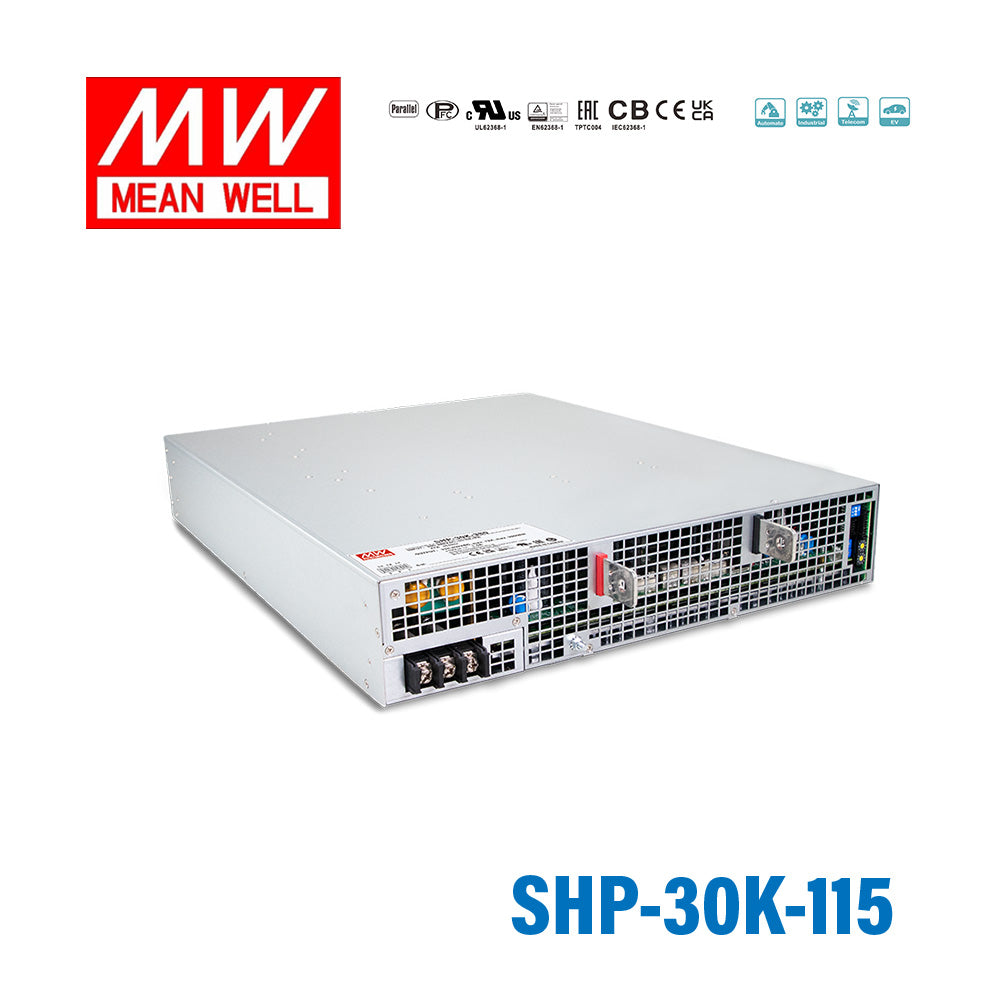

Mean Well SHP-30K-115 30KW High Efficiency Power Supply 115V Out 261A

Features:

• 3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC
• High efficiency up to 97%
• 2U high 19"-inch rack with forced air cooling
• Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
• Output voltage and constant current level programmable
• active current sharing up to 12 units(285KW) and more
• Built-in remote ON-OFF control / Auxiliary power / Alarm signal / Fan faill
• Protections: Short circuit / Overload / Over voltage / Over temperature
• Double insulation for 55V model
• 5 years warranty

General Specification

AC input voltage range

3ψ 3-wire or 3ψ 4-wire / 340 ~ 530VAC

AC inrush current (max.)

60A/400VAC 80A/480VAC

Overload protection

100 ~ 105% of rated current

Protection type: Constant current limiting, unit will shut down after 5 sec. re-power on to recover

Over-voltage protection

145-166V

Protection type: Shut down o/p voltage, re-power on to recover

Over temperature protection

Shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.25KVAC I/P-FG:3KVAC O/P-FG:1.25KVAC | I/P-O/P:4.25KVAC I/P-FG:3KVAC O/P-FG:3KVAC

Working temperature

-30 ~ +70 (Refer to "Derating Curve")

Safety standards

UL62368-1, CAN/CSA C22.2 , TUV BS EN/EN62368-1, EAC TP TC 004 approved

Dimension (LxWxH)

540x424x83.5mm
