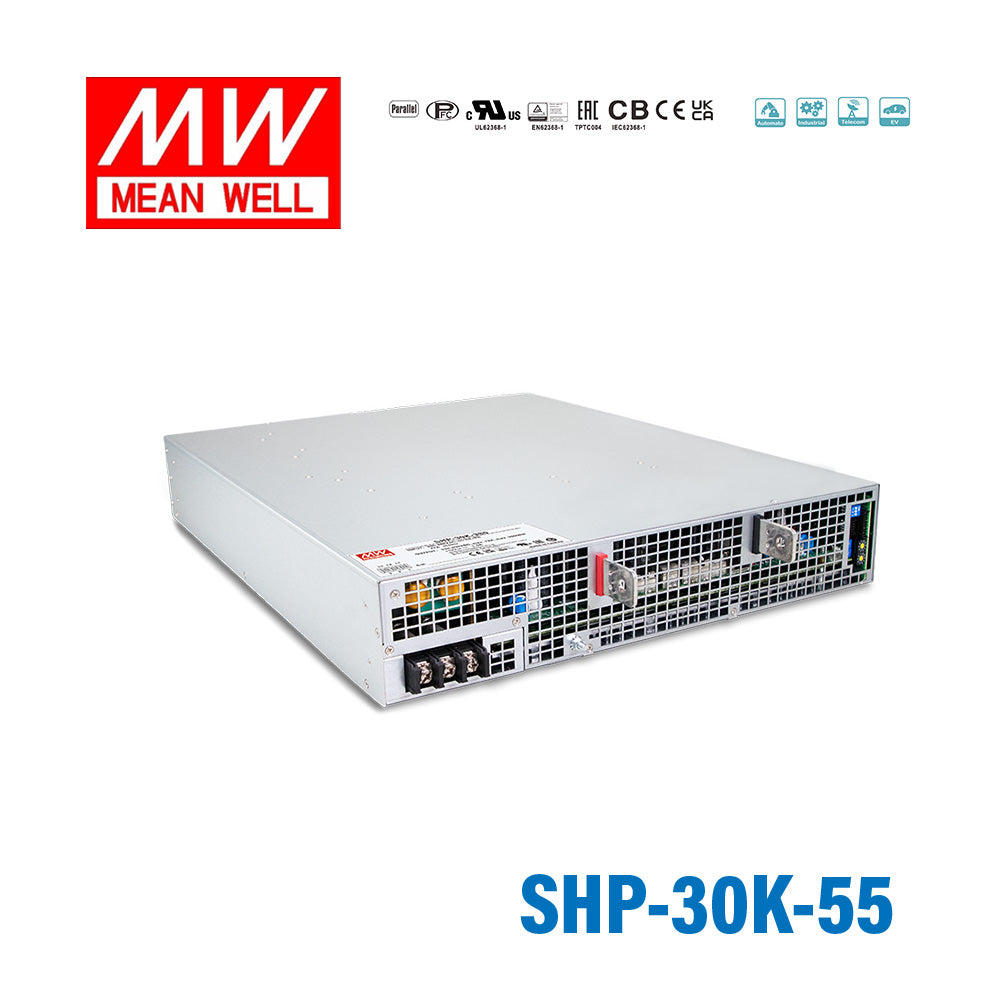

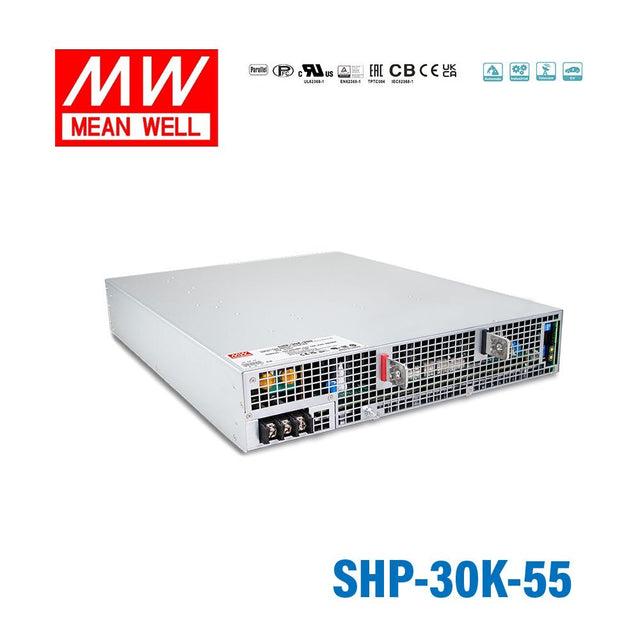

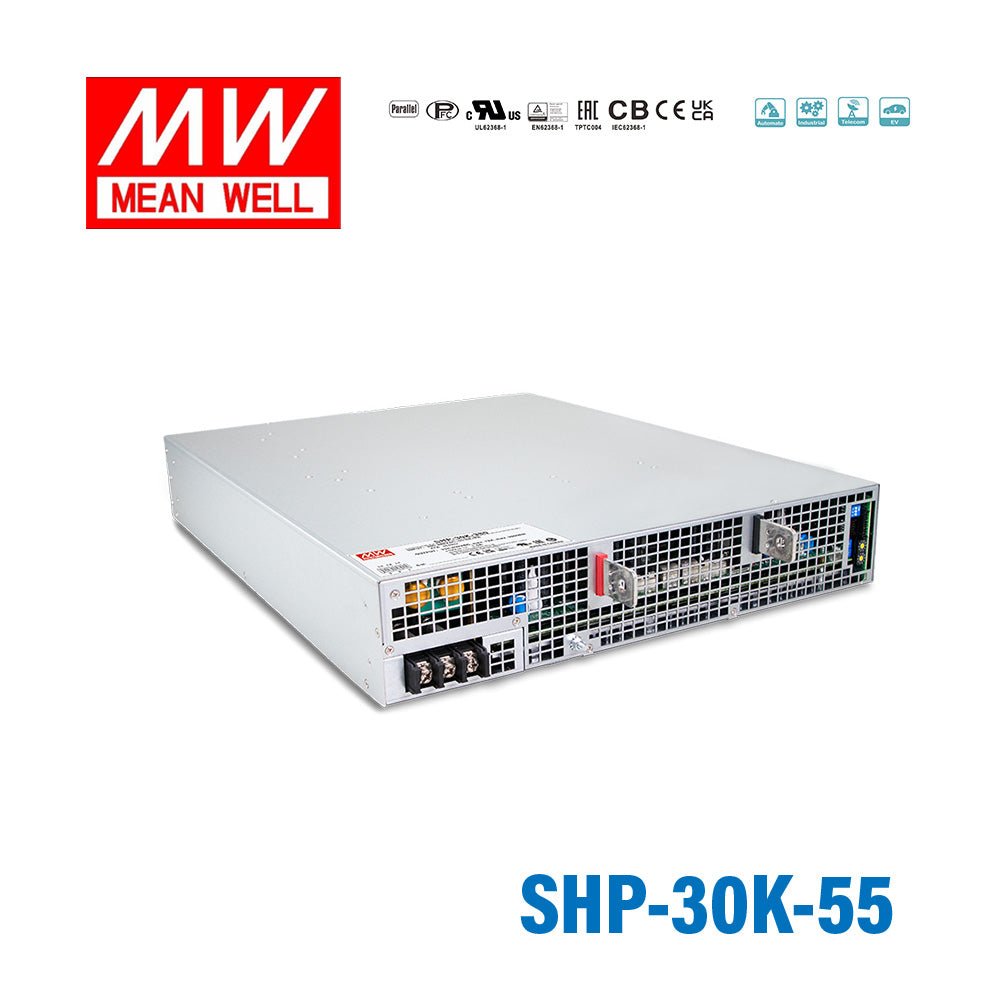

Mean Well SHP-30K-55 30KW High Efficiency Power Supply 55V Out 346A

three phase, high efficiency up to 97%, 2U rack, active current sharing up to 12 units(285KW), double insulation

SKU:

SHP-30K-55

$6,831.00 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

::specification::

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SHP-30K-380 30KW High Efficiency Power Supply 55V Out 79A	30000W	380V	79A	Indoor	$6,831.00	View
Mean Well SHP-30K-230 30KW High Efficiency Power Supply 230V Out 130.5A	30000W	230V	130.5A	Indoor	$6,831.00	View
Mean Well SHP-30K-115 30KW High Efficiency Power Supply 115V Out 261A	30000W	115V	261A	Indoor	$6,831.00	View

Key Features

✓3ψ 3-wire / △ or Y 340~530VAC or 3ψ 4-wire / Y 340-530VAC

✓High efficiency up to 97%

✓2U high 19"-inch rack with forced air cooling

✓Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol

✓Output voltage and constant current level programmable

✓active current sharing up to 12 units(285KW) and more

✓Built-in remote ON-OFF control / Auxiliary power / Alarm signal / Fan faill

✓Protections: Short circuit / Overload / Over voltage / Over temperature

✓Double insulation for 55V model

✓5 years warranty
