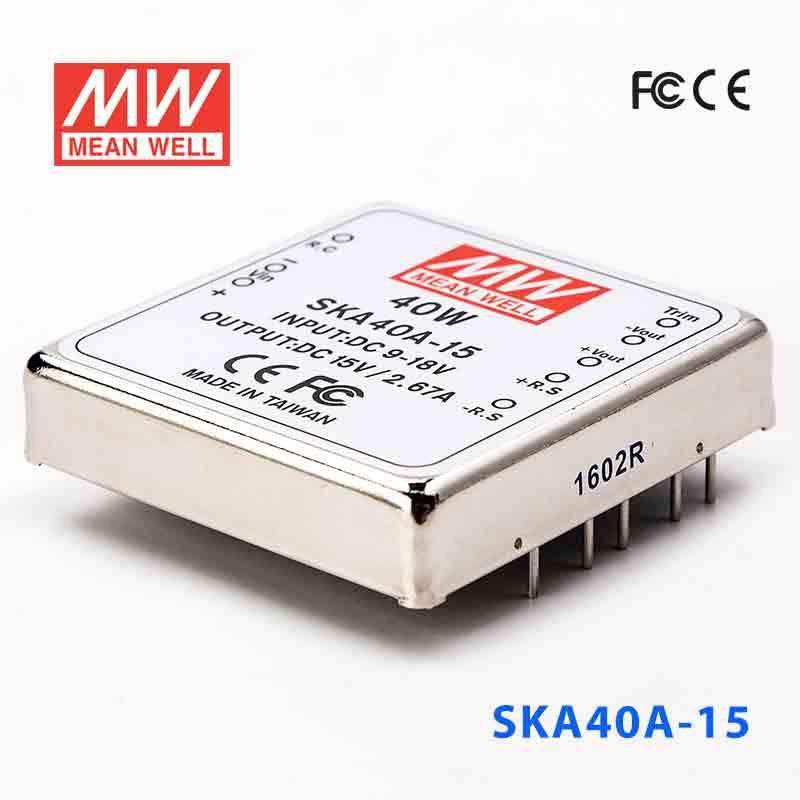

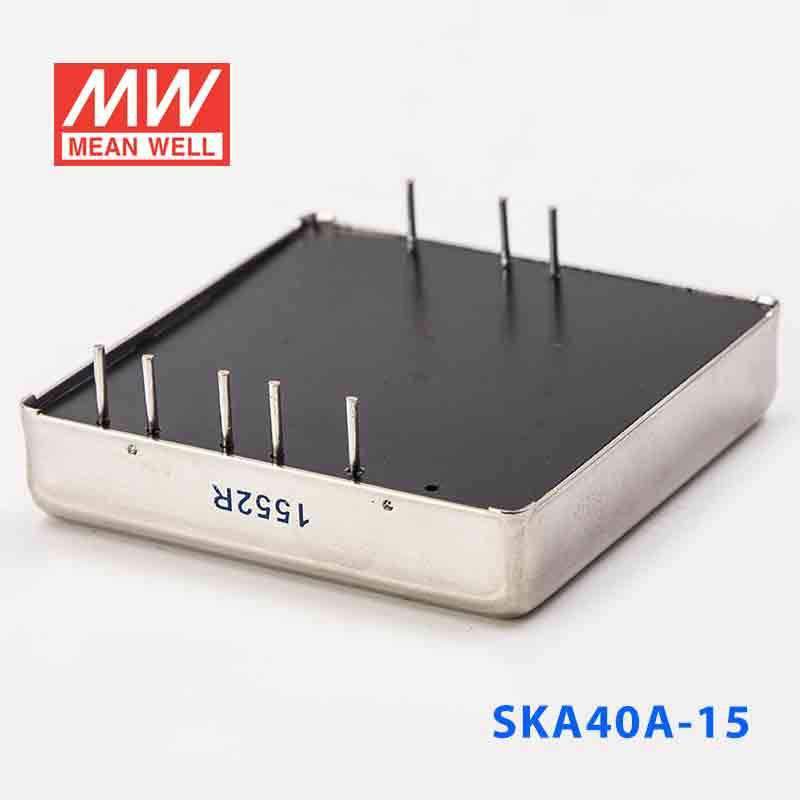

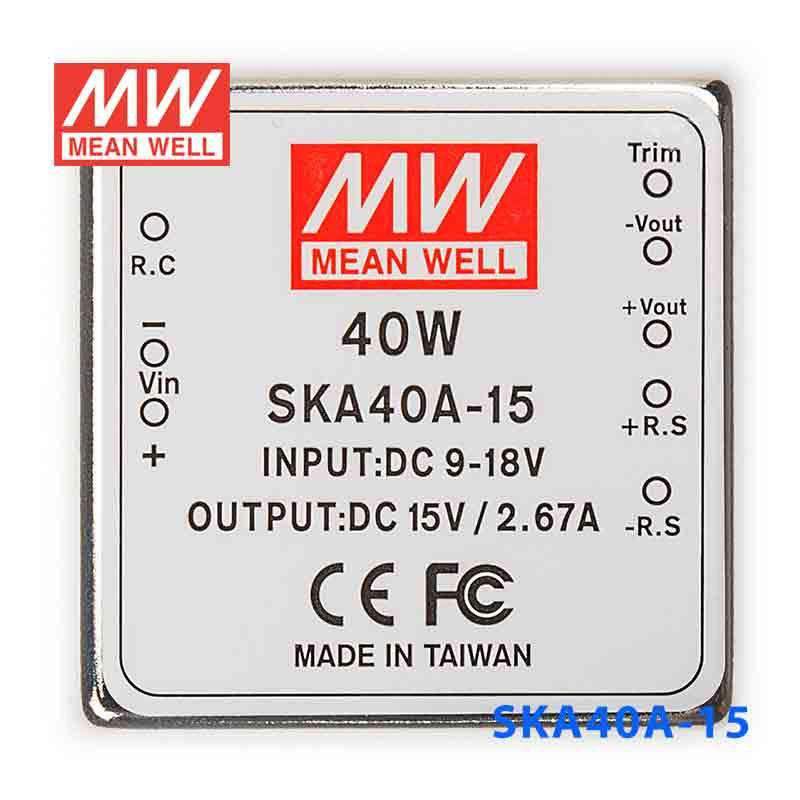

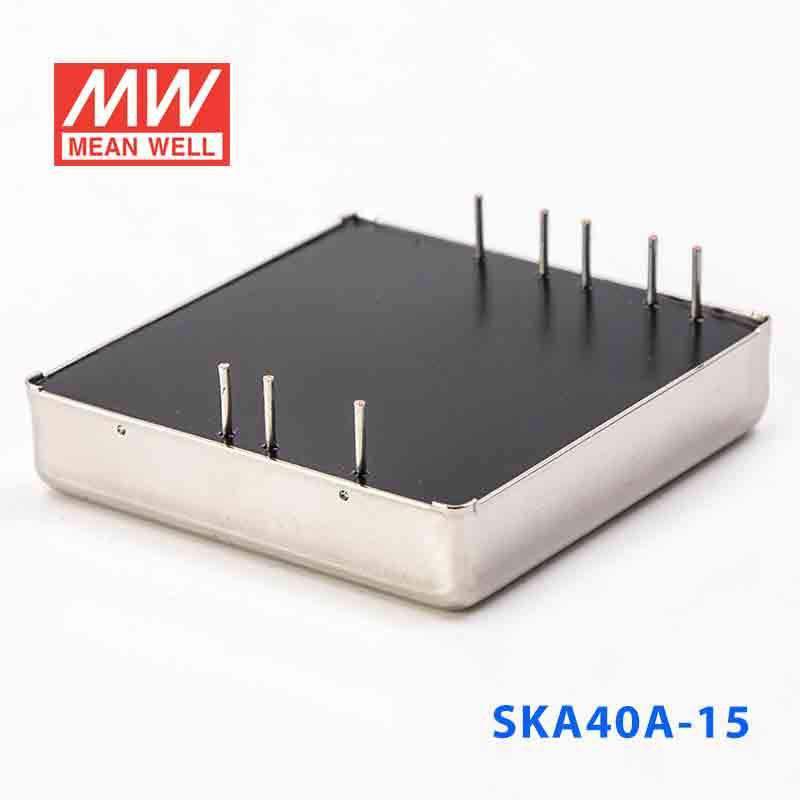

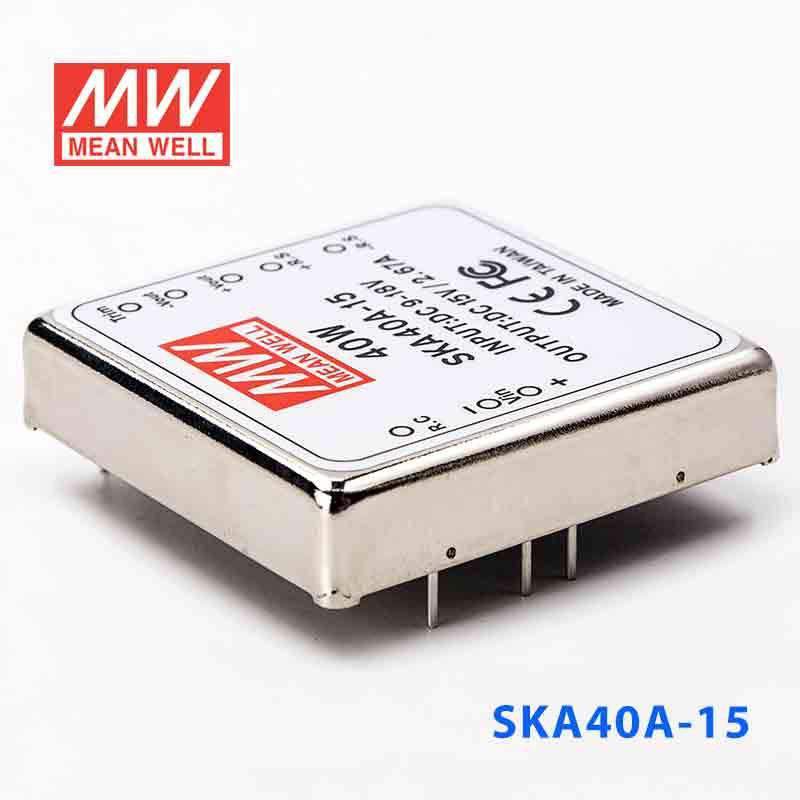

Mean Well SKA40A-15 DC-DC Converter - 35W - 9~18V in 15V out
$42.71 USD
Unit price /
Unavailable
Description
Description
Features
| 2" x 1" compact size |
| 2:1 wide input range |
| 1500VDC I/O isolation |
| Built-in remote ON/OFF control |
| Built-in EMI filter |
| Protection: Short circuit / Overload / Input and output over voltage |
| Cooling by free air convection |
| Built-in remote sense |
| 100% full load burn-in test |
| Low cost, high reliability |
| Trimming output (±10%) |
| High efficiency up to 93% |
| Output 3.3V/9V models available |
| 2 years warranty |
General Specification
| Voltage set point accuracy | ±2% (max.) |
| Line regulation | ±0.5% (max.) |
| Load regulation | ±0.5% (max.)@10~100% load |
| Overload protection | 110%~180%, auto-recovery |
| Efficiency | 92% |
| Over voltage protection | Clamp by TVS diode |
| I/O isolation voltage | 1500VDC (min.) |
| I/O isolation resistance | 100MQ(min.) @500VDC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Storage temperature | -55°C to +105°C |
| Case material | Six-sided shield metal case |
| EMC | Compliance to EN55022 class A, EN61000-4-2,3,4,5,6,8, FCC part15 class A |
| Dimension (LxWxH) (mm) | 2" x 2" x 0.43" |
Specifications
Specifications
-
BrandMean Well
-
SeriesSKA Series
-
Power Rating35 Watt
-
Output Voltage15 Volt
-
Rated Current2.67 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length2 in
-
Width2 in
-
Height0.43 in
-
Weight0.13 lb
