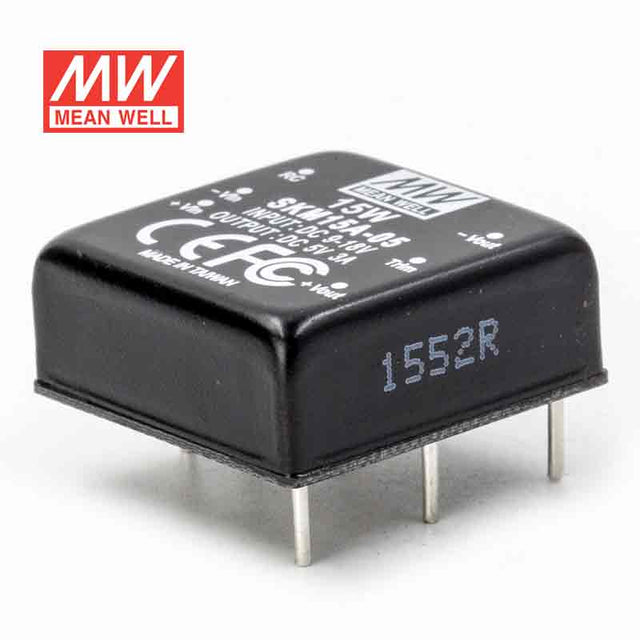

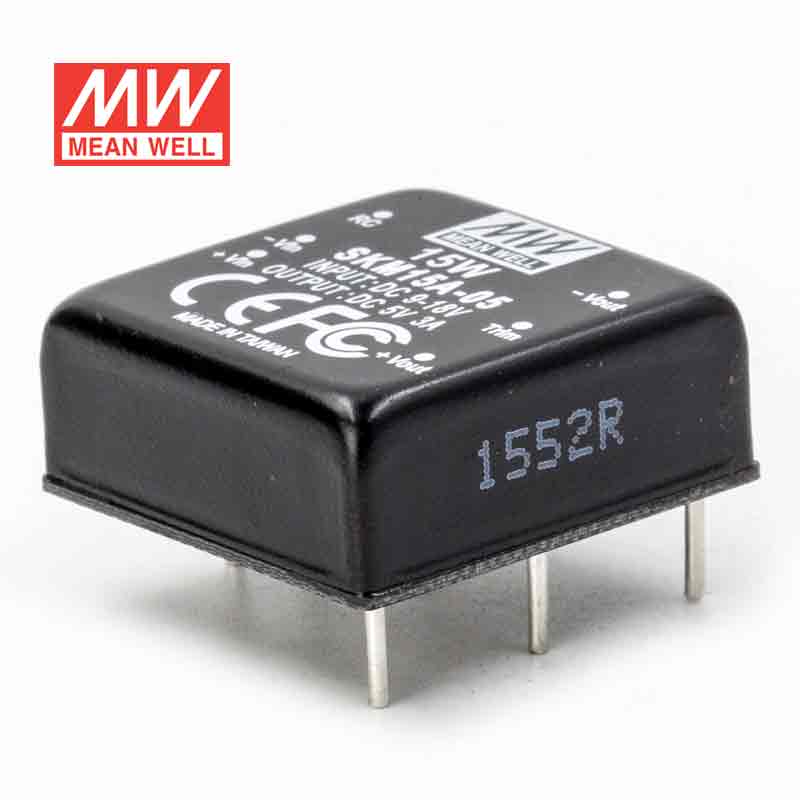

Mean Well SKM15A-05 DC-DC Converter - 15W - 9~18V in 5V out
$27.49 USD
Unit price /
Unavailable
Description
Description
"
Features
- 1"×1" compact size
- 2:1 wide input range
- High efficiency up to 88%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in trimming output(±10%)
- Built-in EMI filter
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / CE
- 2 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSKM Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage9V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty2 Year
-
Length1 in
-
Width1 in
-
Height0.39 in
-
Weight0.03 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SKM15 Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SKM15C-15 DC-DC Converter - 15W - 36~75V in 15V out | 15W | 15V | 1A | — | $27.49 | View |
| Mean Well SKM15C-12 DC-DC Converter - 15W - 36~75V in 12V out | 15W | 12V | 1.25A | — | $27.49 | View |
| Mean Well SKM15C-05 DC-DC Converter - 15W - 36~75V in 5V out | 15W | 5V | 3A | — | $27.49 | View |
| Mean Well SKM15B-15 DC-DC Converter - 15W - 18~36V in 15V out | 15W | 15V | 1A | — | $27.49 | View |
| Mean Well SKM15B-12 DC-DC Converter - 15W - 18~36V in 12V out | 15W | 12V | 1.25A | — | $29.13 | View |
| Mean Well SKM15B-05 DC-DC Converter - 15W - 18~36V in 5V out | 15W | 5V | 3A | — | $27.49 | View |
| Mean Well SKM15A-15 DC-DC Converter - 15W - 9~18V in 15V out | 15W | 15V | 1A | — | $27.49 | View |
| Mean Well SKM15A-12 DC-DC Converter - 15W - 9~18V in 12V out | 15W | 12V | 1.25A | — | $29.13 | View |
