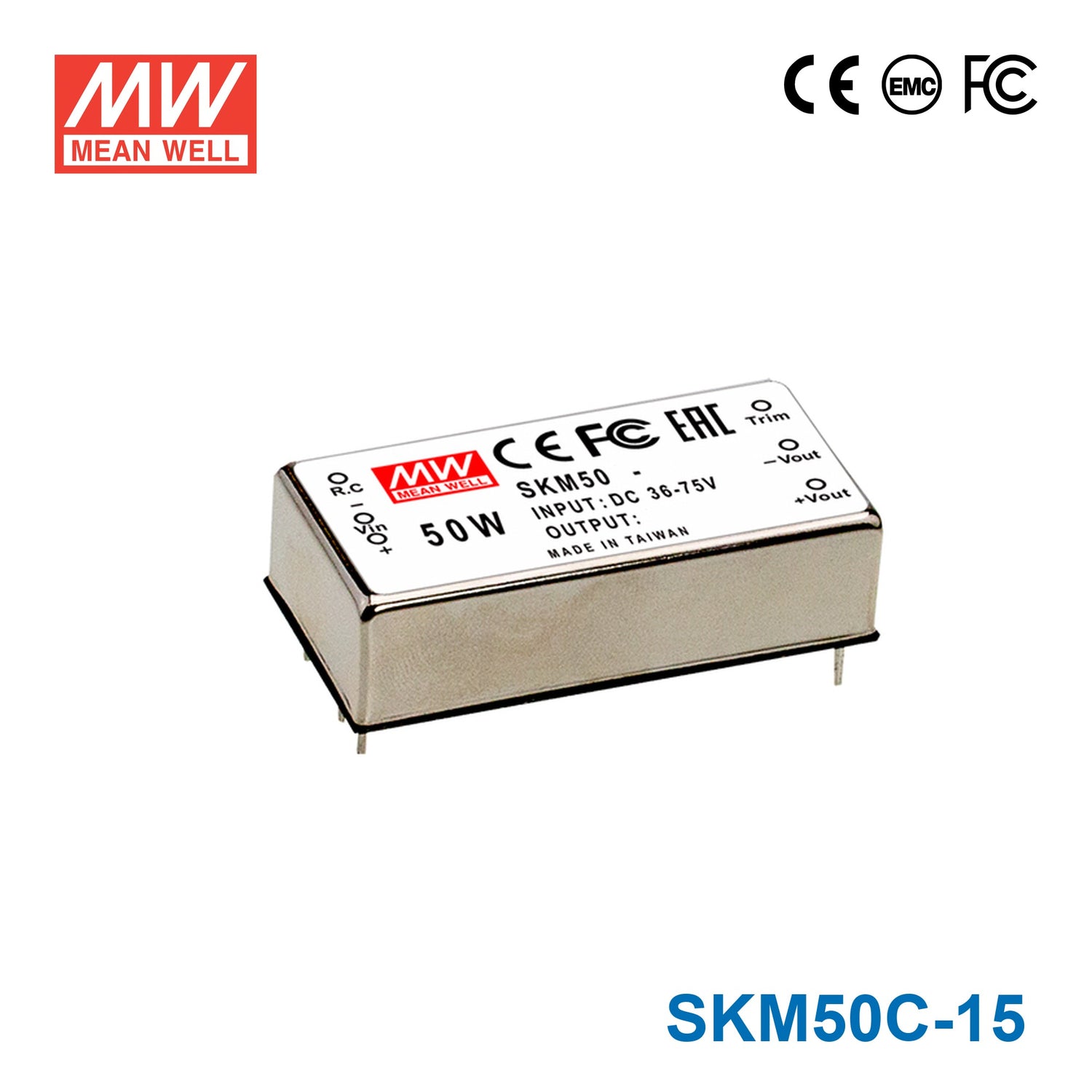

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

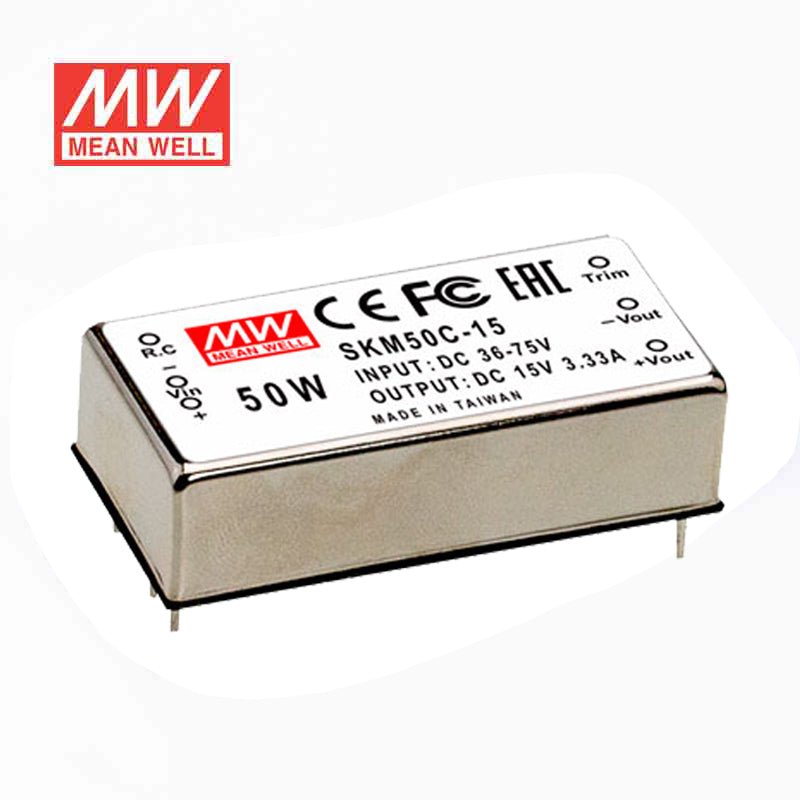

Mean Well SKM50C-15 DC-DC Converter - 50W - 36~75V in 15V out

SKU:

SKM50C-15

$45.47 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

DIP 2"x 1" compact size

2:1 wide input range

High Efficiency up to 92%

1500KVDC I/O isolation

Remote ON/OFF control and Trimming the output

Comply with CE / FCC without external components

Protection: Short circuit / Overload / Input and output over-voltage

Cooling by free air convection

Six-sided shield metal case

100% burn-in test

Low cost / High reliability

Approvals: FCC / EAC / CE / UKCA

2 years warranty

General Specification

Voltage set point accuracy	±2.0% (max.)
Line regulation	±0.2% (max.)
Load regulation	0.5%
Overload protection	110%~140%, Protection type: Recovers automatically after fault condition is removed
Efficiency	91% ; 91% ; 92% \| 91% ; 90% ; 91%
Short circuit protection	All output equipped with short circuit \| Protection type: Hiccup mode, recovers automatically after fault condition is removed
I/O isolation voltage	1500VDC (min.)
I/O isolation resistance	I/P-O/P: 100M Ohms / 500VDC / 25 / 70% RH
Working temperature	-40~+75°C (refer to output derating curve)
EMC	Compliance to EN55022 class B, EN61000-4-2,3,4,5,6,8, FCC part15 class B
Dimension (LxWxH) (mm)	50.8 x 25.4 x 13.7 mm \| 2" x 1" x 0.54" inch

Specifications

Brand

Mean Well
Series

SKM Series
Power Rating

50 Watt
Output Voltage

15 Volt
Rated Current

3.33 Ampere
Input Voltage

36V~75V
No of Output

1
Dimming Control

None
Standards Met

CE,EMC,FCC
Operation Mode

Constant Voltage
Operating Temperature

-40°C~75°C
Warranty

2 Year
Length

2 in
Width

1 in
Height

0.54 in
Weight

0.09 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the SKM50C-15 to supply 15V power for industrial control or instrumentation equipment from 36-75VAC?

Yes, that is consistent with the published electrical profile of this converter. It accepts 36-75VAC input and delivers a constant 15V output up to 3.33A, with a total power rating of 50W.

Is the SKM50C-15 suitable for embedded systems that need a stable 15V rail?

It can be suitable for embedded equipment that requires constant-voltage 15V and stays within 3.33A or 50W. The compact 50.8 × 25.4 × 13.7 mm package also helps when the available space is tight.

Can this converter be used for 15V analog or signal-processing modules in automation hardware?

Yes, if the downstream modules need a regulated 15V output and the total draw remains within 3.33A. Its constant-voltage operation makes it appropriate for loads that expect a fixed 15V supply rather than a current-regulated output.

Is the SKM50C-15 a good fit for compact 15V auxiliary power inside larger equipment?

It is often considered for that role because it combines a 50W, 15V output with a small 50.8 × 25.4 × 13.7 mm form factor. At 0.043 kg, it also stays lightweight for compact assemblies.

What are the main differences between the SKM50C-15 and other SKM50C outputs?

The family shares the same 50W rating and 36-75VAC input range, while the output options change by model. The SKM50C-05 is 5V at 10A, the SKM50C-12 is 12V at 4.17A, and the SKM50C-15 is 15V at 3.33A. The output voltage requirement is the main deciding factor.

Can the SKM50C-15 be used in cold or hot industrial environments, and what about outdoor exposure?

Its rated operating temperature range is -40°C to +75°C, which supports a wide environmental temperature window. The provided specs do not list an IP rating, so exposed outdoor suitability is not confirmed by the published data alone.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well SKM50C-12 DC-DC Converter - 50W - 36~75V in 12V out	50W	12V	4.17A	Indoor	$45.47	View
Mean Well SKM50C-05 DC-DC Converter - 50W - 36~75V in 5V out	50W	5V	10A	Indoor	$45.47	View
Mean Well SKM50B-15 DC-DC Converter - 50W - 18~36V in 15V out	50W	15V	3.33A	Indoor	$45.47	View
Mean Well SKM50B-12 DC-DC Converter - 50W - 18~36V in 12V out	50W	12V	4.17A	Indoor	$45.47	View
Mean Well SKM50B-05 DC-DC Converter - 50W - 18~36V in 5V out	50W	5V	10A	Indoor	$45.47	View
