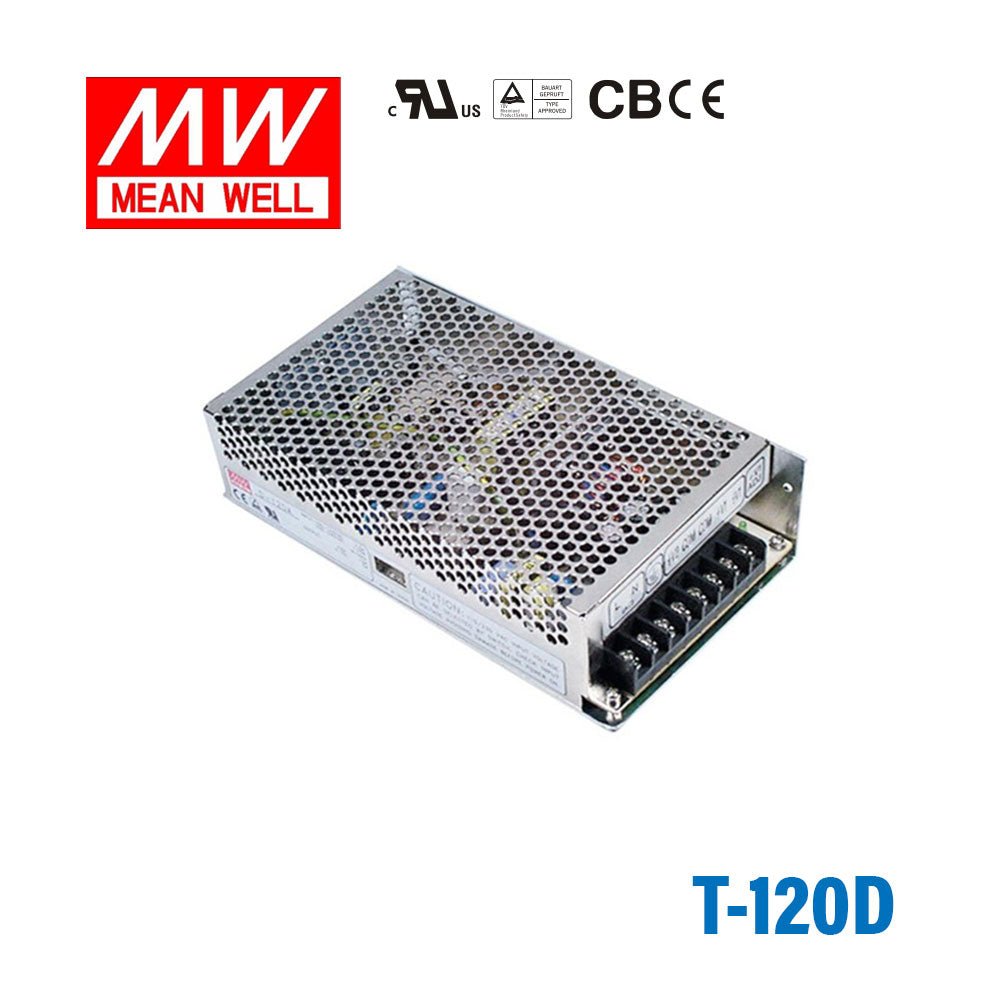

Mean Well T-120D Switching Power Supply

$25.97 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 25KHz
2 years warranty

General Specification

Line regulation (max.) ± 0.5%
Load regulation (max.) ± 0.5%
Overload protection Range 105 ~ 135% rated output power
Overload protection Type Shut down o/p voltage, re-power on to recover
Over-voltage protection Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC
Isolation resistance I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
Working temperature -10 ~ +60 ℃ (Refer to "Derating Curve")
Safety standards UL60950-1, TUV EN60950-1
Dimension (LxWxH) (mm) 199*110*50mm (L*W*H)
Packing 0.83Kg; 16pcs/14.2Kg/0.95CUFT

Specifications

  • Brand
    Mean Well
  • Series
    T Series
  • Power Rating
    118 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    8 Ampere
  • Input Voltage
    88V~264V
  • No of Output
    3
  • Standards Met
    CB,CCC,UL
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    7.83 in
  • Width
    4.33 in
  • Height
    1.97 in
  • Weight
    1.83 lb
