Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

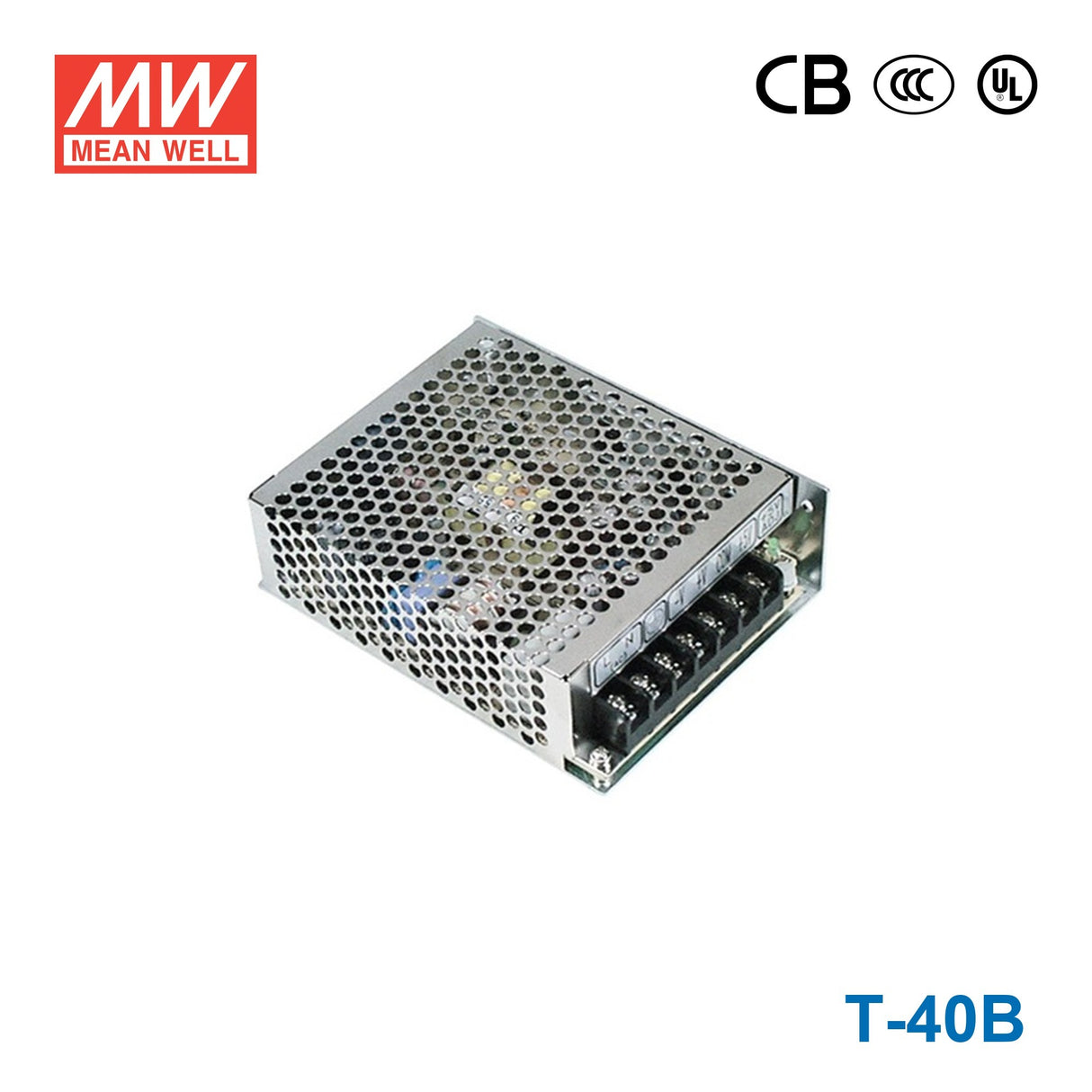

Mean Well T-40B Switching Power Supply
$15.01 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage |
| Cooling by free air convection |
| 100% full load burn-in test |
| Fixed switching frequency at 40KHz |
| 2 years warranty |
General Specification
| Line regulation (max.) | ± 0.5% |
| Load regulation (max.) | ± 0.5% |
| Overload protection Range | 105 ~ 150%/115VAC rated output power |
| Overload protection Type | Hiccup mode, recovers automatically after fault condition is removed |
| Over-voltage protection | Hiccup mode, recovers automatically after fault condition is removed |
| Withstand voltage | I/P-O/P:3KVAC | I/P-FG:1.5KVAC | O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| Working temperature | -10 ~ +60 ℃ (Refer to "Derating Curve") |
| Safety standards | CSA 60950-1, (UL60950-1, IEC60950-1, TUV EN60950-1) approved |
| Dimension (LxWxH) (mm) | 129*98*38mm (L*W*H) |
| Packing | 0.44Kg; 30pcs/14.7Kg/0.86CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesT Series
-
Power Rating45 Watt
-
Output Voltage5 Volt
-
Rated Current3 Ampere
-
Input Voltage85V~264V
-
No of Output3
-
Standards MetCB,CCC,UL
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length5.08 in
-
Width3.86 in
-
Height1.5 in
-
Weight0.97 lb
