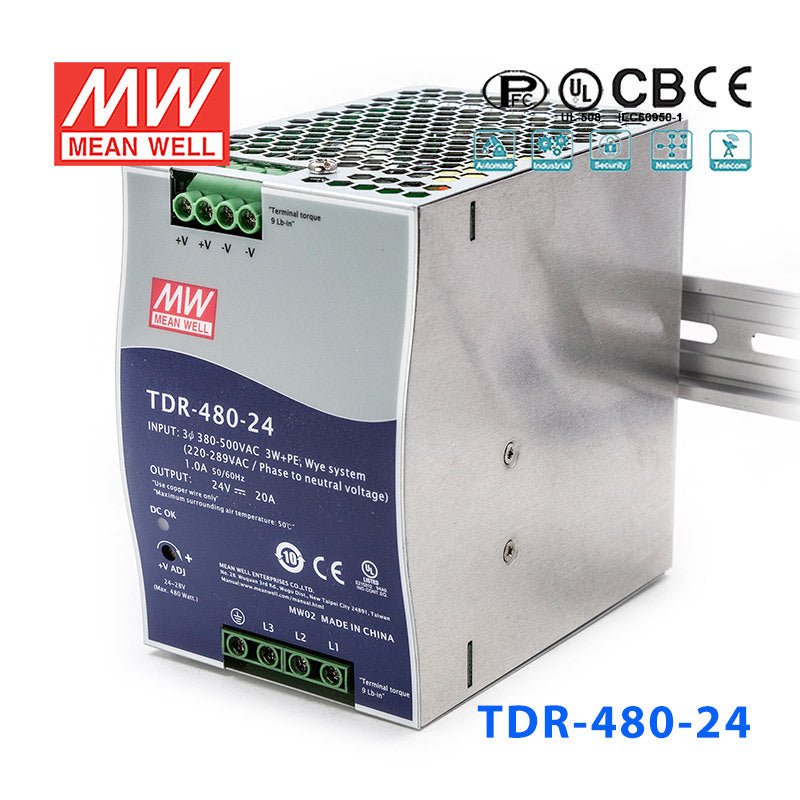

Mean Well TDR-480-24 Single Output Industrial Power Supply 480W 24V - DIN Rail

metal case, slim size, 3 phase input, high efficiency up to 94.5%, built-in active PFC
$138.78 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Input 340~550VAC, 3-phase
85.5mm slim width
Built-in passive PFC function compliance to BS EN/EN61000-3-2
High efficiency up to 92%
Protections: Short circuit / Overload / Over voltage / Over temp
Cooling by free air convection
Installed on DIN rail TS-35 / 7.5 or 15
EN61000-6-2(EN50082-2) industrial immunity level
UL61010(industrial control equipment) approved
Built-in DC OK relay contact
3 years warranty

General Specification

AC input voltage range 340~550VAC, 3-phase ( two phase operation possible)
AC input current (Typ.) 0.85A / 400VAC, 0.7A / 500VAC
AC inrush current (max.) Cold start 50A
DC adjustment range 24V: 24~28V, 48V: 48~55V
Overload protection 105%~130% rated output power, constant current limiting, unit will shut down after 3 sec., re-power on to recover
Over voltage protection 29~33V (24V model), 56~65V (48V model), shut down o/p voltage, re-power on to recover
Over temp. 90ºC±5ºC (24V model), 85ºC±5ºC (48V model) shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage I/P-O/P:4.87kVAC I/P-FG:2.4kVAC O/P-FG:0.5kVAC O/P-DC OK: 0.5kVAC
Working temperature -30~+70°C
Safety standards UL61010-1 approved; AS/NZS 62368.1
EMC standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection I/P: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH) 85.5x 125.2x 128.5mm
Packing8 pcs/13Kg
Case 984E

Specifications

  • Brand
    Mean Well
  • Series
    TDR Series
  • Power Rating
    480 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    20 Ampere
  • Input Voltage
    340V~550V
  • No of Output
    1
  • Standards Met
    CE,cUL,EAC,TUV
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    5.06 in
  • Width
    4.93 in
  • Height
    3.37 in
  • Weight
    3.33 lb
