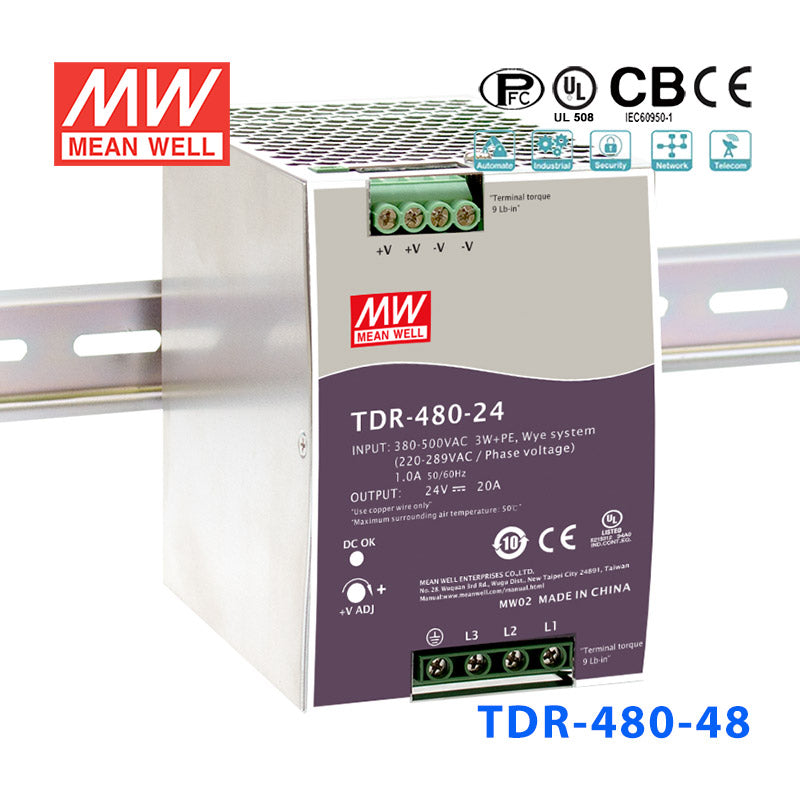

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well TDR-480-48 Single Output Industrial Power Supply 480W 48V - DIN Rail

Name: Mean Well TDR-480-48 Single Output Industrial Power Supply 480W 48V - DIN Rail
Brand: Mean Well
SKU: TDR-480-48
Price: 138.77 USD
Availability: InStock

$138.77 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Input 340~550VAC, 3-phase

85.5mm slim width

Built-in passive PFC function compliance to BS EN/EN61000-3-2

High efficiency up to 92%

Protections: Short circuit / Overload / Over voltage / Over temp

Cooling by free air convection

Installed on DIN rail TS-35 / 7.5 or 15

EN61000-6-2(EN50082-2) industrial immunity level

UL61010(industrial control equipment) approved

Built-in DC OK relay contact

3 years warranty

General Specification

AC input voltage range	340~550VAC, 3-phase ( two phase operation possible)
AC input current (Typ.)	0.85A / 400VAC, 0.7A / 500VAC
AC inrush current (max.)	Cold start 50A
DC adjustment range	24V: 24~28V, 48V: 48~55V
Overload protection	105%~130% rated output power, constant current limiting, unit will shut down after 3 sec., re-power on to recover
Over voltage protection	29~33V (24V model), 56~65V (48V model), shut down o/p voltage, re-power on to recover
Over temp.	90ºC±5ºC (24V model), 85ºC±5ºC (48V model) shut down o/p voltage, recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:4.87kVAC I/P-FG:2.4kVAC O/P-FG:0.5kVAC O/P-DC OK: 0.5kVAC
Working temperature	-30~+70°C
Safety standards	UL61010-1 approved; AS/NZS 62368.1
EMC standards	EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection	I/P: 3 poles, O/P: 6 poles screw DIN terminal
Dimension (LxWxH)	85.5x 125.2x 128.5mm
Packing8	pcs/13Kg
Case	984E

Specifications

Brand

Mean Well
Series

TDR Series
Power Rating

480 Watt
Output Voltage

48 Volt
Rated Current

10 Ampere
Input Voltage

340V~550V
No of Output

1
Standards Met

CE,cUL,EAC,TUV
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

5.06 in
Width

4.93 in
Height

3.37 in
Weight

3.33 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Features

Input 340~550VAC, 3-phase

85.5mm slim width

Built-in passive PFC function compliance to BS EN/EN61000-3-2

High efficiency up to 92%

Protections: Short circuit / Overload / Over voltage / Over temp

Cooling by free air convection

Installed on DIN rail TS-35 / 7.5 or 15

EN61000-6-2(EN50082-2) industrial immunity level

UL61010(industrial control equipment) approved

Built-in DC OK relay contact

3 years warranty

General Specification

AC input voltage range

340~550VAC, 3-phase ( two phase operation possible)

AC input current (Typ.)

0.85A / 400VAC, 0.7A / 500VAC

AC inrush current (max.)

Cold start 50A

DC adjustment range

24V: 24~28V, 48V: 48~55V

Overload protection

105%~130% rated output power, constant current limiting, unit will shut down after 3 sec., re-power on to recover

Over voltage protection

29~33V (24V model), 56~65V (48V model), shut down o/p voltage, re-power on to recover

Over temp.

90ºC±5ºC (24V model), 85ºC±5ºC (48V model) shut down o/p voltage, recovers automatically after temperature goes down

Withstand voltage

I/P-O/P:4.87kVAC I/P-FG:2.4kVAC O/P-FG:0.5kVAC O/P-DC OK: 0.5kVAC

Working temperature

-30~+70°C

Safety standards

UL61010-1 approved; AS/NZS 62368.1

EMC standards

EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3

Connection

I/P: 3 poles, O/P: 6 poles screw DIN terminal

Dimension (LxWxH)

85.5x 125.2x 128.5mm

Packing8

pcs/13Kg

Case

984E
