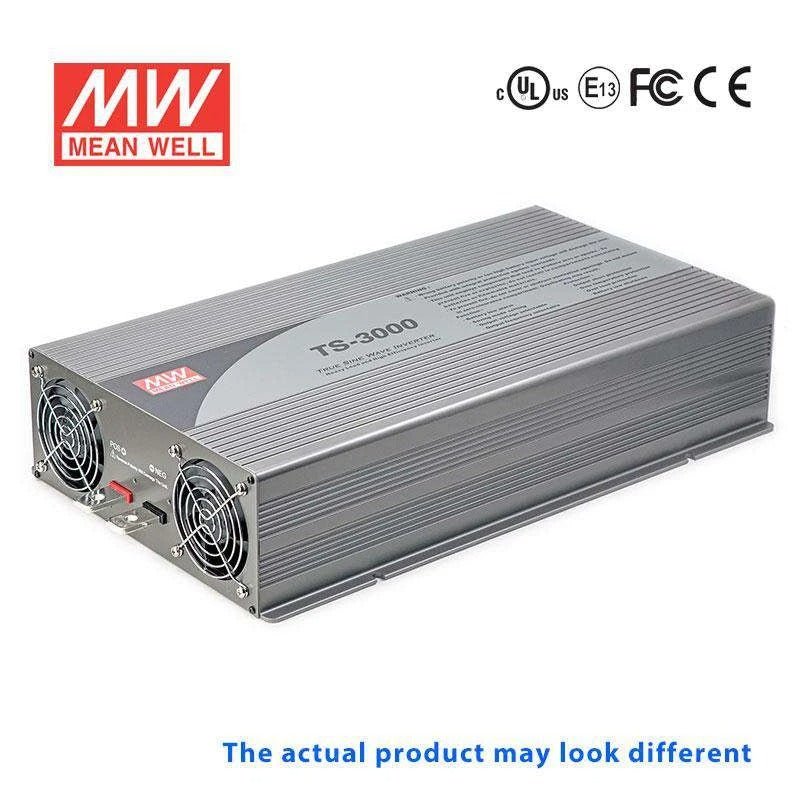

Mean Well TS-3000-124A True Sine Wave 3000W 110V 150A - DC-AC Power Inverter

high surge power up to 200%, suitable for motor related applications
SKU:
TS-3000-124A

$915.90 USD
Shipping calculated at checkout.
|

Your order will be processed within 24 hours

Description

Features

True sine wave output (THD<3%)
High surge power up to 6000W
High efficiency up to 92%
Power ON-OFF switch
Standby saving mode can be selectable
Front panel indicator for operation status
Thermostatically controlled cooling fan
Protections: Short circuit / Overload / Over voltage
Application: Home appliance, power tools, office and portable equipment, vehicle, yacht ....etc.
Support RS-232 communication (communication cable order No.: RJ11-RS232, sold separately) Note. 10
3 years warranty

General Specification

AC output voltage range 100/110/115/120VAC;200/220/230/240VAC adjustable via setting button on the front panel
AC output waveform True sine wave, THD<3.0%
Overload temperature Shut down o/p voltage, re-power on to recover, by internal RTH1 detect power transistor
Overload 105 ~ 115% load for 180 sec., 115% ~ 125% load for 10 sec
Withstand voltage Bat I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
Working temperature 0 ~ +40℃ @ 100% load ; 60℃ @ 50% load
Safety standards EN60950-1 approved
EMC standards EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark, EN61000-4-2,3,8
Dimension (LxWxH) 466.8 x 283.5 x 100mm
Packing 12.9Kg; 1pcs/14Kg/1.49CUFT

Specifications

  • Brand
    Mean Well
  • Series
    TS Series
  • Power Rating
    3000 Watt
  • Output Voltage
    110 Volt
  • Input Voltage
    21V~30V
  • No of Output
    1
  • Standards Met
    CB,CE,cUL,E13,FCC
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    0°C~40°C
  • Warranty
    3 Year
  • Length
    18.38 in
  • Width
    11.16 in
  • Height
    3.94 in
  • Weight
    28.44 lb

File Downloads
