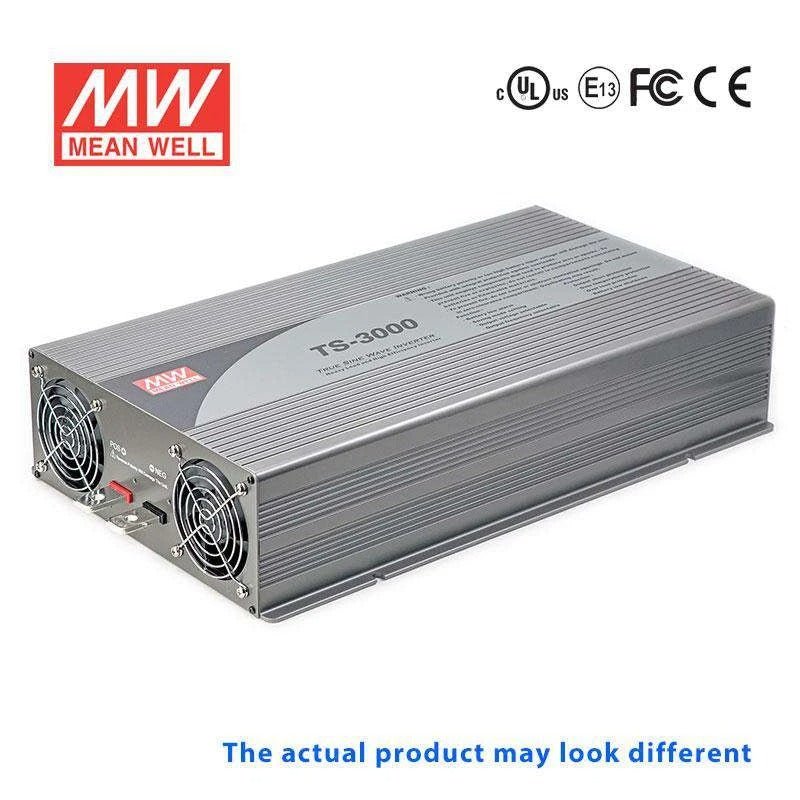

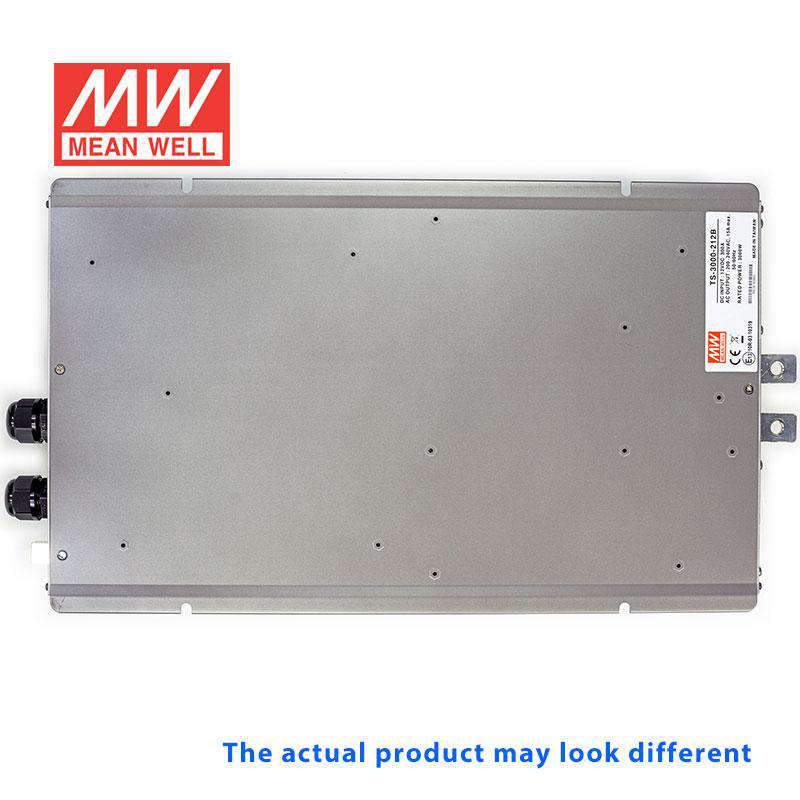

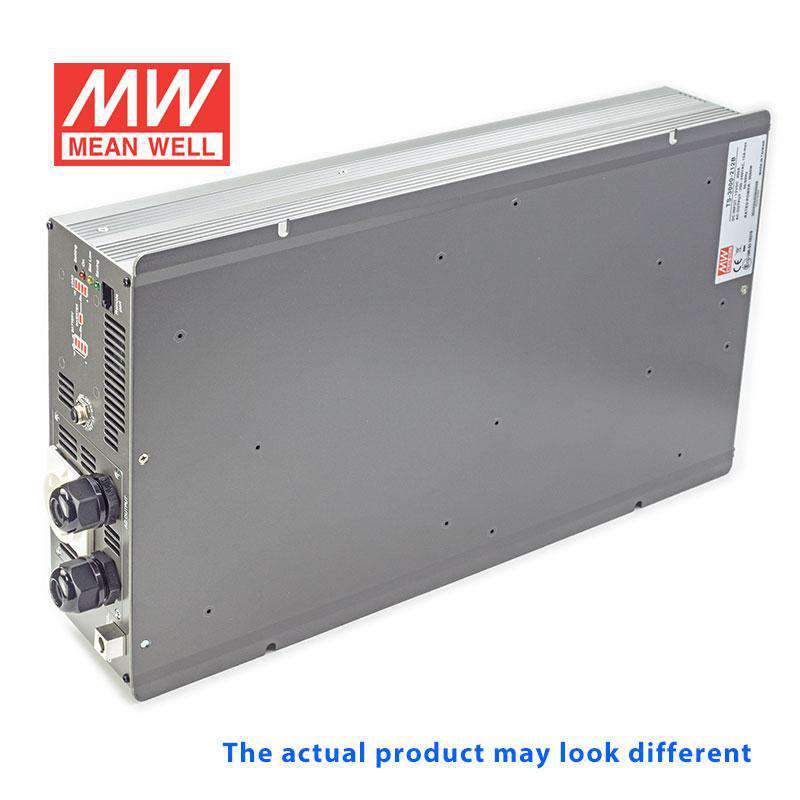

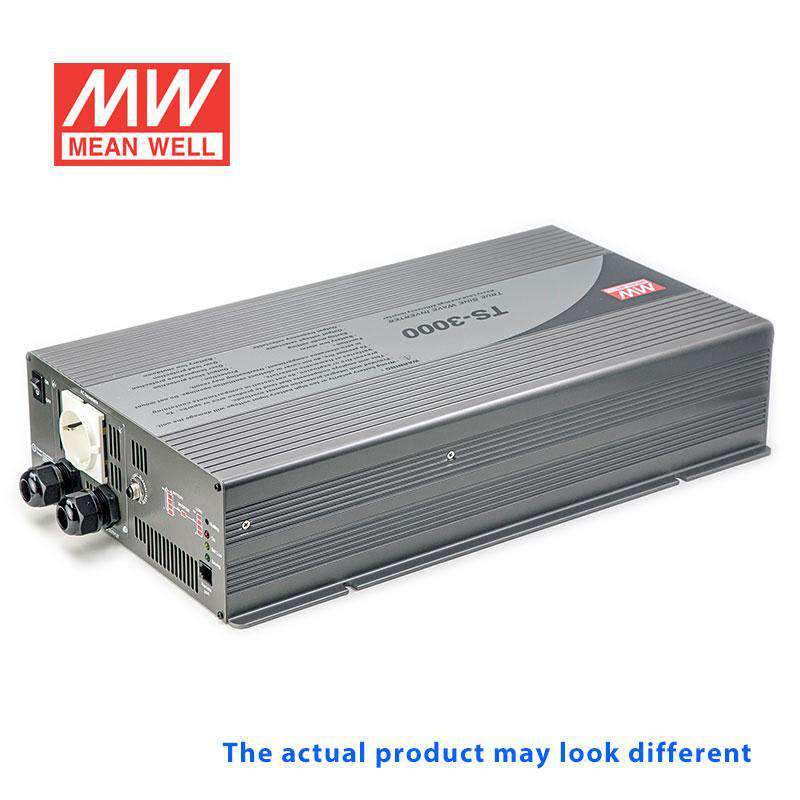

Mean Well TS-3000-212C True Sine Wave 3000W 230V 300A - DC-AC Power Inverter
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well TS-3000-212C True Sine Wave 3000W 230V 300A - DC-AC Power...
The TS-3000 is a 3000W Mean Well power converter (input range: 10.5~15VDC).
Key Features
- ✓ Input voltage range: 10.5~15VDC
- ✓ Protections: Over temperature / Reverse polarity
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesTS Series
-
Power Rating3000 Watt
-
Output Voltage230 Volt
-
Input Voltage10.5V~15V
-
No of Output1
-
Standards MetCB,CE,cUL,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~40°C
-
Warranty3 Year
-
Length18.38 in
-
Width11.16 in
-
Height3.94 in
-
Weight28.44 lb
::specification::
Frequently Asked Questions
What is the Mean Well TS-3000-212C designed for?
The TS-3000-212C is a DC-AC power inverter for applications that need 230V AC output from a DC source. Mean Well positions this model for home appliances, power tools, office equipment, portable equipment, vehicles, and yachts. Its true sine wave output makes it suitable for loads that need cleaner AC power.
What output power does the TS-3000-212C provide?
This model is rated for 3000W continuous output power. It also supports surge power up to 6000W, which helps with equipment that draws a higher startup load. That makes it a better fit for heavier-duty AC loads than lower-power inverter models.
Does the TS-3000-212C produce true sine wave output?
Yes. The TS-3000-212C provides true sine wave output with total harmonic distortion listed as less than 3%. This is an important differentiator for buyers who want cleaner AC output for sensitive or higher-quality equipment.
What is the output voltage of this inverter?
The TS-3000-212C is a 230V output inverter. Buyers should choose this model when their equipment requires 230V AC rather than a lower-voltage AC output. The product name and specification both identify it as a 230V unit.
What operating environment is this model intended for?
The stated operating temperature range for the TS-3000-212C is 0°C to 40°C. It also uses a thermostatically controlled cooling fan to support operation within its designed temperature range. For buyers evaluating placement, this is an indoor-style operating range rather than an extreme-temperature specification.
Does the TS-3000-212C include monitoring or communication capability?
Yes, this model supports RS-232 communication. The required communication cable is listed as RJ11-RS232 and is sold separately. That can be useful for buyers who need status monitoring beyond the front-panel indicator.
What protection features are included on the TS-3000-212C?

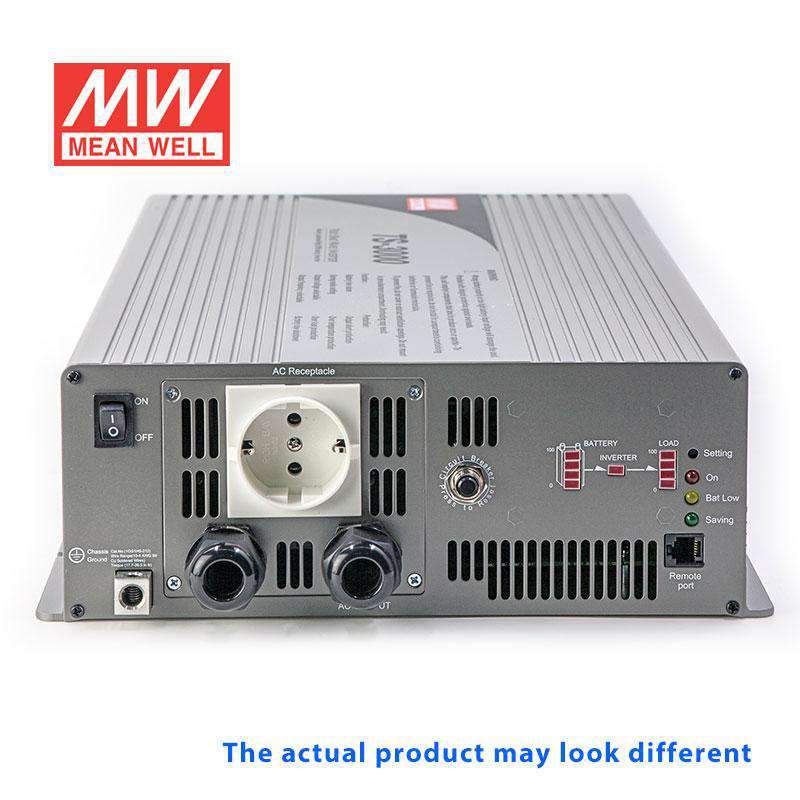

Mean Well lists short circuit, overload, and over voltage protection for the TS-3000-212C. These built-in protections are relevant for commercial and mobile power applications where load conditions can vary. The unit also includes a front-panel operation status indicator and selectable standby saving mode.
