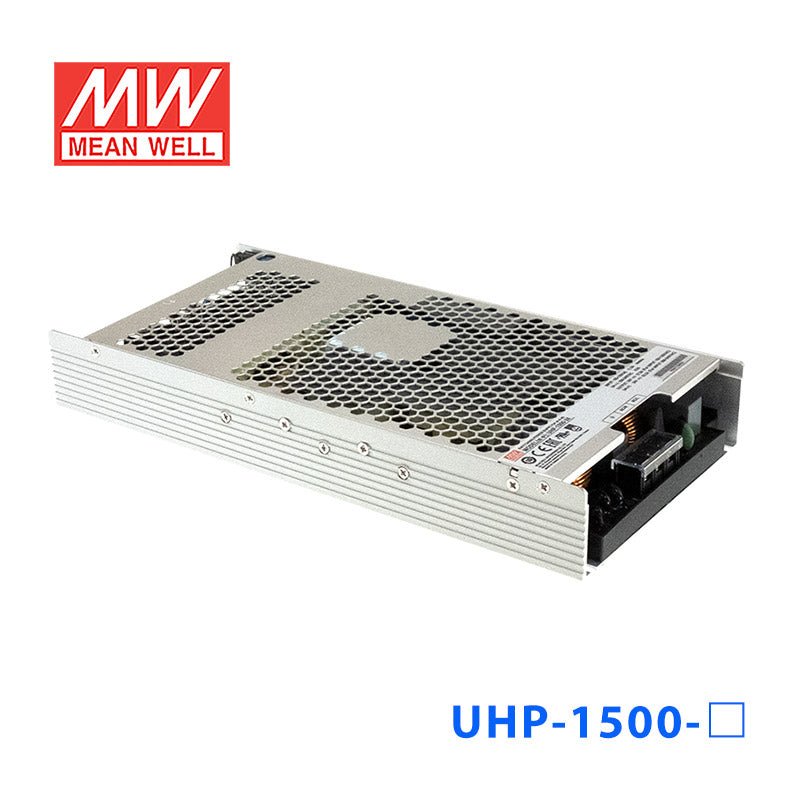

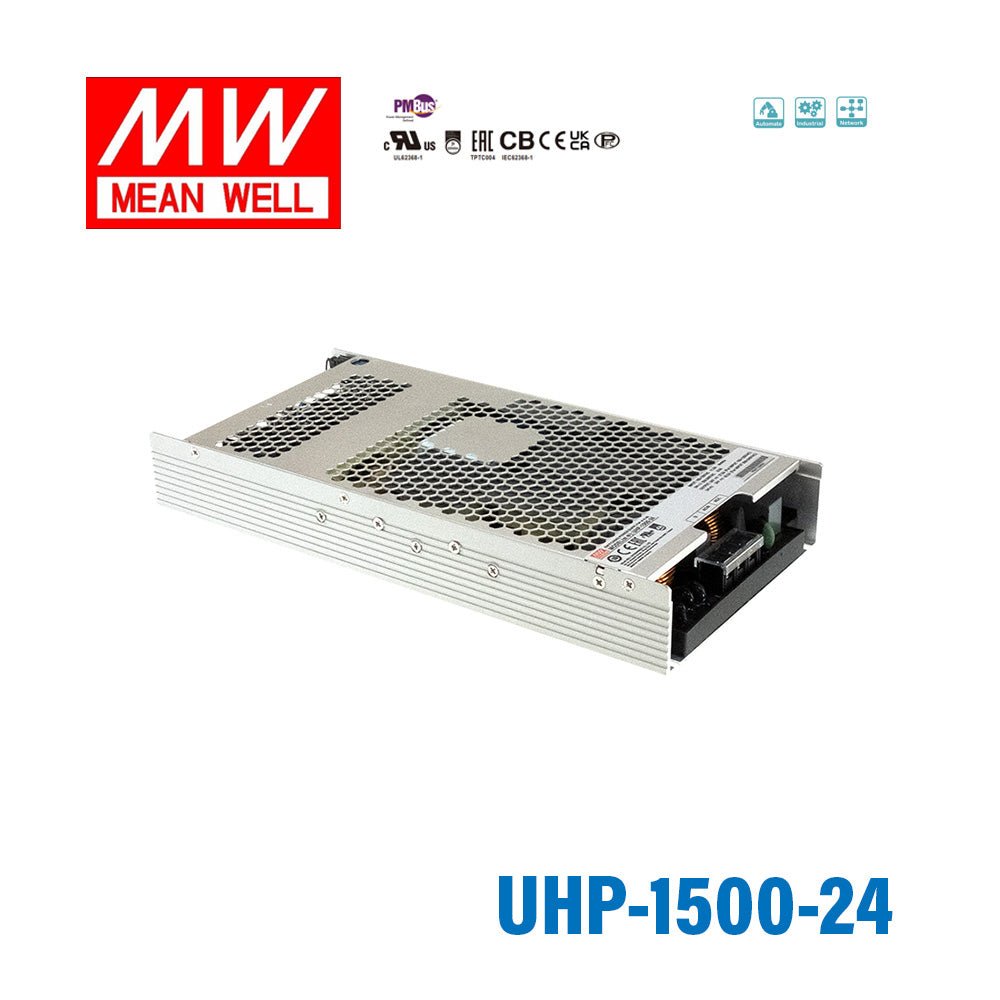

Mean Well UHP-1500-24 Power Supply 1500W 24V
The UHP-1500 is a 1500W Mean Well power converter (input range: 24~28.8V).
Key Features
- ✓ Input voltage range: 24~28.8V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1500 Watt
-
Output Voltage24 Volt
-
Rated Current62.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,DEKRA,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
Can I use the UHP-1500-24 for a large 24V PLC or control panel?
Yes, it is designed as a 24V constant voltage supply with 1500W output and up to 62.5A. That makes it a strong fit for higher-demand 24V industrial control cabinets, distributed I/O assemblies, and automation hardware that are built around 24V DC.
Is the UHP-1500-24 a good choice for 24V machine vision or industrial PC loads?
It can be, provided the equipment is specified for 24V DC and the total draw remains within 62.5A and 1500W. The fanless design and 41.0 mm low-profile height can also help where enclosure space and airflow planning are tight.
Can this model power a 24V automation system with multiple DC loads?
Yes, for multi-load 24V systems this unit offers a high current ceiling at 62.5A with constant voltage output. It is especially relevant for centralized 24V DC power distribution where the total system demand fits inside its 1500W rating.
Is the UHP-1500-24 intended for indoor panels or exposed outdoor mounting?
The operating temperature range is -30°C to +70°C, which supports use across a broad temperature window. Since no IP rating is provided in the listed specs, it is better treated as a power supply for protected indoor cabinets or sheltered enclosures rather than direct outdoor exposure.
How does the UHP-1500-24 compare with other 24V UHP power supplies?
The listed 24V models in the series are UHP-200-24 at 201.6W and 8.4A, UHP-200R-24 at 201.6W and 8.4A, UHP-350-24 at 350.4W and 14.6A, UHP-350R-24 at 350.4W and 14.6A, UHP-500-24 at 501.6W and 20.9A, UHP-500R-24 at 501.6W and 20.9A, UHP-750-24 at 751.2W and 31.3A, UHP-1000-24 at 1008W and 42A, UHP-1500-24 at 1500W and 62.5A, and UHP-2500-24 at 2500.8W and 104.2A. The UHP-1500-24 sits near the top of the 24V range, below only the 2500.8W model in the provided sibling list.
