Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

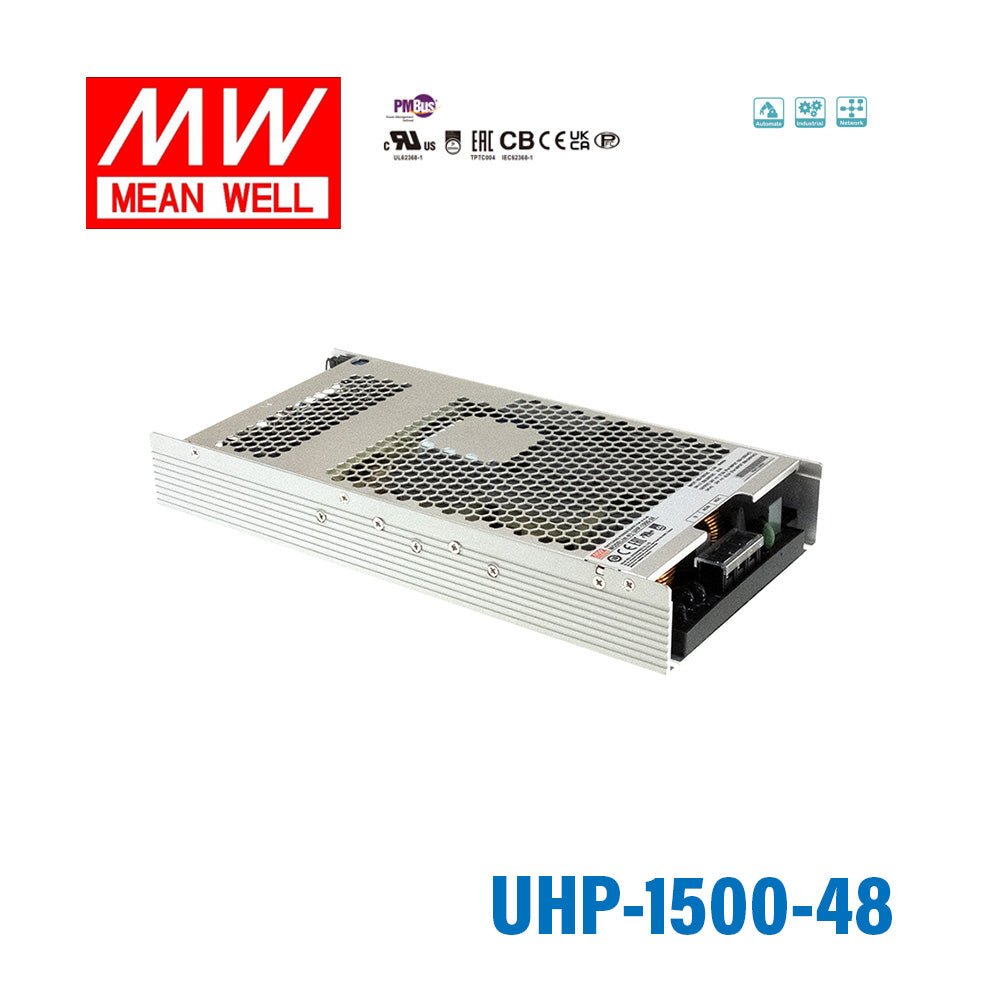

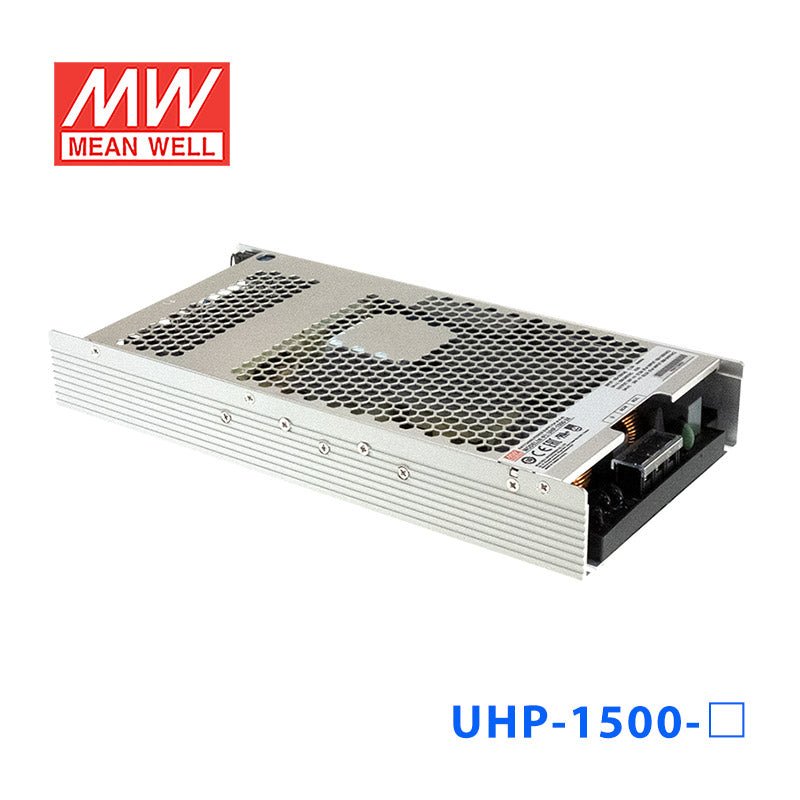

Mean Well UHP-1500-48 Power Supply 1512W 48V
The UHP-1500 is a 1500W Mean Well power converter (input range: 24~28.8V).
Key Features
- ✓ Input voltage range: 24~28.8V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1,TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating1512 Watt
-
Output Voltage48 Volt
-
Rated Current31.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,DEKRA,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length11.42 in
-
Width5.51 in
-
Height1.61 in
-
Weight5.53 lb
::specification::
Frequently Asked Questions
Can the UHP-1500-48 be used in a 48V industrial automation system?
Yes, this is a 48V constant voltage power supply rated for 1512W and 31.5A. That output level makes it suitable for larger 48V automation cabinets, industrial controllers, and DC subsystems designed around 48V power distribution.
Is this 48V power supply appropriate for robotics or AGV subsystems that use 48V DC?
It can be appropriate where the robotics or AGV subsystem is designed for a regulated 48V DC input and stays within 31.5A. With 1512W available, it fits higher-power 48V DC equipment better than smaller 48V models in the same series.
Can I use the UHP-1500-48 for telecom or network equipment that requires 48V DC?
It is a logical option for equipment that specifically accepts 48V constant voltage input and whose demand is within 1512W and 31.5A. The fanless, low-profile design can also be useful in dense equipment spaces where a 41.0 mm height is an advantage.
Is the UHP-1500-48 suitable for outdoor installations?
The listed operating temperature range is -30°C to +70°C, so it covers a wide ambient range. No IP rating appears in the provided specs, so it is better suited to protected enclosures or indoor equipment spaces than directly exposed outdoor locations.
What are the main differences between the UHP-1500-48 and other 48V UHP models?
The provided 48V siblings are UHP-200-48 at 201.6W and 4.2A, UHP-200R-48 at 201.6W and 4.2A, UHP-350-48 at 350.4W and 7.3A, UHP-350R-48 at 350.4W and 7.3A, UHP-500-48 at 501.6W and 10.45A, UHP-500R-48 at 501.6W and 10.45A, UHP-750-48 at 753.6W and 15.7A, UHP-1000-48 at 1008W and 21A, UHP-1500-48 at 1512W and 31.5A, and UHP-2500-48 at 2500.8W and 52.1A. This model is higher-capacity than the 1008W class and below the 2500.8W option while staying in the same 48V output family.
