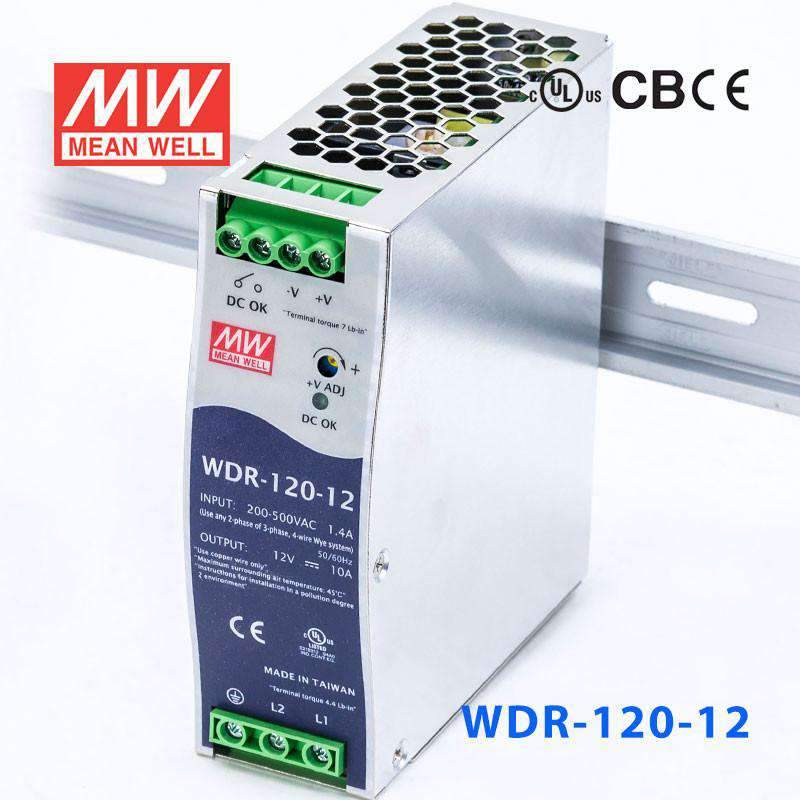

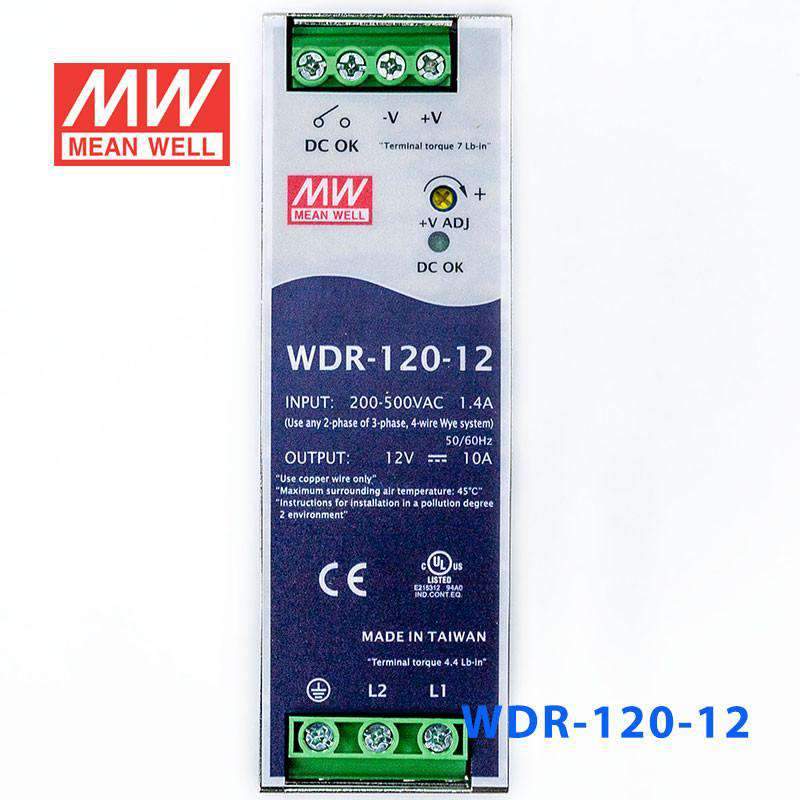

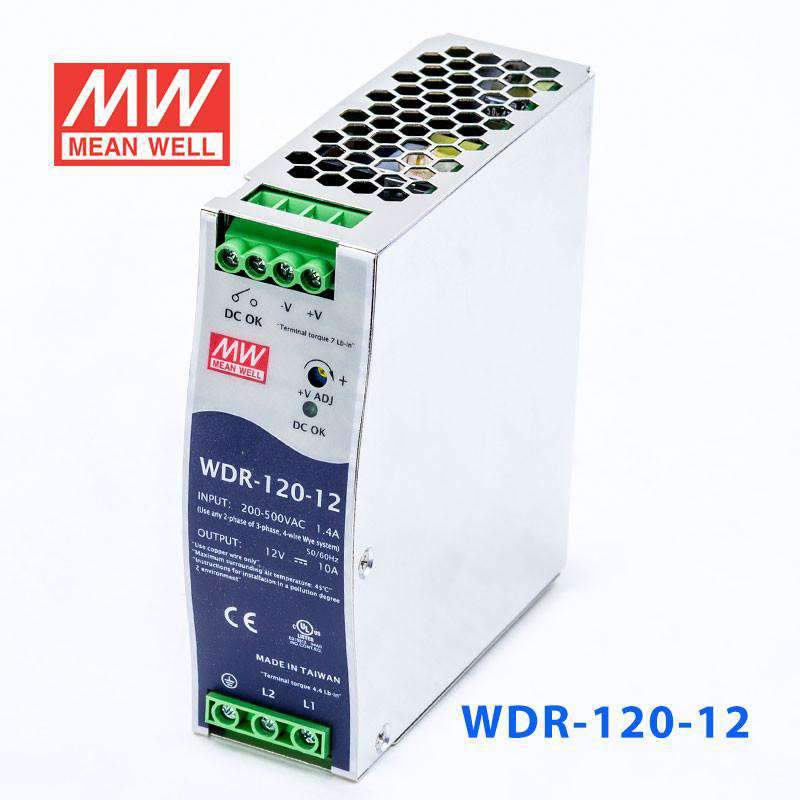

Mean Well WDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-120-12 Single Output Industrial Power Supply 120W 12V...
Description
Description
Features
| Single and two phase wide input range 180~550VAC |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Built-in constant current limiting circuit |

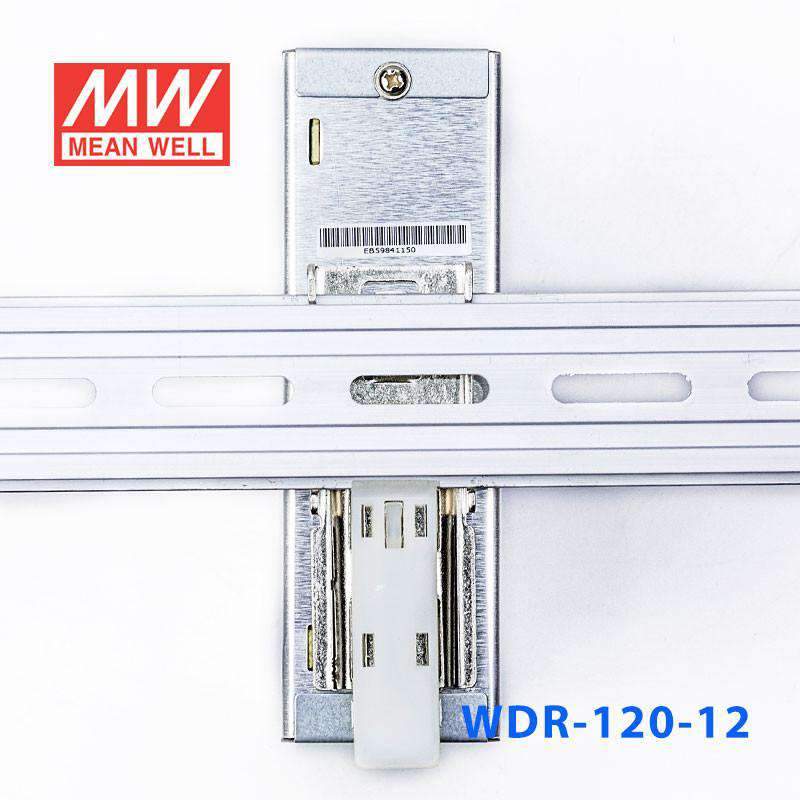

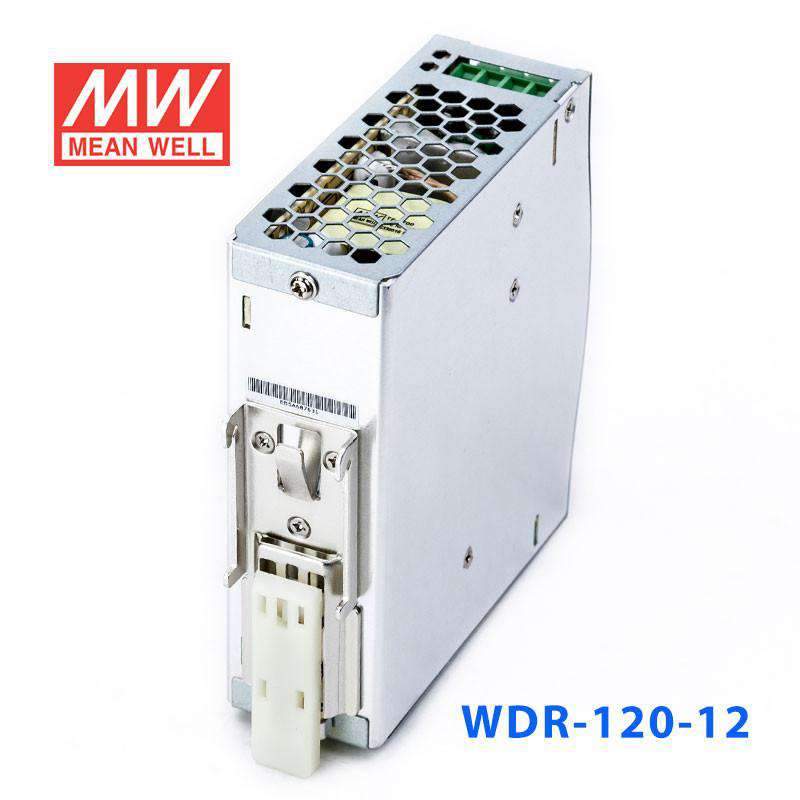

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| Built-in DC OK relay contact |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 180~550VAC(single and two phase); 254~780VDC |
| AC input current | 0.55A / 400VAC, 1.2A / 230VAC |
| AC inrush current (max.) | Cold start, 50A at 400VAC |
| DC adjustment range | 12V: 12~15V, 24V: 24~29V, 48V: 48~58V |
| Overload protection | 105%~130% rated output power, constant current limiting, auto-recovery |
| Over voltage protection Range | 16~18V for 12V model (only for WDR-120), 29~33V for 24V model, 56~65V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, auto-recovery |
| Setup, rise, hold up time | 2000ms, 70ms, 10ms at full load and 230VAC; 2000ms, 70ms, 50ms at full load and 400VAC |
| Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC, 1 minute |
| Working temperature | -25~+70°C (refer to output derating curve) |
| DC OK signal | Relay Contact |
| Leakage current | <3.5mA at 530VAC |
| Vibration | 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes |
| Safety standards | UL508 approved ; IEC60950-1 CB approved by SIQ ; Design refer to GL |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 40x125.2x113.5 |
| Packing | 20pcs / 14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.43 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-120-12 in a 12V PLC control cabinet?
Yes, this model is suited to 12V industrial control panels and PLC cabinets that need a 12V DC supply up to 10A. Its DIN rail form factor and 40.0 mm slim width help it fit into space-constrained control enclosures.
Is this a good choice for 12V industrial automation devices in a DIN rail panel?
It is appropriate for 12V industrial automation equipment when the total load stays within 120W and 10A. The wide 180-550VAC input also makes it suitable for panels using 1 phase or 2 phase input power.
Can this power a 12V building management or control panel assembly?
Yes, it can be used in 12V building management and control cabinet applications where the connected devices require 12V DC and the combined demand does not exceed 120W. The metal case and DIN rail design are aligned with enclosed industrial panel use.
Is the WDR-120-12 meant for open-air use or for control cabinets?
This unit is better suited to indoor control cabinets and electrical enclosures rather than exposed locations. The provided specs list a metal case, DIN rail format, and an operating range of -25°C to +70°C, but no outdoor IP rating is provided.
How does the WDR-120-12 compare with other WDR series models?
Within the series, the closest same-power siblings are WDR-120-24 at 120W, 24V, 5A and WDR-120-48 at 120W, 48V, 2.5A. Higher-power options are WDR-240-24 at 240W, 24V, 10A, WDR-240-48 at 240W, 48V, 5A, WDR-480-24 at 480W, 24V, 20A, and WDR-480-48 at 480W, 48V, 10A. Lower-power options are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
Other WDR-120 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well WDR-120-24 Single Output Industrial Power Supply 120W 24V - DIN Rail | 120W | 24V | 5A | Indoor | $59.86 | View |
| Mean Well WDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail | 120W | 48V | 2.5A | Indoor | $59.87 | View |
