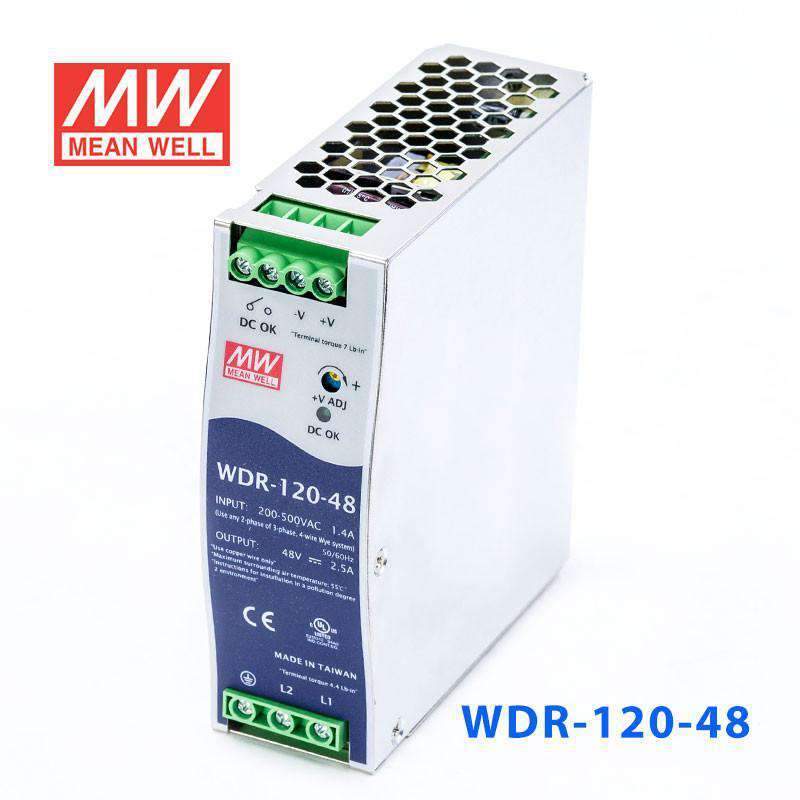

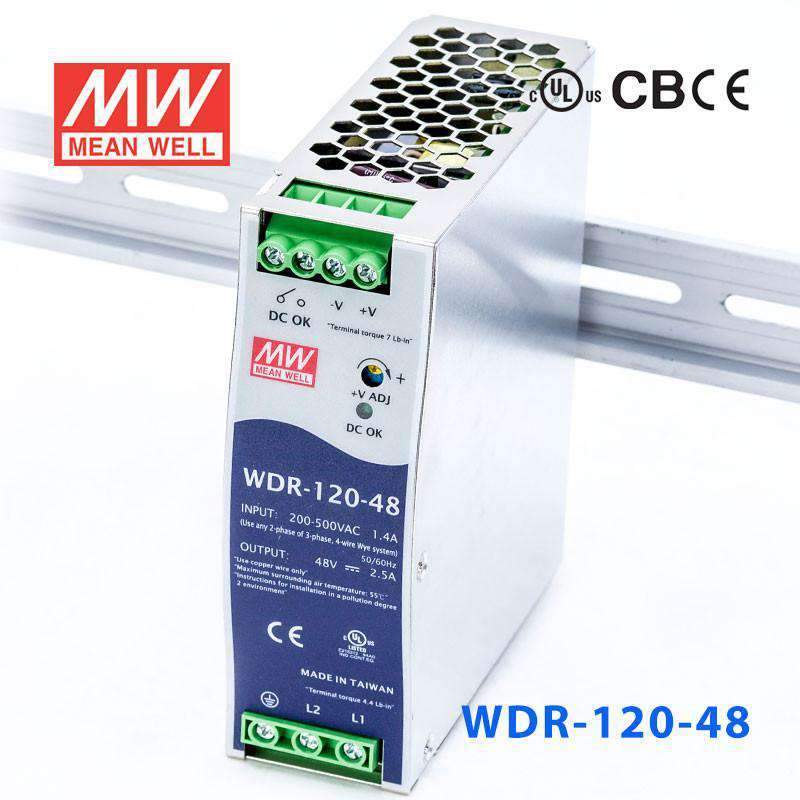

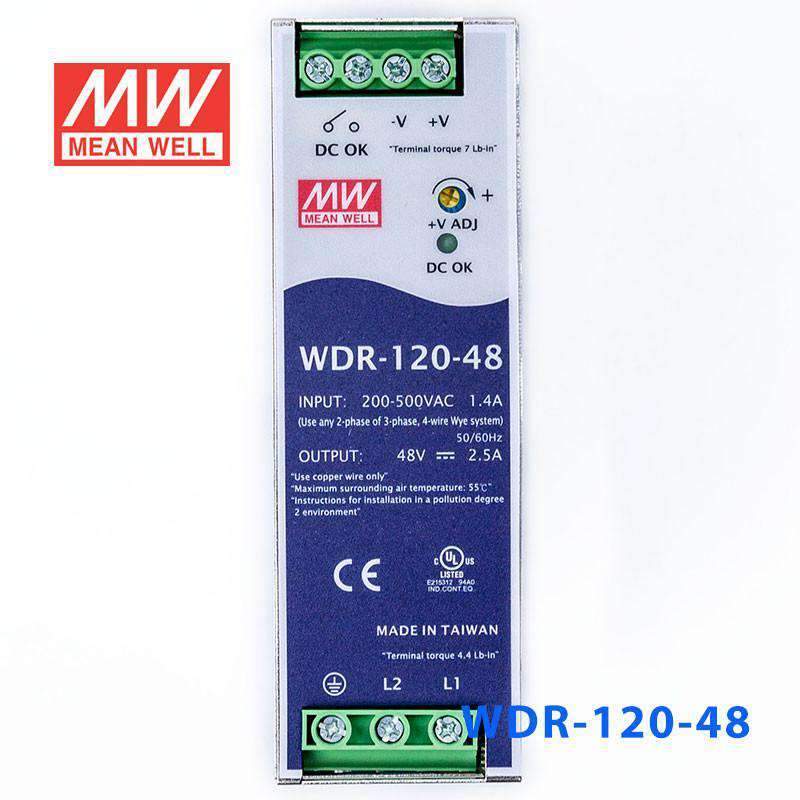

Mean Well WDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-120-48 Single Output Industrial Power Supply 120W 48V...
Description
Description
Features
| Single and two phase wide input range 180~550VAC |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Built-in constant current limiting circuit |

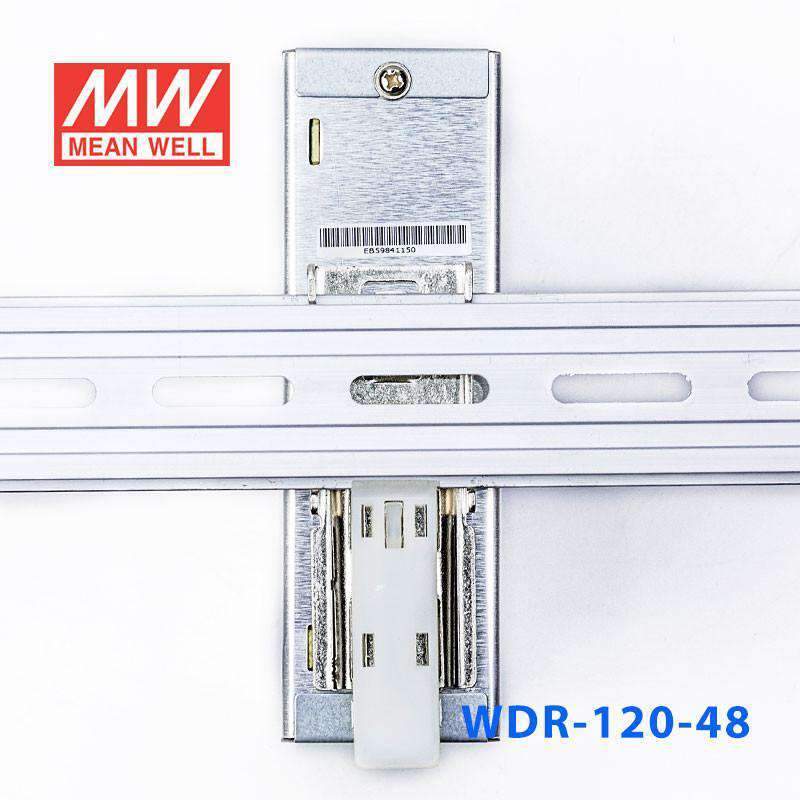

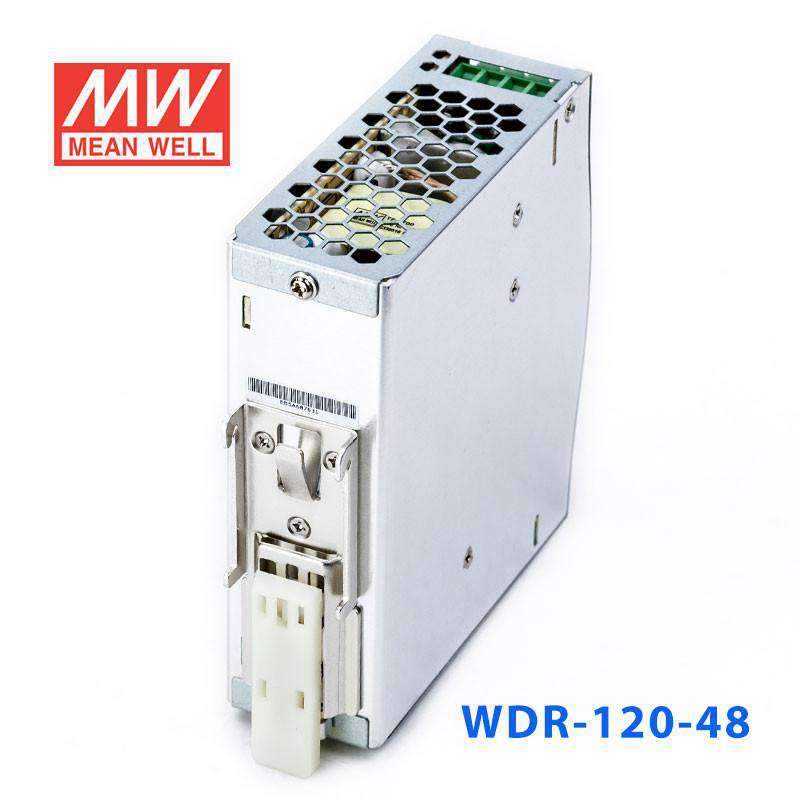

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508(industrial control equipment) approved |
| EN61000-6-2(EN50082-2) industrial immunity level |
| Built-in DC OK relay contact |
| 100% full load burn-in test |
| 3 years warranty |
General Specification
| AC input voltage range | 180~550VAC(single and two phase); 254~780VDC |
| AC input current | 0.55A / 400VAC, 1.2A / 230VAC |
| AC inrush current (max.) | Cold start, 50A at 400VAC |
| DC adjustment range | 12V: 12~15V, 24V: 24~29V, 48V: 48~58V |
| Overload protection | 105%~130% rated output power, constant current limiting, auto-recovery |
| Over voltage protection Range | 16~18V for 12V model (only for WDR-120), 29~33V for 24V model, 56~65V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, auto-recovery |
| Setup, rise, hold up time | 2000ms, 70ms, 10ms at full load and 230VAC; 2000ms, 70ms, 50ms at full load and 400VAC |
| Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:3kVAC, I/P-FG:1.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC, 1 minute |
| Working temperature | -25~+70°C (refer to output derating curve) |
| DC OK signal | Relay Contact |
| Leakage current | <3.5mA at 530VAC |
| Vibration | 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes |
| Safety standards | UL508 approved ; IEC60950-1 CB approved by SIQ ; Design refer to GL |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level |
| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 40x125.2x113.5 |
| Packing | 20pcs / 14kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating120 Watt
-
Output Voltage48 Volt
-
Rated Current2.5 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.43 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-120-48 in a 48V industrial control panel?
Yes, this unit is suitable for 48V control panels and industrial cabinets that need up to 120W at 48V DC. Its rated output is 2.5A, and the DIN rail body uses a 40.0 mm slim profile for compact enclosures.
Is this model suitable for 48V building automation or monitoring equipment?
It can be used for 48V building automation and monitoring equipment when the total demand remains within 120W and 2.5A. The wide 180-550VAC input range also supports use in panels fed from 1 phase or 2 phase input power.
Can the WDR-120-48 be used for 48V industrial automation devices on DIN rail?
Yes, it is intended for DIN rail industrial applications that require a 48V DC source and fit within its 2.5A output capacity. The metal case and slim housing are useful for organized control cabinet layouts.
Is this power supply intended for protected enclosures or exposed environments?
This model is better suited to control cabinets and other protected enclosures. The listed operating range is -25°C to +70°C, but no exposed-location or outdoor IP rating is provided in the specs.
How does the WDR-120-48 differ from the rest of the WDR family?
At 120W, the series offers WDR-120-12 at 12V, 10A, WDR-120-24 at 24V, 5A, and WDR-120-48 at 48V, 2.5A. Higher-capacity models are WDR-240-24 at 240W, 24V, 10A, WDR-240-48 at 240W, 48V, 5A, WDR-480-24 at 480W, 24V, 20A, and WDR-480-48 at 480W, 48V, 10A. Lower-capacity versions are WDR-60-12 at 60W, 12V, 5A, WDR-60-24 at 60W, 24V, 2.5A, WDR-60-48 at 60W, 48V, 1.25A, and WDR-60-5 at 50W, 5V, 10A.
