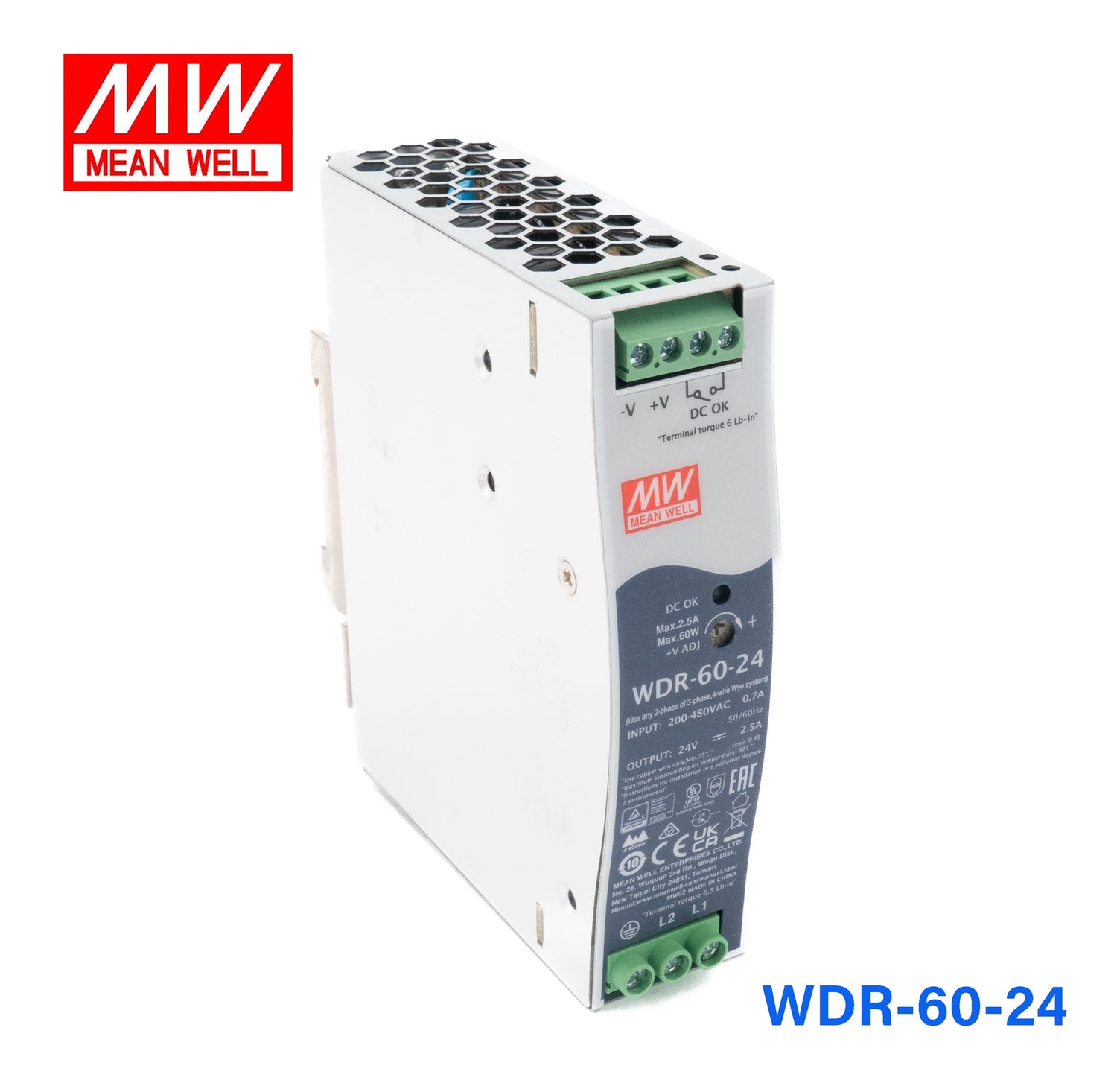

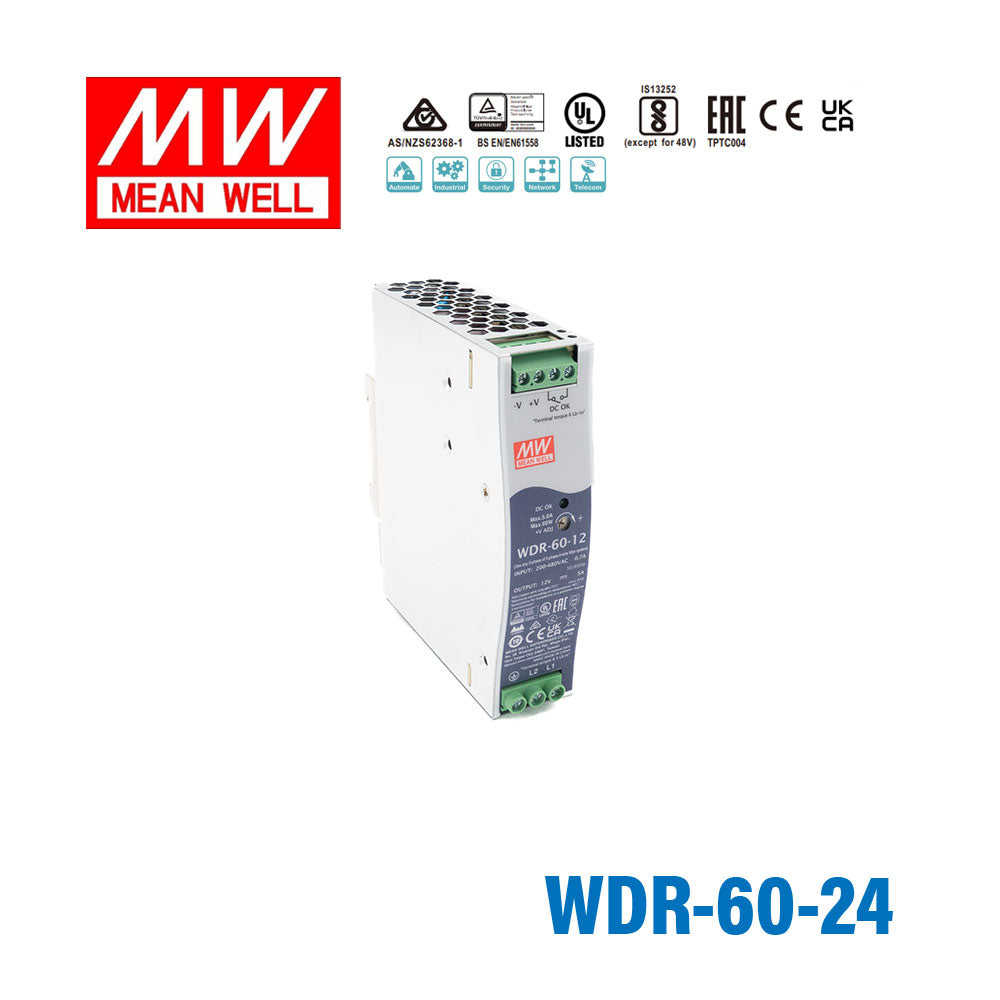

Mean Well WDR-60-24 Single Output Industrial Power Supply 60W 24V - DIN Rail
metal case, slim size, 1&2 phase, 180~550VAC wide input, high efficiency up to 93%
SKU:
WDR-60-24
$50.92 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-60-24 Single Output Industrial Power Supply 60W 24V -...
$50.92 USD
Unit price /
Unavailable
Description
Description
Features
| Single and two phase wide input range 180~550VAC |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Built-in constant current limiting circuit |

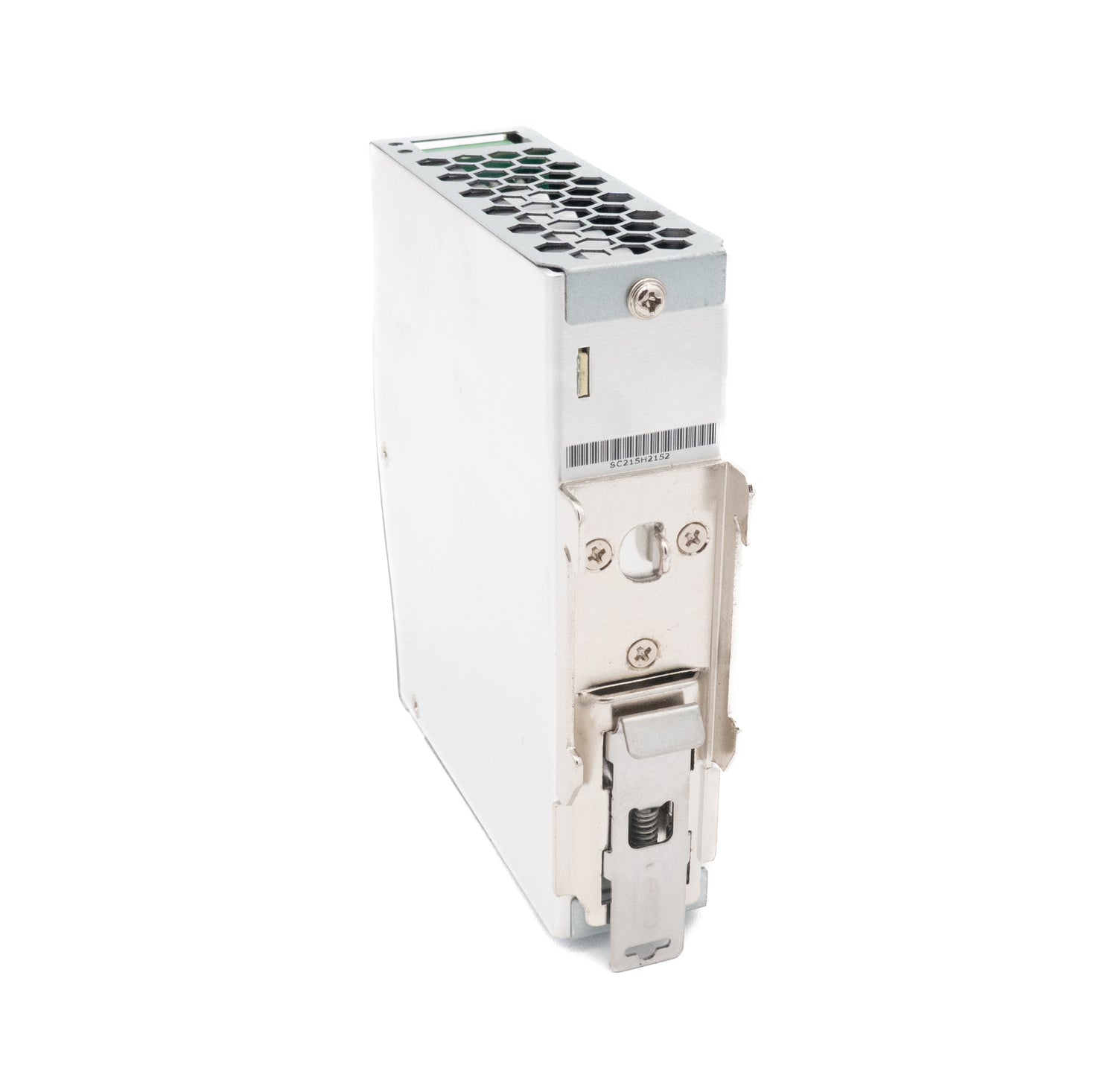

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| 4.7KVac I/O high isolation(Reinforced isolation) |
| Over voltage category III |
| Built-in DC OK relay contact |
| DC output voltage adjustable(+20%) |
| 3 years warranty |
General Specification
| AC input voltage range | 180~550VAC(single and two phase); 254~780VDC |
| AC input current | 0.4A / 400VAC, 0.7A / 230VAC |
| AC inrush current (max.) | Cold start, 50A at 400VAC |
| DC adjustment range | 5V: 5-6V, 12V: 12~15V, 24V: 24~29V, 48V: 48~57V |
| Overload protection | 105%~130% rated output power, constant current limiting, auto-recovery |
| Over voltage protection Range | 6.2~7.2V for 5V model, 16~18V for 12V model, 31~37V for 24V model, 58~60.5V for 48V model |
| Over voltage protection Type | Shut down o/p voltage, auto-recovery |
| Setup, rise, hold up time | 2000ms, 70ms, 10ms at full load and 230VAC; 1000ms, 70ms, 20ms at full load and 400VAC |
| Over temp. protection | Shut down output voltage, recovers automatically after temperature goes down |
| Withstand voltage | I/P-O/P:4.7VAC, I/P-FG:2.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC |
| Working temperature | -40~+85°C |
| DC OK signal | Relay Contact |
| Leakage current | <2mA at 530VAC |
| Vibration | 10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes |
| Safety standards | UL61010 approved ; AS/NZS 62368.1 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN61204-3 |

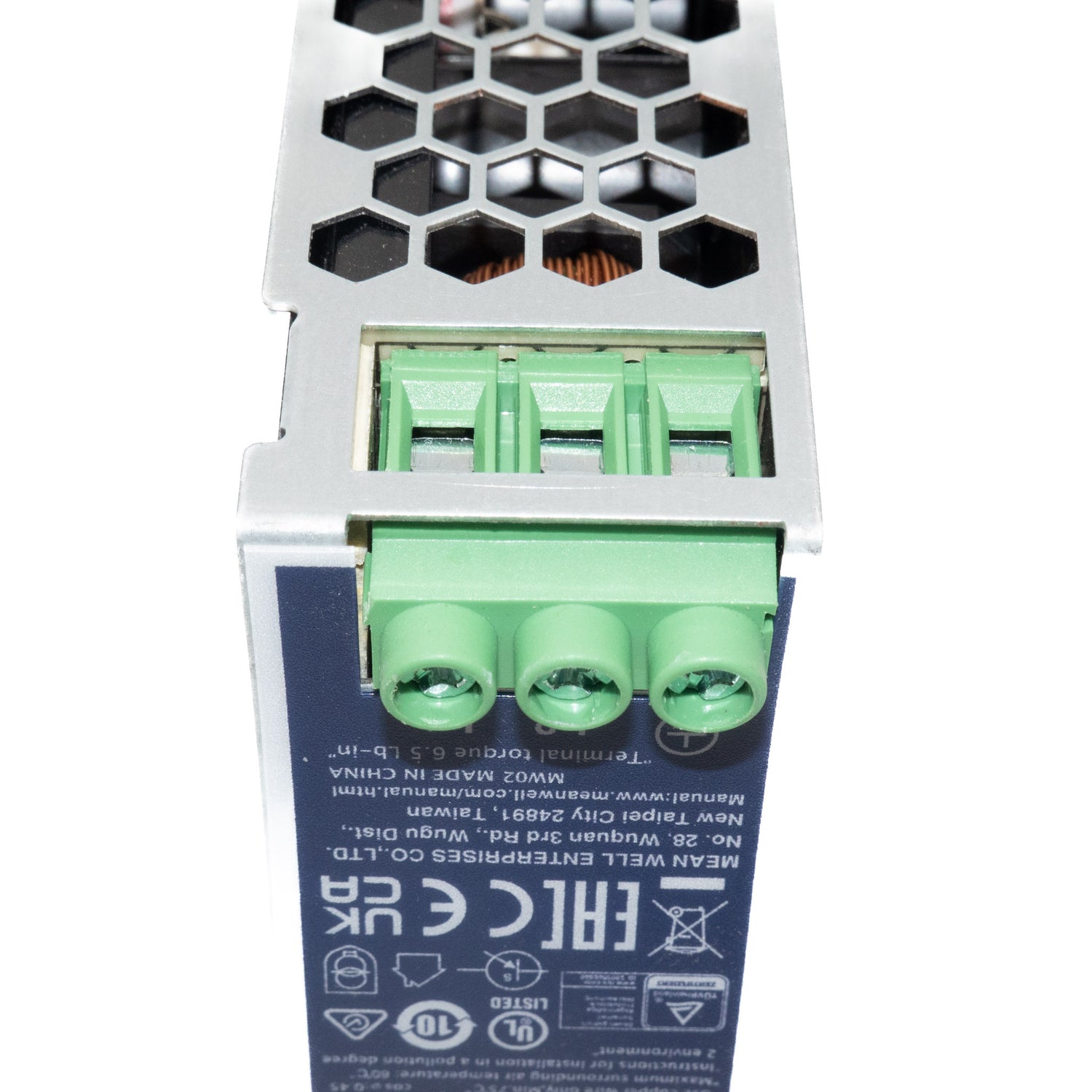

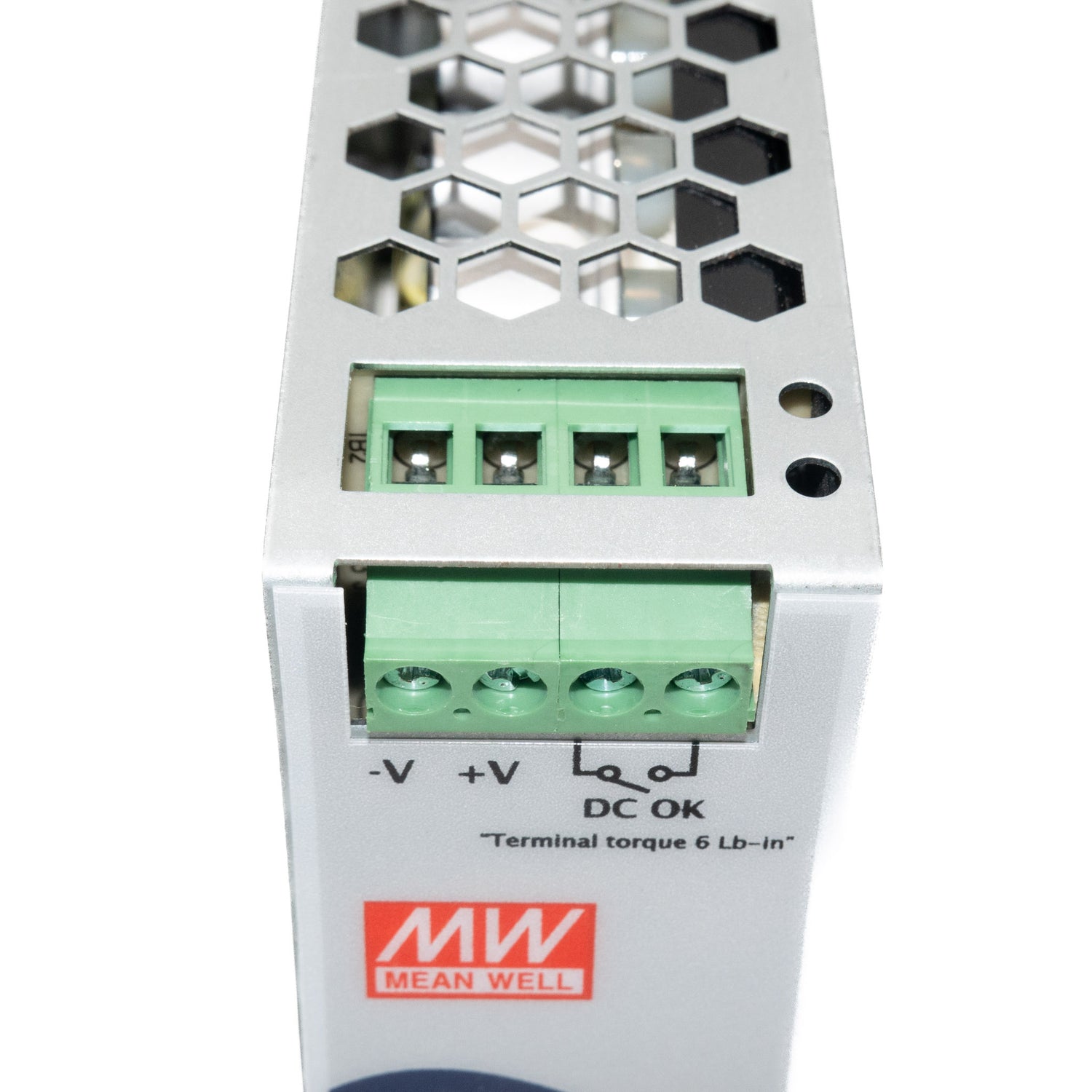

| Connection | I/P: 3 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 32x125.2x102 |
| Packing | 28pcs / 13.6kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight0.99 lb
