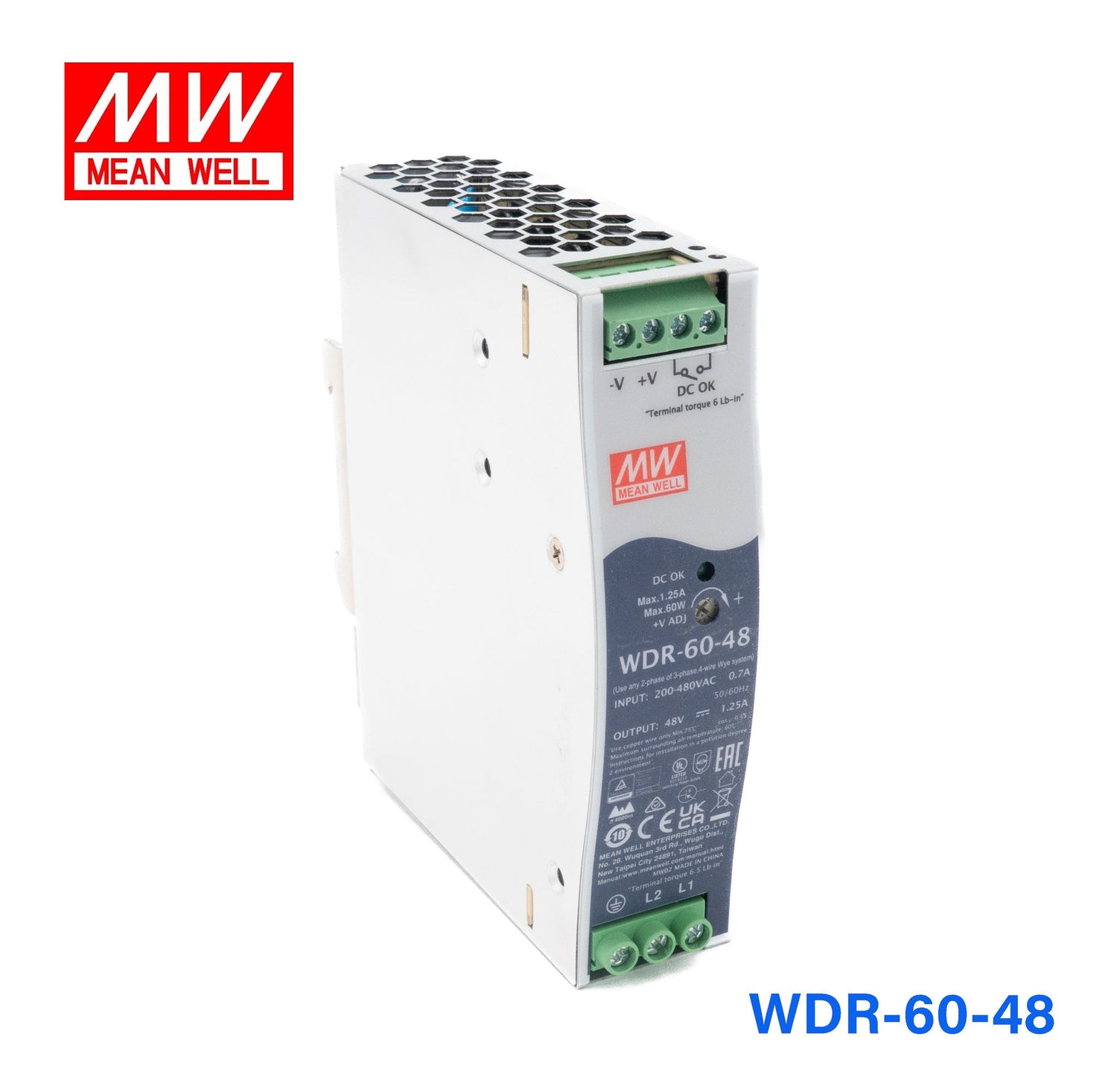

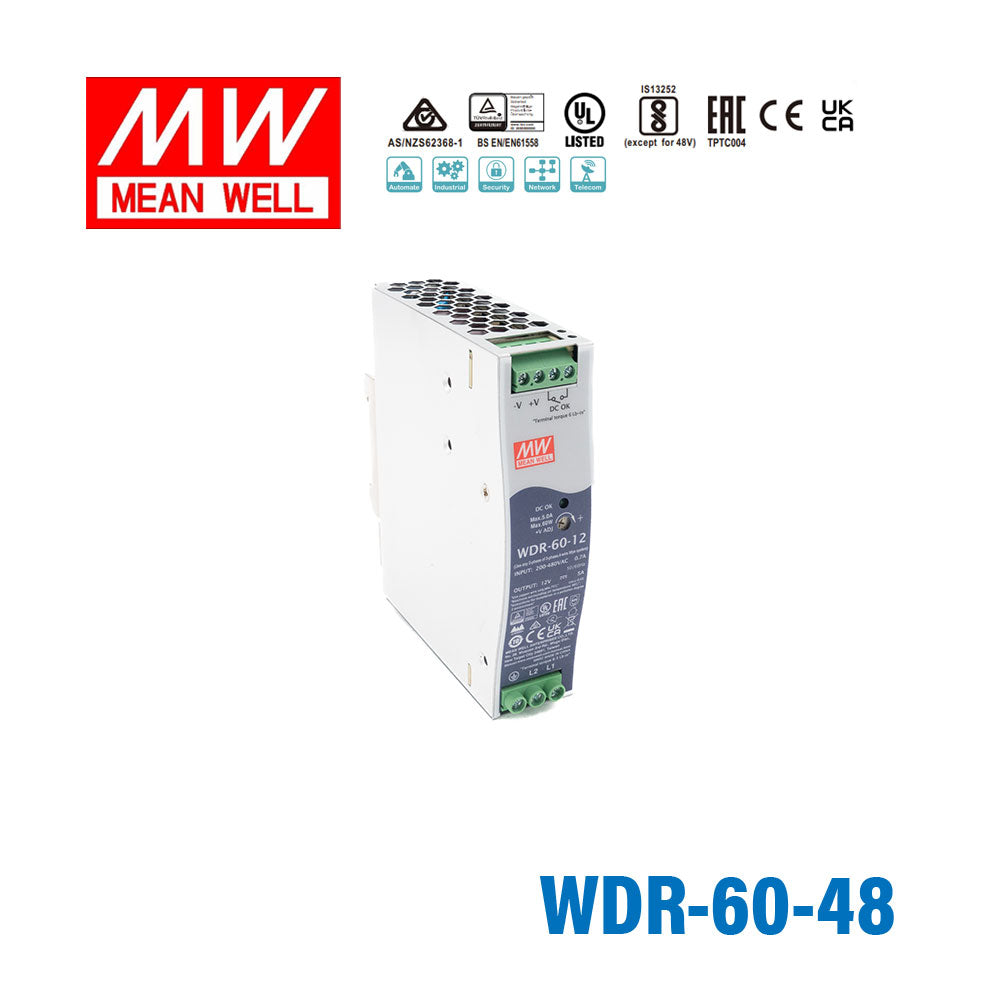

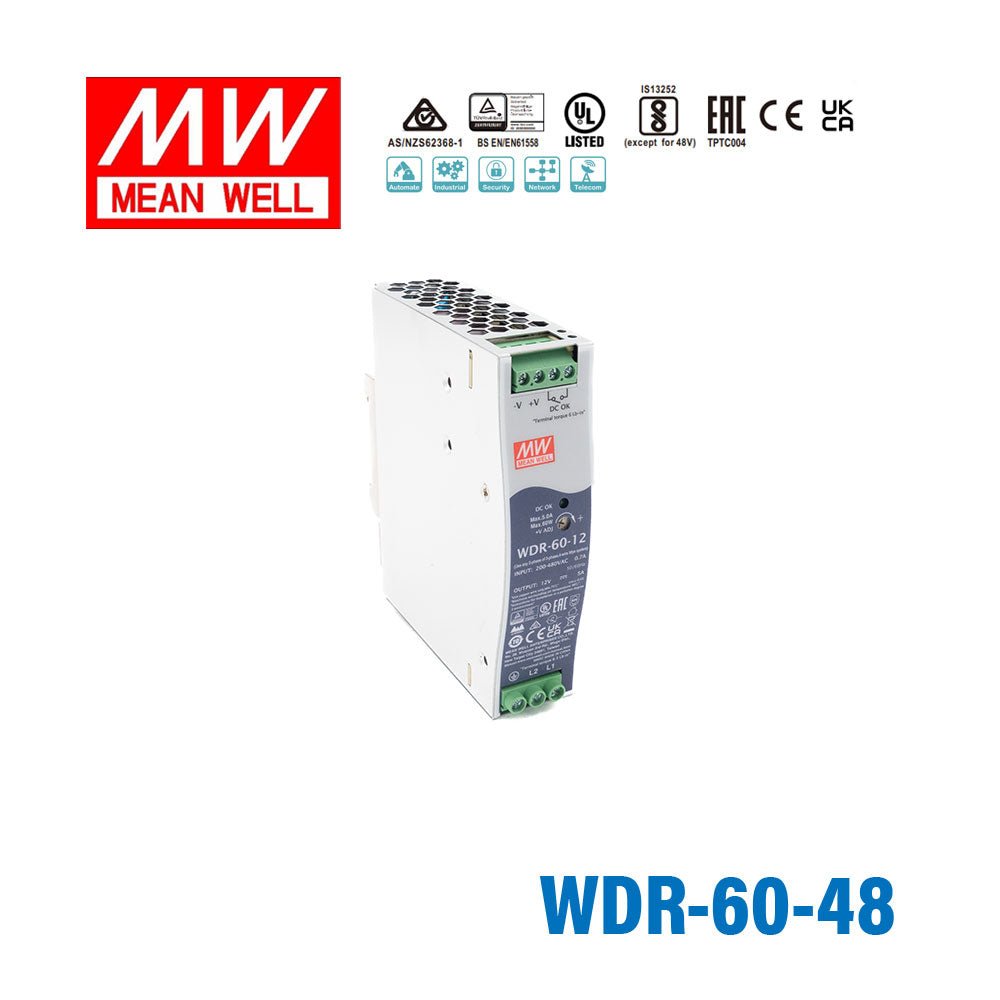

Mean Well WDR-60-48 Single Output Industrial Power Supply 60W 48V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well WDR-60-48 Single Output Industrial Power Supply 60W 48V -...
Description
Description
The WDR-60 is a 60W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 4.7KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature

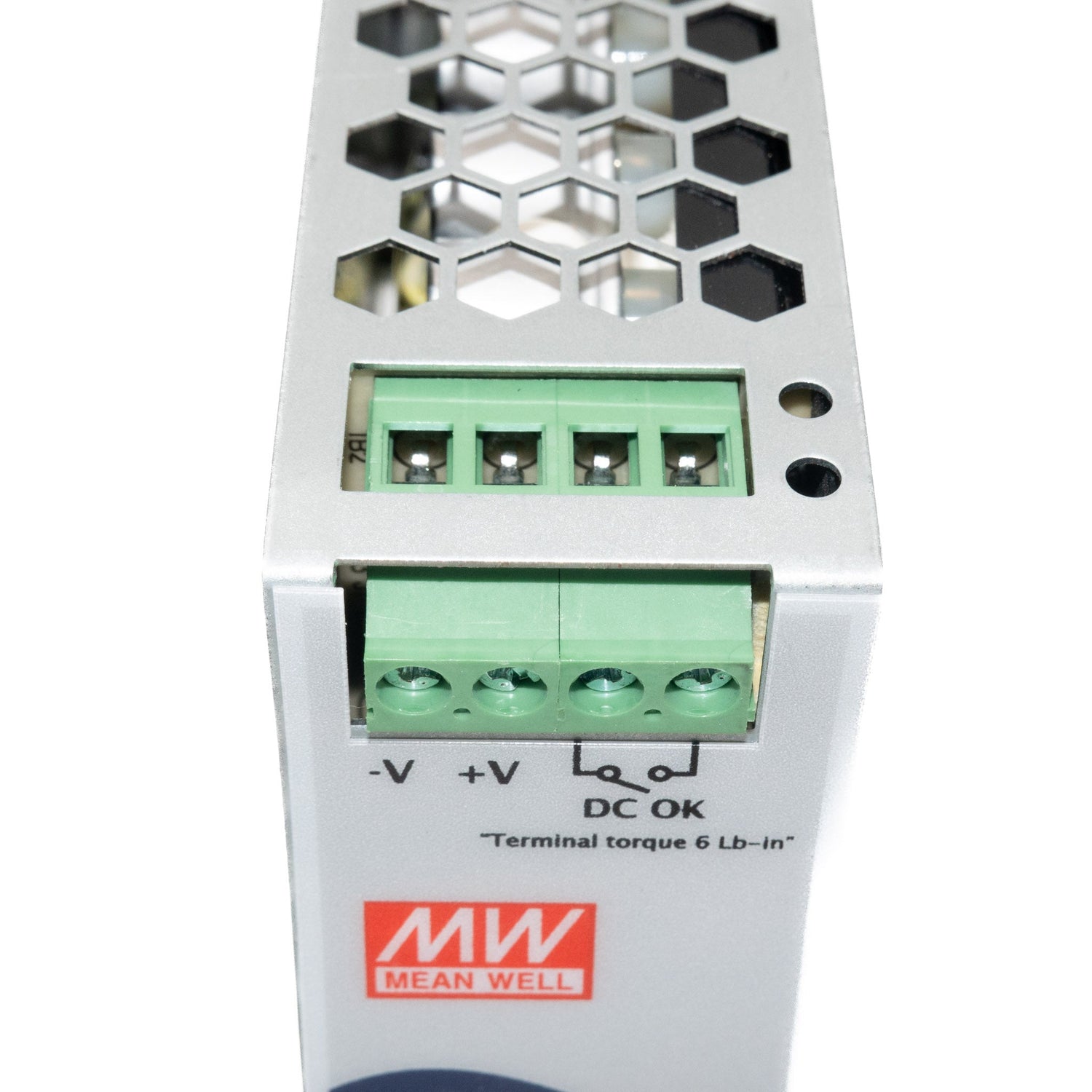

- ✓ DC OK relay contact output
- ✓ Safety approvals: UL61010 EN61558-2-16, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesWDR Series
-
Power Rating60 Watt
-
Output Voltage48 Volt
-
Rated Current1.25 Ampere
-
Input Voltage180V~550V
-
No of Output1
-
Standards MetCE,cUL,EAC,TUV
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the WDR-60-48 in a PLC or industrial automation control panel?
Yes, this model is suited to industrial automation and PLC control panels that require a 48V DC output. It provides 60W with 1.25A output current and is built in a DIN rail format with a slim 32.0 mm profile for panel use.
Is this 48V DIN rail power supply appropriate for building management and control cabinets?

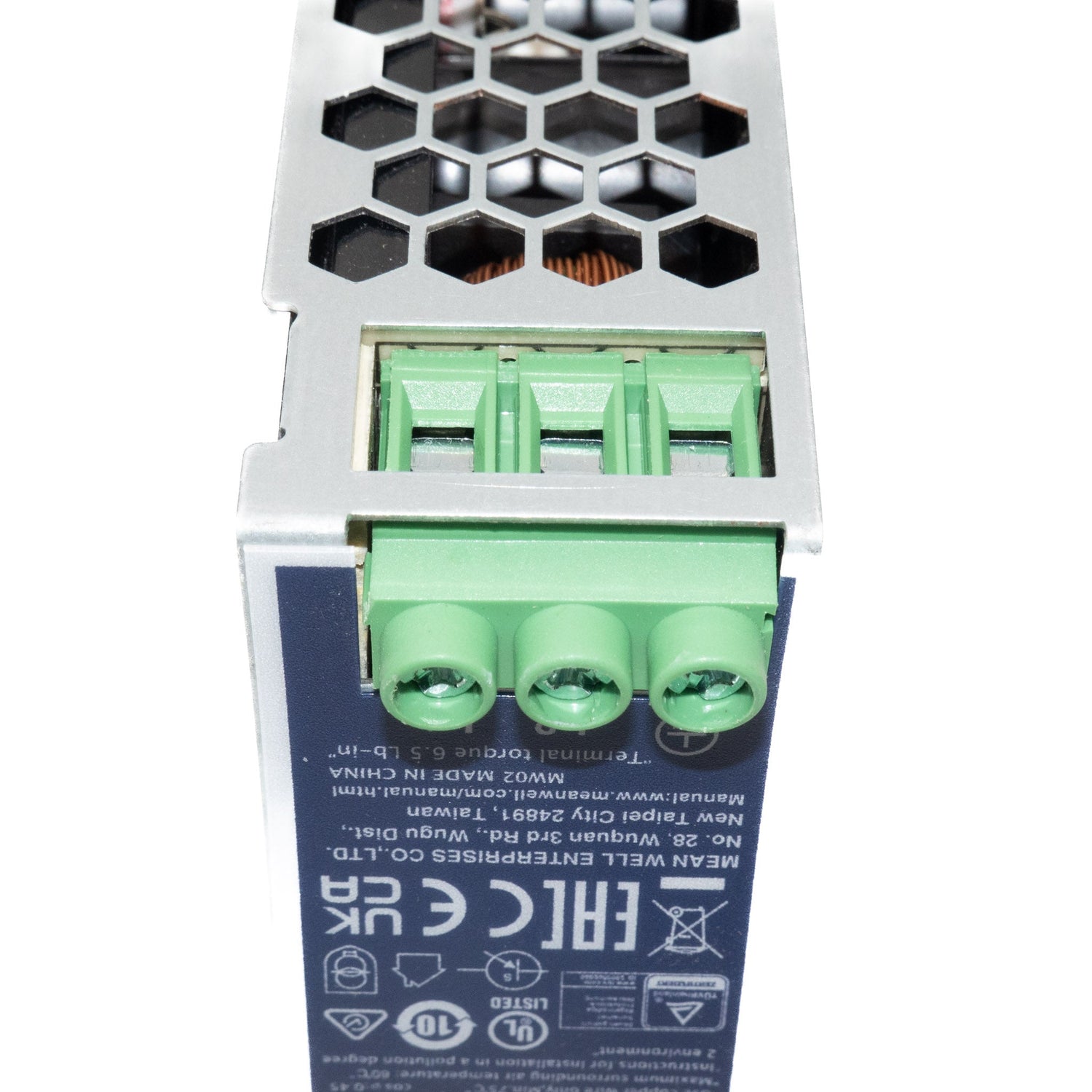

Yes, it is a fit for building management and control cabinet applications that use 48V DC devices. The unit accepts 180-550VAC input, supports 1 and 2 phase systems, and uses a metal case intended for industrial cabinet installation.
Can the WDR-60-48 power compact 48V control devices in a narrow enclosure?

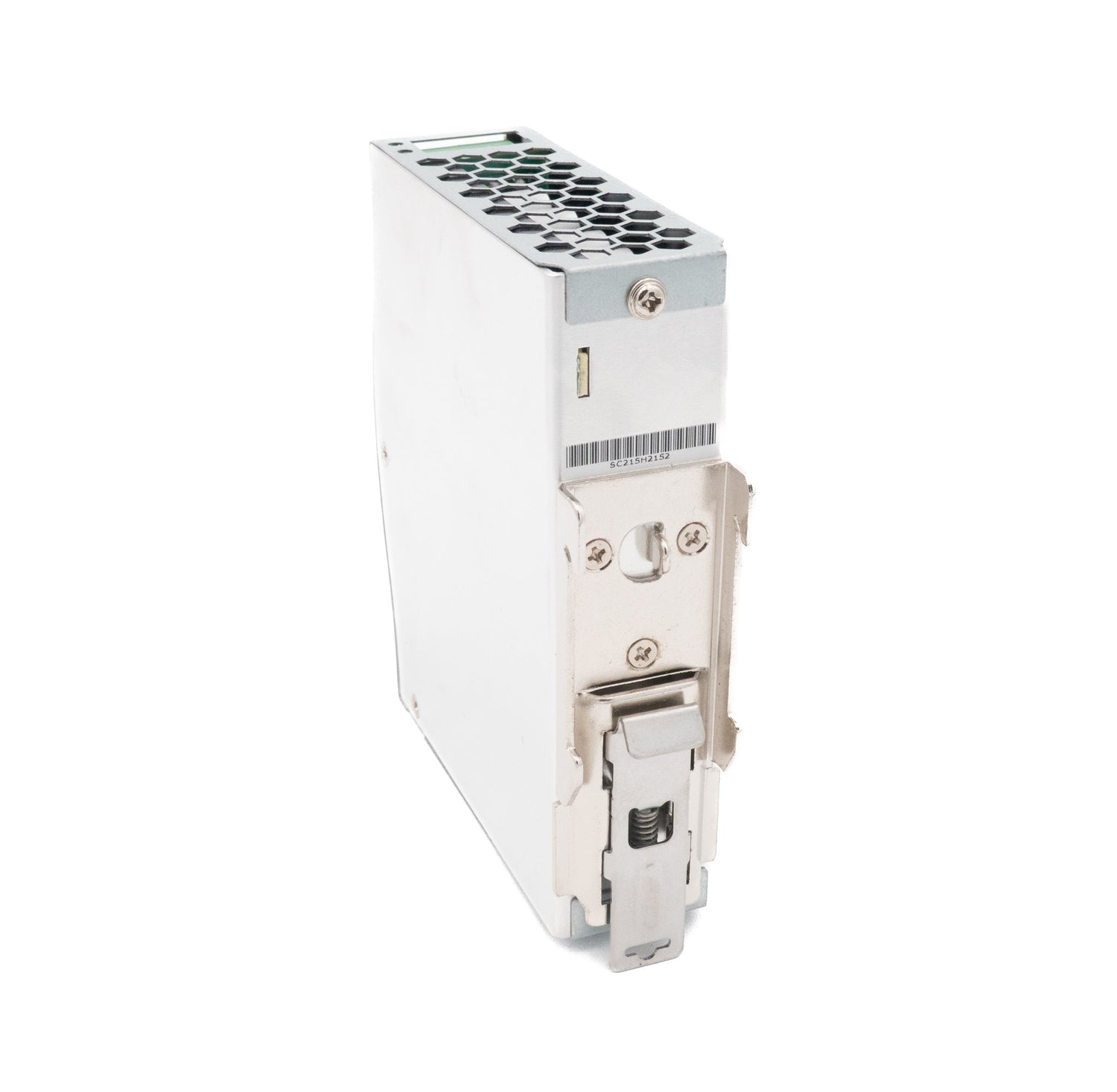

Yes, it is designed for compact DIN rail installations where space is limited. Its dimensions are 125.2 × 102.0 × 32.0 mm, and the slim size helps when mounting inside narrow control enclosures or crowded panels.
Is the WDR-60-48 suitable for 48V industrial control systems with wide AC input conditions?
Yes, this model is built for systems that need 48V DC output and broad AC input acceptance. Its 180-550VAC input range and 1 and 2 phase capability make it appropriate for industrial control cabinets with varying incoming AC supply conditions.
What conditions is this power supply designed for inside a control cabinet or enclosure?
This unit is intended for enclosed industrial use, such as control cabinets and electrical enclosures, rather than exposed locations. It has an operating temperature range of -30°C to +85°C and a metal case, which supports use in demanding cabinet environments.
How does the WDR-60-48 compare with other WDR series models?
The WDR-60-48 provides 60W at 48V and 1.25A. Other WDR models in this group are WDR-60-5 at 50W, 5V, 10A; WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-120-48 at 120W, 48V, 2.5A; WDR-240-24 at 240W, 24V, 10A; WDR-240-48 at 240W, 48V, 5A; WDR-480-24 at 480W, 24V, 20A; and WDR-480-48 at 480W, 48V, 10A.
Other WDR-60 Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well WDR-60-12 Single Output Industrial Power Supply 60W 12V - DIN Rail | 60W | 12V | 5A | Indoor | $52.15 | View |
| Mean Well WDR-60-24 Single Output Industrial Power Supply 60W 24V - DIN Rail | 60W | 24V | 2.5A | Indoor | $52.15 | View |
| Mean Well WDR-60-5 Single Output Industrial Power Supply 60W 5V - DIN Rail | 50W | 5V | 10A | Indoor | $47.63 | View |
