Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

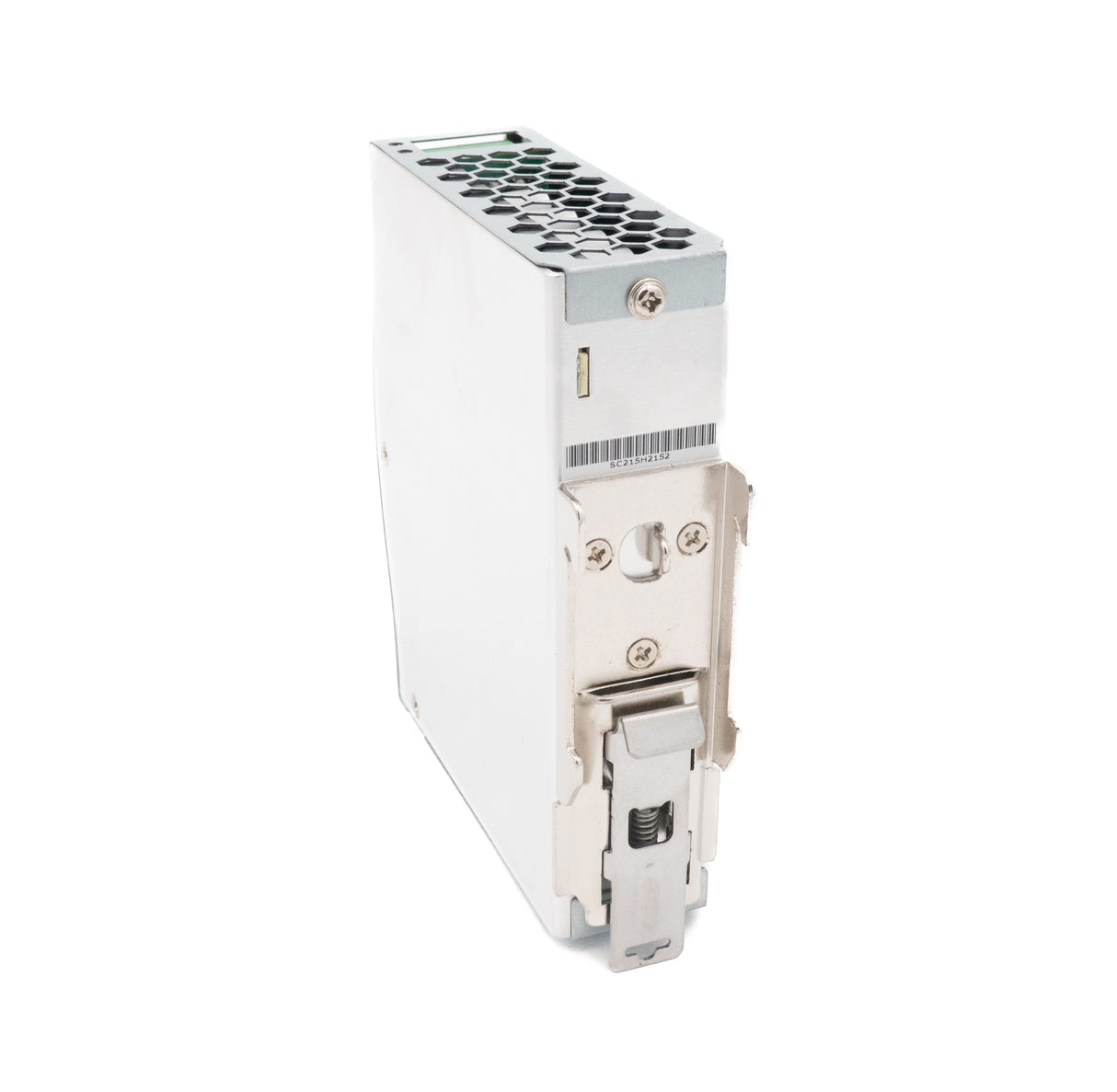

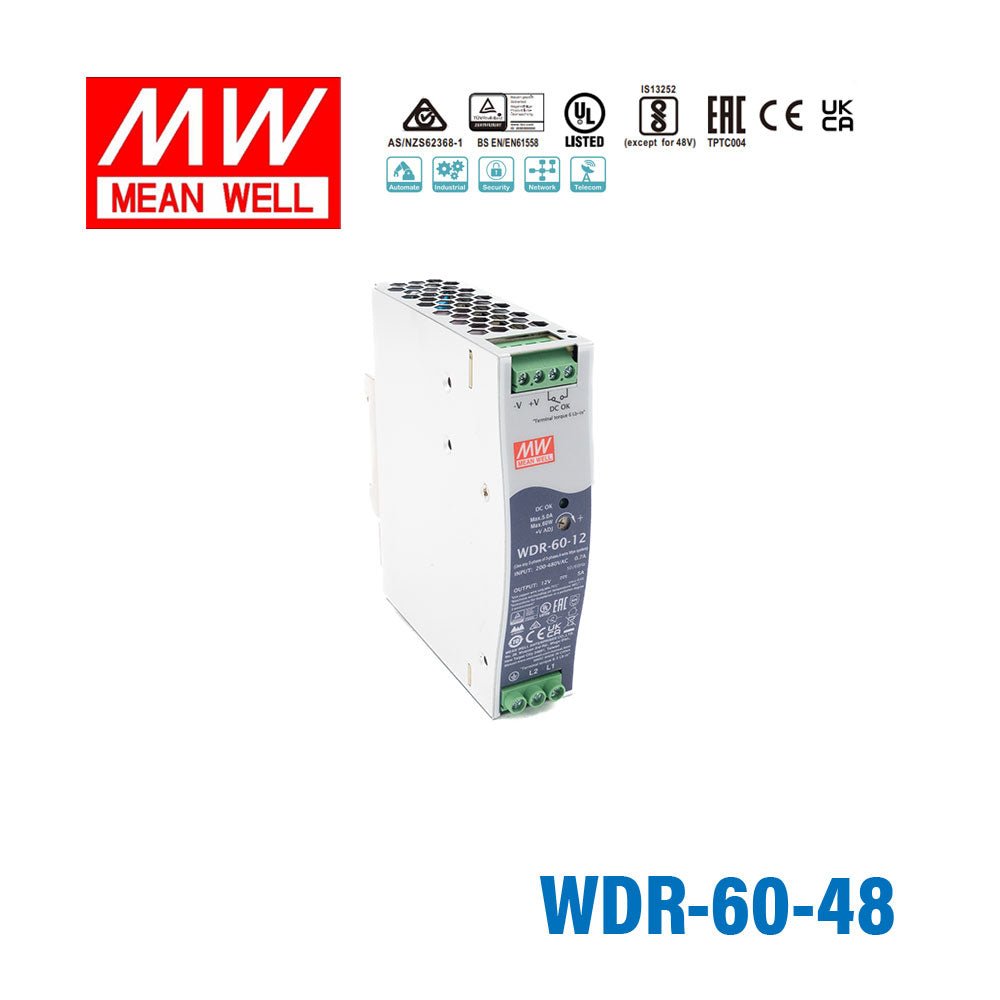

Mean Well WDR-60-48 Single Output Industrial Power Supply 60W 48V - DIN Rail

Q: Can I use the WDR-60-48 in a PLC or industrial automation control panel?

Yes, this model is suited to industrial automation and PLC control panels that require a 48V DC output. It provides 60W with 1.25A output current and is built in a DIN rail format with a slim 32.0 mm profile for panel use.

Q: Is this 48V DIN rail power supply appropriate for building management and control cabinets?

Yes, it is a fit for building management and control cabinet applications that use 48V DC devices. The unit accepts 180-550VAC input, supports 1 and 2 phase systems, and uses a metal case intended for industrial cabinet installation.

Q: Can the WDR-60-48 power compact 48V control devices in a narrow enclosure?

Yes, it is designed for compact DIN rail installations where space is limited. Its dimensions are 125.2 × 102.0 × 32.0 mm, and the slim size helps when mounting inside narrow control enclosures or crowded panels.

Q: Is the WDR-60-48 suitable for 48V industrial control systems with wide AC input conditions?

Yes, this model is built for systems that need 48V DC output and broad AC input acceptance. Its 180-550VAC input range and 1 and 2 phase capability make it appropriate for industrial control cabinets with varying incoming AC supply conditions.

Q: What conditions is this power supply designed for inside a control cabinet or enclosure?

This unit is intended for enclosed industrial use, such as control cabinets and electrical enclosures, rather than exposed locations. It has an operating temperature range of -30°C to +85°C and a metal case, which supports use in demanding cabinet environments.

Q: How does the WDR-60-48 compare with other WDR series models?

The WDR-60-48 provides 60W at 48V and 1.25A. Other WDR models in this group are WDR-60-5 at 50W, 5V, 10A; WDR-60-12 at 60W, 12V, 5A; WDR-60-24 at 60W, 24V, 2.5A; WDR-120-12 at 120W, 12V, 10A; WDR-120-24 at 120W, 24V, 5A; WDR-120-48 at 120W, 48V, 2.5A; WDR-240-24 at 240W, 24V, 10A; WDR-240-48 at 240W, 48V, 5A; WDR-480-24 at 480W, 24V, 20A; and WDR-480-48 at 480W, 48V, 10A.

metal case, slim size, 1&2 phase, 180~550VAC wide input, high efficiency up to 93%

SKU:

WDR-60-48

Model

60W 48V

$52.21 USD

SKU: WDR-60-48

120W 48V

$59.87 USD

SKU: WDR-120-48

240W 48V

$99.88 USD

SKU: WDR-240-48

480W 48V

$148.95 USD

SKU: WDR-480-48

Product variants

$52.21 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Single and two phase wide input range 180~550VAC

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

Built-in constant current limiting circuit

Can be installed on DIN rail TS-35 / 7.5 or 15

4.7KVac I/O high isolation(Reinforced isolation)

Over voltage category III

Built-in DC OK relay contact

DC output voltage adjustable(+20%)

3 years warranty

General Specification

AC input voltage range	180~550VAC(single and two phase); 254~780VDC
AC input current	0.4A / 400VAC, 0.7A / 230VAC
AC inrush current (max.)	Cold start, 50A at 400VAC
DC adjustment range	5V: 5-6V, 12V: 12~15V, 24V: 24~29V, 48V: 48~57V
Overload protection	105%~130% rated output power, constant current limiting, auto-recovery
Over voltage protection Range	6.2~7.2V for 5V model, 16~18V for 12V model, 31~37V for 24V model, 58~60.5V for 48V model
Over voltage protection Type	Shut down o/p voltage, auto-recovery
Setup, rise, hold up time	2000ms, 70ms, 10ms at full load and 230VAC; 1000ms, 70ms, 20ms at full load and 400VAC
Over temp. protection	Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage	I/P-O/P:4.7VAC, I/P-FG:2.5kVAC, O/P-FG:0.5kVAC, O/P-DC OK:0.5kVAC
Working temperature	-40~+85°C
DC OK signal	Relay Contact
Leakage current	<2mA at 530VAC
Vibration	10~500Hz, 2G 10 minutes / 1 cycle, period of 60 minutes each along X, Y, Z axes
Safety standards	UL61010 approved ; AS/NZS 62368.1
EMC standards	EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN61204-3
Connection	I/P: 3 poles, O/P: 4 poles screw DIN terminal
Dimension (LxWxH)	32x125.2x102
Packing	28pcs / 13.6kg

Specifications

Brand

Mean Well
Series

WDR Series
Power Rating

60 Watt
Output Voltage

48 Volt
Rated Current

1.25 Ampere
Input Voltage

180V~550V
No of Output

1
Standards Met

CE,cUL,EAC,TUV
Operating Temperature

-30°C~85°C
Warranty

3 Year
Length

4.93 in
Width

4.02 in
Height

1.26 in
Weight

1.1 lb
