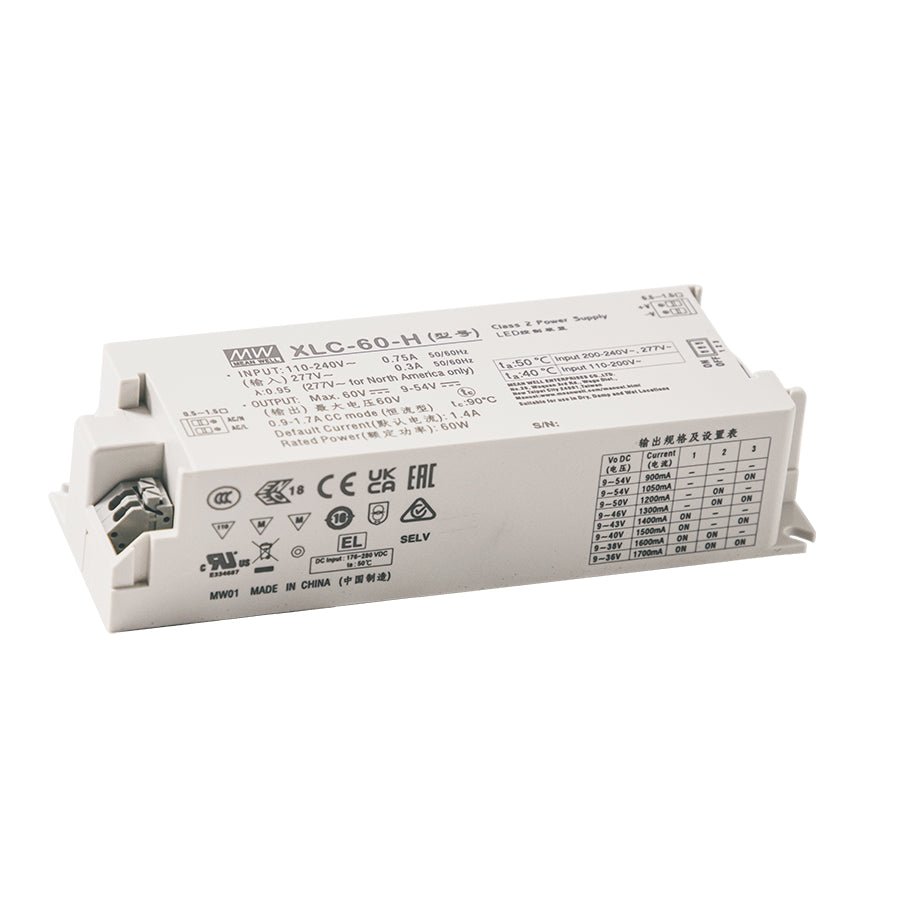

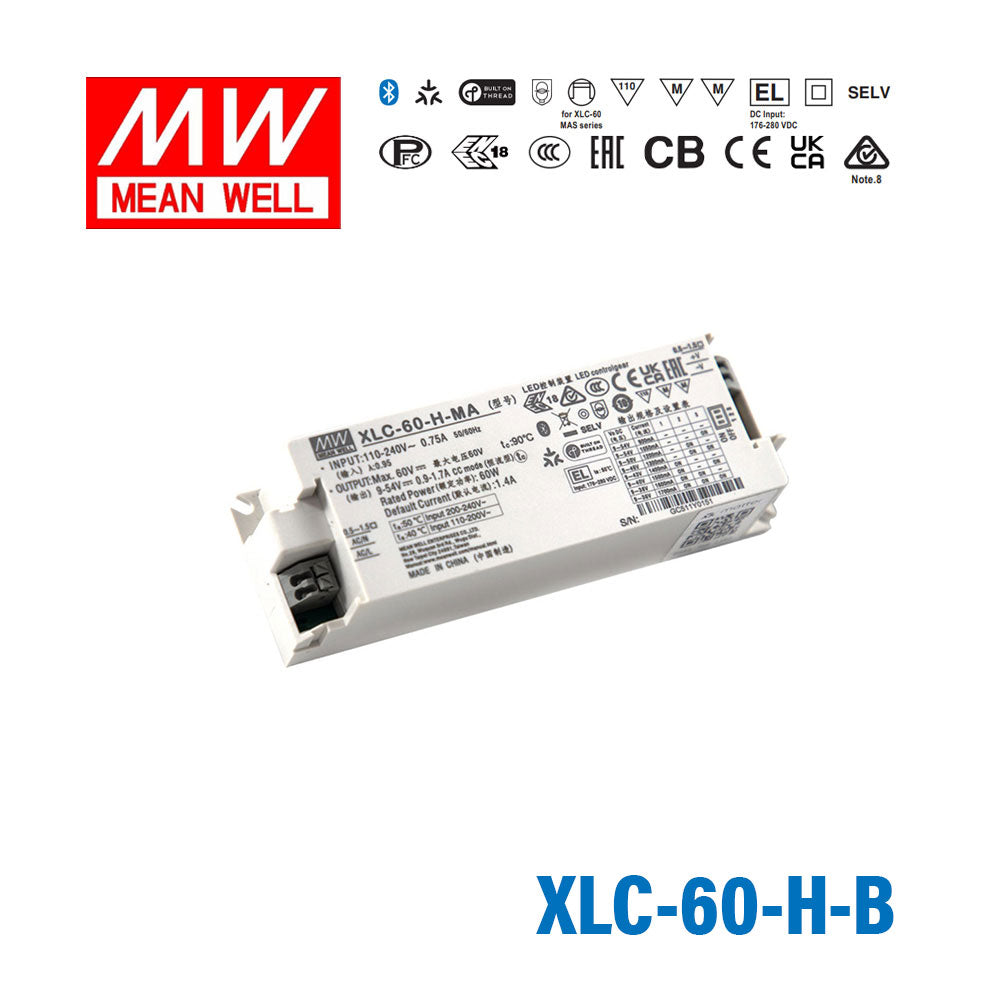

Mean Well XLC-60-H-B LED Driver 60W 1400mA 9~54V Constant Power, 3 in 1 Dimming, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-B LED Driver 60W 1400mA 9~54V Constant Power, 3 ...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-B to dim LED downlights in a conference room?
Yes. The XLC-60-H-B supports 3-in-1 dimming (0–10V, PWM, and resistance), so it integrates with common building control systems used in conference rooms. It delivers 60W at 1400mA constant current with flicker-free output across the 9–54V CC range.
Is the XLC-60-H-B suitable for dimmable LED signage installations?
Yes. Its 3-in-1 dimming capability allows brightness adjustment from 100% down to the minimum supported by the control signal, making it a practical choice for dimmable signage modules operating within the 9–54V CC voltage range.
Can the XLC-60-H-B drive a small dimmable LED array for architectural lighting?
Yes. With a constant current adjustable from 0.9A to 1.7A via the dip switch and 3-in-1 dimming support, the XLC-60-H-B suits dimmable LED arrays used in architectural applications. The number of LEDs the driver can support depends on each LED's forward voltage within the 9–54V range.
What dimming interfaces does the XLC-60-H-B accept?
The XLC-60-H-B supports 3-in-1 dimming, which covers 0–10V analog, PWM, and resistance-based control signals. This allows compatibility with a variety of wall dimmers and building management systems.
Is the XLC-60-H-B approved for built-in luminaire use?
Yes, the XLC-60-H-B is rated for built-in use inside a luminaire housing. It holds CB, CCC, CE, EAC, ENEC, and c_selv certifications and operates across an input range of 110–305VAC.
How does the XLC-60-H-B differ from the XLC-60-H in dimming capability?
The XLC-60-H has no dimming interface; the XLC-60-H-B adds 3-in-1 dimming (0–10V, PWM, resistance) while retaining the same 60W, 1400mA output and dip-switch current adjustment. Both share identical certifications and the 9–54V CC range.
