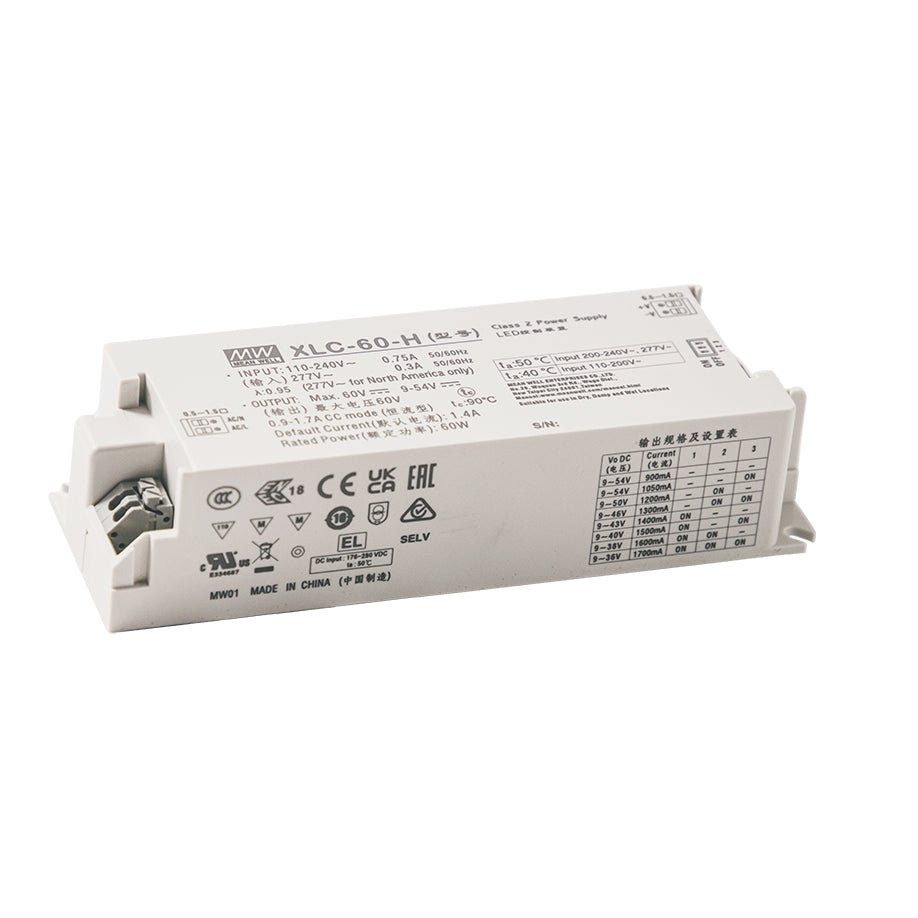

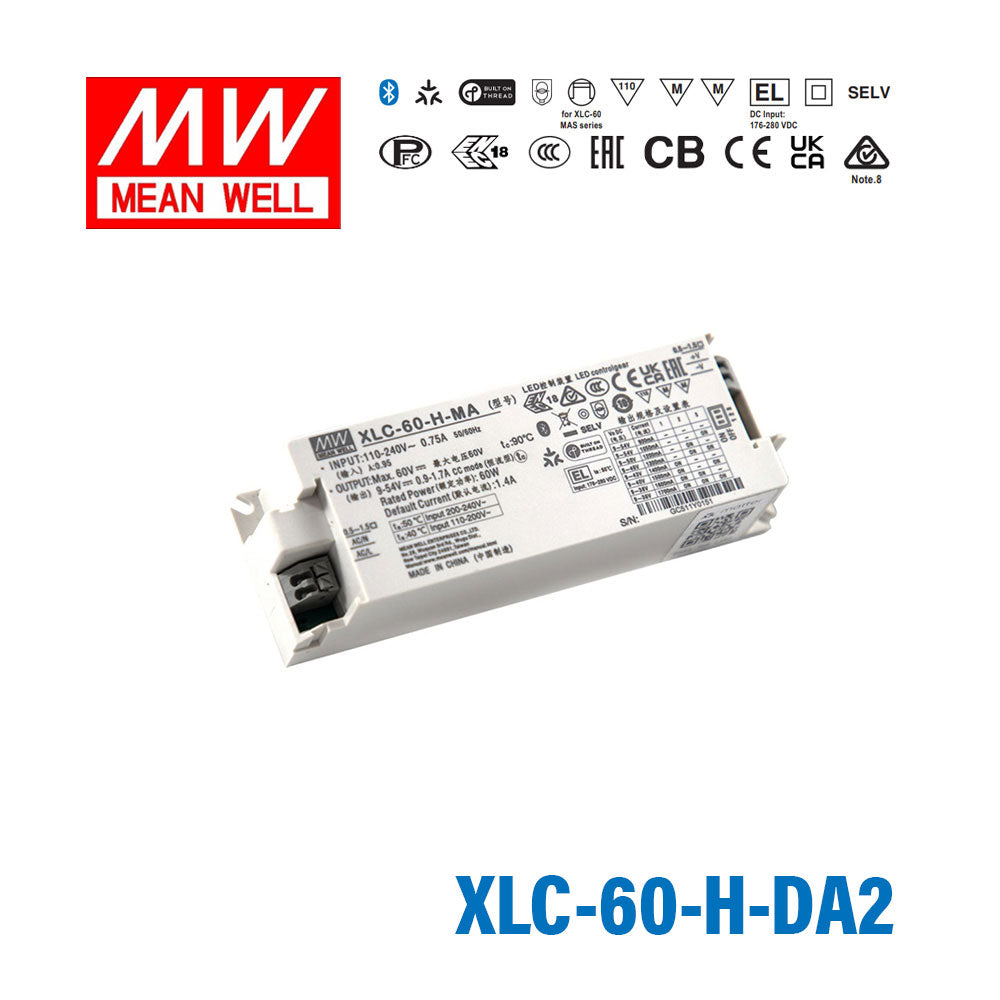

Mean Well XLC-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power, DALI2 + Push Dimming, Current Setting by Dip Switch
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLC-60-H-DA2 LED Driver 60W 1400mA 9~54V Constant Power, ...
Description
Description
Key Features
- ✓Constant power mode output with multiple stages selectable by dip switch or NFC setting(H-type)
- ✓Constant voltage mode output (12V/24V/48V)
- ✓Plastic housing with class II/2 and PFC design
- ✓Flicker-free, complying with IEEE1789/ErP
- ✓Standby power consumption <0.5W
- ✓Meet emergency lighting (EL) function application
- ✓Minimum dimming level 0.1% (DALI-2 DT6)
- ✓Dimming functions: 3 in 1 dimming (Dim-to-off) DALI-1 + Push dimming
- ✓5 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesMean Well XLC Series
-
Power Rating60 Watt
-
Output Voltage60 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetCB,CCC,CE,EAC,ENEC,SELV
-
Operation ModeConstant Voltage
-
Operating Temperature-25°C~90°C
-
Warranty5 Year
-
Length6.93 in
-
Width1.26 in
-
Height1.77 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the XLC-60-H-DA2 to control LED downlights through a DALI2 building automation system?
Yes. The XLC-60-H-DA2 supports DALI2 and push dimming natively, making it compatible with DALI2-certified building management and lighting control systems. It delivers 60W at 1400mA constant current across a 9–54V CC range with a minimum dimming depth of 0.1%.
Is the XLC-60-H-DA2 suitable for LED signage that requires precise dimming via DALI2?
Yes. The driver supports DALI2 and push dimming with a minimum dim level of 0.1%, enabling fine brightness control for LED signage modules. Total load must remain within 60W, and the LED modules must operate within the 9–54V CC output range.
Can the XLC-60-H-DA2 drive a small LED array in a DALI2-networked lighting project?
Yes. The XLC-60-H-DA2 is designed for built-in use within a luminaire and integrates directly into DALI2 networks. The number of LEDs in the driven string depends on each LED's forward voltage within the 9–54V CC range; the driver supports current adjustment from 0.9A to 1.7A via the dip switch.
What is the minimum dimming level of the XLC-60-H-DA2?
The XLC-60-H-DA2 can dim down to 0.1% of its rated output, which is suitable for near-off tuning in applications such as circadian lighting and nighttime scene control.
Is the XLC-60-H-DA2 compatible with both DALI2 controllers and simple push-button dimmers?
Yes. The XLC-60-H-DA2 supports both DALI2 protocol for networked control systems and push dimming for straightforward local switching or step-dimming scenarios, providing flexibility in system design.
How does the XLC-60-H-DA2 differ from the XLC-60-H-B in dimming protocol?
The XLC-60-H-B supports 3-in-1 dimming (0–10V, PWM, resistance), while the XLC-60-H-DA2 uses DALI2 and push dimming with a minimum dim level of 0.1%. Both are 60W, 1400mA constant-current drivers with dip-switch current setting and the same 9–54V CC range.
