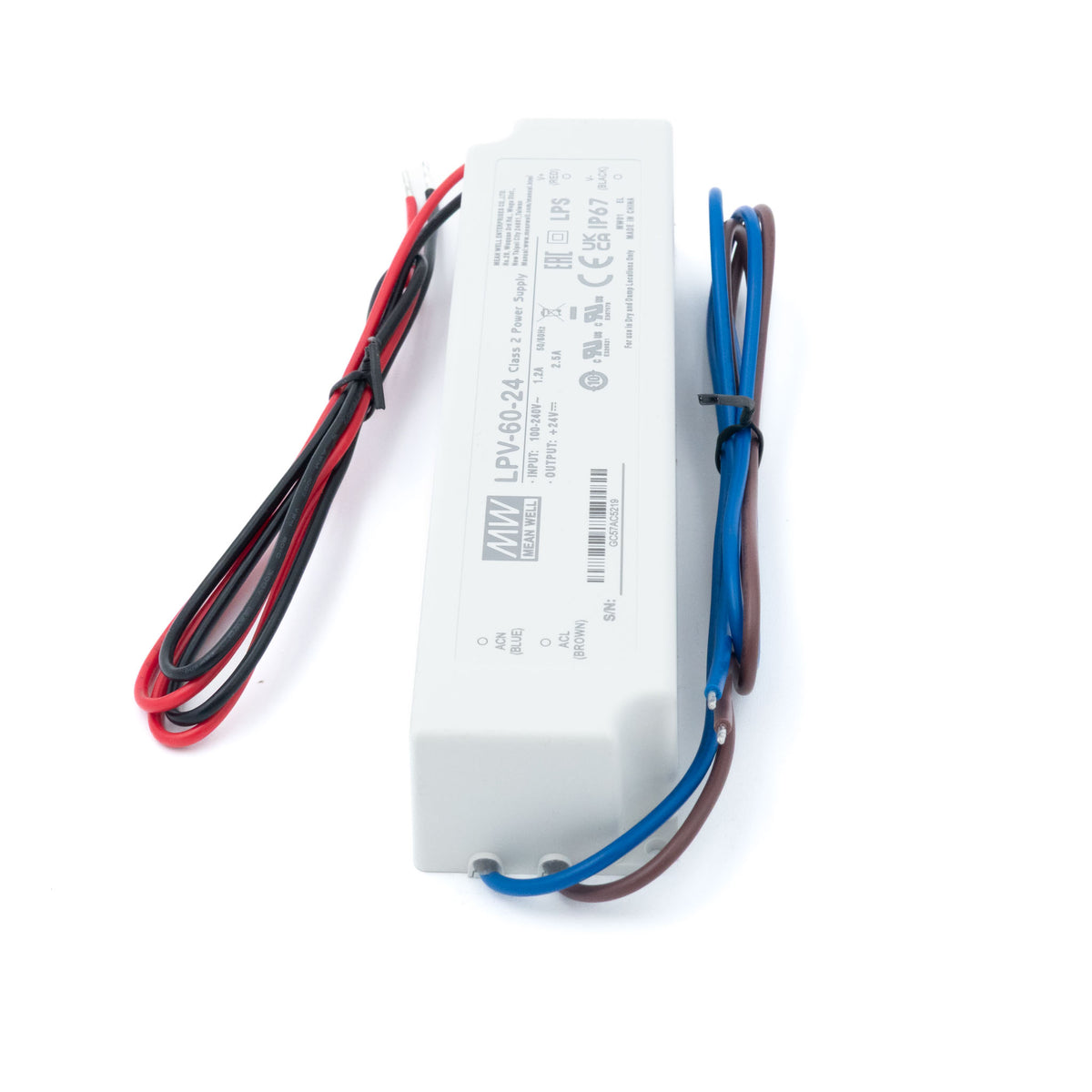

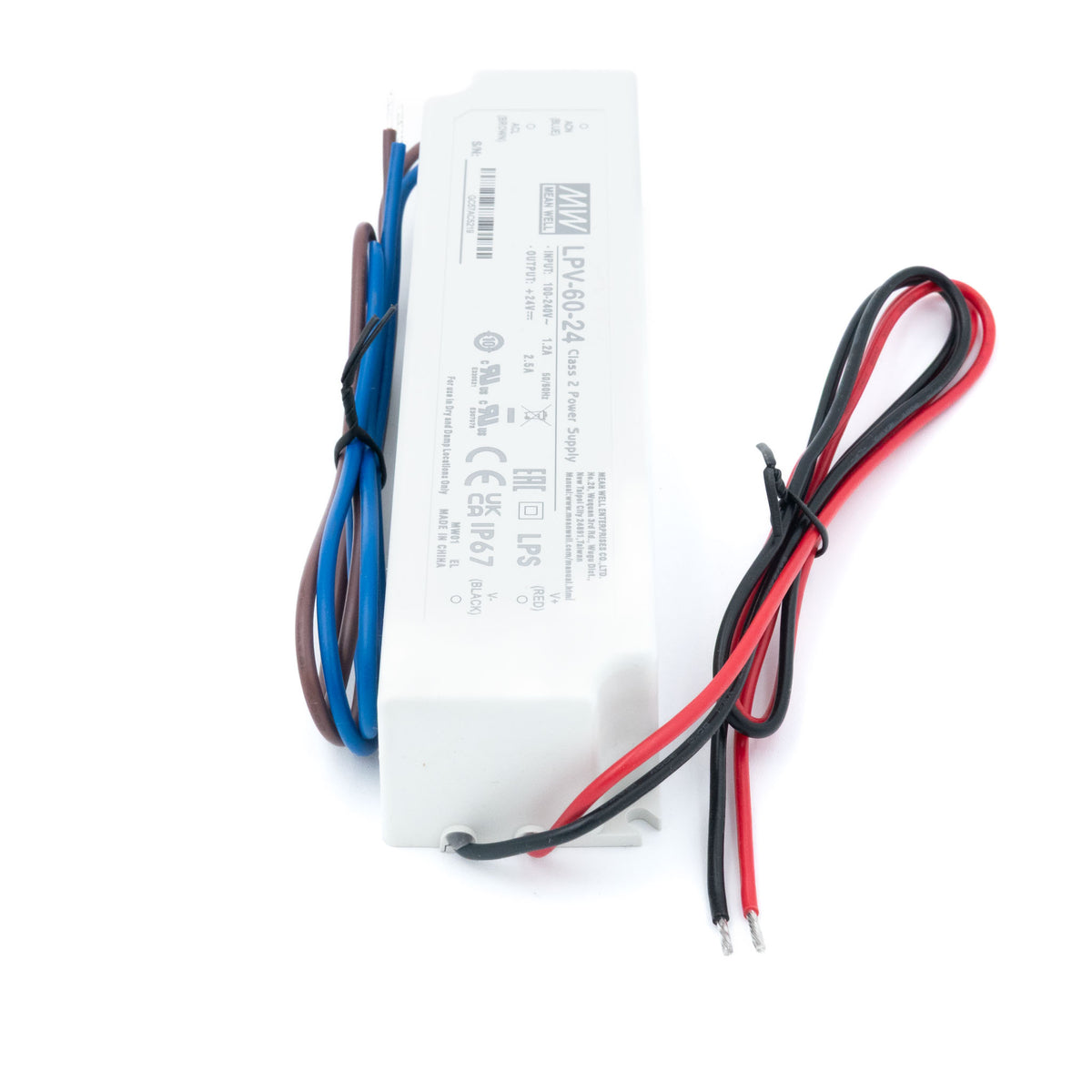

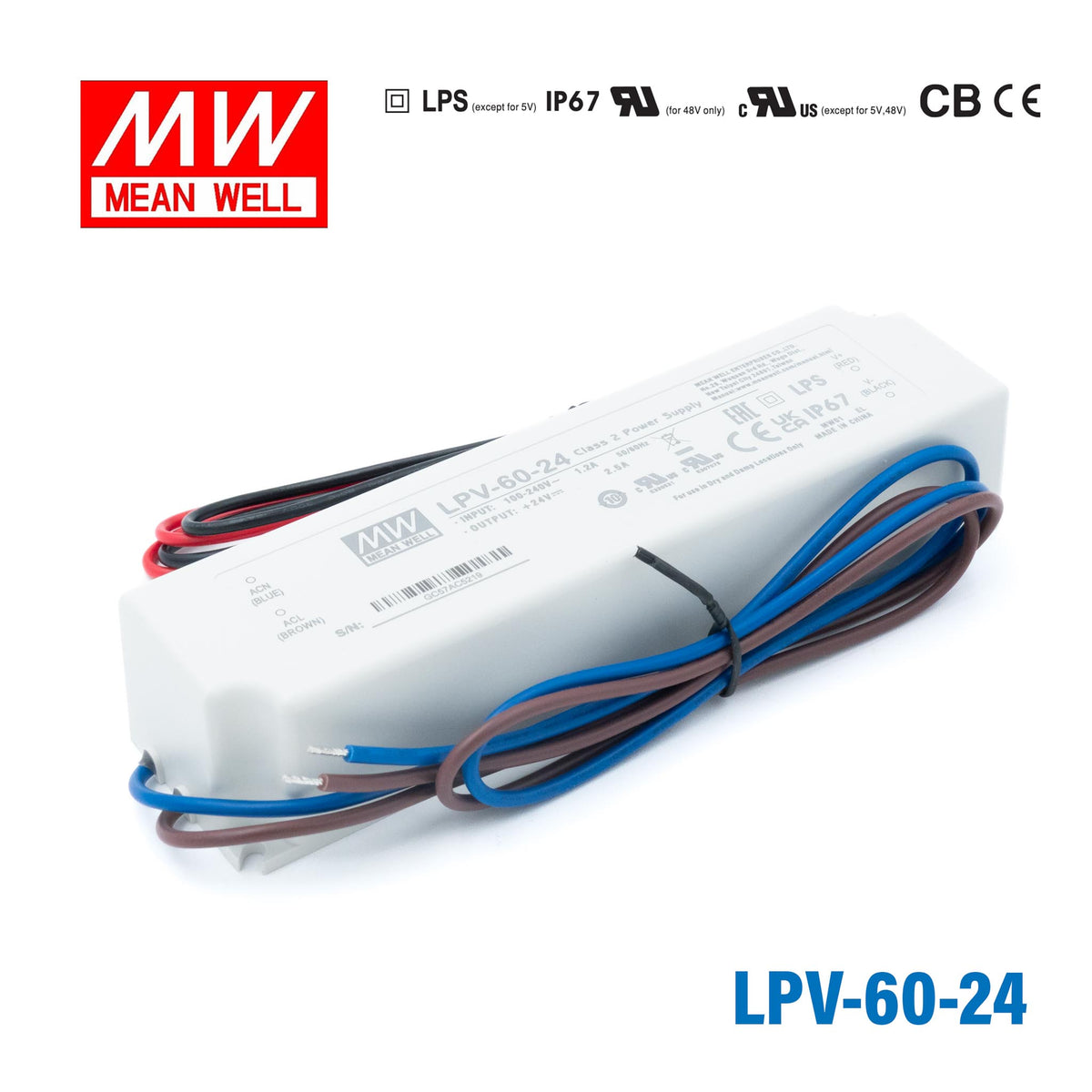

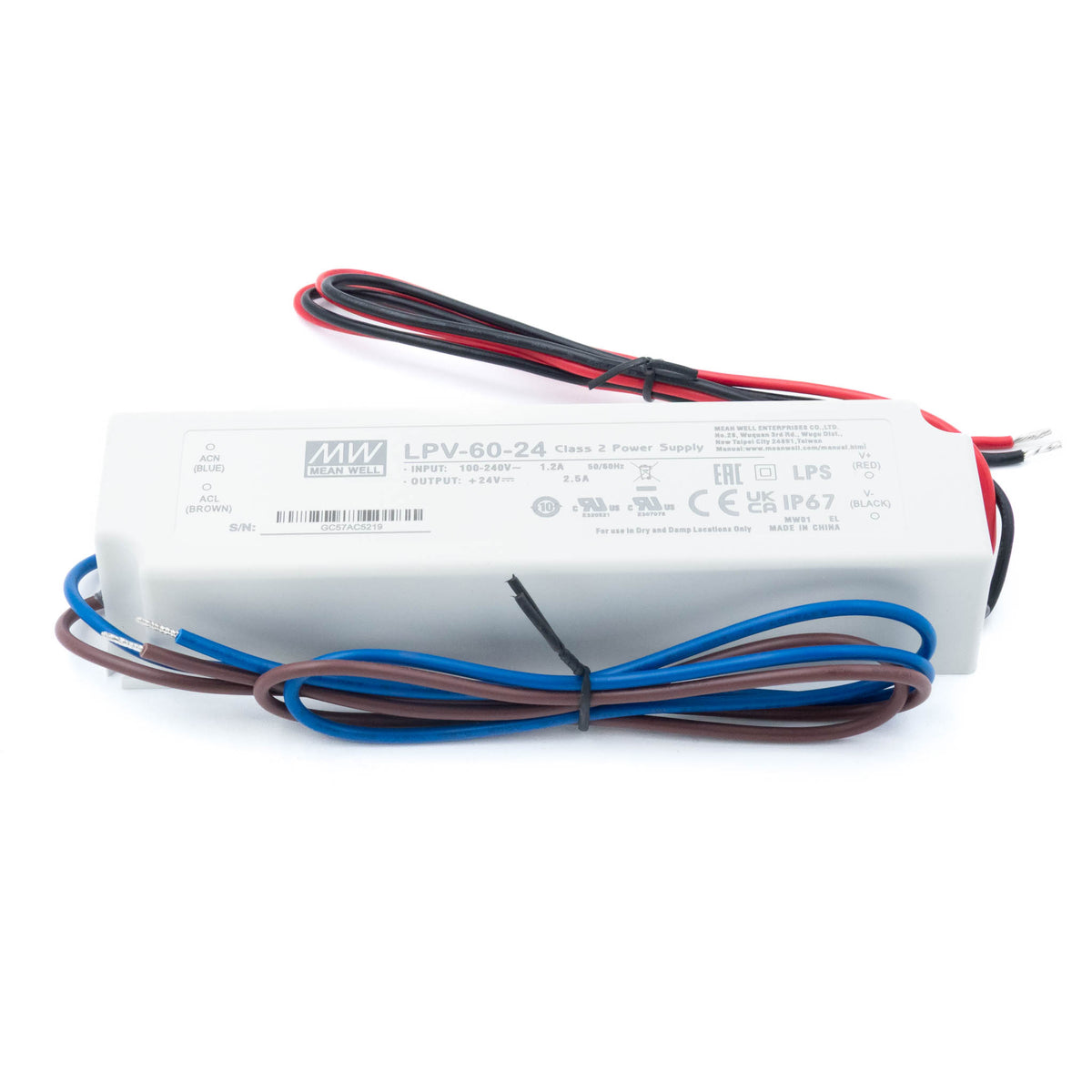

Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof

The Mean Well LPV-60-24 is a 60W, 24V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 24V DC output at up to 2.5A and carries CB, CE, EAC, UL certifications for global compliance.

Accepting 90-264VAC universal AC input, the LPV-60-24 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.

Key Features

• ✓✓Constant voltage output: 24V DC at up to 2.5A (60W max)
• ✓✓IP67 waterproof and dustproof — suitable for outdoor installations
• ✓✓Universal AC input: 90-264VAC
• ✓✓Certifications: CB, CE, EAC, UL
• ✓✓Wide operating temperature: -30°C to +70°C
• ✓✓Built-in protections: short circuit, overload, over-voltage
• ✓✓Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
• ✓✓2-year Mean Well warranty

• Brand
  Mean Well
• Series
  LP Series
• Power Rating
  60 Watt
• Output Voltage
  24 Volt
• Rated Current
  2.5 Ampere
• Input Voltage
  90V~264V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CB,CE,EAC,UL
• Operation Mode
  Constant Voltage
• Operating Temperature
  -30°C~70°C
• Warranty
  2 Year
• Length
  6.4 in
• Width
  1.67 in
• Height
  1.26 in
• Weight
  0.88 lb
