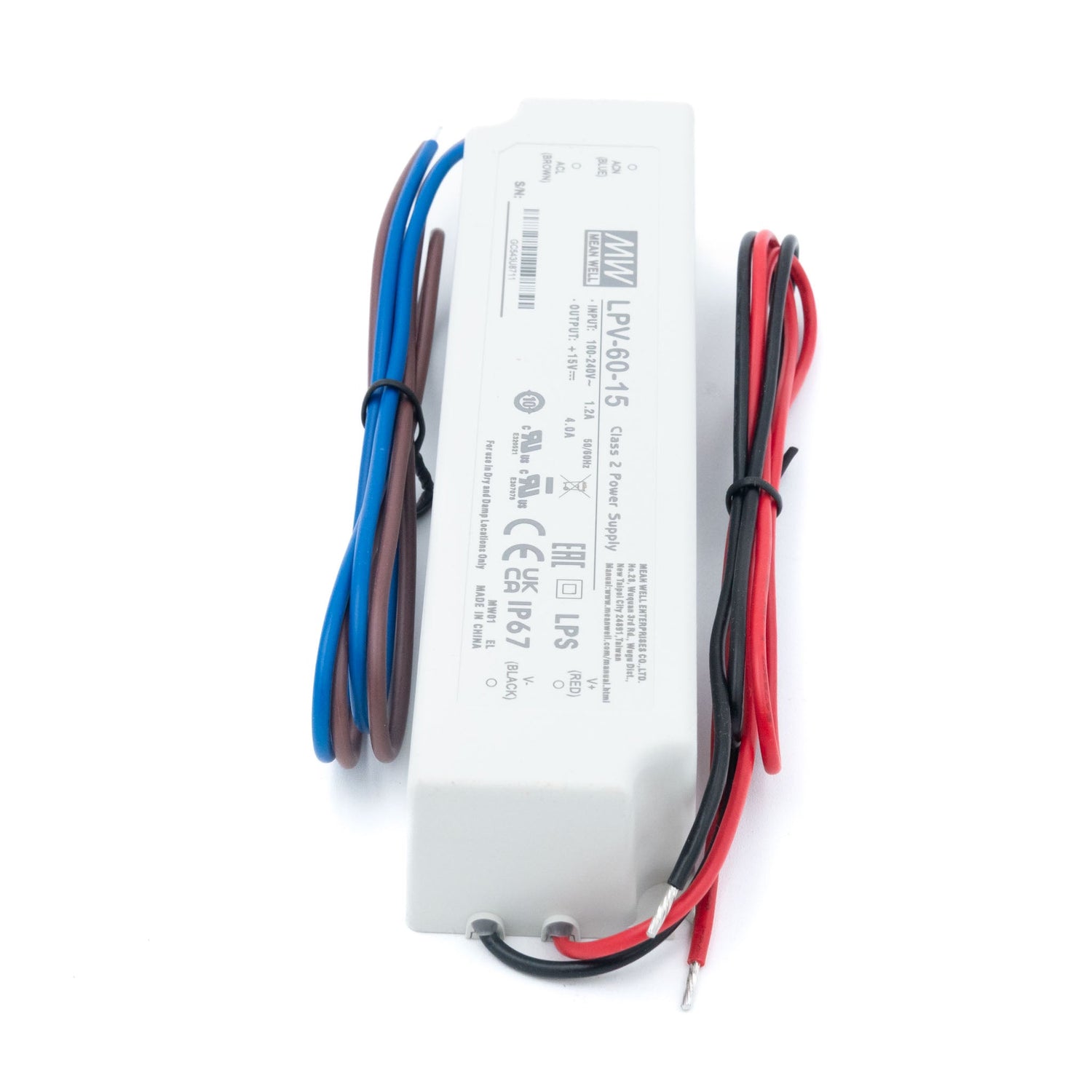

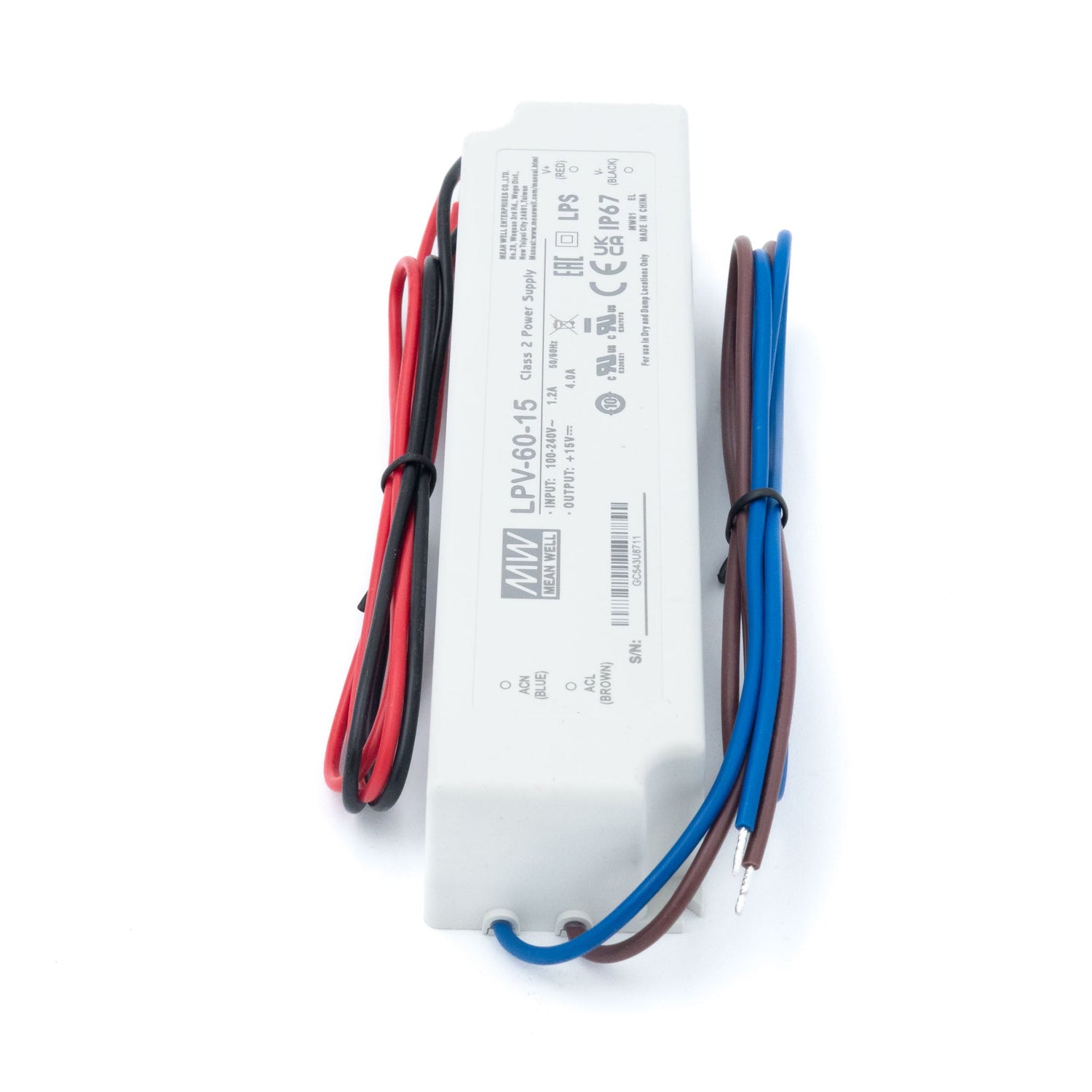

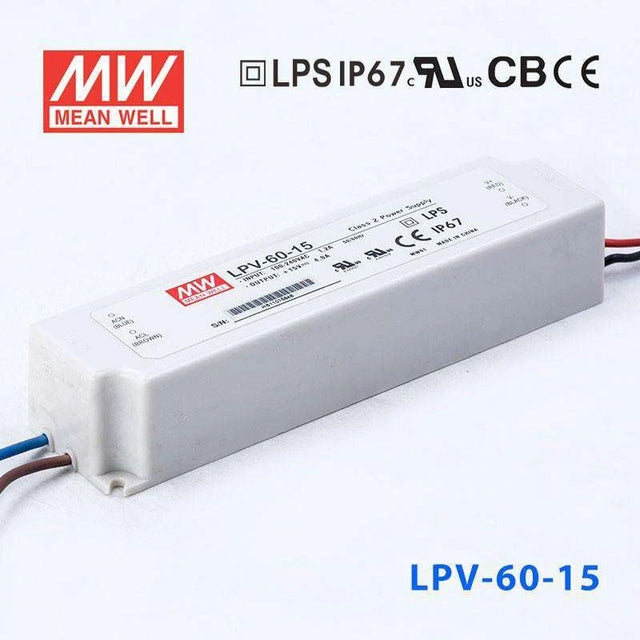

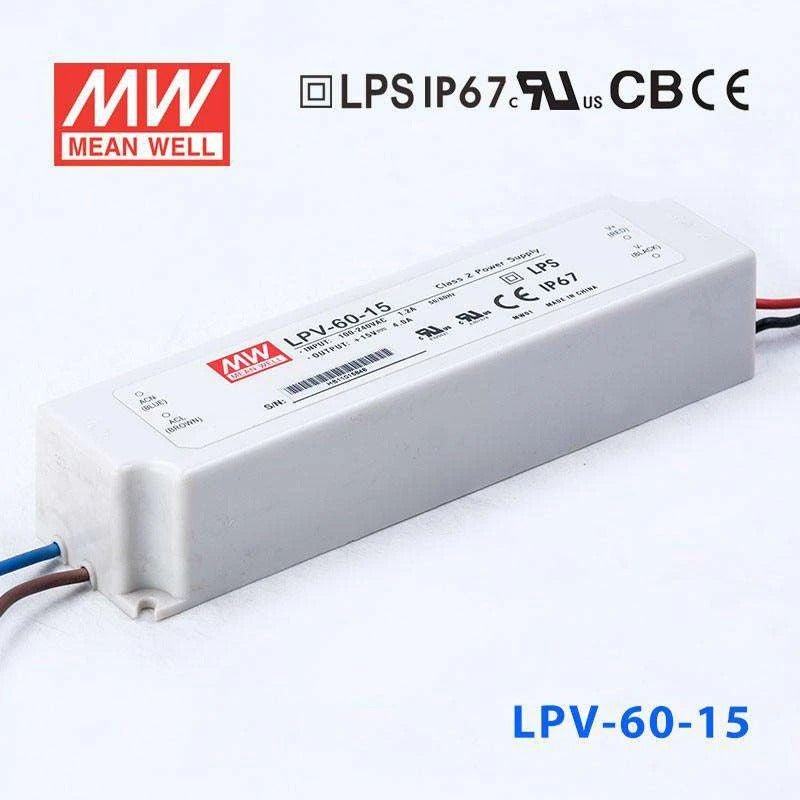

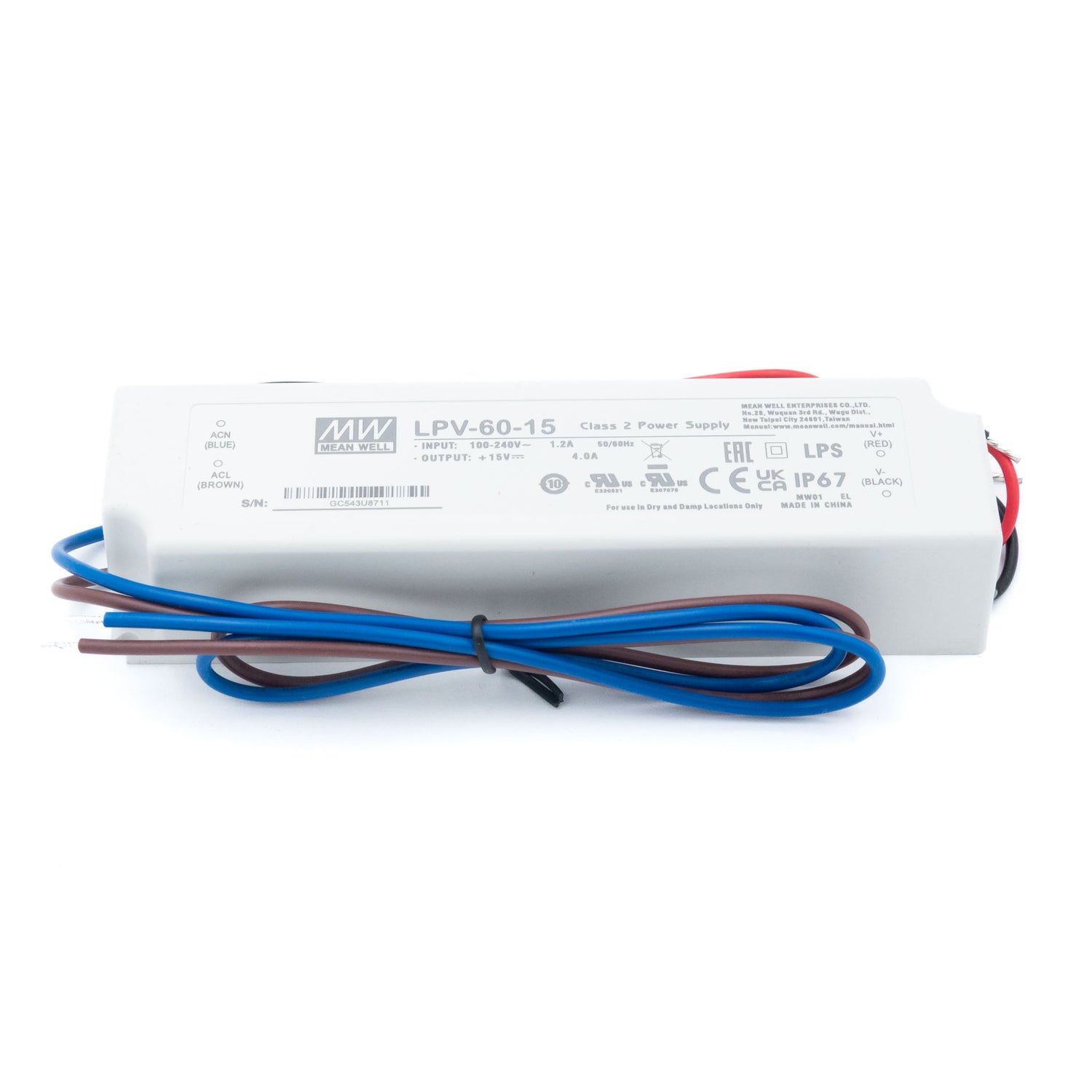

Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof
The Mean Well LPV-60-15 is a 60W, 15V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 15V DC output at up to 4A and carries CB, CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-60-15 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 15V DC at up to 4A (60W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CB, CE, EAC, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
- ✓2-year Mean Well warranty
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
::specification::
Frequently Asked Questions
How much 15V LED strip can the LPV-60-15 support?
The LPV-60-15 outputs 60W at 15V (4A). Divide 60W by your LED strip's rated wattage per metre to estimate the run length — a strip at 10 W/m, for example, gives up to 6 metres (60 ÷ 10 = 6 m). Always verify the rated power per metre of your specific strip before finalising the design.
Where does the LPV-60-15 fit in the LPV-60 voltage lineup?
The LPV-60 series at 60W capacity offers six voltage options: 5V (40W), 12V (5A), 15V (4A), 24V (2.5A), 36V (1.67A), and 48V (1.25A), all sharing the 162.5 × 42.5 × 32.0 mm IP67 enclosure. The LPV-60-15 is the 15V variant, intended for LED loads that specifically require a 15V supply rather than the more common 12V or 24V.
Can the LPV-60-15 be used in wet outdoor environments?
Yes. IP67 certification means the unit is dust-tight and can withstand temporary immersion in water. The -30°C to +70°C operating range further supports year-round outdoor use in locations such as outdoor signs, architectural lighting features, and covered walkways.
How does the LPV-60-15 differ from the LPV-35-15?
Both are 15V IP67 constant-voltage drivers, but the LPV-60-15 delivers 60W (4A) compared to the LPV-35-15's 36W (2.4A). The LPV-60-15 also has a higher maximum operating temperature (70°C vs. 65°C), a larger enclosure (162.5 × 42.5 × 32.0 mm vs. 148 × 40 × 30 mm), and adds a CB certification.
What is the weight and size of the LPV-60-15?
The LPV-60-15 measures 162.5 × 42.5 × 32.0 mm and weighs 0.4 kg. It is a compact sealed enclosure, though slightly larger than the LPV-35 series units, and should be factored into mounting space planning for sign cabinets or fixture housings.
