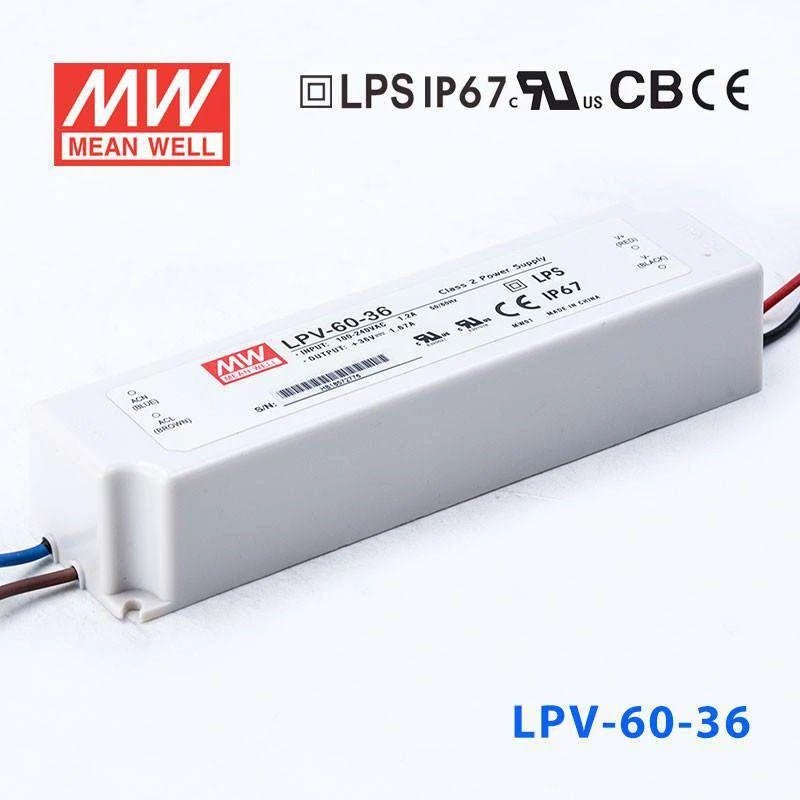

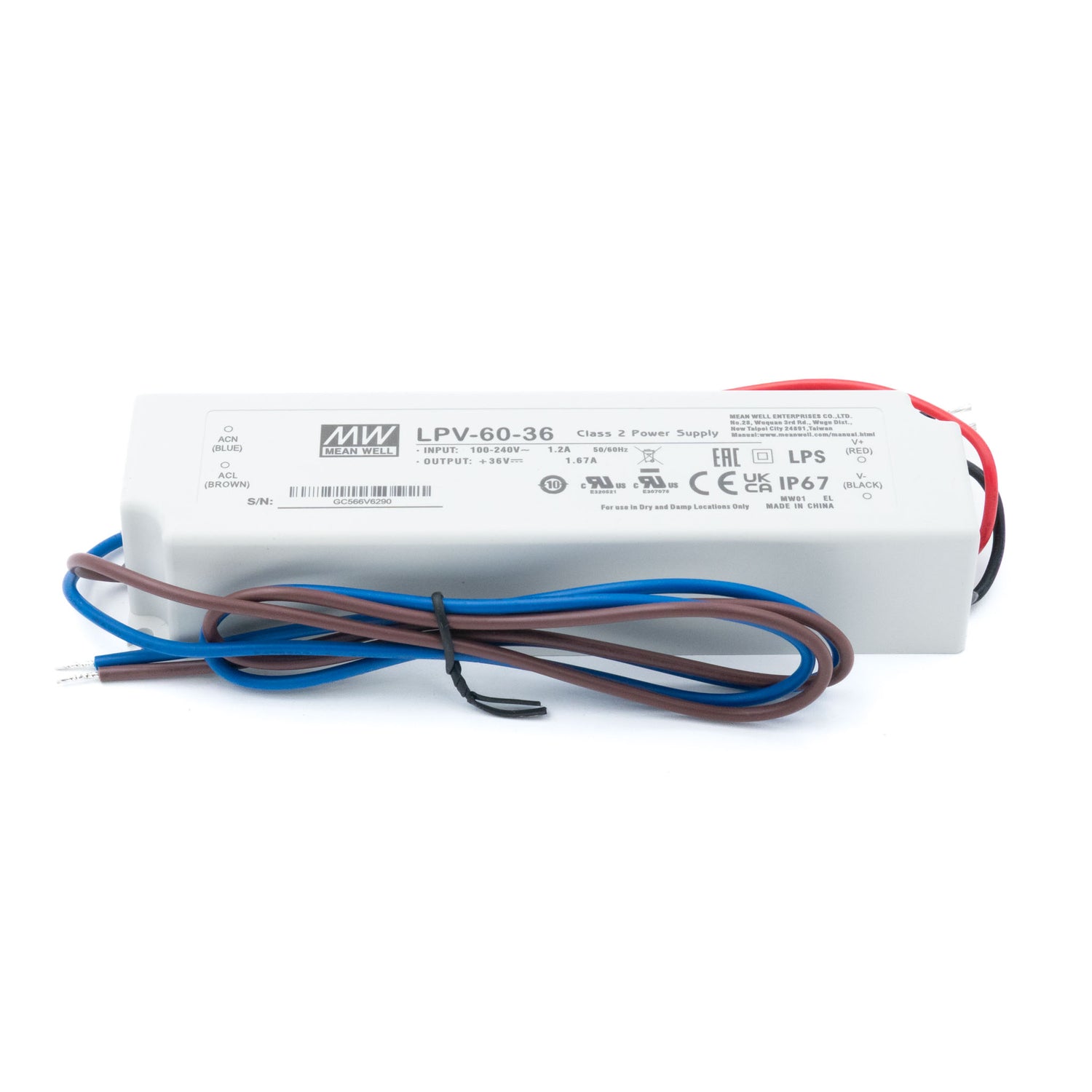

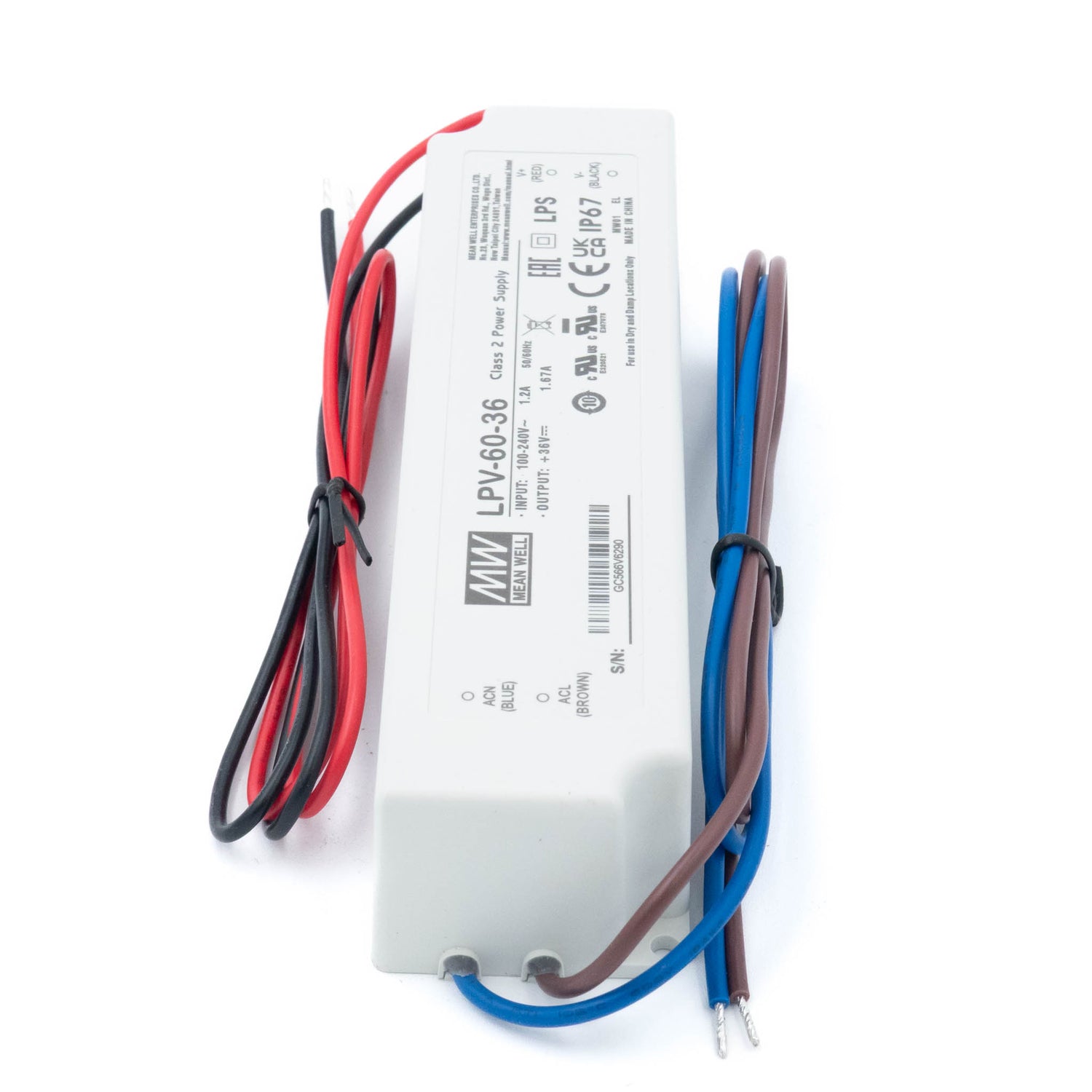

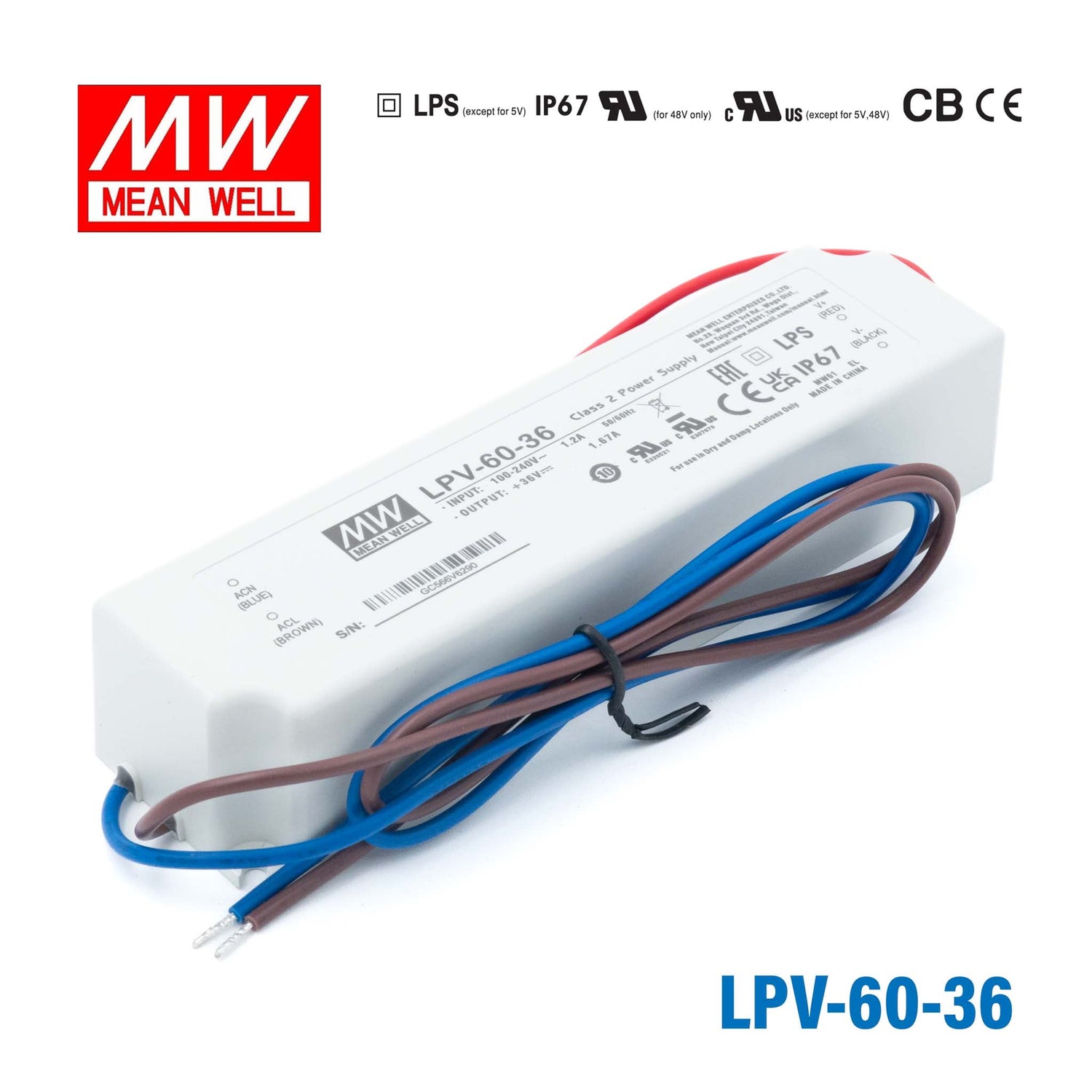

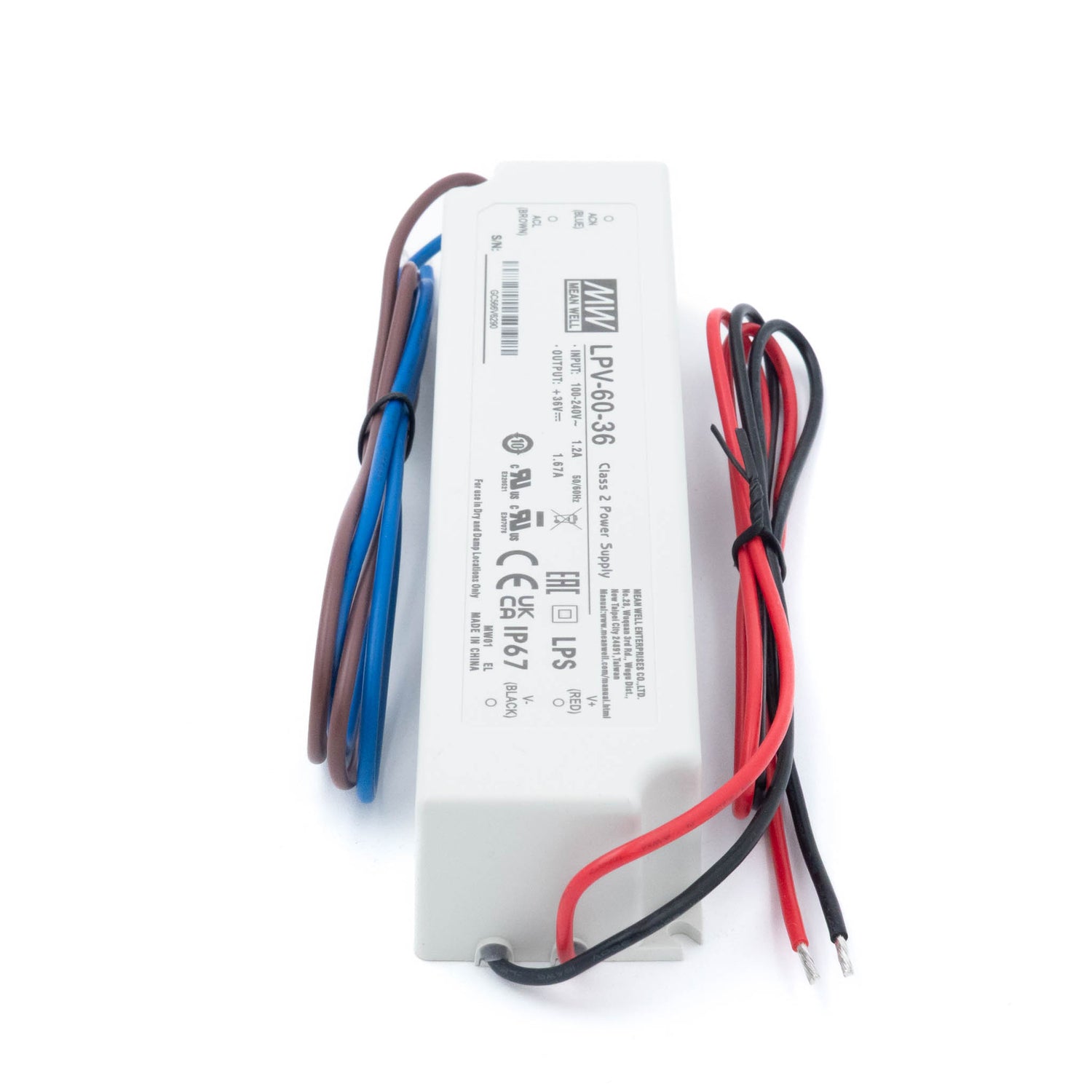

Mean Well LPV-60-36 LED Driver — 60W 36V 1.67A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPV-60-36 LED Driver — 60W 36V 1.67A IP67 Waterproof
Description
Description
The Mean Well LPV-60-36 is a 60W, 36V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 36V DC output at up to 1.67A and carries CB, CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-60-36 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 36V DC at up to 1.67A (60W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CB, CE, EAC, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
- ✓2-year Mean Well warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating60 Watt
-
Output Voltage36 Volt
-
Rated Current1.67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED strip or signage applications is the LPV-60-36 suited to?
The LPV-60-36 provides 60W at 36V (1.67A) in constant-voltage mode. It is appropriate for 36V LED strips, outdoor channel letters, and architectural lighting loads specifically rated for 36V operation — applications where 36V strips are chosen for their longer per-segment run capability compared to 12V or 24V alternatives.
How long a 36V LED strip run can the LPV-60-36 support?
With 60W available at 36V, divide 60W by the rated power per metre of your strip to find the maximum length — for example, a 10 W/m strip allows up to 6 metres (60 ÷ 10 = 6 m). Always verify the rated wattage per metre of the specific strip before sizing.
Can the LPV-60-36 be mounted outside in direct rain?
The IP67 rating confirms dust-tight construction and protection against temporary water immersion, so outdoor mounting in rain-exposed locations is within the driver's rated capability. The operating temperature range of -30°C to +70°C also supports use in hot climates or cold winter conditions.
How does the LPV-60-36 compare to the LPV-35-36 for 36V applications?
Both are 36V IP67 constant-voltage drivers. The LPV-60-36 is rated at 60W (1.67A) in a 162.5 × 42.5 × 32.0 mm enclosure, while the LPV-35-36 is rated at 36W (1A) in a smaller 148 × 40 × 30 mm body. The LPV-60-36 also carries an additional CB certification and has a higher maximum operating temperature (70°C vs. 65°C).
What certifications cover the LPV-60-36, and does it carry a warranty?
The LPV-60-36 is certified CB, CE, EAC, and UL and is backed by a 2-year Mean Well warranty. The CB mark supports approval in over 50 countries through the IECEE mutual recognition scheme.
Other LPV-60 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof | 60W | 12V | 5A | IP67 | $15.14 | View |
| Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof | 60W | 24V | 2.5A | IP67 | $17.01 | View |
| Mean Well LPV-60-48 LED Driver — 60W 48V 1.25A IP67 Waterproof | 60W | 48V | 1.25A | IP67 | $16.22 | View |
| Mean Well LPV-60-5 LED Driver — 40W 5V 8A IP67 Waterproof | 40W | 5V | 8A | IP67 | $16.22 | View |
| Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof | 60W | 15V | 4A | IP67 | $16.22 | View |
