Mean Well LPV-60-5 LED Driver — 40W 5V 8A IP67 Waterproof
Notify me when it's back in stock
Your order will be processed within 24 hours

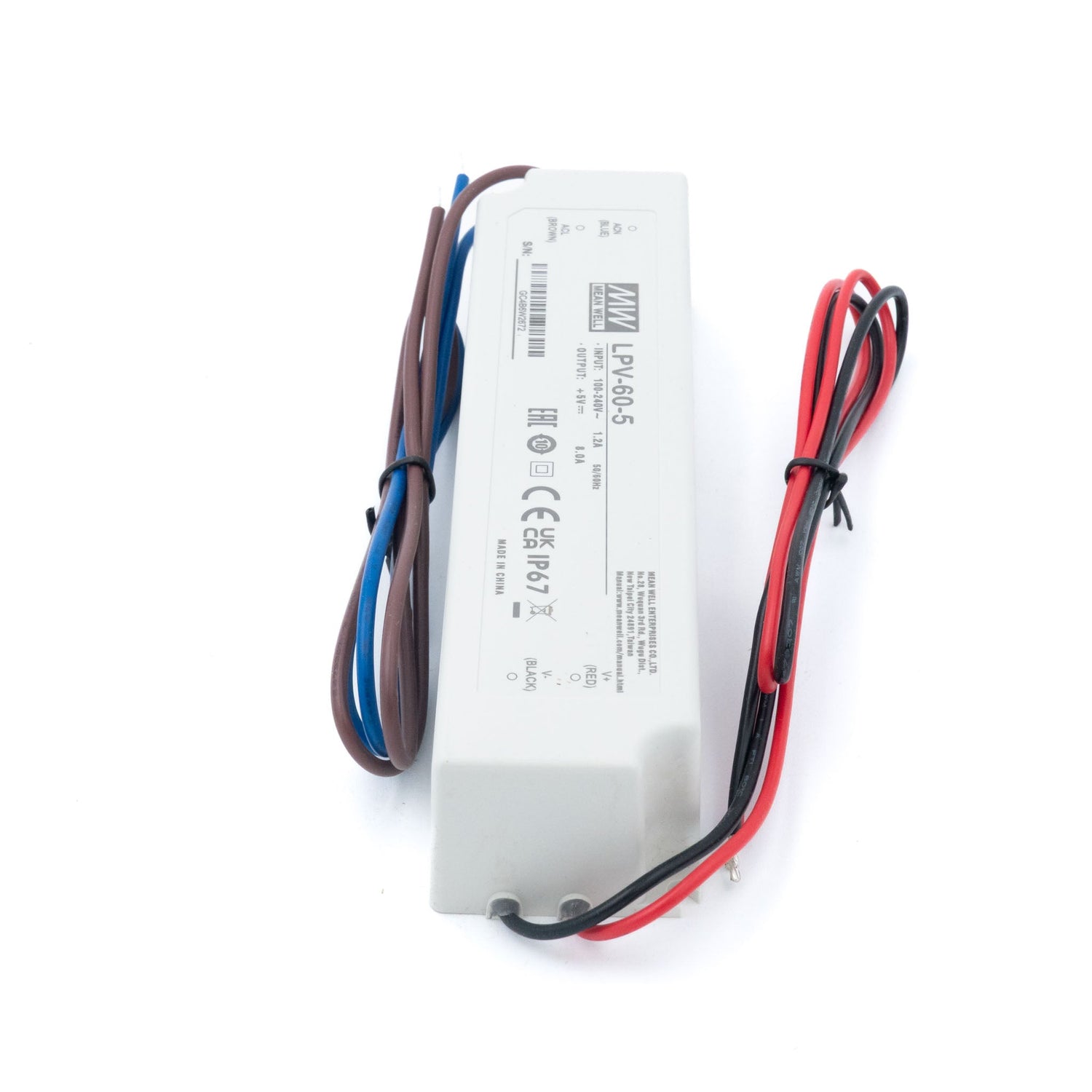

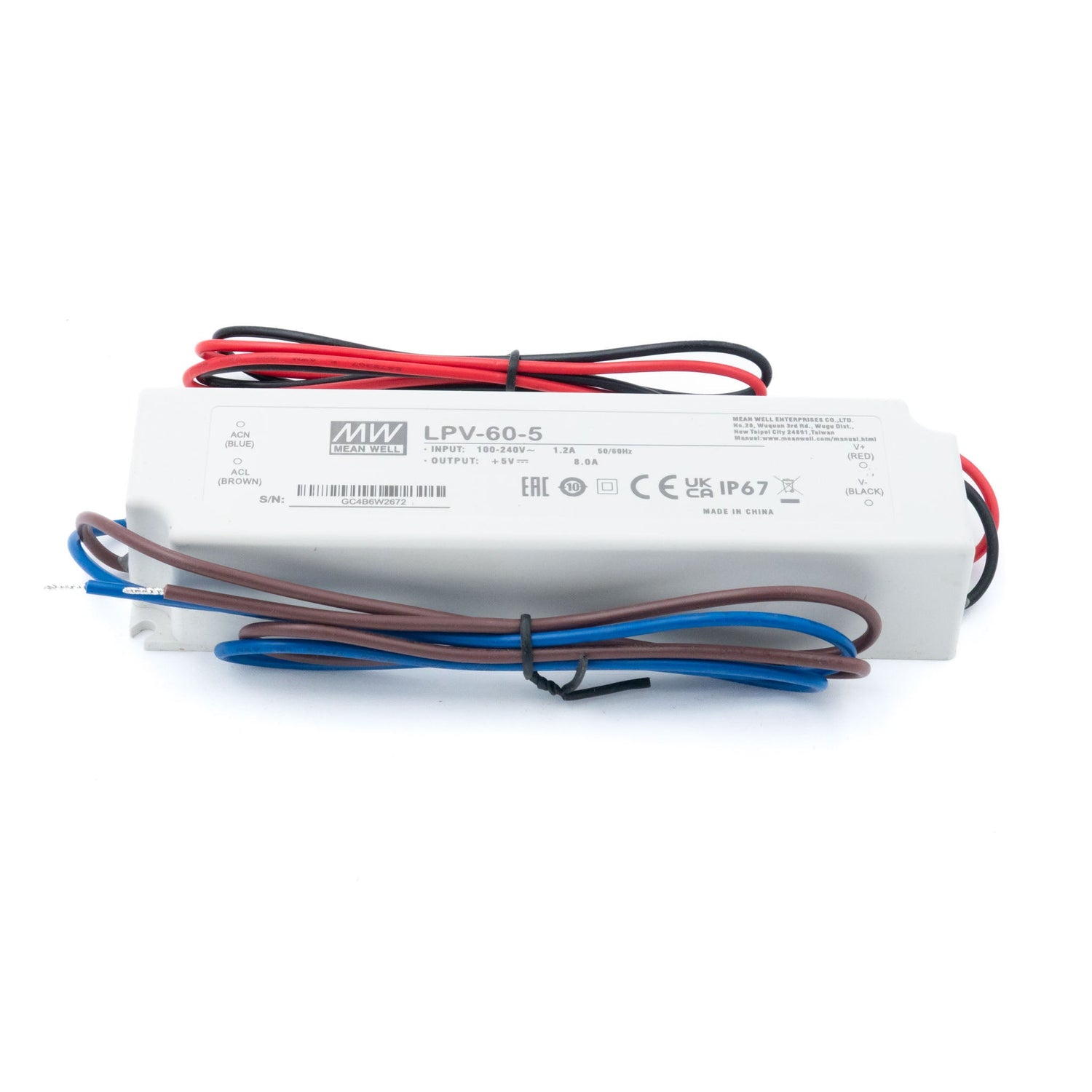

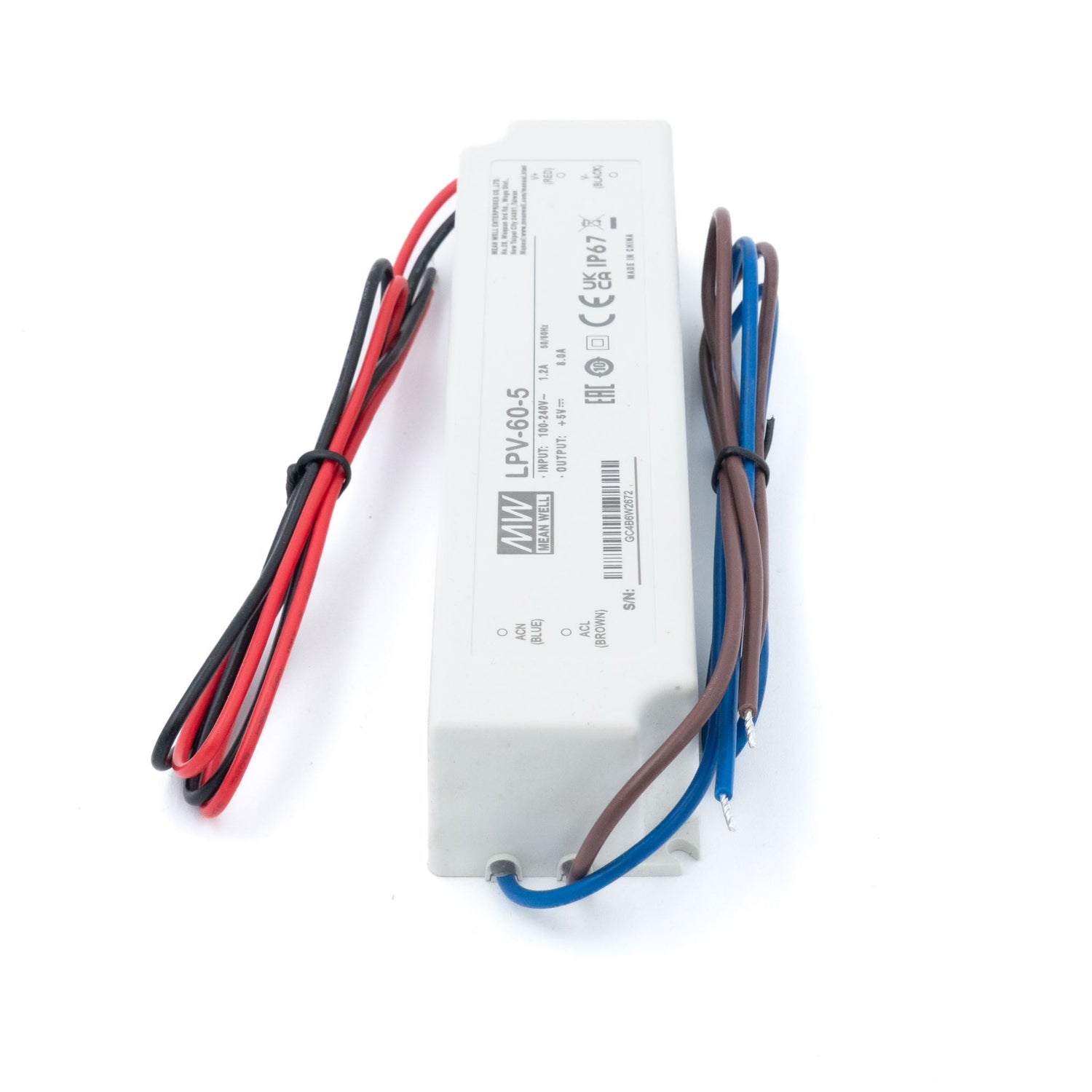

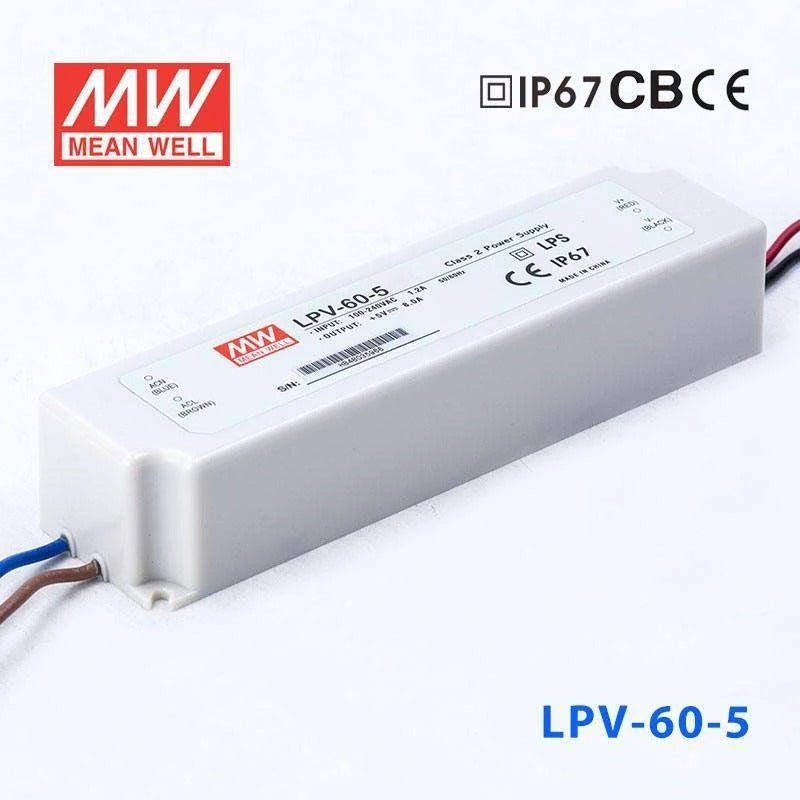

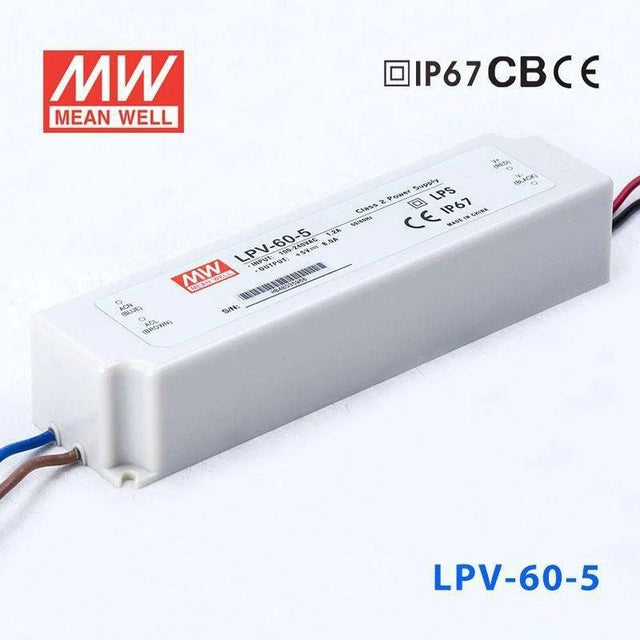

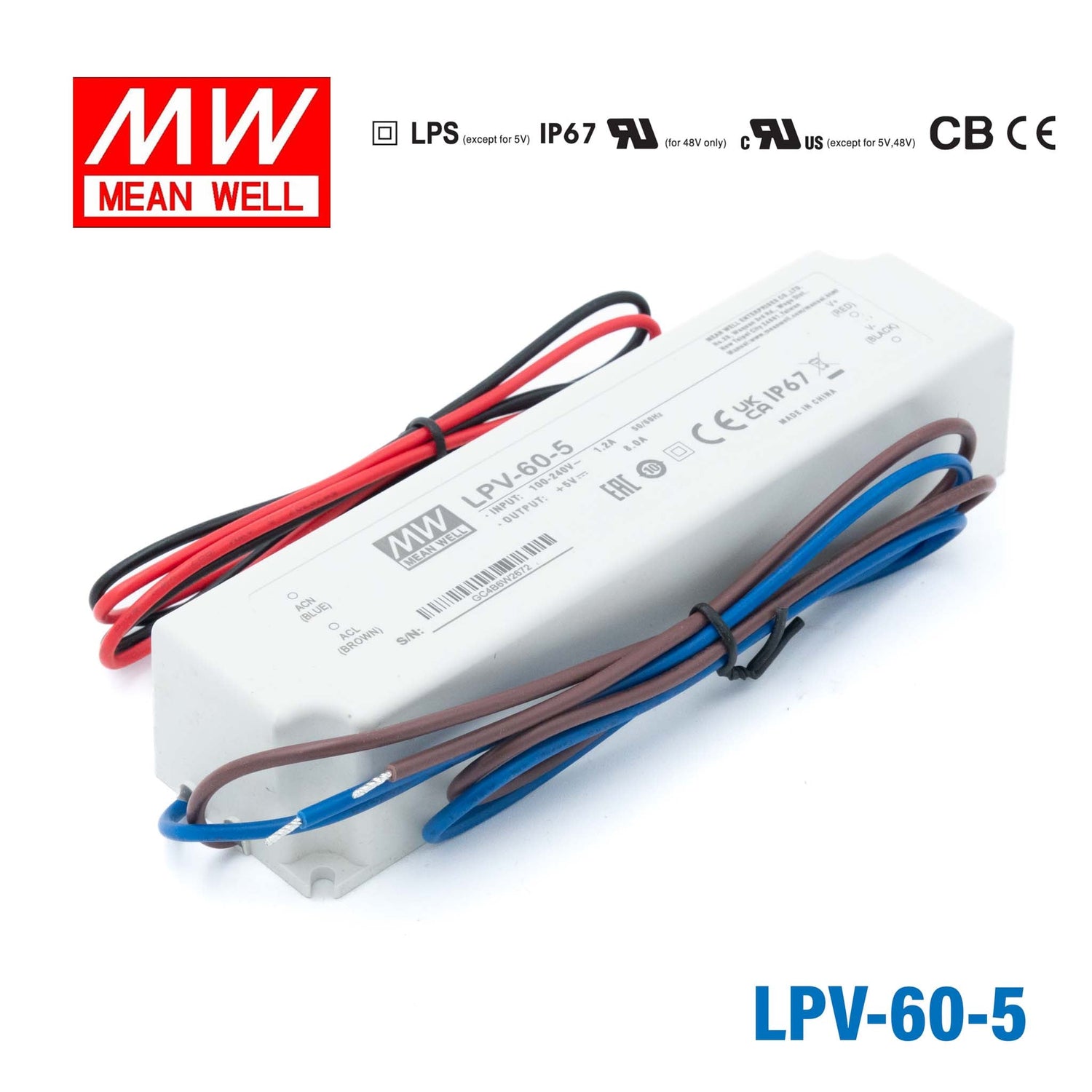

Mean Well LPV-60-5 LED Driver — 40W 5V 8A IP67 Waterproof
Description
Description
The Mean Well LPV-60-5 is a 40W, 5V constant voltage LED driver with IP67 waterproof protection, engineered for reliable performance in demanding indoor and outdoor LED lighting applications. Built to Mean Well's industry-leading quality standards, it delivers stable 5V DC output at up to 8A and carries CB, CE, EAC, UL certifications for global compliance.
Accepting 90-264VAC universal AC input, the LPV-60-5 operates reliably across a wide supply range. It features built-in short circuit, overload, and over-voltage protection to safeguard connected LED loads, and is rated for operation from -30°C to +70°C making it suitable for outdoor and harsh-environment installations.
Key Features
- ✓Constant voltage output: 5V DC at up to 8A (40W max)
- ✓IP67 waterproof and dustproof — suitable for outdoor installations
- ✓Universal AC input: 90-264VAC
- ✓Certifications: CB, CE, EAC, UL
- ✓Wide operating temperature: -30°C to +70°C
- ✓Built-in protections: short circuit, overload, over-voltage
- ✓Compact, lightweight enclosure: 162.5 × 42.5 × 32.0 mm, 0.4 kg
- ✓2-year Mean Well warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesLP Series
-
Power Rating40 Watt
-
Output Voltage5 Volt
-
Rated Current8 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty2 Year
-
Length6.4 in
-
Width1.67 in
-
Height1.26 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What LED lighting applications is the LPV-60-5 designed for?
The LPV-60-5 is intended for 5V LED strip systems and low-voltage LED accent or display lighting. At 40W and 5V, it is well matched to short-run 5V addressable LED strips used in signage, display cases, and decorative lighting. Its IP67 rating also makes it usable in damp or outdoor-covered locations.
How many meters of 5V LED strip can the LPV-60-5 support?
The LPV-60-5 provides up to 40W at 5V. To estimate maximum strip length, divide 40W by your strip's rated power per meter — for instance, a 5W/m strip supports up to 8 meters, while a 10W/m strip would be limited to 4 meters. Always verify your specific strip's watt-per-meter rating before finalizing the run length.
Can the LPV-60-5 be used outdoors or in wet conditions?
Yes. The LPV-60-5 has an IP67 waterproof rating, which means it is fully dust-tight and can withstand temporary water immersion up to 1 meter. Combined with its -30°C to +70°C operating temperature range, it is suitable for outdoor display lighting and signage in environments exposed to rain or condensation.
How does the LPV-60-5 differ from other 5V models in the LPV series?
Within the LPV series, the 5V options are the LPV-20-5 (15W, 3A), LPV-35-5 (30W, 5A), LPV-60-5 (40W, 8A), and LPV-100-5 (60W, 12A). The LPV-60-5 sits in the middle of that range, offering 40W and 8A output. All share the same 5V output voltage and constant-voltage operation mode; the choice depends on the total wattage your LED load requires.
What global markets is the LPV-60-5 certified for?
The LPV-60-5 holds CB, CE, EAC, and UL certifications, covering the United States (UL), Europe (CE), and the Eurasian Economic Union (EAC), with the CB mark supporting acceptance in additional countries worldwide. It accepts 90–264VAC universal input and carries a 2-year Mean Well warranty.
Other LPV-60 Models
5 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well LPV-60-12 LED Driver — 60W 12V 5A IP67 Waterproof | 60W | 12V | 5A | IP67 | $15.14 | View |
| Mean Well LPV-60-24 LED Driver — 60W 24V 2.5A IP67 Waterproof | 60W | 24V | 2.5A | IP67 | $17.01 | View |
| Mean Well LPV-60-48 LED Driver — 60W 48V 1.25A IP67 Waterproof | 60W | 48V | 1.25A | IP67 | $16.22 | View |
| Mean Well LPV-60-36 LED Driver — 60W 36V 1.67A IP67 Waterproof | 60W | 36V | 1.67A | IP67 | $16.22 | View |
| Mean Well LPV-60-15 LED Driver — 60W 15V 4A IP67 Waterproof | 60W | 15V | 4A | IP67 | $16.22 | View |
