Can I use the ODLC-45-1050 for a constant current LED downlight?

Yes, this driver is built for constant current LED loads at 1050mA. It works with downlight modules whose total forward voltage falls within the 26-43V constant current range and within the 45.15W rating.

Is this driver suitable for LED signage modules or a small LED array?

It can be used for signage modules or small LED arrays only when the load is a constant current 1050mA design. The total LED forward voltage must stay within 26-43V, because this is not a constant voltage power supply.

Can this power supply run a medium-voltage COB LED engine?

Yes, if the COB or LED engine is specified for 1050mA constant current operation. The driver regulates current at 1050mA and supports a 26-43V output range up to 45.15W.

How do I know if my LED load is compatible with this 1050mA driver?

Match the LED load to 1050mA constant current and make sure its total forward voltage is within 26-43V. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the full series voltage rather than a fixed LED count.

Is the ODLC-45-1050 appropriate for wet or harsh environments?

This model is rated IP67 and operates from -20°C to +85°C, so it is suited to environments where waterproofing and a wide operating temperature range matter. Environmental suitability still depends on the rest of the fixture meeting the same conditions.

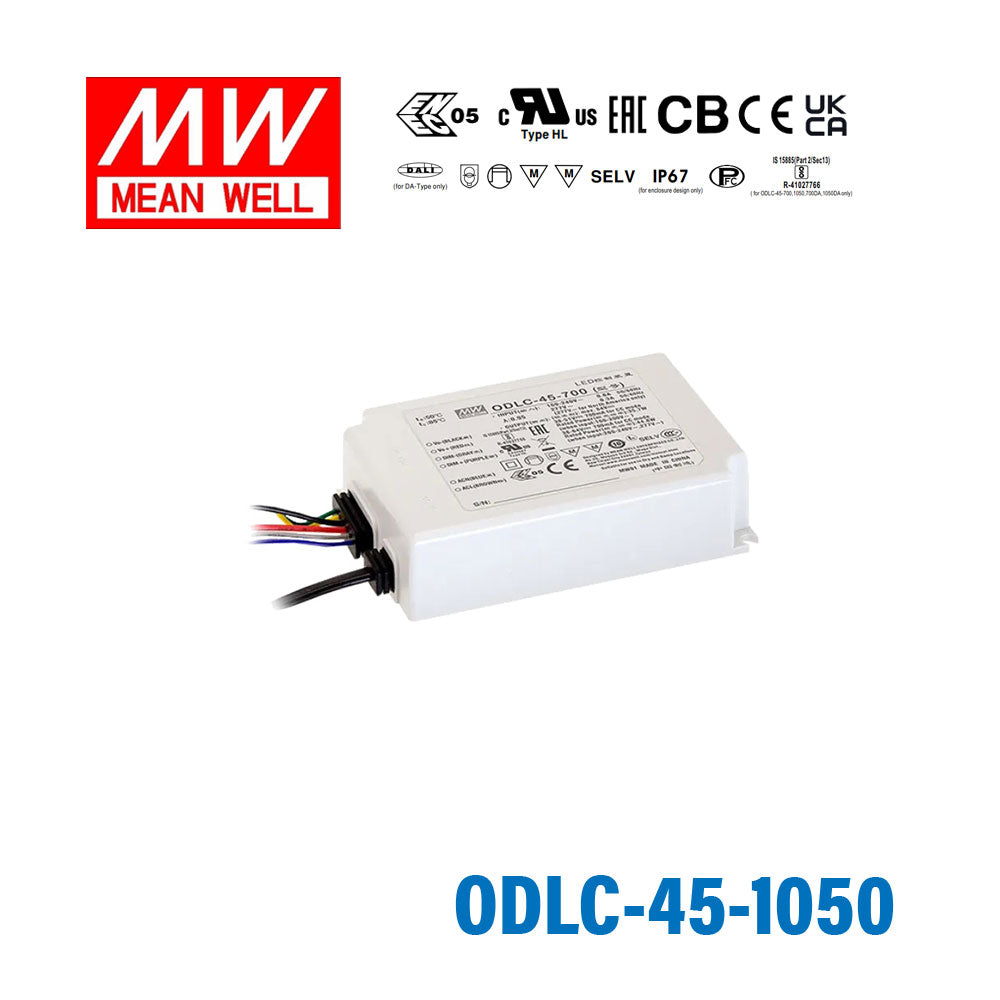

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well ODLC-45-1050 Power Supply 45W 1050mA, Dimmable

Name: Mean Well ODLC-45-1050 Power Supply 45W 1050mA, Dimmable
Brand: Mean Well
SKU: ODLC-45-1050
Price: 22.39 USD
Availability: InStock

SKU:

ODLC-45-1050

$22.39 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

The ODLC-45 is a 45W Mean Well DIN rail power converter with a 111mm profile (input range: 90~295VAC, operating temperature: -40~+80℃).

Key Features

✓ 111mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~295VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: (type”HL”) UL8750 BIS IS15885( for ODLC-45-700,1050,700DA,1050DA only), EAC TP TC 004,IP67
✓ 3 years warranty

Brand

Mean Well
Series

ODLC Series
Power Rating

45.15 Watt
Output Voltage

43 Volt
Rated Current

1.05 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

4.37 in
Width

3.03 in
Height

1.12 in
Weight

0.93 lb

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well ODLC-45-700DA Power Supply 45W 700mA, DALI	44.8W	64V	0.7A	IP67	$29.98	View
Mean Well ODLC-45-700 Power Supply 45W 700mA, Dimmable	44.8W	64V	0.7A	IP67	$20.69	View
Mean Well ODLC-45-500DA Power Supply 45W 500mA, DALI	45W	90V	0.5A	IP67	$29.98	View
Mean Well ODLC-45-500 Power Supply 45W 500mA, Dimmable	45W	90V	0.5A	IP67	$23.50	View
Mean Well ODLC-45-350DA Power Supply 45W 350mA, DALI	33.2W	95V	0.35A	IP67	$29.98	View
Mean Well ODLC-45-350 Power Supply 45W 350mA, Dimmable	33.25W	95V	0.35A	IP67	$21.03	View
Mean Well ODLC-45-1400DA Power Supply 45W 1400mA, DALI	44.8W	32V	1.4A	IP67	$29.98	View
Mean Well ODLC-45-1400 Power Supply 45W 1400mA, Dimmable	44.8W	32V	1.4A	IP67	$23.50	View
Mean Well ODLC-45-1050DA Power Supply 45W 1050mA, DALI	45.15W	43V	1.05A	IP67	$29.98	View
