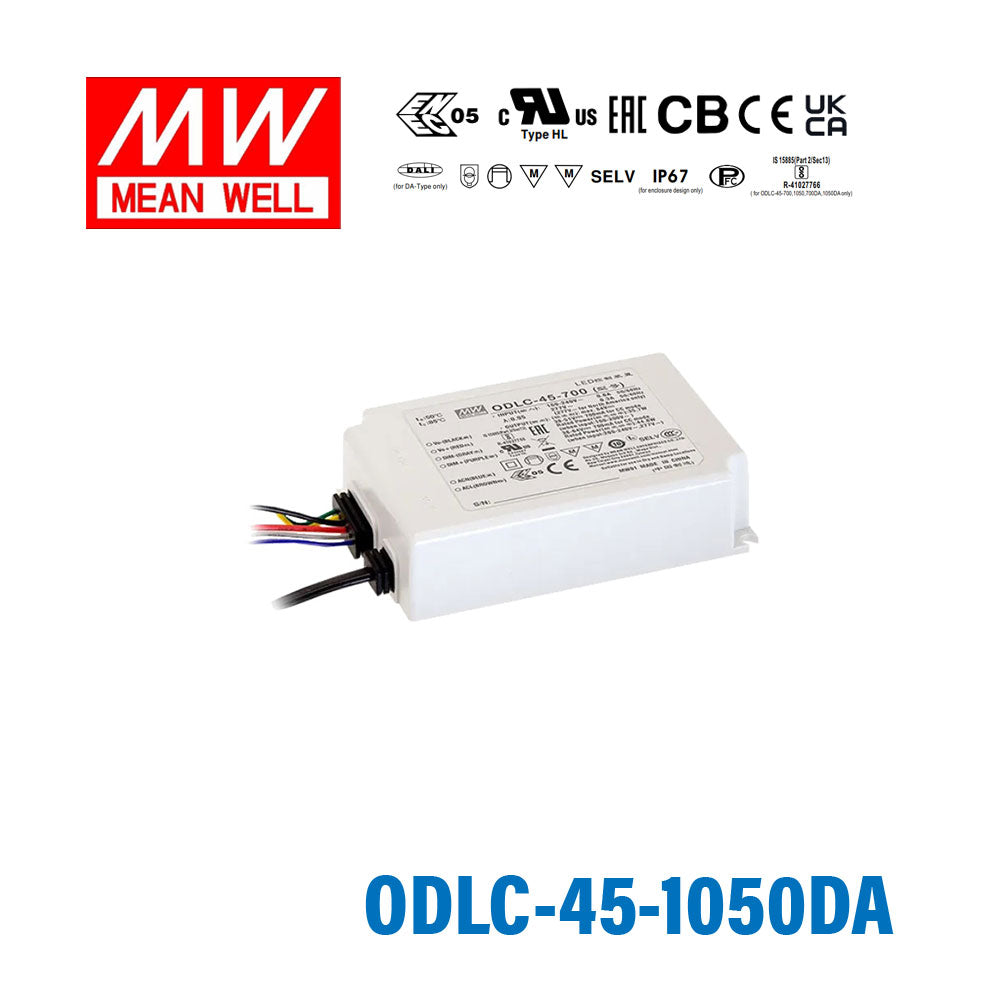

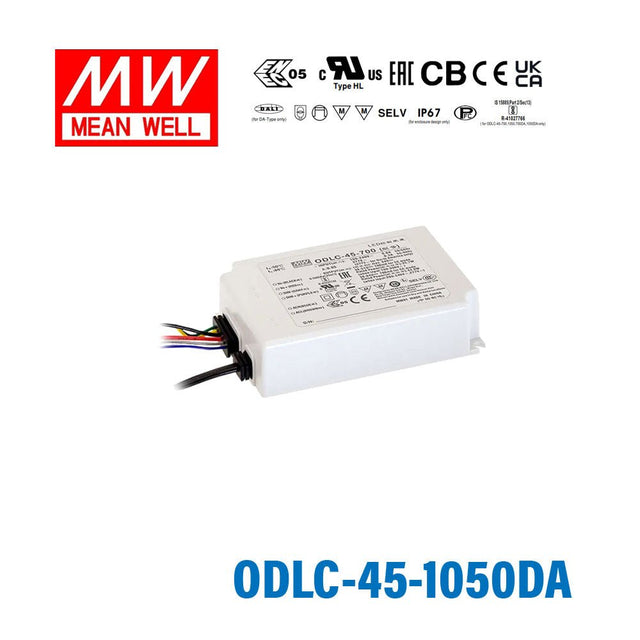

Mean Well ODLC-45-1050DA Power Supply 45W 1050mA, DALI

$29.98 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Constant current mode output
Flicker-free design
Plastic housing with class II design
Built-in active PFC function
No load power consumption<0.5W(Blank-Type)
IP67 rating for indoor or outdoor installations
Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI
3 years warranty

General Specification

AC input voltage range 90~295VAC
AC inrush current (Typ.) COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection Hiccup mode, auto-recovery/re-power
No load power consumption consumption<0.5W for Blank-Type,<1.2W for ODLC-45A
Setup time 500ms/230VAC; 1200ms/115VAC
Withstand voltage I/P-O/P: 3.75kVAC
Working temperature -20~+85ºC
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm) 111*77*28.5mm
Packing 24pcs/11Kg

Specifications

  • Brand
    Mean Well
  • Series
    ODLC Series
  • Power Rating
    45.15 Watt
  • Output Voltage
    43 Volt
  • Rated Current
    1.05 Ampere
  • Input Voltage
    90V~295V
  • No of Output
    1
  • Dimming Control
    DALI
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -20°C~85°C
  • Warranty
    3 Year
  • Length
    4.37 in
  • Width
    3.03 in
  • Height
    1.12 in
  • Weight
    0.93 lb

File Downloads

::specification::
