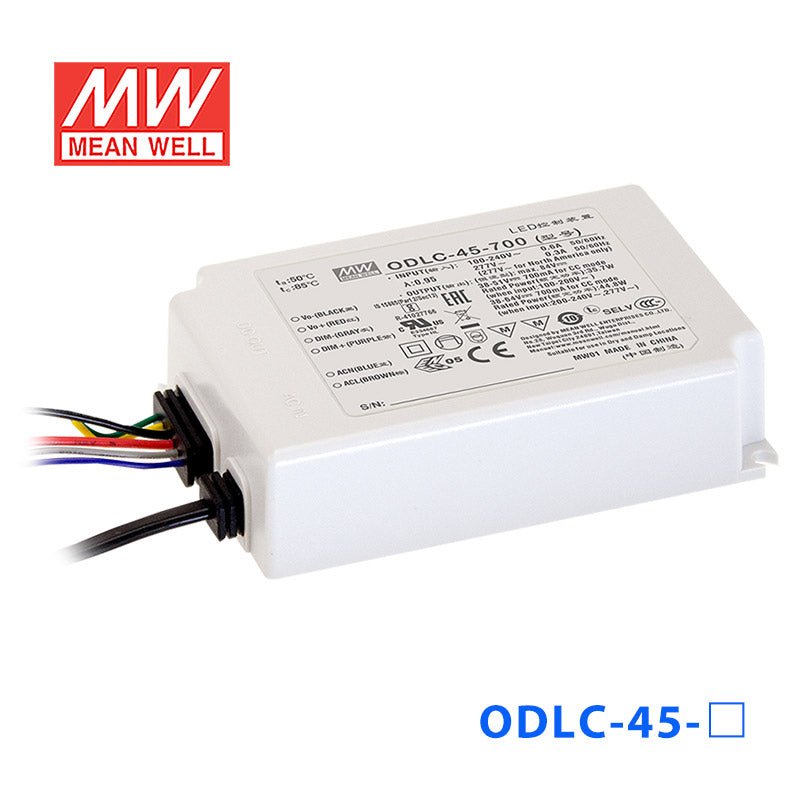

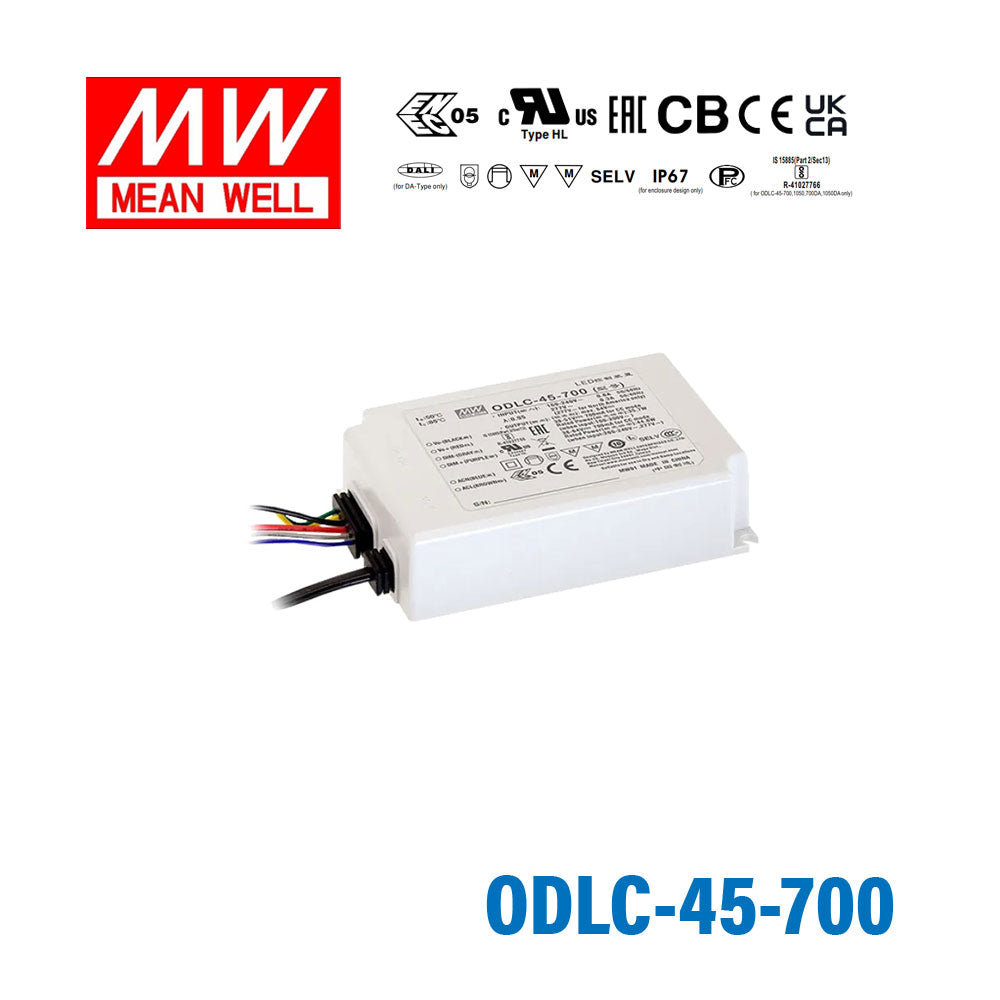

Mean Well ODLC-45-700 Power Supply 45W 700mA, Dimmable

Q: Can I use the ODLC-45-700 for a 700mA LED downlight engine?

Yes, if the LED engine is designed for 700mA constant current and its total forward voltage falls within 38-64V. This driver is rated for 44.8W, so the connected load needs to stay within that power level. It is not intended for constant voltage LED products.

Q: Is this driver suitable for compact signage or illuminated panels using 700mA LEDs?

It can be suitable when the signage module or small LED array requires 700mA constant current input. The output voltage adjusts across 38-64V, and the number of LEDs depends on the forward voltage of each LED rather than a fixed count. That makes it a current-matched choice instead of a voltage-matched one.

Q: Can the ODLC-45-700 power a small COB or multi-LED array?

Yes, for COBs or small LED arrays that are rated for 700mA constant current and operate inside the 38-64V CC range. The maximum output power is 44.8W, so the load must remain within that limit. This makes it more suitable for medium-voltage constant current arrays than high-voltage ones.

Q: What makes an LED module compatible with this 700mA driver?

The LED module must be specified for 700mA constant current operation and fit within the 38-64V output window. The actual LED count varies with each LED's forward voltage, so compatibility cannot be determined by LED quantity alone. Constant voltage modules are not a match for this driver.

Q: Can this driver handle indoor and outdoor exposure?

The ODLC-45-700 carries an IP67 waterproof rating, so it is intended for applications where that level of environmental sealing is needed. It also operates from -20°C to +85°C, which supports a broad range of installation conditions. Environmental fit should still be evaluated at the finished fixture level.

SKU:

ODLC-45-700

$20.69 USD ~~$80.25~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Constant current mode output

Flicker-free design

Plastic housing with class II design

Built-in active PFC function

No load power consumption<0.5W(Blank-Type)

IP67 rating for indoor or outdoor installations

Function options: 2 in 1 dimming(dim-to-off); Auxiliary DC output; DALI

3 years warranty

General Specification

AC input voltage range	90~295VAC
AC inrush current (Typ.)	COLD START 30A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Short circuit protection	Hiccup mode, auto-recovery/re-power
No load power consumption	consumption<0.5W for Blank-Type,<1.2W for ODLC-45A
Setup time	500ms/230VAC; 1200ms/115VAC
Withstand voltage	I/P-O/P: 3.75kVAC
Working temperature	-20~+85ºC
Safety standards	UL8750, ENEC EN61347-1, EN61347-2-13
EMC standards	EN55015, EN61000-3-2 class C, EN61000-3-3, EAC TP TC 020
Dimension (LxWxH)(mm)	1117728.5mm
Packing	24pcs/11Kg

Specifications

Brand

Mean Well
Series

ODLC Series
Power Rating

44.8 Watt
Output Voltage

64 Volt
Rated Current

0.7 Ampere
Input Voltage

90V~295V
No of Output

1
Dimming Control

0-10V,10V PWM
Standards Met

BSI,CB,CCC,CE,EAC,ENEC,UL
Operation Mode

Constant Current
Operating Temperature

-20°C~85°C
Warranty

3 Year
Length

4.37 in
Width

3.03 in
Height

1.12 in
Weight

0.93 lb

File Downloads

::specification::
