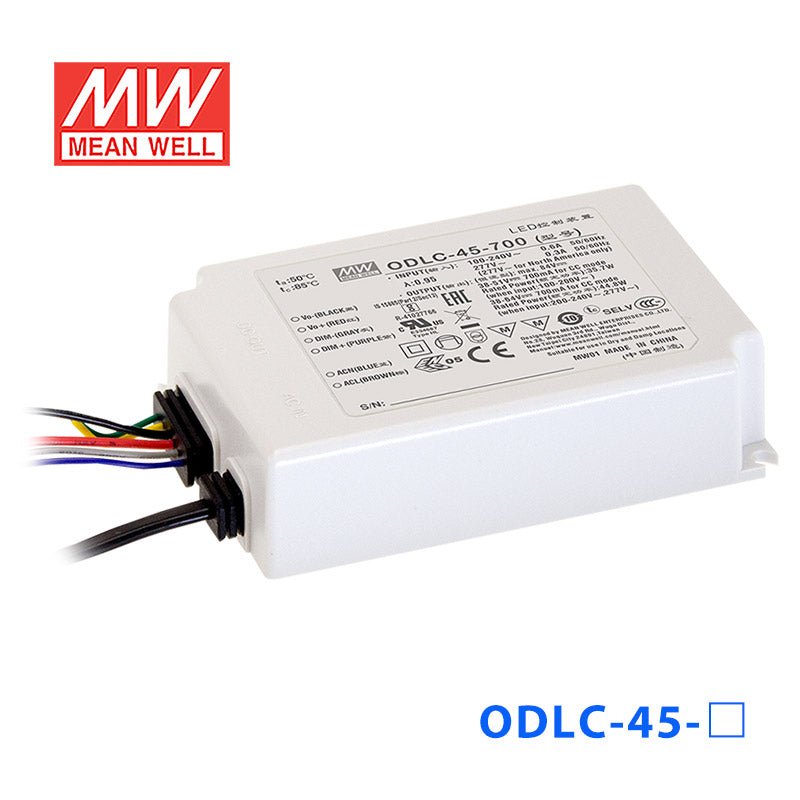

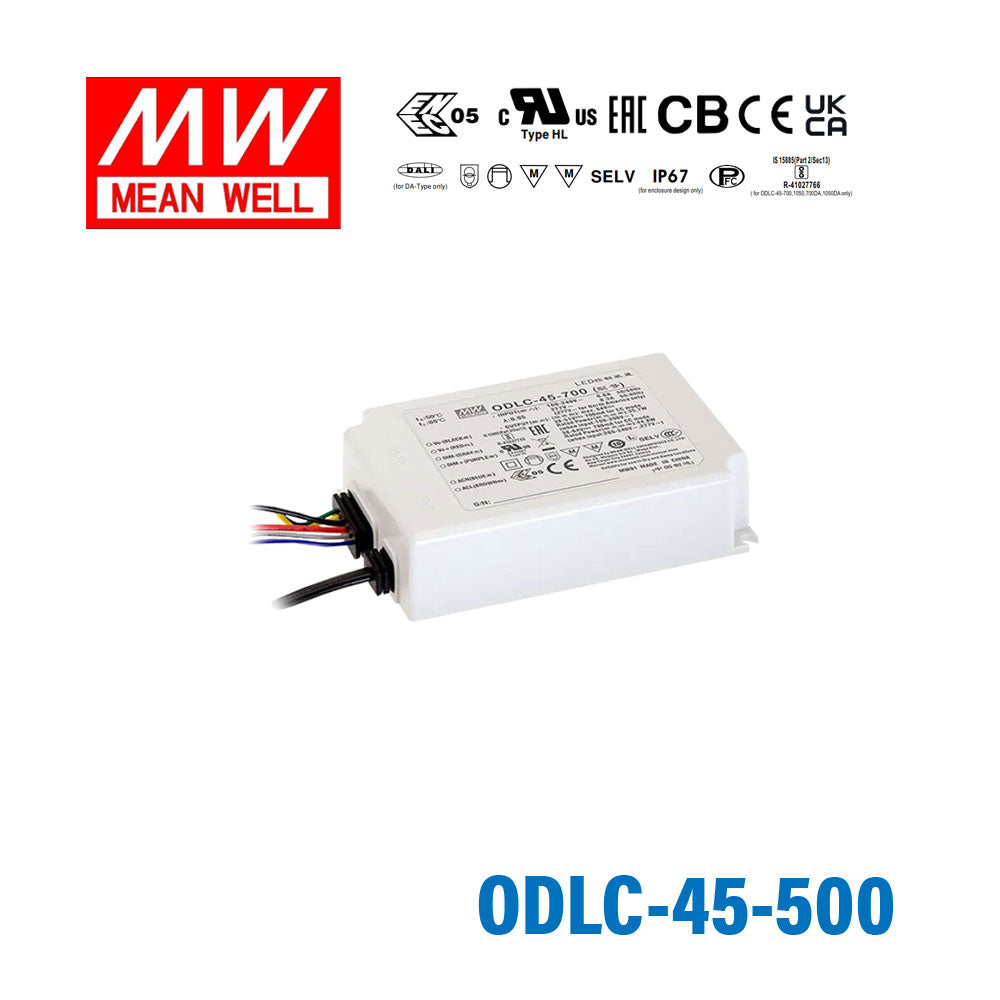

Mean Well ODLC-45-500 Power Supply 45W 500mA, Dimmable
The ODLC-45 is a 45W Mean Well AC-DC constant current LED driver (input: 90~295VAC, output: 90V, operating temperature: -20~+85°C).
Key Features
- ✓ Input voltage: 90~295VAC
- ✓ Output voltage (max): 90V
- ✓ Rated output current: 500mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -20~+85°C
- ✓ Safety certifications: BSI, CB, CCC, CE, EAC, ENEC, UL
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesODLC Series
-
Power Rating45 Watt
-
Output Voltage90 Volt
-
Rated Current0.5 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming Control0-10V,10V PWM
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length4.37 in
-
Width3.03 in
-
Height1.12 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
Can I use the ODLC-45-500 for a 500mA LED downlight array?
Yes, if the downlight is designed for 500mA constant current operation and the LED load stays within the 54-90V constant current range. This model is rated at 45W, so the connected LED array also needs to remain within that power limit. It is a constant current driver rather than a constant voltage supply.
Is the ODLC-45-500 a good match for linear signage modules that need 500mA?
It can be, provided the signage module is specified for 500mA constant current input. The output adjusts within 54-90V, so the actual number of LEDs depends on the forward voltage of each LED in the module. It is not intended for signage products that require fixed-voltage power.
Can this driver run a small LED array in a commercial light fixture?
Yes, for small LED arrays that are built for 500mA constant current and fall within the 54-90V CC range. With a 45W rating, it is suited to fixtures whose LED load stays inside that output envelope. Buyers should match current first, then verify total forward voltage.
What should I check before pairing this driver with an LED module?
The module must require 500mA constant current and operate within the driver's 54-90V output range. The number of LEDs varies by each LED's forward voltage, so there is no single fixed LED count for this model. If the module calls for constant voltage power, this driver is not compatible.
How does the ODLC-45-500 compare with other ODLC 45W series options?
Within the 45 series, the 350mA models use a 57-95V CC range at 33.2W or 33.25W, the 500mA models use 54-90V at 45W, the 700mA models use 38-64V at 44.8W, the 1050mA models use 26-43V at 45.15W, and the 1400mA models use 19-32V at 44.8W. DA versions are listed alongside non-DA versions with the same current, voltage range, and wattage. The 65 series increases power to 63W, 64.4W, or 65.1W depending on model.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other ODLC-45 Models
9 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well ODLC-45-700DA Power Supply 45W 700mA, DALI | 44.8W | 64V | 0.7A | IP67 | $29.98 | View |
| Mean Well ODLC-45-700 Power Supply 45W 700mA, Dimmable | 44.8W | 64V | 0.7A | IP67 | $20.69 | View |
| Mean Well ODLC-45-500DA Power Supply 45W 500mA, DALI | 45W | 90V | 0.5A | IP67 | $29.98 | View |
| Mean Well ODLC-45-350DA Power Supply 45W 350mA, DALI | 33.2W | 95V | 0.35A | IP67 | $29.98 | View |
| Mean Well ODLC-45-350 Power Supply 45W 350mA, Dimmable | 33.25W | 95V | 0.35A | IP67 | $21.03 | View |
| Mean Well ODLC-45-1400DA Power Supply 45W 1400mA, DALI | 44.8W | 32V | 1.4A | IP67 | $29.98 | View |
| Mean Well ODLC-45-1400 Power Supply 45W 1400mA, Dimmable | 44.8W | 32V | 1.4A | IP67 | $23.50 | View |
| Mean Well ODLC-45-1050DA Power Supply 45W 1050mA, DALI | 45.15W | 43V | 1.05A | IP67 | $29.98 | View |
| Mean Well ODLC-45-1050 Power Supply 45W 1050mA, Dimmable | 45.15W | 43V | 1.05A | IP67 | $22.39 | View |
