Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

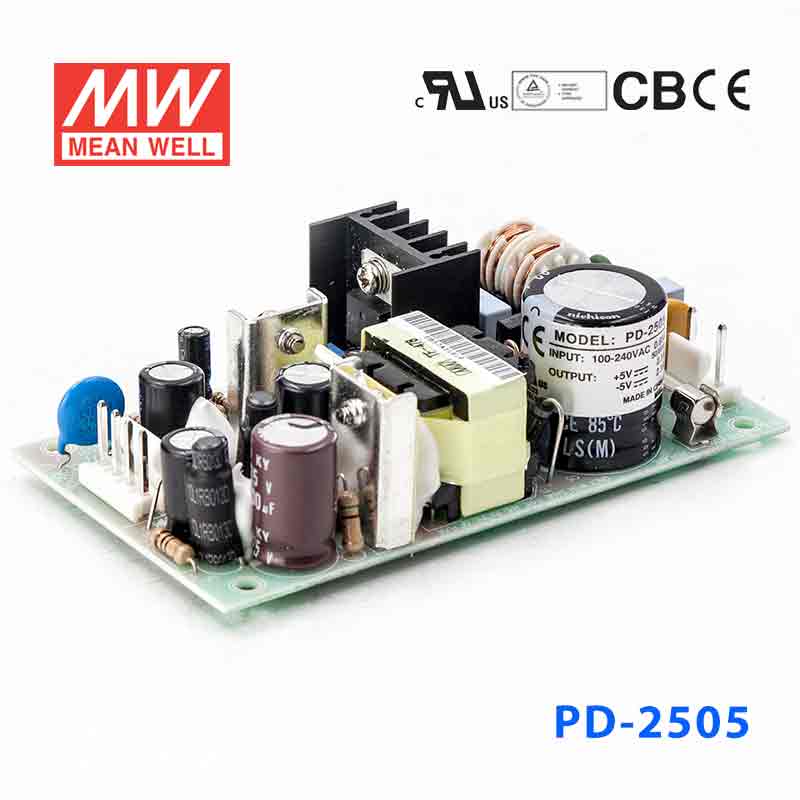

Mean Well PD-2505 Power Supply 25W 5V -5V 2.5A
<0.5mA/240VAC
Key Features
- ✓Universal AC input / Full range
- ✓Low leakage current < 0.5mA
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓100% full load burn-in test
- ✓Fixed switching frequency at 100KHz
- ✓Low cost
- ✓High reliability
- ✓2 years warranty
-
BrandMean Well
-
SeriesPD Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current2.5 Ampere
-
Input Voltage85V~264V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length4.21 in
-
Width2.4 in
-
Height1.1 in
-
Weight0.33 lb
::specification::
Frequently Asked Questions
Can I use the PD-2505 for 5V industrial control boards or embedded controllers?
Yes, it is a constant-voltage 5V power supply rated for 25W and 2.5A. That makes it suitable for 5V control electronics, embedded boards, and other low-power industrial logic loads that stay within those output limits.
Is the PD-2505 a good fit for 5V automation sensors and interface modules?
It can be a fit for 5V automation accessories that need regulated constant-voltage input and draw no more than 2.5A total. With 25W available, it is better suited to small 5V sensor, interface, and signaling loads than higher-current 5V assemblies.
Can the PD-2505 power compact 5V HMI, communication, or monitoring electronics in a panel?
It is intended for low-power 5V electronics where a constant-voltage output is required, with up to 25W and 2.5A available. For compact monitoring, communication, or panel-control devices, the key check is that the full load stays within the 5V output rating.
Is the PD-2505 suitable for outdoor or harsh-environment use?
The listed specs show an operating temperature of -10°C to +60°C, but they do not include an IP rating. That means the provided data supports temperature planning, but it does not state outdoor, washdown, or weather-exposed suitability.
How does the PD-2505 compare with other Mean Well PD series models?
Within the listed siblings, PD-2505 is 25W at 5V and 2.5A. Other models are PD-110A at 103W, PD-110B at 103W, PD-2503 at 24.9W, PD-2512 at 24W 12V 1A, PD-2515 at 24W 15V 0.8A, PD-25A at 24.9W 5V 2.1A, PD-25B at 25.2W 5V 1.2A, PD-45A at 40W 5V 3.2A, PD-45B at 44.8W 5V 3.2A, PD-65A at 61.1W 5V 5.5A, and PD-65B at 65.5W 5V 3.5A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other PD Series Models
8 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well PD-65B Power Supply 65W 5V 24V 3.5A | 65.5W | 5V | 3.5A | Indoor | $19.46 | View |
| Mean Well PD-65A Power Supply 65W 5V 12V 5.5A | 61.1W | 5V | 5.5A | Indoor | $19.46 | View |
| Mean Well PD-45B Power Supply 45W 5V 24V 3.2A | 44.8W | 5V | 3.2A | Indoor | $17.15 | View |
| Mean Well PD-45A Power Supply 45W 5V 12V 3.2A | 40W | 5V | 3.2A | Indoor | $17.15 | View |
| Mean Well PD-25B Power Supply 25W 5V 24V 1.2A | 25.2W | 5V | 1.2A | Indoor | $17.15 | View |
| Mean Well PD-25A Power Supply 25W 5V 12V 2.1A | 24.9W | 5V | 2.1A | Indoor | $17.15 | View |
| Mean Well PD-2512 Power Supply 25W 15V -15V 800mA | 24W | 15V | 0.8A | Indoor | $17.15 | View |
| Mean Well PD-2512 Power Supply 25W 12V -12V 1A | 24W | 12V | 1A | Indoor | $17.15 | View |
