Mean Well RPS-75-5 Green Power Supply W 5V 14A - Medical Power Supply
Notify me when it's back in stock
Your order will be processed within 24 hours

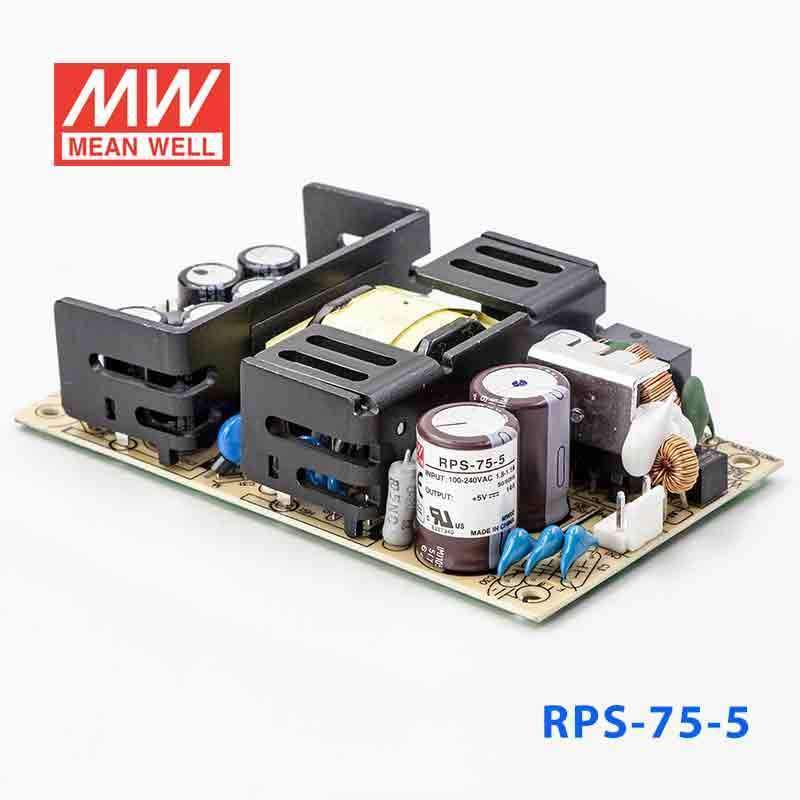

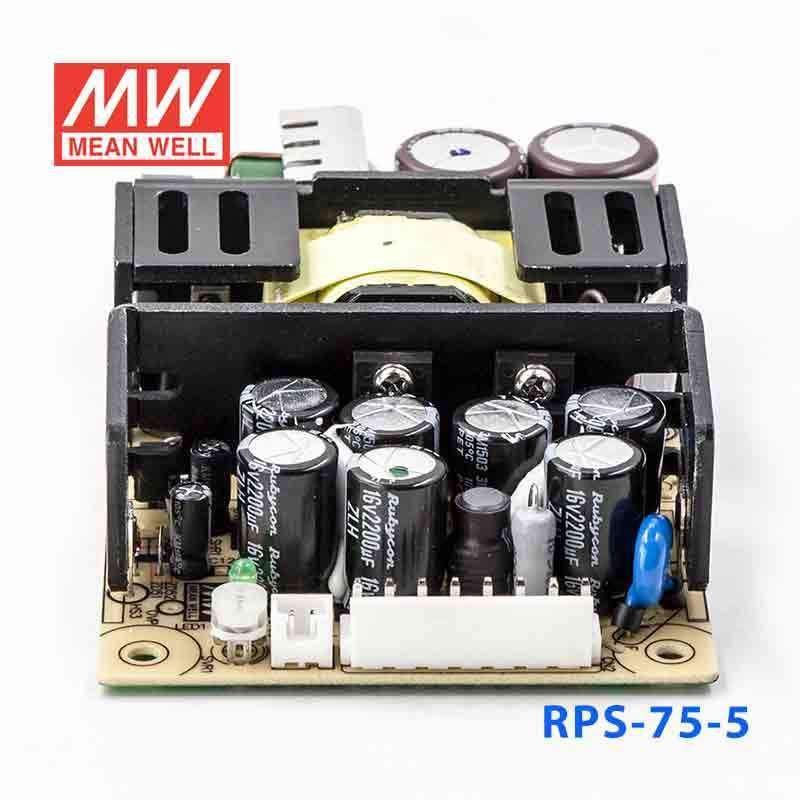

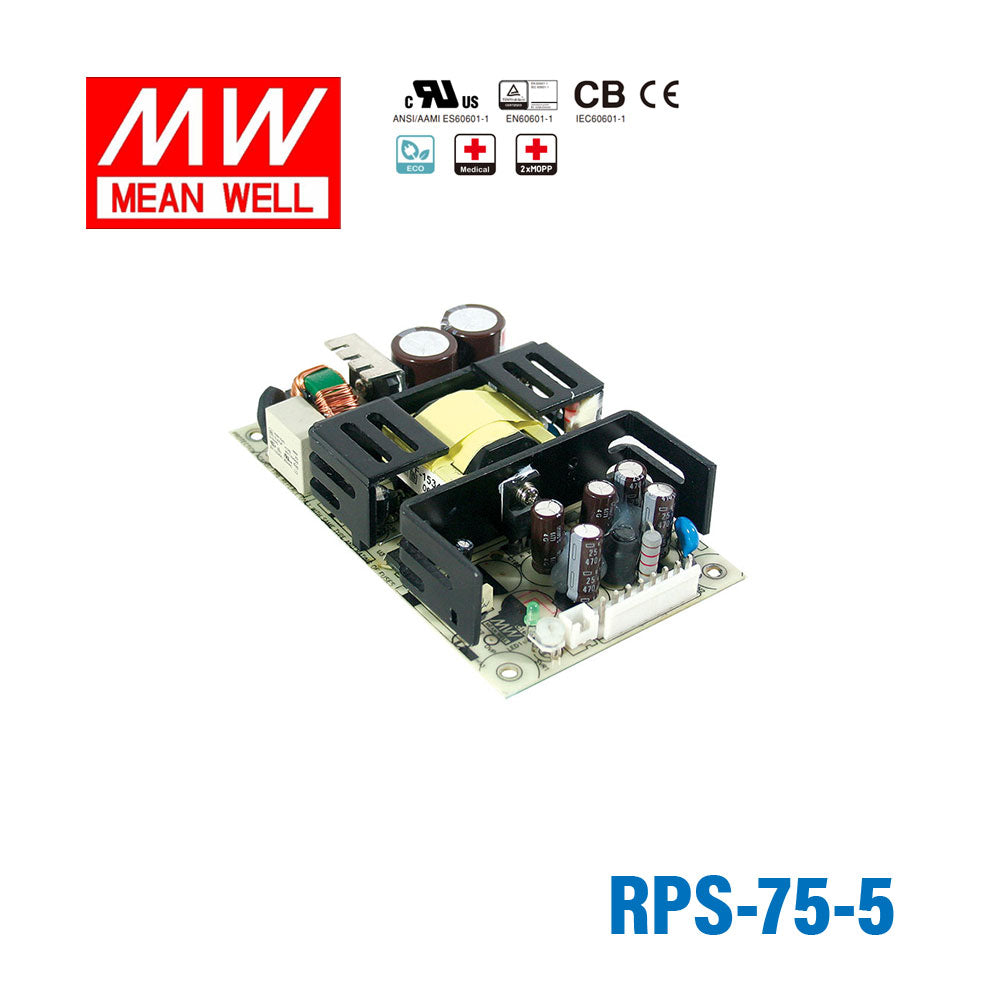

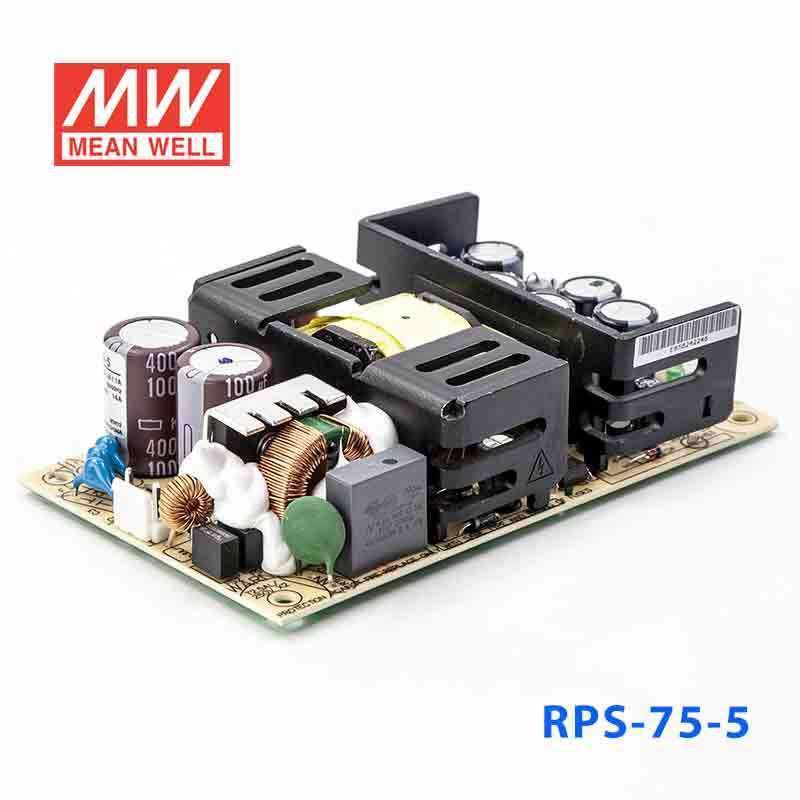

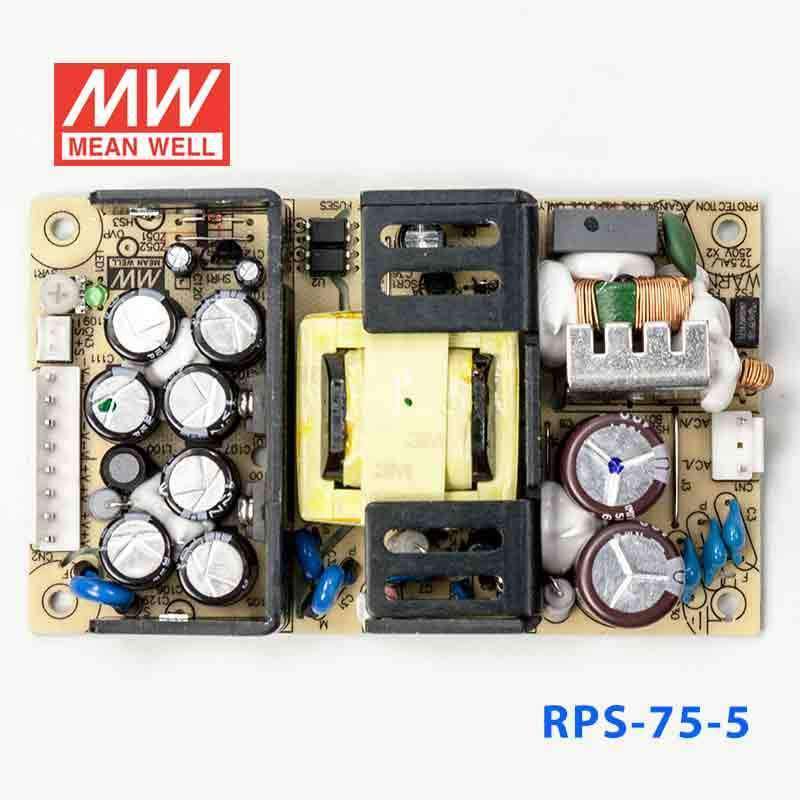

Mean Well RPS-75-5 Green Power Supply W 5V 14A - Medical Power Supply
The RPS-75 is a 75W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Safety approvals: ISOLATION LEVEL
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating70 Watt
-
Output Voltage5 Volt
-
Rated Current14 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.57 lb
::specification::
Frequently Asked Questions
Can I use the RPS-75-5 for a 5V embedded computer or SBC project?
It can fit 5V embedded hardware, single-board computers, or controller platforms that need constant 5V DC and draw up to 14A, with total power up to 70W. It is better matched to higher-current 5V loads than low-current 12V, 24V, or 48V equipment.
Is this 5V power supply suitable for USB-powered industrial electronics or test fixtures?
It is suitable for 5V DC electronics when the full system load stays within 14A and 70W. That makes it a practical fit for 5V control boards, test fixtures, and embedded assemblies that need more current headroom than smaller 5V supplies.
Can the RPS-75-5 run a 5V medical or monitoring device?
It can be used for 5V medical or monitoring equipment that requires constant voltage and does not exceed 14A or 70W. The product is described as a medical power supply, which is relevant where medical safety approvals are required.
Will this work in a factory cabinet or equipment enclosure with temperature swings?
The operating temperature range is -20°C to +70°C, so it can fit indoor equipment enclosures that see wider temperature variation. No IP rating is listed, so it should be kept in a protected indoor environment rather than exposed outdoor or washdown areas.
How does the RPS-75-5 compare with the other RPS-75 output options?
The RPS-75 series includes RPS-75-3.3 at 49.5W and 3.3V 15A, RPS-75-5 at 70W and 5V 14A, RPS-75-12 at 75.6W and 12V 6.3A, RPS-75-15 at 75W and 15V 5A, RPS-75-24 at 76.8W and 24V 3.2A, RPS-75-36 at 75.6W and 36V 2.1A, and RPS-75-48 at 76.8W and 48V 1.6A. The family keeps a similar form factor while changing the DC output voltage and current rating.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RPS-75 Models
6 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RPS-75-48 Green Power Supply W 48V 1.6A - Medical Power Supply | 76.8W | 48V | 1.6A | Indoor | $23.50 | View |
| Mean Well RPS-75-36 Green Power Supply W 36V 2.1A - Medical Power Supply | 75.6W | 36V | 2.1A | Indoor | $23.50 | View |
| Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power Supply | 49.5W | 3.3V | 15A | Indoor | $23.50 | View |
| Mean Well RPS-75-24 Green Power Supply W 24V 3.2A - Medical Power Supply | 76.8W | 24V | 3.2A | Indoor | $23.25 | View |
| Mean Well RPS-75-15 Green Power Supply W 15V 5A - Medical Power Supply | 75W | 15V | 5A | Indoor | $23.51 | View |
| Mean Well RPS-75-12 Green Power Supply W 12V 6.3A - Medical Power Supply | 75.6W | 12V | 6.3A | Indoor | $23.51 | View |
