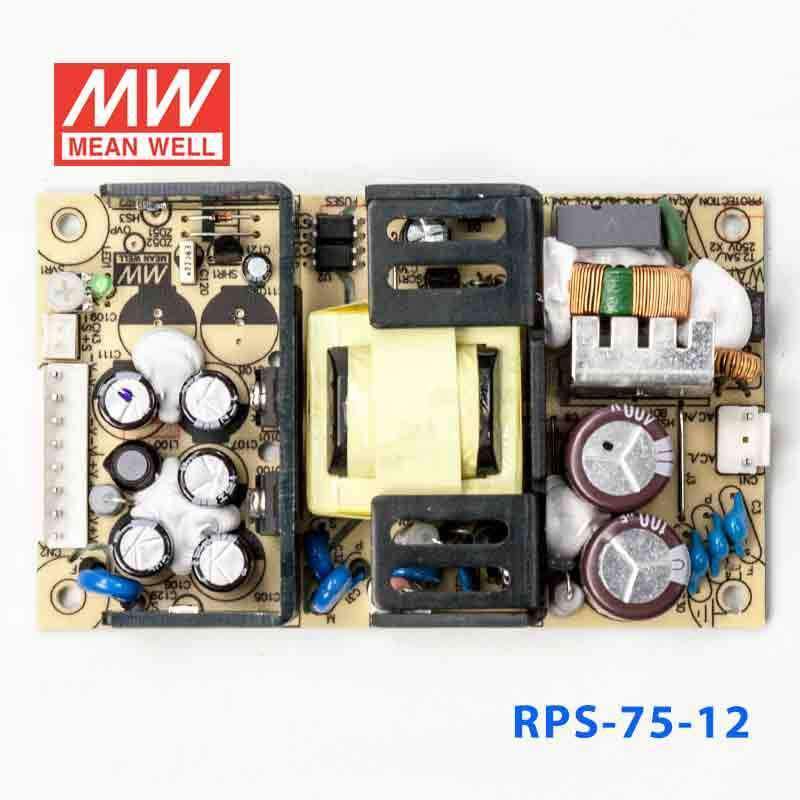

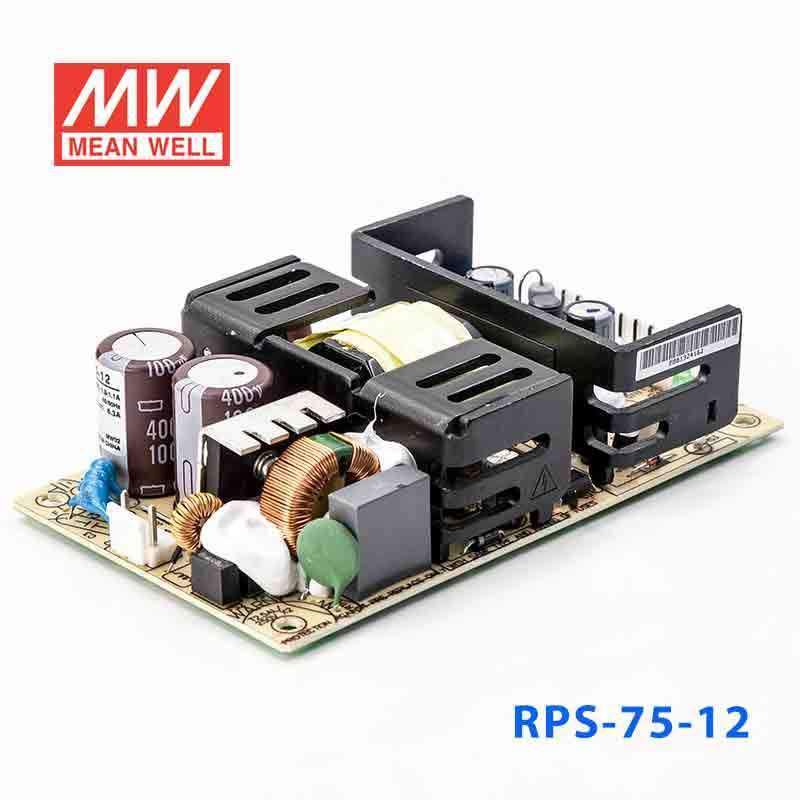

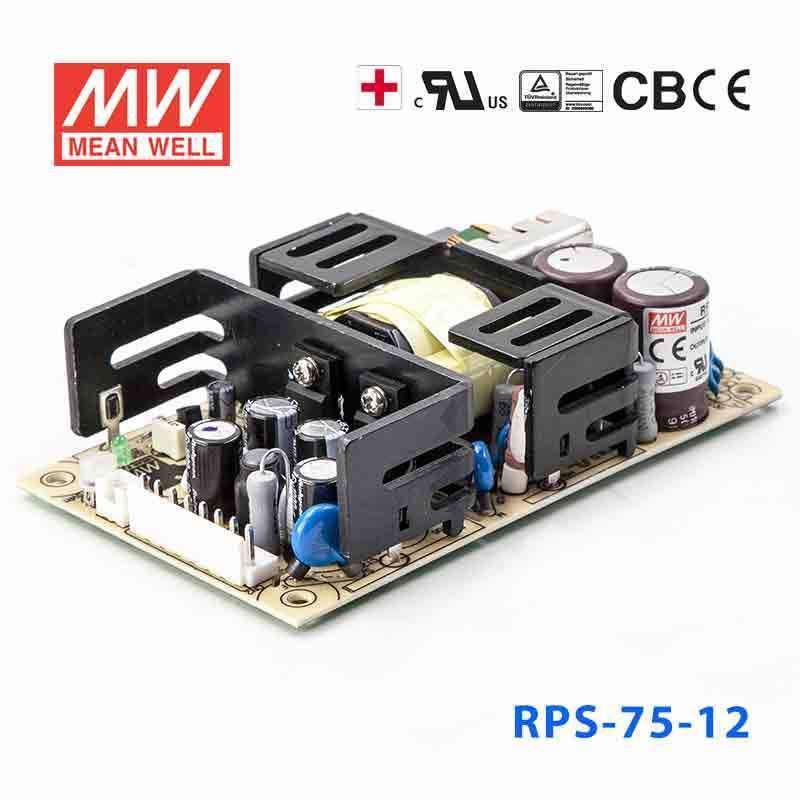

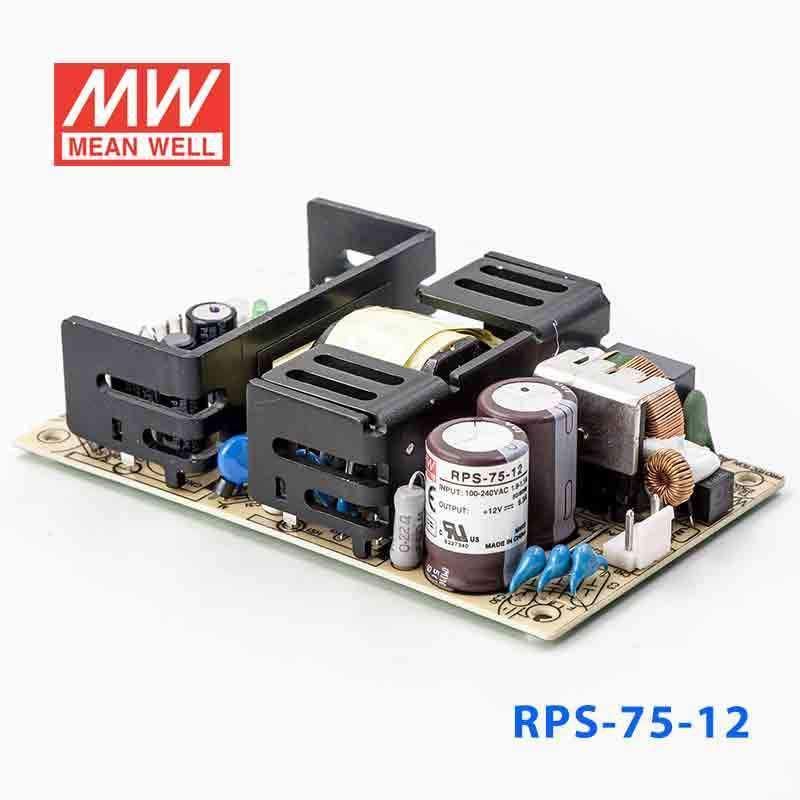

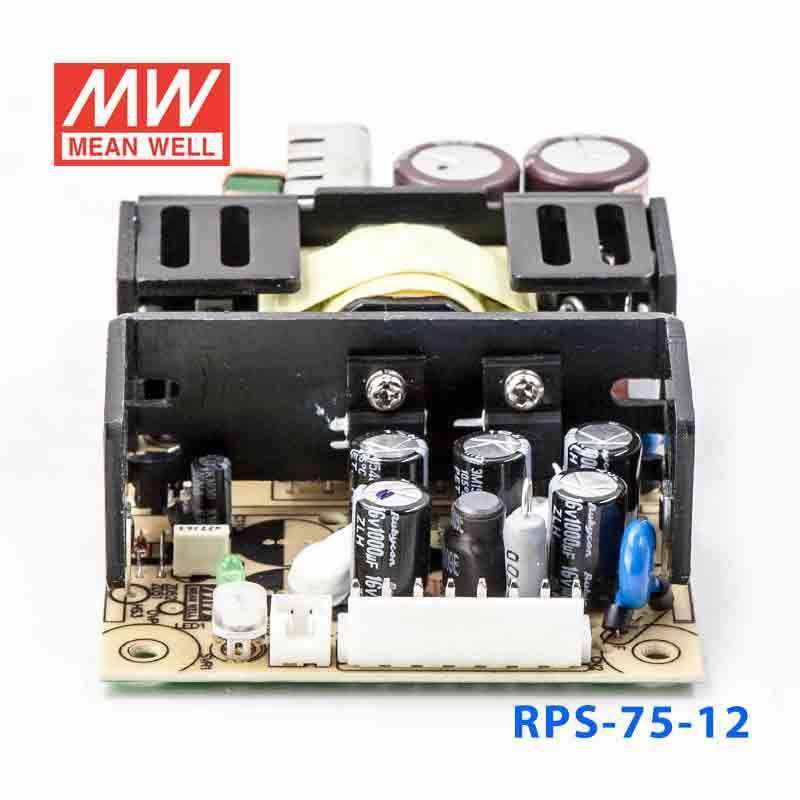

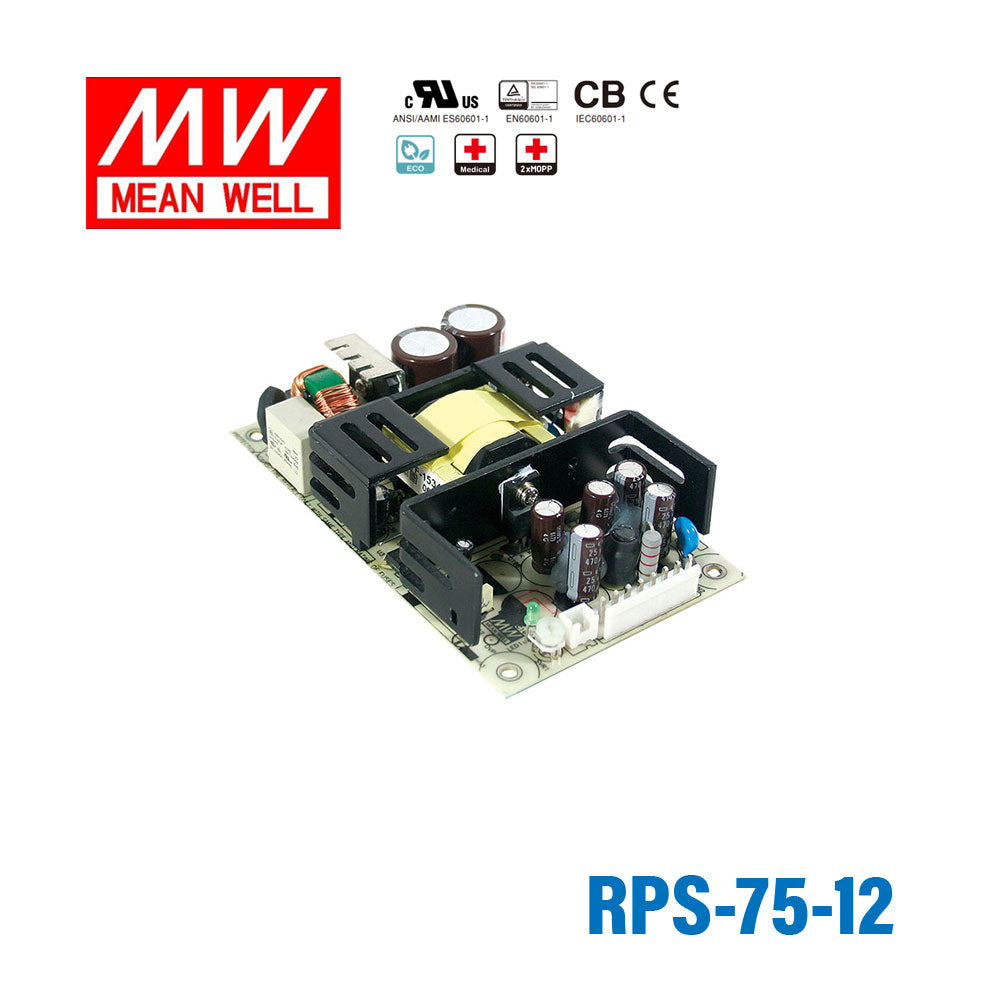

Mean Well RPS-75-12 Green Power Supply W 12V 6.3A - Medical Power Supply

Q: Can I use the RPS-75-12 to power a 12V industrial control panel or HMI?

Yes, if the control panel or HMI requires a 12V constant voltage supply and stays within 6.3A and 75.6W. The wide 90-264VAC input also fits facilities that may use different AC mains ranges.

Q: Is this 12V power supply suitable for embedded electronics or single-board computer systems?

It can be a fit for embedded or computing hardware that needs regulated 12V DC and draws no more than 6.3A. Because it is a constant voltage model rated at 75.6W, it is better matched to stable 12V loads than to devices needing another output voltage.

Q: Can the RPS-75-12 be used in low-power medical or laboratory equipment?

It is intended for equipment that needs 12V output up to 6.3A and benefits from medical safety approval. Buyers should still confirm the end device's exact 12V load stays within the 75.6W rating.

Q: How does the RPS-75-12 compare with the other RPS-75 output options?

Within the RPS-75 group, the output options are 3.3V 15A 49.5W, 5V 14A 70W, 12V 6.3A 75.6W, 15V 5A 75W, 24V 3.2A 76.8W, 36V 2.1A 75.6W, and 48V 1.6A 76.8W. The RPS-75-12 is the 12V member of that set, with mid-range current and 75.6W total output.

Q: Is the RPS-75-12 suitable for outdoor or harsh-environment use?

Its operating temperature range is -20°C to +70°C, so the temperature tolerance is broad for many protected installations. However, no IP rating is listed in the provided specs, so it is better treated as an indoor component power supply for protected enclosures rather than exposed outdoor use.

5" x 3" compact size, medical safety approved, no load power consumption < 0.75W, lifetime > 80K hours

SKU:

RPS-75-12

$23.51 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Medical safety approved (2xMOPP)

Protections: Short circuit / Overload / Over voltage

Low leakage current<=250uA

Fixed switching frequency at 65kHz

Free air convection for 75W and 100W with 23.5CFM forced air

Suitable for medical & IT applications

No load power consumption <0.75W

3 years warranty

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current	Cold start, 25A at 115VAC, 50A at 230VAC
DC adjustment range	CH1: -5%~+10% rated output voltage
Overload protection	140%~180% hiccup mode, auto-recovery
Over voltage protection	CH1: 115%~135% rated output voltage
Withstand voltage	I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute
Working temperature	-20~+70°C (refer to output derating curve)
Leakage current	Less than 250uA at 264VAC
Safety standards	ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards	EN55011 / EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN60601-1-2, EN61204-3 medical level
Connection	3+8P / 3.96mm pitch, JST P/N: B3P / B8P-VH
Dimension (LxWxH)	127x 76x 28 mm
Setup, rise, hold up time	500ms, 30ms, 80ms at full load and 230VAC
Packing	0.26kg ; 63pcs / 16.3kg / 1.35CUFT

Specifications

Brand

Mean Well
Series

RPS Series
Power Rating

75.6 Watt
Output Voltage

12 Volt
Rated Current

6.3 Ampere
Input Voltage

90V~264V
No of Output

1
Dimming Control

None
Standards Met

CB,CE,cUL,EAC,SHIDE
Operation Mode

Constant Voltage
Operating Temperature

-20°C~70°C
Warranty

3 Year
Length

5 in
Width

3 in
Height

1.22 in
Weight

0.57 lb

File Downloads
