Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

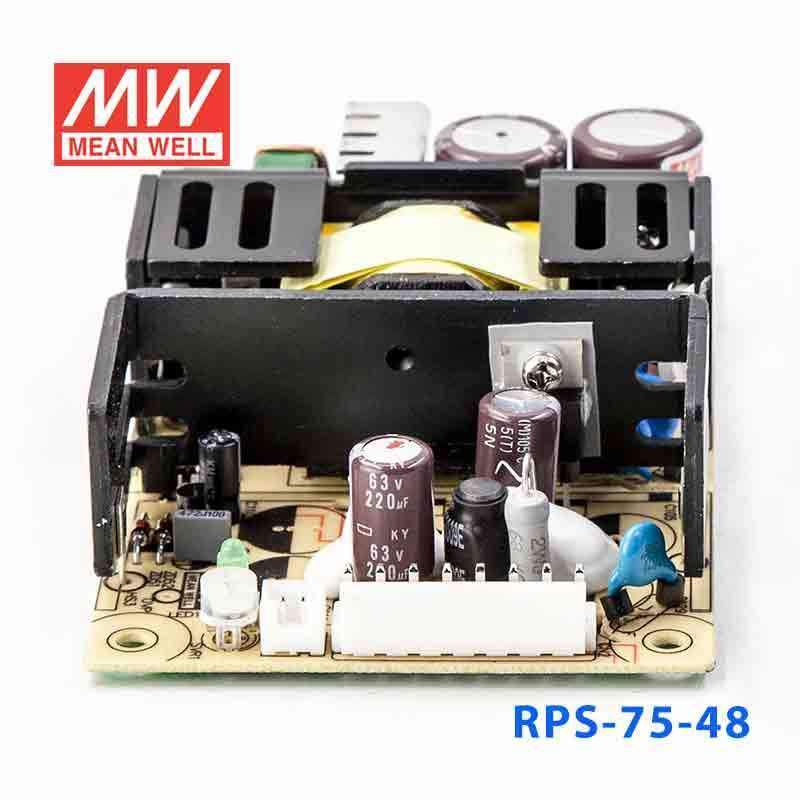

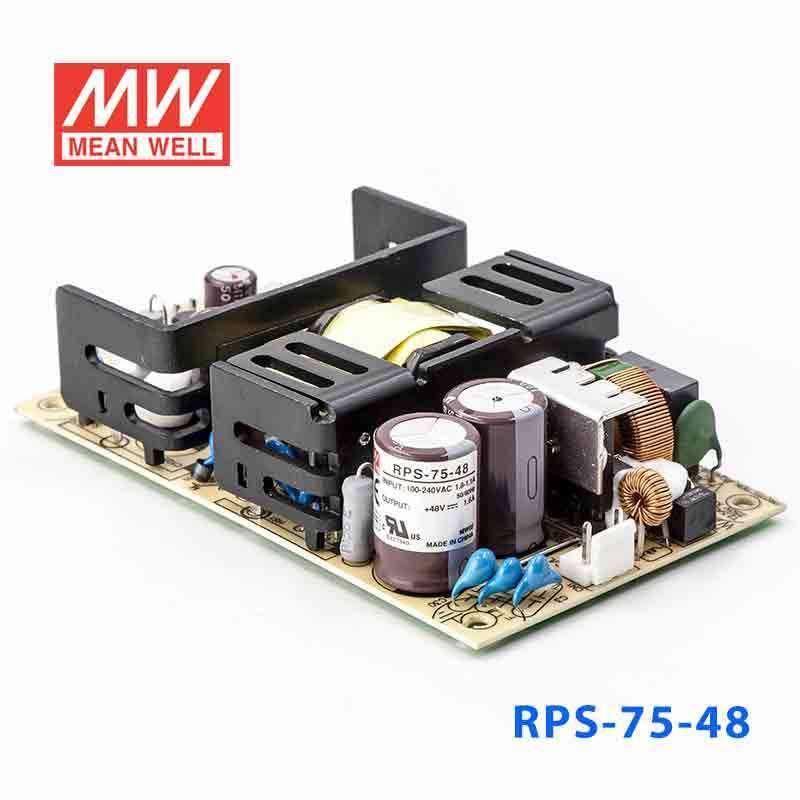

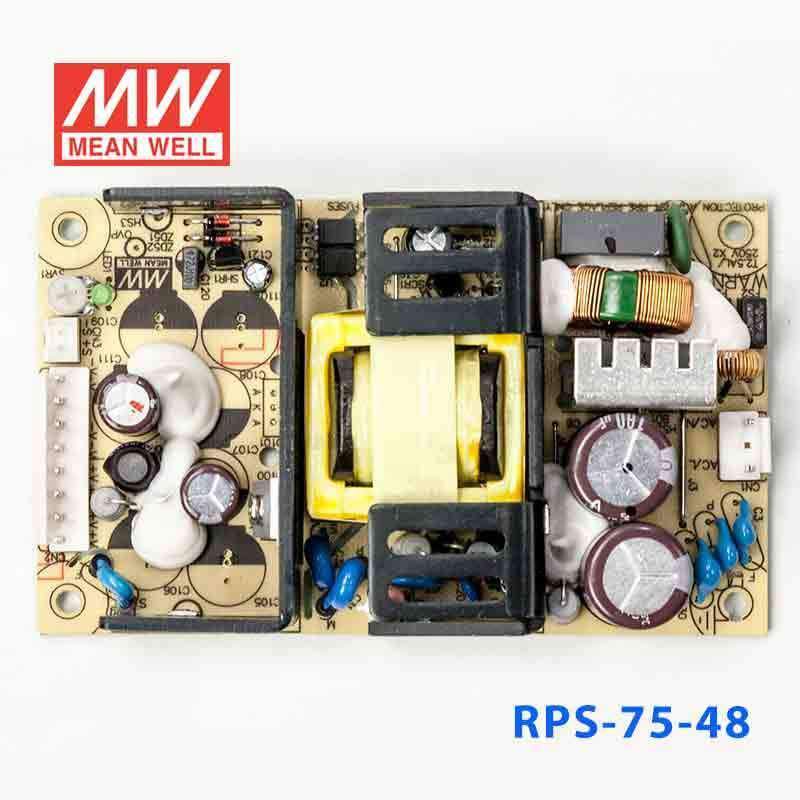

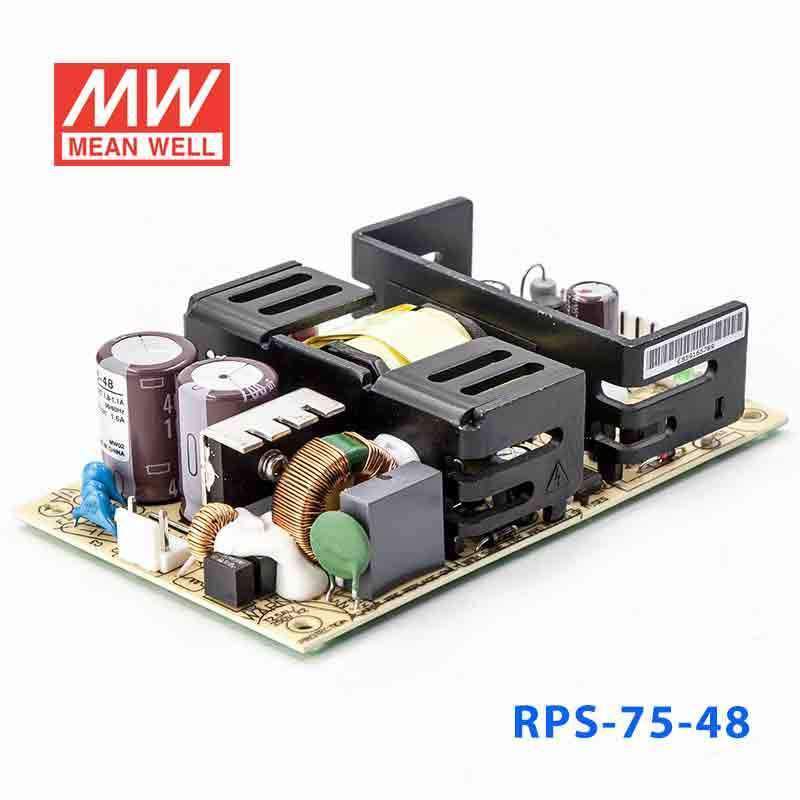

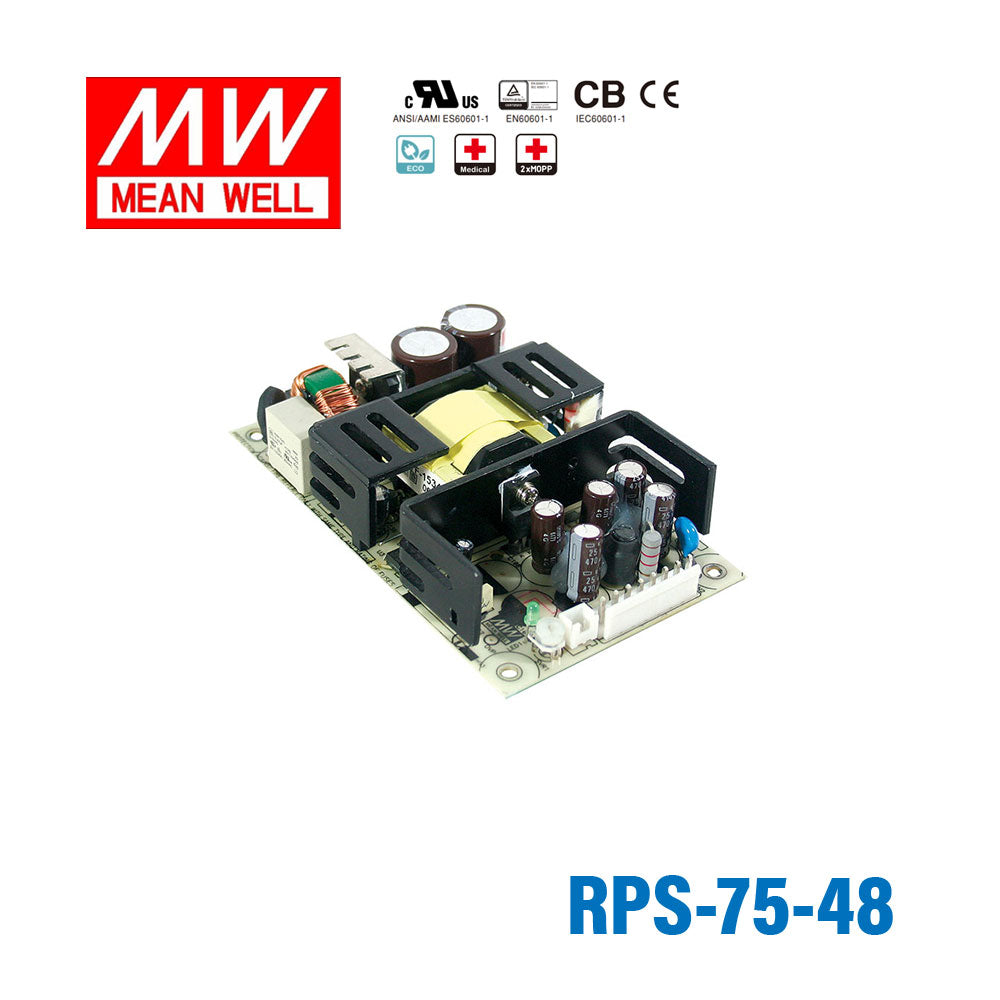

Mean Well RPS-75-48 Green Power Supply W 48V 1.6A - Medical Power Supply

$26.11 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range
Medical safety approved (2xMOPP)
Protections: Short circuit / Overload / Over voltage
Low leakage current<=250uA
Fixed switching frequency at 65kHz
Free air convection for 75W and 100W with 23.5CFM forced air
Suitable for medical & IT applications
No load power consumption <0.75W
3 years warranty

General Specification

AC input voltage range 90~264VAC; 127~370VDC
AC inrush current Cold start, 25A at 115VAC, 50A at 230VAC
DC adjustment range CH1: -5%~+10% rated output voltage
Overload protection 140%~180% hiccup mode, auto-recovery
Over voltage protection CH1: 115%~135% rated output voltage
Withstand voltage I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute
Working temperature -20~+70°C (refer to output derating curve)
Leakage current Less than 250uA at 264VAC
Safety standards ANSI/AAMI ES60601-1, TUV EN60601-1 approved
EMC standards EN55011 / EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN60601-1-2, EN61204-3 medical level
Connection 3+8P / 3.96mm pitch, JST P/N: B3P / B8P-VH
Dimension (LxWxH) 127x 76x 28 mm
Setup, rise, hold up time 500ms, 30ms, 80ms at full load and 230VAC
Packing 0.26kg ; 63pcs / 16.3kg / 1.35CUFT

Specifications

  • Brand
    Mean Well
  • Series
    RPS Series
  • Power Rating
    76.8 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.6 Ampere
  • Input Voltage
    90V~264V
  • No of Output
    1
  • Dimming Control
    None
  • Standards Met
    CB,CE,cUL,EAC,SHIDE
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~70°C
  • Warranty
    3 Year
  • Length
    5 in
  • Width
    3 in
  • Height
    1.22 in
  • Weight
    0.57 lb
