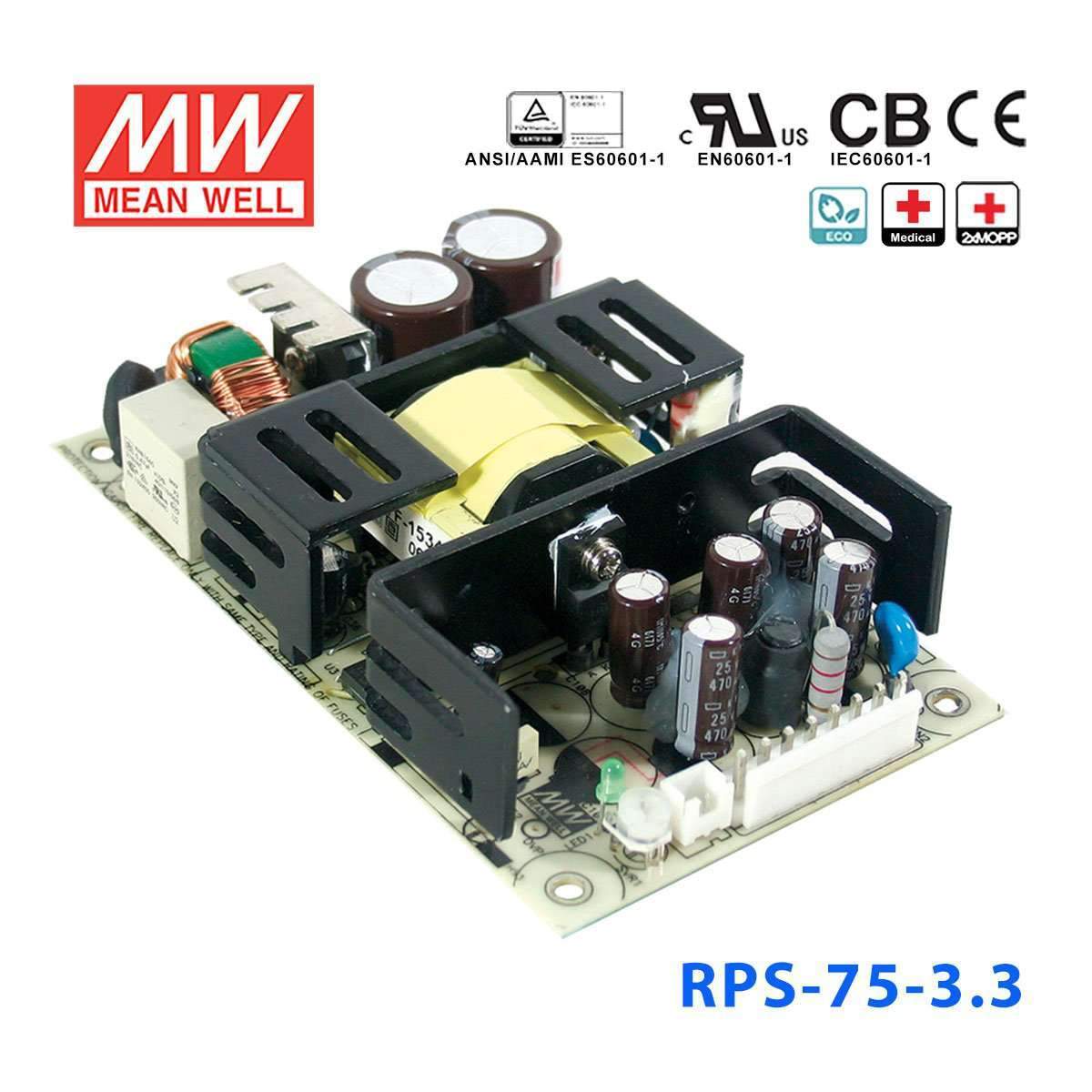

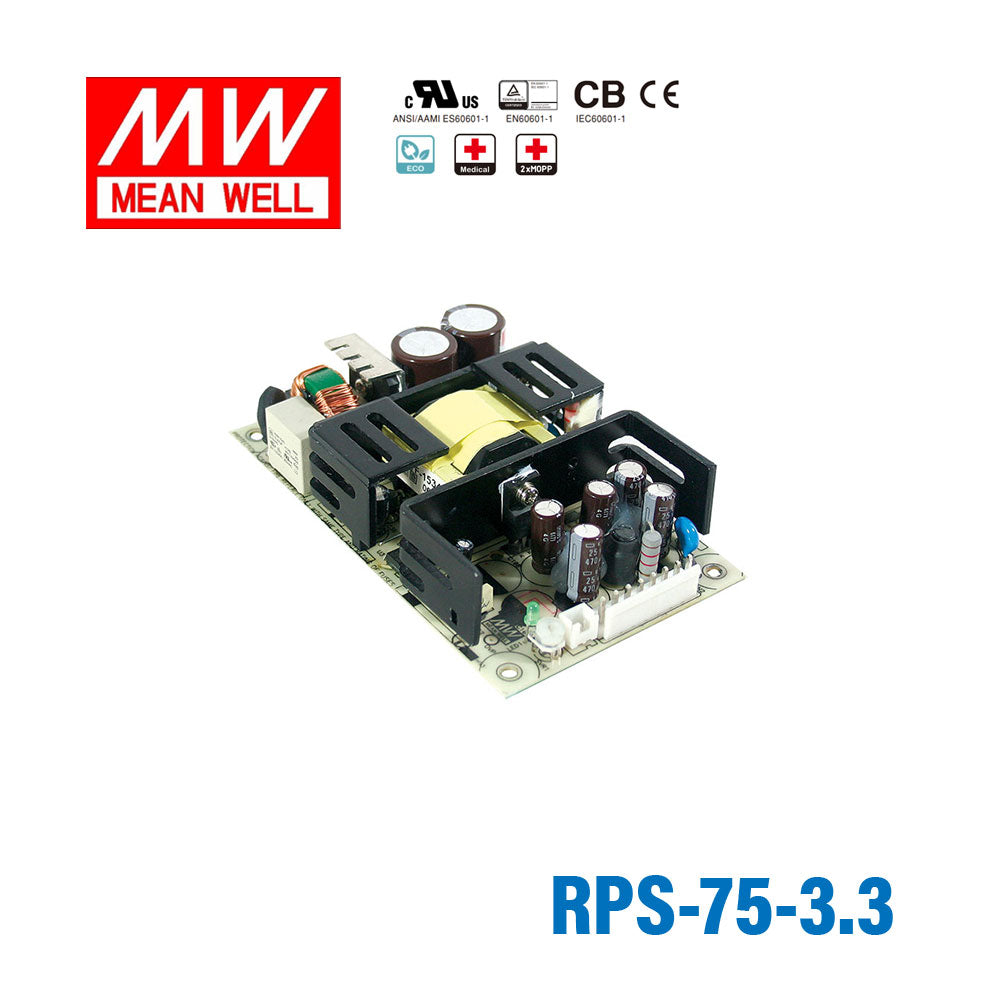

Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power Supply
5" x 3" compact size, medical safety approved, no load power consumption < 0.75W, lifetime > 80K hours
$23.50 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well RPS-75-3.3 Green Power Supply W 3.3V 15A - Medical Power ...
$23.50 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Medical safety approved (2xMOPP) |
| Protections: Short circuit / Overload / Over voltage |
| Low leakage current<=250uA |
| Fixed switching frequency at 65kHz |
| Free air convection for 75W and 100W with 23.5CFM forced air |
| Suitable for medical & IT applications |
| No load power consumption <0.75W |
| 3 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current | Cold start, 25A at 115VAC, 50A at 230VAC |
| DC adjustment range | CH1: -5%~+10% rated output voltage |
| Overload protection | 140%~180% hiccup mode, auto-recovery |
| Over voltage protection | CH1: 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 4kVAC, I/P-FG: 2kVAC, 1 minute |
| Working temperature | -20~+70°C (refer to output derating curve) |
| Leakage current | Less than 250uA at 264VAC |
| Safety standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved |
| EMC standards | EN55011 / EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN60601-1-2, EN61204-3 medical level |
| Connection | 3+8P / 3.96mm pitch, JST P/N: B3P / B8P-VH |
| Dimension (LxWxH) | 127x 76x 28 mm |
| Setup, rise, hold up time | 500ms, 30ms, 80ms at full load and 230VAC |
| Packing | 0.26kg ; 63pcs / 16.3kg / 1.35CUFT |
Specifications
Specifications
-
BrandMean Well
-
SeriesRPS Series
-
Power Rating49.5 Watt
-
Output Voltage3.3 Volt
-
Rated Current15 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,cUL,EAC,SHIDE
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length5 in
-
Width3 in
-
Height1.22 in
-
Weight0.57 lb
